- New
Generator set 66KVA Silent Stage II
Maximum three-phase power: 66 KVA
Continuous three-phase power: 60 KVA
Maximum three-phase power: 53 KW
Continuous three-phase power: 48 KW
Fuel: Diesel
Voltage: 230/400 V
Engine: FPT N45SM1A
Protection rating: IP23
Start: Electric
Tank capacity: 100 lt.
Length: 2260 mm
Width: 1000 mm
Height: 1420 mm
Weight: 1250 Kg
- Phase
- Three phase
- Maximum power three phase (KW)
- 53
- Continuous power three phase (KW)
- 48
- Maximum power three phase (KVA)
- 66
- Continuous power three phase (KVA)
- 60
- Fuel
- Diesel
- Frequency (Hz)
- 50
- Voltage (V)
- 230 / 400
- Engine
- FPT N45SM1A
- Emissions Regulations
- Stage 2
- Engine rpm (rpm)
- 1500
- Speed governor
- Mechanical
- Starting system
- Electric
- Engine capacity (cm³)
- 4500
- Number cylinders
- 4
- Cylinders' position
- In line
- Protection degree
- IP23
- Fuel tank capacity (L)
- 100
- Consumption (L/h)
- 13.3 at 75% Load
- Running time (h)
- 10.2
- Acoustic pressure
- 65 dB(A) at 7 m
- Length (mm)
- 2260
- Width (mm)
- 1000
- Height (mm)
- 1420
- Dry weight (Kg)
- 1250
- Silenced
- Yes
- Super silenced
- Yes
- ATS Switch device
- Optional
- Voltage regulator
- AVR

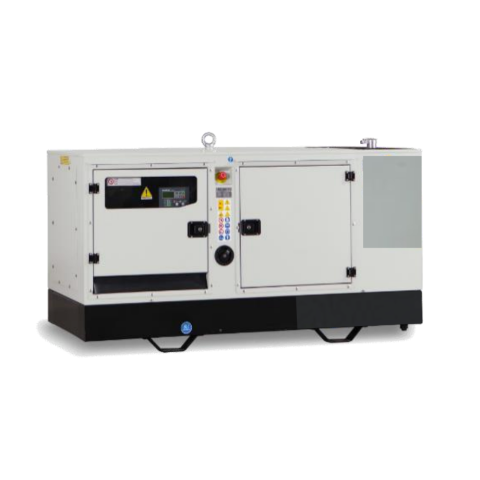

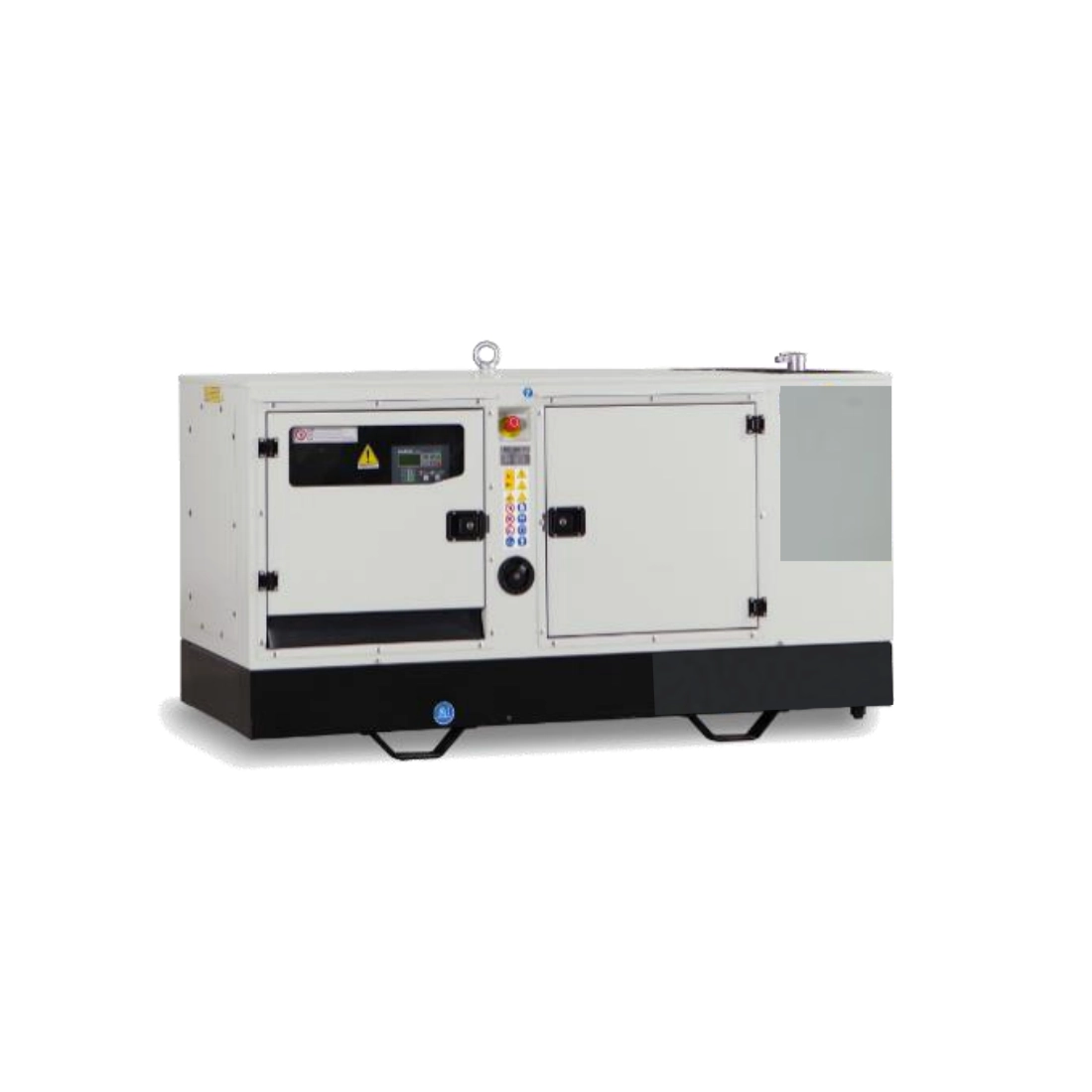

Generator set 66KVA Silent Stage II
66KVA Silent Stage II Generator - Power and Reliability
This three-phase generator is the ideal solution for providing emergency or continuous power supply in various industrial and commercial applications. With a maximum power of 66 KVA and a continuous power of 60 KVA, this generator is capable of powering a wide range of electrical equipment, even under high load conditions.
Main features:
Powerful engine: Equipped with a robust FPT N45SM1A diesel engine, synonymous with reliability and durability.
Regulatory compliance: Complies with Stage II emissions regulations, ensuring low environmental impact.
Silence: Thanks to the soundproofing system, the noise level is reduced, allowing use in noise-sensitive environments.
Compact and easy to handle: With small dimensions (2260x1000x1420 mm) and a weight of 1250 kg, it is easy to transport and install.
Autonomy: The 100-liter tank guarantees adequate autonomy for many applications.
Protection: The IP23 protection rating ensures good resistance to dust and water splashes.
Electric start: The electric start makes starting the generator quick and easy.
Technical Features:
Maximum three-phase power: 66 KVA
Continuous three-phase power: 60 KVA
Maximum three-phase power: 53 KW
Continuous three-phase power: 48 KW
Fuel: Diesel
Voltage: 230/400 V
Engine: FPT N45SM1A
Protection rating: IP23
Start: Electric
Tank capacity: 100 lt.
Length: 2260 mm
Width: 1000 mm
Height: 1420 mm
Weight: 1250 Kg
