Generator 66.0 kVA Silenced 100L

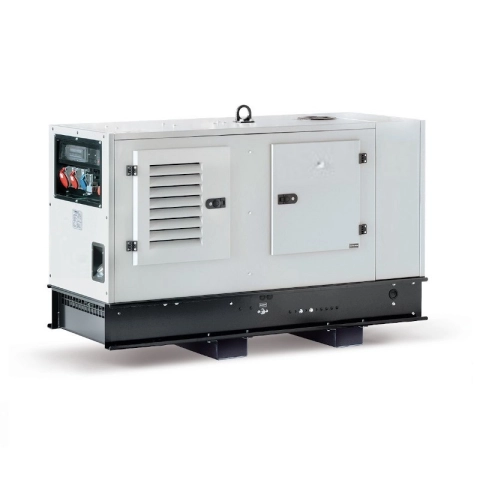

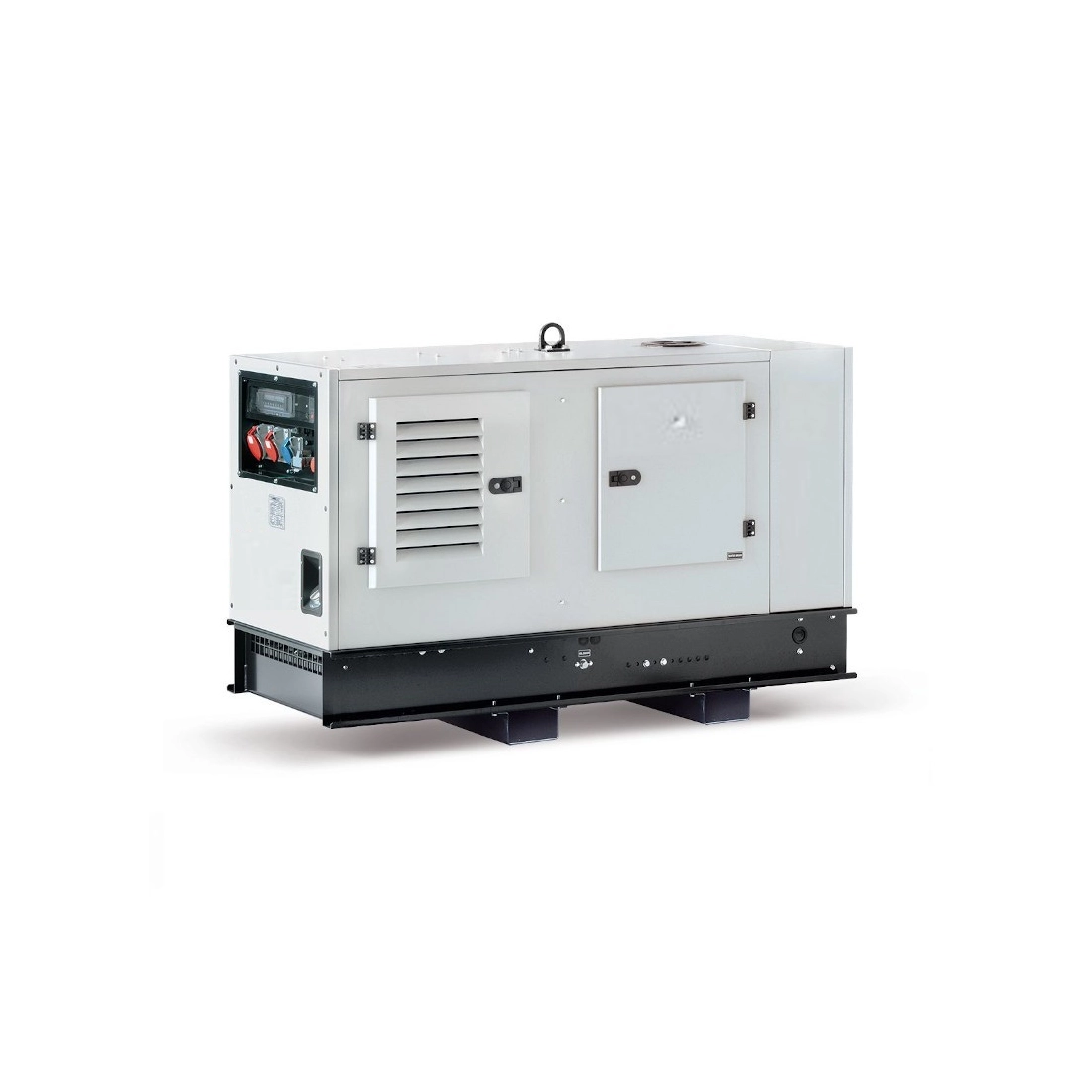

66.0KVA SILENCED GENERATOR 100L

The 66kVA Silenced Generator 100L is a generator designed to meet the demands of professional and industrial applications, offering a combination of power, reliability, and low acoustic impact. With a continuous PRP power of 60kVA and a standby LTP power of 66kVA, this generator ensures high performance even in intense usage conditions.

The 66kVA Silenced Generator 100L features an analog fuel gauge and a terminal block for the total power draw.

This generator offers a continuous PRP power of 60 kVA and a standby LTP power of 66 kVA, ensuring high performance in all situations. Its Silenced 100L structure includes a 100-liter tank with a spill containment basin, ensuring extended autonomy and safe operation.

Technical Specifications of the 66.0KVA Silenced Generator 100L:

Phase Type: Single Phase / Three Phase
Continuous Power (Three Phase): 60.0 KVA / 48.0 KW
Maximum Power (Three Phase): 66.0 KVA / 53.0 KW
Engine: Perkins 1103A-33TG2
Start Type: Electric
Fuel Type: Diesel
Socket Panel: 1 x Schuko 16A 230V - 2 x 16A 230V - 1 x 32A 400V
Voltage: 230 / 400 V
Frequency: 50 Hz
Engine Speed: 1500 rpm
Fuel Tank Capacity: 100 L
Autonomy @ 75%: 7.19 fixed speed
Voltage Regulator: AVR
Sound Pressure @7m: 66 dBa
Length (mm): 2000
Width (mm): 960
Height (mm): 1263
Dry Weight (Kg): 1061

Structural Features

• High-quality steel frame, durable with anti-vibration mounts.
• Soundproof enclosure with eco-friendly sound-absorbing panels, noise level reduced to 66 dBA at 7 meters.
• Large doors for easy and safe maintenance, equipped with key locks.

Electrical Panel

• Sockets: 1x32A 400V, 2x16A 230V, 1x Schuko.
• DSE4510 Control Unit: detailed monitoring, advanced protections, and remote start option.

The 66kVA Silenced Generator 100L is the ideal choice for those seeking the perfect combination of power, quiet operation, and durability.

If you are looking for another product, you can check our catalog for other terrestrial generator sets.
Images and technical data are not binding.
