HONDA ECT 7000 Petrol Single / Three Phase Generator max. 7 kW
FUORI PRODUZIONE
Output technology: Condenser
Type: Single/Three phase
Maximum output Single Phase (kW): 4
Maximum output Three Phase (kW): 7
Rated output Single Phase (kW): 3.6
Rated output Three Phase (kW): 6.5
Maximum output Single Phase (kVA): 5.0
Maximum output Three Phase (kVA): 8.75
Rated output Single Phase (kVA): 4.5
Rated output Three Phase (kVA): 8.12
Fuel : Petrol
Rated voltage (V): 230/400
Rated frequency (Hz): 50
Rated current (A): 16/9.5
Engine model: Honda GC390T1
Engine type: 4-stroke, OHV, 1 cylinder
Starter system: Manual
Operating time at rated: 2h 10
Length (mm): 800
Width (mm): 550
Height (mm): 540
Dry weight (kg): 77
- Phase
- Single phase / Three phase
- Maximum power single phase (KW)
- 4
- Continuous power single phase (KW)
- 3.6
- Maximum power single phase (KVA)
- 5
- Continuous power single phase (KVA)
- 4.2
- Maximum power three phase (KW)
- 7
- Continuous power three phase (KW)
- 6.5
- Maximum power three phase (KVA)
- 8.75
- Continuous power three phase (KVA)
- 8.12
- Fuel
- Gasoline
- Frequency (Hz)
- 50
- Voltage (V)
- 230 / 400
- Sockets configuration
- 1 x 400V CEE - 2 x 230V SCHUKO
- Engine
- Honda GX390 T1, 4 stroke, OHV
- Engine rpm (rpm)
- 3000
- Ignition
- Transistorized
- Starting system
- Manual
- Engine capacity (cm³)
- 389
- Number cylinders
- 1
- Oil capacity (L)
- 1.1
- Cooling
- Air
- Alternator
- Tripolar
- Bore x stroke (mm)
- 88 x 64
- Fuel tank capacity (L)
- 6.2
- Consumption (L/h)
- 2.75
- Running time (h)
- 2.25
- Acoustic power
- 97 dB(A)
- Acoustic pressure
- 86 dB(A)
- Length (mm)
- 800
- Width (mm)
- 550
- Height (mm)
- 540
- Dry weight (Kg)
- 77
- Silenced
- No
- Super silenced
- No
- Product type
- Generator
- ATS Switch device
- No
- Voltage regulator
- Compound
- Engine manufacturer
- Honda
When it comes to a generator on a construction site, you don’t want to cut corners on quality. Always choose a Honda for those jobs that need to be done with minimum fuss. They’re tough and always ready to go.
Plenty of energy
Simplicity and cost effectiveness go hand in hand with a condenser/inductive type EC generator. The power produced is perfect for resistive loads like power drills, circular saws and concrete breakers.
LET’S START WORK
Just fire it up and forget it.

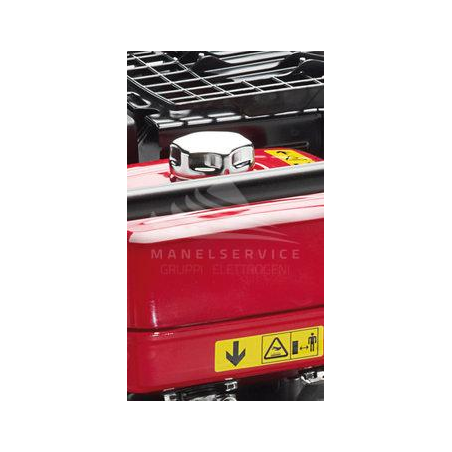

Quick and easy: the accessible ergonomic fuel filler cap is right where you need it – on top.

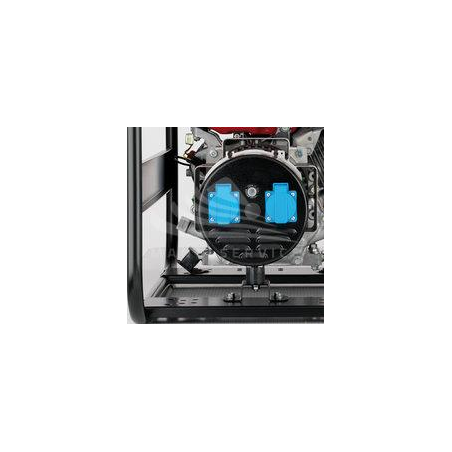

Practical sockets and controls make starting and running the generator quick and simple. Just start it and let it get on with the job, because the unique Oil Alert™ will automatically switch off the ignition if the oil drops below a safe level. It’s as safe as safe can be.
Smooth running
Honda has built an engine mount system into the durable steel frame. These rubber shock absorbers are positioned either side of the engine at 45˚ and significantly reduce the engine vibration of an already quiet machine.
The photoes are for illustrative purpose only.
