WHISPER W-SQ 22,5 MOBILE GENERATOR 22KW SINGLE-PHASE/THREE-PHASE AVR

  • New
whisper w sq 225 mobile generator 22kw single phasethree phase avr
search
  • whisper w sq 225 mobile generator 22kw single phasethree phase avr
  • whisper w sq 225 mobile generator 22kw single phasethree phase avr
  • whisper w sq 225 mobile generator 22kw single phasethree phase avr
  • whisper w sq 225 mobile generator 22kw single phasethree phase avr
  • whisper w sq 225 mobile generator 22kw single phasethree phase avr
WHISPER POWER
41131220
New product

Phase type: Single-phase / Three-phase
Maximum power: 24.7 KVA / 22 KW
Continuous power: 22.5 KVA / 20 KW
Fuel: Diesel
Voltage: 230/400 V
Frequency: 50 Hz (60 Hz)
Engine: Mitsubishi S4S - 4 Cylinders
Emissions standard: Not Emissions
Number of cylinders: 4
Engine rpm: 1500/1800 rpm
Sound power: 58 dBA
Fuel consumption: 6 l/h at 100% load
Voltage regulator: AVR + EBS
Length: 1260 mm
Depth: 680 mm
Height: 800 mm
Net weight: 580 Kg

Technical features
Phase
Single phase / Three phase
Maximum power three phase (KW)
22
Continuous power three phase (KW)
20
Maximum power three phase (KVA)
24.7
Continuous power three phase (KVA)
22.5
Fuel
Diesel
Frequency (Hz)
50 (60 on request)
Voltage (V)
230 / 400
Engine
Mitsubishi S4S
Emissions Regulations
Not Emitted
Engine rpm (rpm)
1500/1800
Number cylinders
4
Cooling
Indirect
Consumption (L/h)
6 at 100% of the load
Acoustic pressure
58 dB(A)
Length (mm)
1260
Width (mm)
680
Height (mm)
800
Dry weight (Kg)
580
Silenced
Yes
Super silenced
Yes
Product type
Generator
Voltage regulator
AVR + EBS
Engine manufacturer
Mitsubishi
Details

WHISPER W-SQ 22,5 MOBILE GENERATOR 22KW SINGLE-PHASE/THREE-PHASE AVR

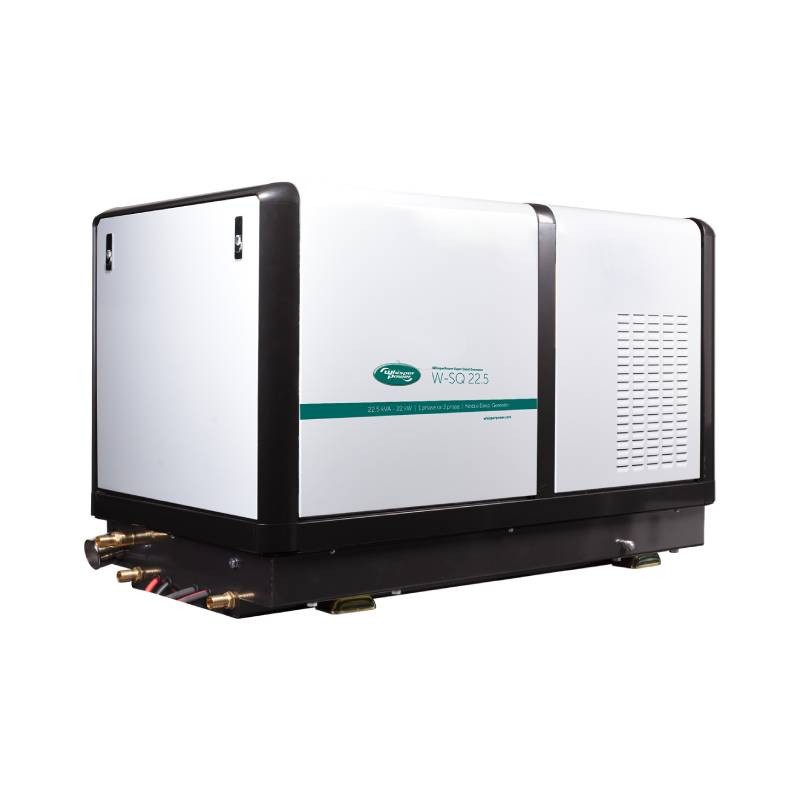

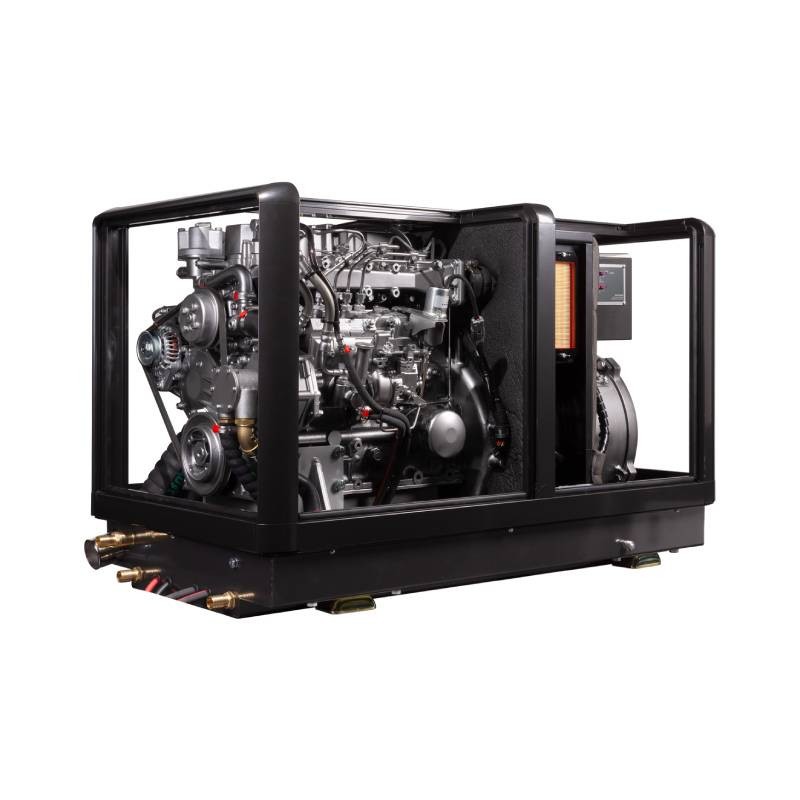

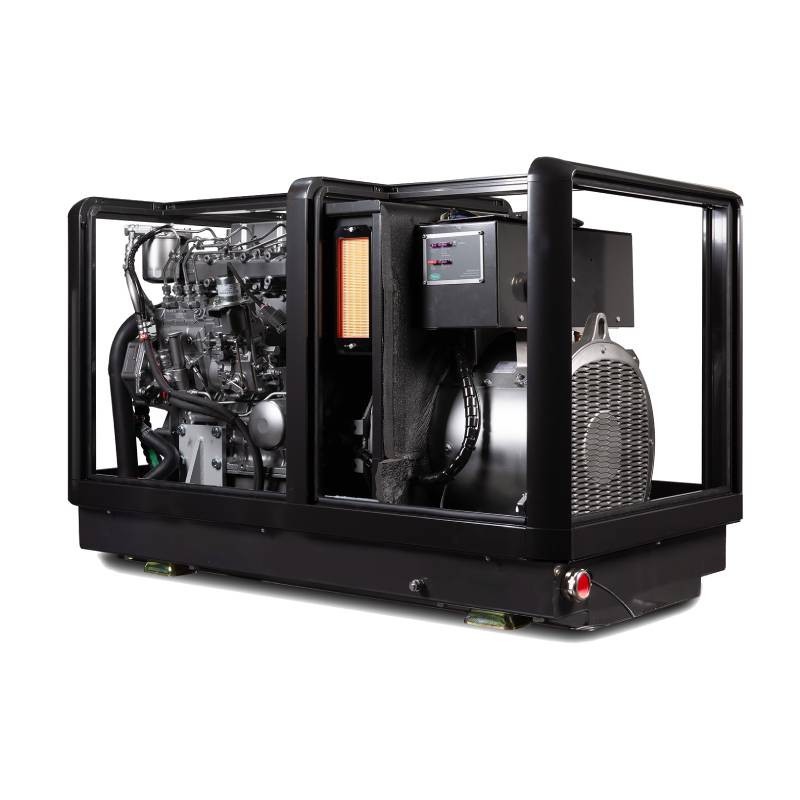

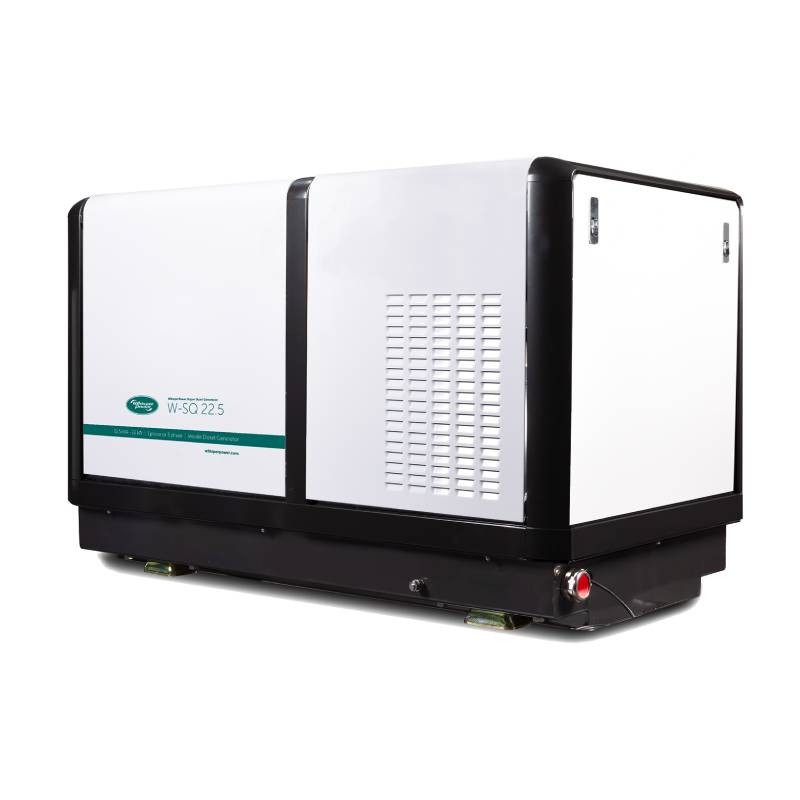

WHISPER W-SQ 22,5 Single-phase / three-phase mobile generator with Mitsubishi S4S engine powered by diesel, delivers a power of 22KW, complete with AVR and EBS voltage regulator.

The WHISPER W-SQ 22,5 vehicular generator comes standard with a robust acoustic case with anti-corrosion metal plating and heavy insulating material for optimal sound reduction. The hearing protector features easy access to all sides of the generator and offers access to all maintenance-related components from one side only.

Thanks to the AVR technology electrical stabilizer that works at very low distortion, WHISPER W-SQ 22,5 delivers constant current loads without voltage peaks that could damage electrical and electronic devices. A further advantage of the inverter is that it works with variable motor revolutions, based on the need for the current to be supplied, optimizing fuel consumption, gas emissions and wear of the mechanical parts in the best possible way.

VOLTAGE REGULATOR

WHISPER W-SQ 22,5 is equipped with AVR which, mounted on an alternator, allows a generator set or current generator to stabilize the output voltage and does not damage the connected sensitive electronic devices. In the modern market, inverters have made a huge step forward in terms of technology and performance; for this reason the best brands of generator sets and alternators in the world are moving along this line of thought.

Technical characteristics WHISPER W-SQ 22,5:

Phase type: Single-phase / Three-phase
Maximum power: 24.7 KVA / 22 KW
Continuous power: 22.5 KVA / 20 KW
Fuel: Diesel
Voltage: 230/400 V
Frequency: 50 Hz (60 Hz)
Engine: Mitsubishi S4S - 4 Cylinders
Emissions standard: Not Emissions
Number of cylinders: 4
Engine rpm: 1500/1800 rpm
Sound power: 58 dBA
Fuel consumption: 6 l/h at 100% load
Voltage regulator: AVR + EBS
Length: 1260 mm
Depth: 680 mm
Height: 800 mm
Net weight: 580 Kg

Are you looking for a product with different technical characteristics? HERE you can find the area dedicated to WHISPER vehicle generators or other specialized brands.

Non-binding images and technical data.

Technical Sheet / Manuals
List price
42.670,62 € tax incl.
34.975,92 € tax excl.
Discounted Price
30.210,79 € tax incl.
24.762,94 € tax excl.
Quantity

loader
188,00 € shipped to Italy

Calculate Shipping Cost
Add to wishlist
Download PDF
Ask a question
Product: WHISPER W-SQ 22,5 MOBILE GENERATOR 22KW SINGLE-PHASE/THREE-PHASE AVR
Offer on letterhead
Product: WHISPER W-SQ 22,5 MOBILE GENERATOR 22KW SINGLE-PHASE/THREE-PHASE AVR
Technical features
Phase
Single phase / Three phase
Maximum power three phase (KW)
22
Continuous power three phase (KW)
20
Maximum power three phase (KVA)
24.7
Continuous power three phase (KVA)
22.5
Fuel
Diesel
Frequency (Hz)
50 (60 on request)
Voltage (V)
230 / 400
Engine
Mitsubishi S4S
Emissions Regulations
Not Emitted
Engine rpm (rpm)
1500/1800
Number cylinders
4
Cooling
Indirect
Consumption (L/h)
6 at 100% of the load
Acoustic pressure
58 dB(A)
Length (mm)
1260
Width (mm)
680
Height (mm)
800
Dry weight (Kg)
580
Silenced
Yes
Super silenced
Yes
Product type
Generator
Voltage regulator
AVR + EBS
Engine manufacturer
Mitsubishi
Details
Technical Sheet / Manuals
