- New
WHISPER W-SQ PRO 15 MOBILE GENERATOR 15KVA SINGLE-PHASE STAGEV AVR
Phase Type: Single Phase
Maximum Power: 15.6 KVA / 12.5 KW
Continuous Power: 15 KVA / 12 KW
Fuel: Diesel
Voltage: 230 V
Frequency: 50 Hz (60 Hz)
Engine: Kubota V1505 BG
Emissions standard: StageV certified / EPA / Tier 4
Number of cylinders: 4
Engine speed: 1500 rpm
Acoustic power: 55 dBA
Voltage regulator: AVR
Length: 1145 mm
Depth: 625 mm
Height: 690 mm
Net weight: 410 Kg
- Phase
- Single phase
- Maximum power single phase (KW)
- 12.5
- Continuous power single phase (KW)
- 12
- Maximum power single phase (KVA)
- 15.6
- Continuous power single phase (KVA)
- 15
- Fuel
- Diesel
- Frequency (Hz)
- 50
- Voltage (V)
- 230
- Engine
- Kubota V1505 BG
- Emissions Regulations
- STAGEV / EPA / TIER 4
- Engine rpm (rpm)
- 1500
- Number cylinders
- 4
- Cooling
- External radiator cooling
- Acoustic pressure
- 55 dB(A)
- Length (mm)
- 1145
- Width (mm)
- 625
- Height (mm)
- 690
- Dry weight (Kg)
- 410
- Silenced
- Yes
- Super silenced
- Yes
- Product type
- Generator
- Voltage regulator
- AVR
- Engine manufacturer
- Kubota
WHISPER W-SQ PRO 15 SINGLE-PHASE MOBILE GENERATOR 15KVA STAGEV AVR

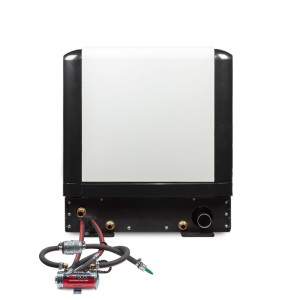

WHISPER W-SQ PRO 15 Single-phase mobile generator with diesel-powered Kubota V1505 BG StageV engine delivers a power of 15KVA, complete with AVR voltage regulator. p>
The vehicular generator is powered up. equipped as standard with a robust acoustic capsule with anti-corrosion metal plating and insulating material for optimal sound reduction. Hearing protection is a must. equipped with easy access to all sides of the generator and offers access to all maintenance-related components from one side only.
Thanks to the electrical stabilizer of AVR technology that works at very low distortion, WHISPER W-SQ PRO 15 delivers constant current loads without voltage peaks that could damage electrical and electronic devices. Another advantage of the inverter is; that of working with variable engine revolutions, based on the need; current to be supplied, optimizing fuel consumption, gas emissions and wear of mechanical parts. Automatically operate air conditioning/heating systems, heavy tools, compressors, cookers, lights, refrigeration and cooling systems, computers and more. All at the same time, depending on the load.
VOLTAGE REGULATOR
WHISPER W-SQ PRO 15 is equipped with AVR, which, when mounted on an alternator, allows a generator set or generator to stabilize the output voltage and does not ruin the connected sensitive electronic equipment. In the modern market, inverters have taken a huge step forward in technology and performance; therefore, the world's top genset and alternator brands are moving along this line of thinking.
An important feature of the SQ Pro range is the 7-inch color touch screen control that will be linked with WhisperCare. This allows complete control of the W-SQ Pro 15 generator system. A perfect solution for instant and/or historical information with an attractive display.
STAGEV / EPA / TIER 4 EMISSION REGULATIONS
WHISPER W-SQ PRO 15 is equipped with STAGEV "mobile" motorization, as required by European Regulation 2016/1628. These new motorizations make it possible to exponentially reduce the emissions of particulate matter and nitrogen oxides delivered by the generator to the environment, and ensure a 200% reduction in environmental impact compared to standard motorizations.
DeepSea Control Features (Optional)
- Features; group parallel included (ask for more details)
- Provides secure and easy offsite monitoring (optional)
- Allows you to quickly resolve fault conditions and provide instant system information to aid in preventive maintenance
- Graphic displays showing, graphs, meters, power display, graphs and engine status information
- The information is displayed clearly and in a universal format for all users
- Language of your choice
Technical characteristics WHISPER W-SQ PRO 15:
Phase Type: Single Phase
Maximum Power: 15.6 KVA / 12.5 KW
Continuous Power: 15 KVA / 12 KW
Fuel: Diesel
Voltage: 230 V
Frequency: 50 Hz (60 Hz)
Engine: Kubota V1505 BG
Emissions standard: StageV certified / EPA / Tier 4
Number of cylinders: 4
Engine speed: 1500 rpm
Acoustic power: 55 dBA
Voltage regulator: AVR
Length: 1145 mm
Depth: 625 mm
Height: 690 mm
Net weight: 410 Kg
Are you looking for a product with different technical characteristics? HERE you can find the area dedicated to WHISPER vehicle generators or those of other specialized brands.
Images and non-binding technical data.
