MOSA GE 45 YSX STAGE 3A
Single-phase continuous use power: 12.4 KW
Maximum power three-phase: 36.8 KW
Three phase continuous use power: 33.6 KW
Fuel: Diesel
Voltage: 230 V / 400 V
Frequency: 50 Hz
Engine: Yanmar 4TNV98TZ
Starter: Electric
Acoustic power measured LwA: 90 dB(A) (65 dB(A) @ 7m)
Consumption: 7.4 Lt/h at 75% of the load
Length: 2050 mm
Width: 900 mm
Height: 1420 mm
Weight: 1020 Kg
Supersilenced
AVR

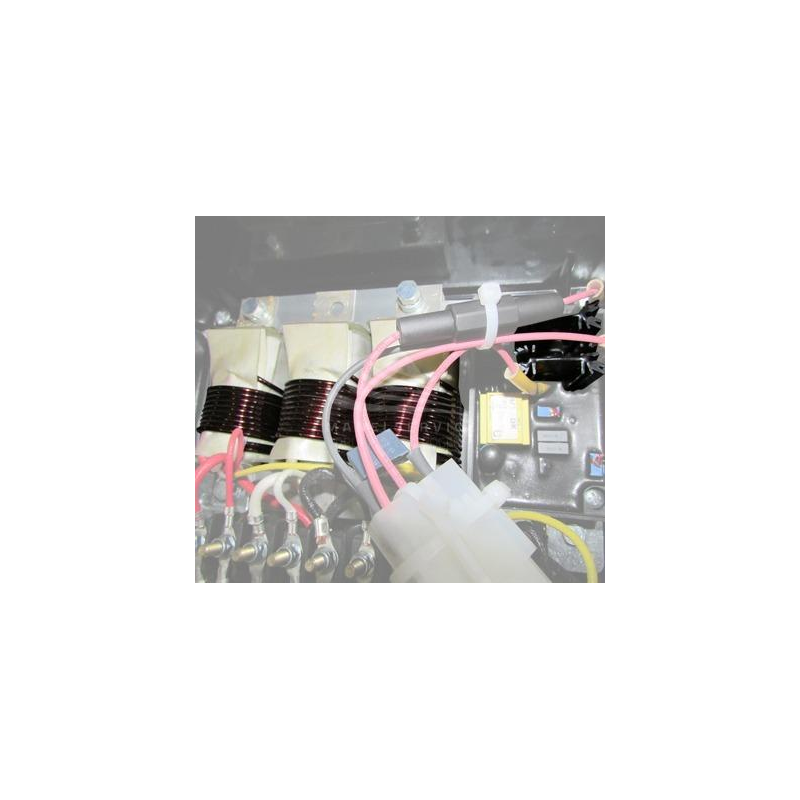

Compound
- Phase
- Single phase / Three phase
- Continuous power single phase (KW)
- 12.4
- Continuous power single phase (KVA)
- 15.5
- Maximum power three phase (KW)
- 36.8
- Continuous power three phase (KW)
- 33.6
- Maximum power three phase (KVA)
- 46
- Continuous power three phase (KVA)
- 42
- Fuel
- Diesel
- Frequency (Hz)
- 50
- Voltage (V)
- 230 / 400
- Sockets configuration
- Terminal box
- Engine
- Yanmar 4TNV98TZ (Stage 3A)
- Emissions Regulations
- Stage 3A
- Engine rpm (rpm)
- 1500
- Starting system
- Electric
- Engine capacity (cm³)
- 3319
- Number cylinders
- 4
- Cooling
- Water
- Inyección
- Direct
- Alternator
- Sincrono trifase, autoeccitato, autoregolato, senza spazzole
- Product type
- Generator
- ATS Switch device
- Optional
- Voltage regulator
- AVR
- Engine manufacturer
- Yanmar
MOSA GE45 YSX 36,8 KW generating set
MOSA GE45 YSX three-phase 36.8 KW generator set with Yanmar diesel engine. The MOSA GE45 YSX generator set is equipped with electric start. The alternator of the MOSA GE45 YSX generator set is synchronous, three-phase, self-excited, self-regulated, brushless with class H insulation with AVR voltage regulator. This MOSA is compact and easy to maneuver and transport thanks to its compact size, with a weight of 1020 Kg as well as the practical pierceable base. The MOSA GE45 YSX generator set with a 100-liter fuel tank has a fuel consumption of 7.4 liters/hour at 75% load for an autonomy of more than 13 hours.
Specifically, the MOSA GE45 YSX is a compact and easy to maneuver and transport thanks to its compact size, weighing 1020 kg and its practical forked base.
Technical specifications:
Three-phase Stand-By Output (LTP): 46 kVA (36.8 kW) / 400V / 66.4 A
Three-phase Output: 42 kVA (33.6 kW) / 400V / 60.6 A
Frequency: 50 Hz
Cos ϕ: 0.8
ENGINE TECHNICAL DATA
Model: YANMAR 4TNV98T-Z Stage 3A
Net standby output: 41.9 kW (57 hp)
Net PRP output: 37.9 kW (51.5 hp)
Cylinders / Displacement: 4 / 3.3. l
Bore / Stroke: 98 / 110 (mm)
Compression ratio: 18. 5 : 1
RPM controller: Electronic
110 % (Standby power): 11 l/h
100 % PRP: 9.8 l/h
75 % PRP: 7.4 l/h
50 % PRP: 5.1 l/h
Total capacity - engine only: 9 l - 4. 2 l
Fan air flow rate: 70 m³/min
Sump oil capacity: 4.5 l (min) - 11.2 l (max)
Max. exhaust gas temperature: 620 °C
Max. back pressure: 9.8 kPa (0. 1 bar)
Electrical system: 12 Vdc
Starter motor power: 2.3 kW
Battery charging alternator capacity: 40 A
Cold start: - 15°C
Air filter: Dry
Combustion air flow: 3.2 m³/min
TECHNICAL DATA ALTERNATOR
Continuous power: 47 kVA
Stand-by power: 42 kVA
Three-phase voltage: 380-415 Vac
Frequency: 50 Hz
A.V.R. model: HVR-30 (3ph. sensing)
Voltage regulation accuracy: ± 1 %
Sustained short-circuit current: 3 In
Transient Cdt (100% of load): 10 %
Response time: ≤ 3 sec.
Performance at 100% of load: 89. 3 % (400V - Cos ϕ 0. 8)
Isolation: Class H
Connection - Terminals: Star - No. 12
Electromagnetic compatibility: EN 55011
Harmonic distortion - THD: < 3 %
Telephone Interference - THF: < 2 %
Direct Synchronous - Xd: 253 %
Direct Transit - X'd: 20 %
Direct Subtransit - X "d: 8 %
Synchronous Quad. - Xq: 141 %
Transitory - T'd: 0.014 sec
Subtransitory - T "d: 0.008 sec
Unloaded - T'do: 0.180 sec
Short circuit ratio Kcc: 0. 60
Protection degree: IP 23
Cooling air flow: 0.13 m³/sec.
Coupling | Bearings: Direct SAE 3 -11.5 ½ - N°1
GENERAL SPECIFICATIONS
Tank capacity: 100 lt.
Run time (75% of PRP): 13. 5 h
Measured acoustic power LwA: 90 dB(A) (65 dB(A) @ 7m)
Guaranteed acoustic power LwA: 91 dB(A) (66 dB(A) @ 7m)
Performance class: G3
Length: 2050 mm
Width: 900 mm
Height: 1420 mm
Weight: 1020 kg
MOSA GE45 YSX - Yanmar diesel engine electric start - Three-phase alternator - Three-phase power 42 kVA (33.6 kW)
