GENMAC QUEEN G120JS-E3 THREE-PHASE 121 KVA DIESEL - MOTOR JOHN-DEERE STAGE 3A

GENMAC QUEEN G120JS-E3 121 KVA DIESEL
search
  • GENMAC QUEEN G120JS-E3 121 KVA DIESEL
  • GENMAC QUEEN G120JS-E3 121 KVA DIESEL
GENMAC
QUEEN G120JS-E- MOTORE JOHN-DEERE-AVR
New product

Phase Type: Single-phase / Three-phase
Maximum power LTP: 134 KVA
Maximum power LTP: 107 KW
Continuous power PRP: 121 KVA
Continuous power PRP: 97 KW
Fuel: Diesel
Frequency: 50 Hz
Voltage: 230 / 400 V
Engine: John-Deere 4045HFU82-120
Engine rpm: 1500 rpm
Cooling: Water
Length: 2950 mm
Width: 1056 mm
Height: 1900 mm
Weight: 1719 Kg
Super silenced
AVR

Technical features
Phase
Single phase / Three phase
Maximum power three phase (KW)
107
Continuous power three phase (KW)
97
Maximum power three phase (KVA)
134
Continuous power three phase (KVA)
121
Fuel
Diesel
Frequency (Hz)
50
Voltage (V)
230 / 400
Emissions Regulations
Stage 3A
Engine rpm (rpm)
1500
Speed governor
Electronic
Engine capacity (cm³)
4500
Number cylinders
4
Oil capacity (L)
15
Cooling
Water
Alternator
Mecc Alte
Width (mm)
1056
Height (mm)
1900
Dry weight (Kg)
1720
AVR
Yes
Silenced
Yes
Super silenced
Yes
Product type
Generator
ATS Switch device
No
Voltage regulator
AVR
Engine manufacturer
John Deere
Details

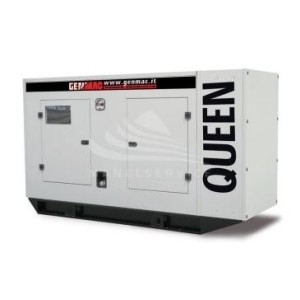

GENMAC QUEEN G120JS-E3

The GENMAC QUEEN G120JS-E3 is a 121 KVA super-silenced single-phase/three-phase diesel generator with Mecc Alte alternator and AVR voltage regulator.
Thanks to its diesel fuel supply, the GENMAC QUEEN G120JS-E3 can only consume 2.9 m³/h at full load and has a low environmental impact, making it one of the best in its class.
The long life and reliability of the GENMAC QUEEN G120JS-E3 is due to a special control procedure during the various stages of production.
The GENMAC QUEEN G120JS-E3 is suitable for applications in different contexts such as: hospitals, industries, shopping malls, hotels, airports, banks, universities, stadiums, offices, etc.

The Stage 3A engine allows the use of the generator set also for mobile use, for example for roadworks and rental services.

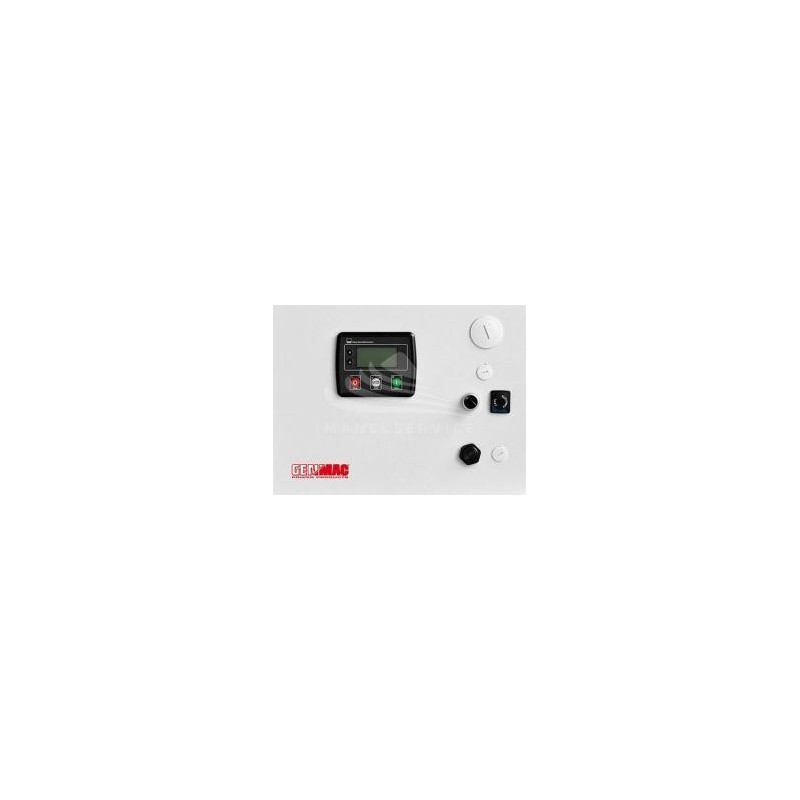

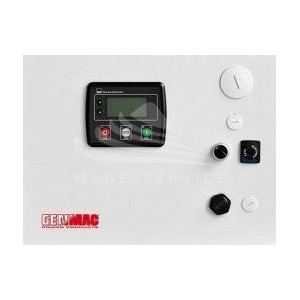

Control panel features

QT2A-4520

Self-standing tower with IP65 metal box
Circuit breaker
AMF controller DSE4520
- Voltmeter, Frequencymeter, Ammeter
- Generator power (kW, kV Ar, kV A & pf) monitoring
- Hour meter
- Fuel level meter
- Overload (kW & kV Ar) protection
- Low oil pressure protection
- High coolant temperature protection
- Low fuel level protection
- Battery charger alternator fault
- Rpm protection
Emergency stop button
Audible alarm
Terminal board for ATS connection
Can Bus reading Port (if standard on the engine)
Battery charger
On/off switch

Images and technical data are not binding.

List price
42.785,40 € tax incl.
35.070,00 € tax excl.
Discounted Price
23.262,96 € tax incl.
19.068,00 € tax excl.
