CGM 30P-C30 WITH AUTOMATIC CONTROL PANEL

CGM 30P-C30 WITH AUTOMATIC CONTROL PANEL
search
  • CGM 30P-C30 WITH AUTOMATIC CONTROL PANEL

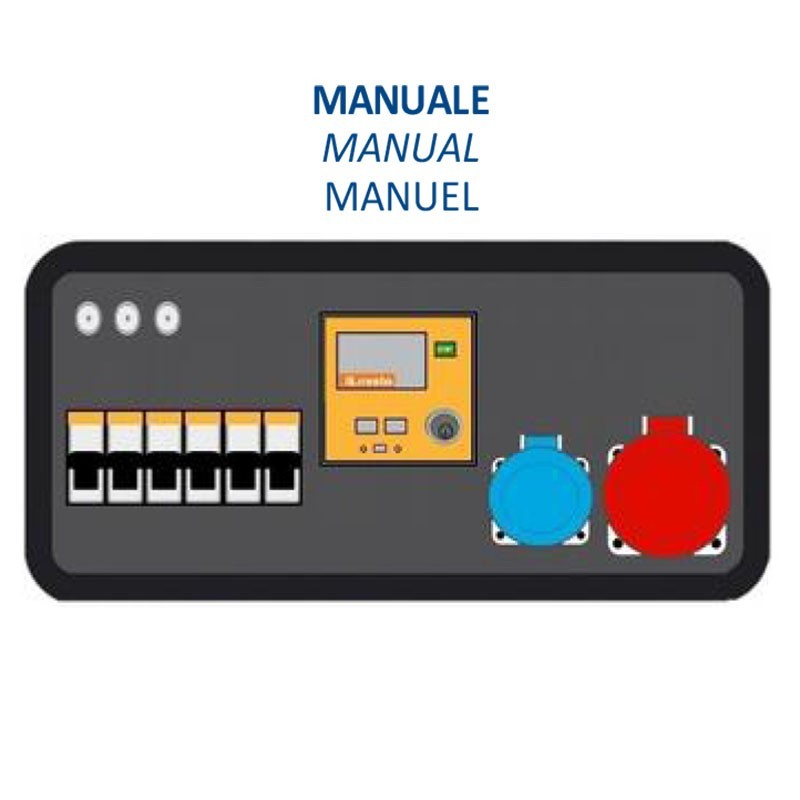

  • MANUAL CONTROL PANEL
  • MANUAL CONTROL PANEL
CGM
CGM 30P-C30 AUTOMATICO
New product

Phase type: Single-phase / Three-phase
Maximum three-phase power: 26.4 KW / 33 KVA
Three-phase continuous power: 24 KW / 30 KVA
Maximum single-phase power: 8.8 KW / 11 KVA
Single-phase continuous use power: 8 KW / 10 KVA
Fuel: Diesel
Voltage: 230 V / 400 V
Frequency: 50 Hz
Motor: PERKINS 1103A-33G
Engine speed: 1500 rpm
Starting: Electric
Consumption: 5.6 Lt/h at 75% load
Length: 1800 mm
Width: 850 mm
Height: 1275 mm
Weight: 855 Kg
Super-silenced
AVR

Technical features
Phase
Single phase / Three phase
Maximum power single phase (KW)
8.8
Continuous power single phase (KW)
8
Maximum power single phase (KVA)
11
Continuous power single phase (KVA)
10
Maximum power three phase (KW)
26.4
Continuous power three phase (KW)
24
Maximum power three phase (KVA)
33
Continuous power three phase (KVA)
30
Fuel
Diesel
Frequency (Hz)
50
Voltage (V)
230 / 400
Sockets configuration
Terminal box
Engine
Perkins 1103A-33G
Emissions Regulations
Stationary Use
Engine rpm (rpm)
1500
Speed governor
Mechanical
Starting system
Electric
Engine capacity (cm³)
3300
Number cylinders
3
Cooling
Water
Alternator
Brushless
Poles
4
Protection degree
IP44
Bore x stroke (mm)
105 x 127
Fuel tank capacity (L)
100
Consumption (L/h)
5.6
Running time (h)
17.8
Acoustic pressure
69 dB(A) at 7 m
Length (mm)
1800
Width (mm)
850
Height (mm)
1275
Dry weight (Kg)
855
AVR
Yes
Silenced
Yes
Super silenced
Yes
Product type
Generator
ATS Switch device
Optional
Voltage regulator
AVR
Engine manufacturer
Perkins
Details

CGM 30P-C30 Single/three-phase 30KVA generator super-silenced with automatic control panel

The CGM 30P-C30 is a single/three phase 30KVA generator with a 1500 rpm Perkins diesel engine, compact and easy to use, mounted on a fixed base. This generator is equipped with a sound-proofed cabin made of structural steel plate, weatherproofing and an interior lining made of sound-absorbing material with high noise reduction, which makes the CGM 30P-C30 supersilenced.

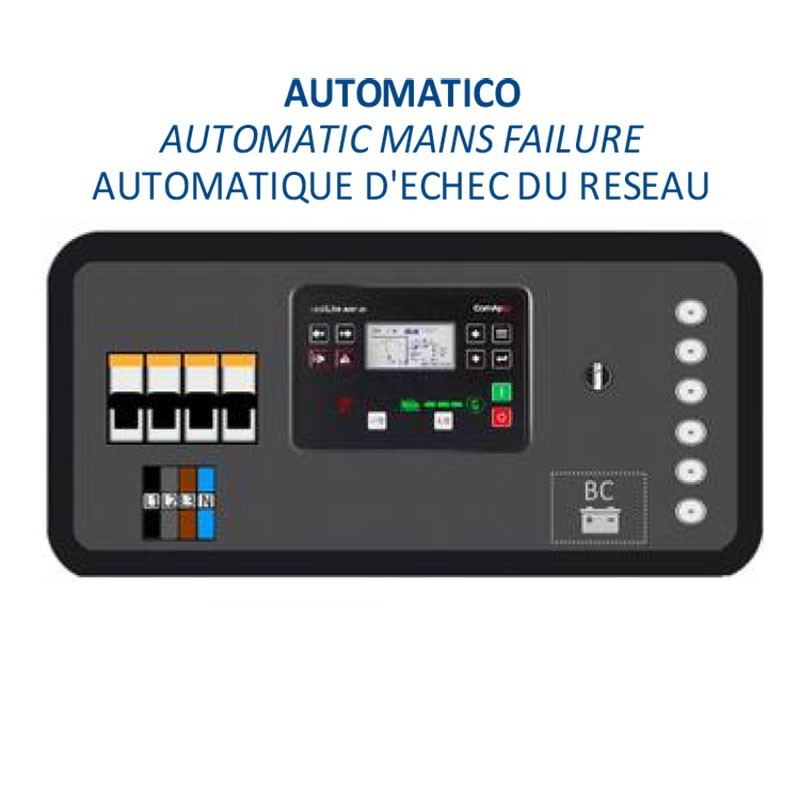

The CGM 30P-C30 generator consists of a Stamford, Mecc Alte or Marelli Motori, self-excited, brushless alternator with AVR voltage regulator. The CGM 30P-C30 generator is equipped with an electric starter with a low fuel consumption battery, consuming only 5,6 litres per hour at 75% load. In addition, it has a panel with an automatic control unit and terminal block for automatic start-up.
This generator is perfect for use outdoors, such as on construction sites.
The CGM 30P-C30 generator is part of the Industrial range and is characterised by its versatility for installation in urban environments such as shops or shopping centres, for the telecommunications environment, for military applications and much more.

Technical characteristics of the CGM 30P-C30 generator:
Phase type: Single-phase / Three-phase
Maximum three-phase power: 26.4 KW / 33 KVA
Three-phase continuous power: 24 KW / 30 KVA
Maximum single-phase power: 8.8 KW / 11 KVA
Single-phase continuous use power: 8 KW / 10 KVA
Fuel: Diesel
Voltage: 230 V / 400 V
Frequency: 50 Hz
Motor: PERKINS 1103A-33G
Engine speed: 1500 rpm
Starting: Electric
Consumption: 5.6 Lt/h at 75% load
Length: 1800 mm
Width: 850 mm
Height: 1275 mm
Weight: 855 Kg
Super-silenced
AVR

If you are looking for a product like the CGM 30P-C30 then you can browse the full range of CGM generators or other types of products in our catalogue to find the one that best suits your needs.

Images and technical data are not binding.

Technical Sheet / Manuals
Related Accessories
List price
23.058,00 € tax incl.
18.900,00 € tax excl.
Discounted Price
14.411,86 € tax incl.
11.813,00 € tax excl.
Quantity

loader
240,00 € shipped to Italy
