CGM 100P-B100 WITH AUTOMATIC CONTROL PANEL

CGM 100P-B100 WITH AUTOMATIC CONTROL PANEL
search
  • CGM 100P-B100 WITH AUTOMATIC CONTROL PANEL

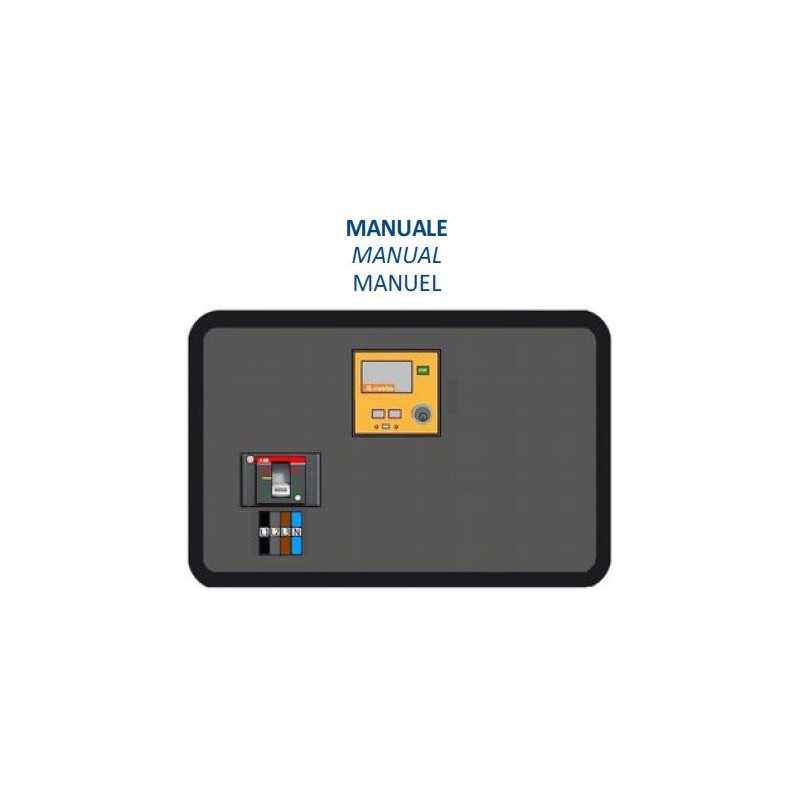

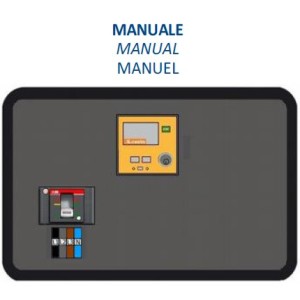

  • MANUAL CONTROL PANEL

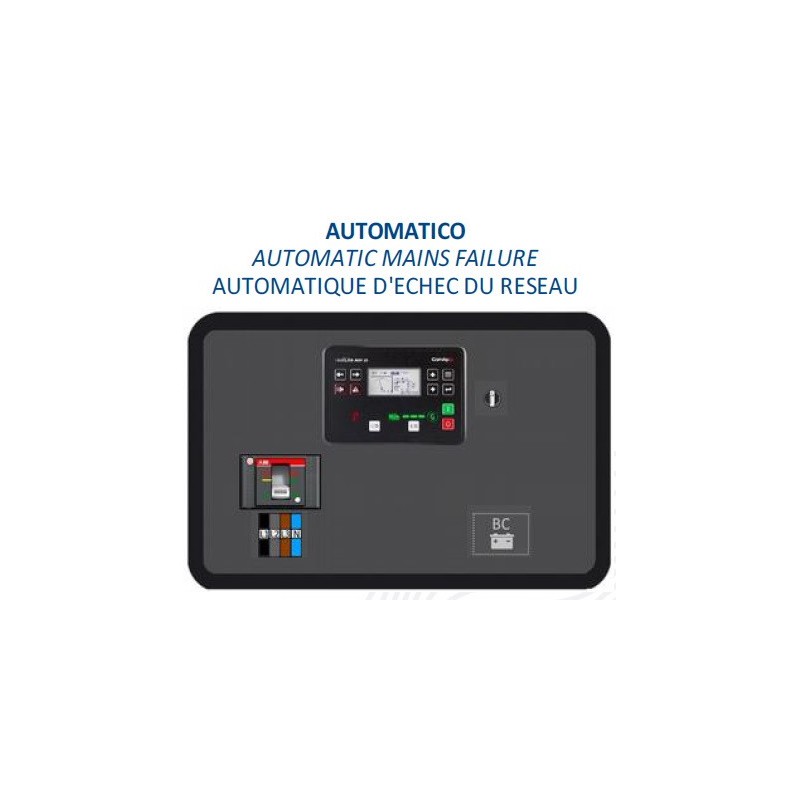

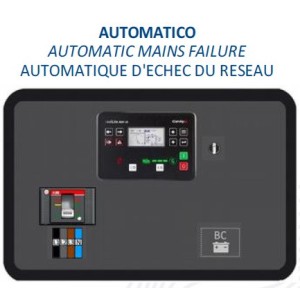

  • AUTOMATIC CONTROL PANEL
CGM
CGM 100P-B100 AUTOMATICO
New product

Phase type: Single-phase / Three-phase
Maximum three-phase power: 88 KW / 110 KVA
Three-phase continuous power: 80 KW / 100 KVA
Maximum single-phase power: 29.33 KW / 36.67 KVA
Single-phase continuous use power: 26.67 KW / 33.33 KVA
Fuel: Diesel
Voltage: 230 V / 400 V
Frequency: 50 Hz
Motor: PERKINS 1104C-44TAG2
Engine speed: 1500 rpm
Starting: Electric
Consumption: 17 Lt/h at 75% load
Length: 2100 mm
Width: 1000 mm
Height: 1800 mm
Weight: 1135 Kg
AVR

Technical features
Phase
Single phase / Three phase
Maximum power single phase (KW)
29.33
Continuous power single phase (KW)
26.67
Maximum power single phase (KVA)
36.6
Continuous power single phase (KVA)
33.33
Maximum power three phase (KW)
88
Continuous power three phase (KW)
80
Maximum power three phase (KVA)
110
Continuous power three phase (KVA)
100
Fuel
Diesel
Frequency (Hz)
50
Voltage (V)
230 / 400
Sockets configuration
Terminal box
Engine
Perkins 1104C-44TAG2
Emissions Regulations
Stage 2
Engine rpm (rpm)
1500
Speed governor
Electronic
Starting system
Electric
Engine capacity (cm³)
4410
Number cylinders
4
Cooling
Water
Alternator
Brushless
Poles
4
Protection degree
IP44
Bore x stroke (mm)
105 x 127
Fuel tank capacity (L)
120
Consumption (L/h)
17
Running time (h)
7
Length (mm)
2100
Width (mm)
1000
Height (mm)
1800
Dry weight (Kg)
1135
Silenced
No
Super silenced
No
Product type
Generator
ATS Switch device
Optional
Voltage regulator
AVR
Engine manufacturer
Perkins
Details

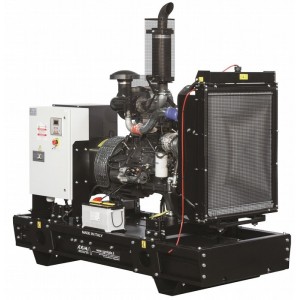

CGM 100P-B100 Single/three-phase 100KVA generator with automatic control panel

The CGM 100P-B100 is a single/three phase 100KVA generator with a 1500 rpm Perkins diesel engine, compact and easy to use, mounted on a fixed base. This CGM 100P-B100 generator is in an open version and is easy to handle and transport thanks to its base with pivoting feet.
The CGM 100P-B100 generator consists of a Stamford, Mecc Alte or Marelli Motori, self-excited, brushless alternator with AVR voltage regulator. The CGM 100P-B100 generator is equipped with an electric starter with a low fuel consumption battery, consuming only 17 litres per hour at 75% load. In addition, it has a control panel with automatic control unit and terminal box for automatic start-up.
This generator is perfect for use outdoors, such as on construction sites.
The CGM 100P-B100 generator is part of the Industrial range and is characterised by its versatility for installation in urban environments such as shops or shopping centres, for the telecommunications environment, for military applications and much more.

Technical characteristics of the CGM 100P-B100 generator:
Phase type: Single-phase / Three-phase
Maximum three-phase power: 88 KW / 110 KVA
Three-phase continuous power: 80 KW / 100 KVA
Maximum single-phase power: 29.33 KW / 36.67 KVA
Single-phase continuous use power: 26.67 KW / 33.33 KVA
Fuel: Diesel
Voltage: 230 V / 400 V
Frequency: 50 Hz
Motor: PERKINS 1104C-44TAG2
Engine speed: 1500 rpm
Starting: Electric
Consumption: 17 Lt/h at 75% load
Length: 2100 mm
Width: 1000 mm
Height: 1800 mm
Weight: 1135 Kg
AVR

If you are looking for a product like the CGM 100P-B100 then you can browse the full range of CGM generators or other types of products in our catalogue to find the one that best suits your needs.

Images and technical data are not binding.

Technical Sheet / Manuals
Related Accessories
List price
34.160,00 € tax incl.
28.000,00 € tax excl.
Discounted Price
21.350,00 € tax incl.
17.500,00 € tax excl.
Quantity

loader
345,00 € shipped to Italy

Calculate Shipping Cost
Add to wishlist
Download PDF
Ask a question
