CGM 250P-B300 WITH MANUAL CONTROL PANEL

CGM 250P-B300 WITH MANUAL CONTROL PANEL
search
  • CGM 250P-B300 WITH MANUAL CONTROL PANEL

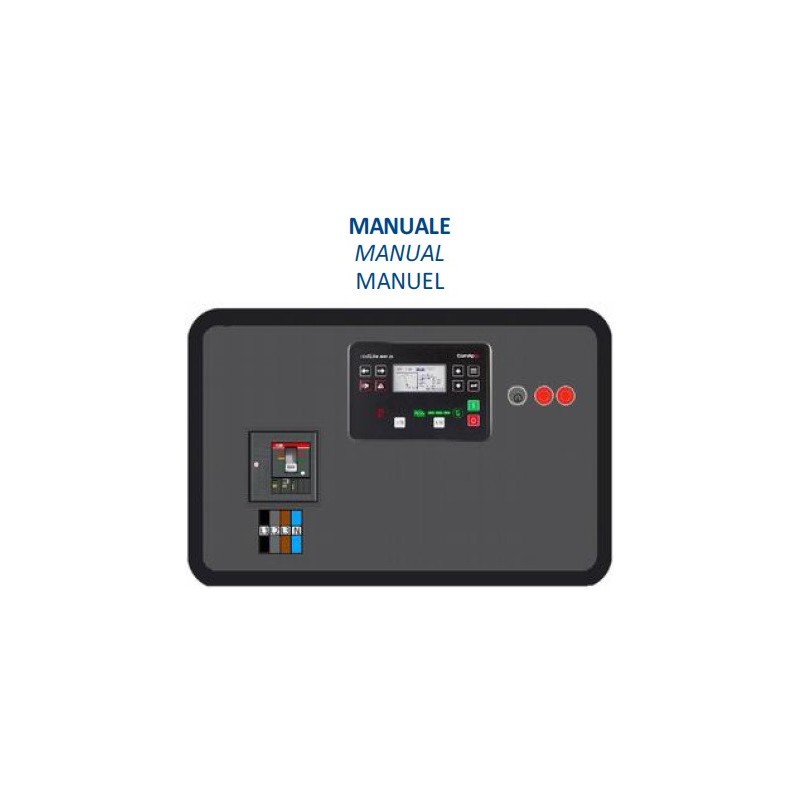

  • MANUAL CONTROL PANEL

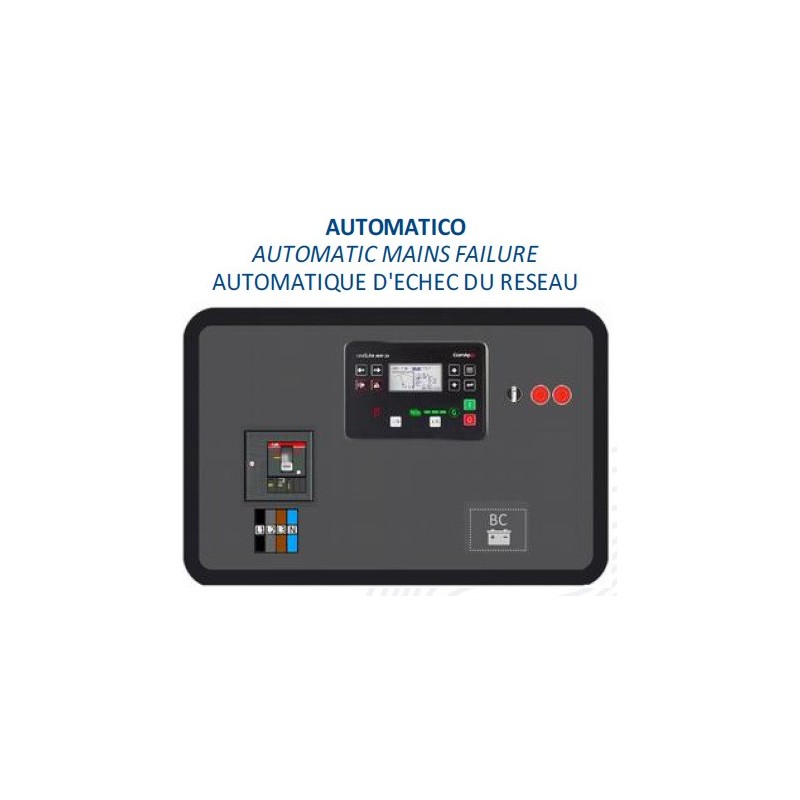

  • AUTOMATIC CONTROL PANEL
CGM
CGM 250P-B300 MANUALE
New product

Phase type: Single-phase / Three-phase
Maximum three-phase power: 220 KW / 275 KVA
Three-phase continuous power: 200 KW / 250 KVA
Maximum single-phase power: 73.33 KW / 91.67 KVA
Single-phase continuous use power: 66.67 KW / 83.33 KVA
Fuel: Diesel
Voltage: 230 V / 400 V
Frequency: 50 Hz
Motor: PERKINS 1206A-E70TTAG3
Engine speed: 1500 rpm
Starting: Electric
Consumption: 41.5 Lt/h at 75% load
Length: 2800 mm
Width: 1310 mm
Height: 1800 mm
Weight: 2115 Kg
AVR

Technical features
Phase
Single phase / Three phase
Maximum power single phase (KW)
73.33
Continuous power single phase (KW)
66.67
Maximum power single phase (KVA)
91.67
Continuous power single phase (KVA)
83.33
Maximum power three phase (KW)
220
Continuous power three phase (KW)
200
Maximum power three phase (KVA)
275
Continuous power three phase (KVA)
250
Fuel
Diesel
Frequency (Hz)
50
Voltage (V)
230 / 400
Sockets configuration
Terminal box
Engine
Perkins 1206A-E70TTAG3
Emissions Regulations
Stationary Use
Engine rpm (rpm)
1500
Speed governor
Electronic
Starting system
Electric
Engine capacity (cm³)
7010
Number cylinders
6
Cooling
Water
Alternator
Brushless
Poles
4
Protection degree
IP44
Bore x stroke (mm)
105 x 135
Fuel tank capacity (L)
250
Consumption (L/h)
41.5
Running time (h)
6
Length (mm)
2800
Width (mm)
1310
Height (mm)
1800
Dry weight (Kg)
2115
Silenced
No
Super silenced
No
Product type
Generator
ATS Switch device
No
Voltage regulator
AVR
Engine manufacturer
Perkins
Details

CGM 250P-B300 Single/three-phase 250KVA generator with manual control panel

The CGM 250P-B300 is a single/three phase 250KVA generator with a 1500 rpm Perkins diesel engine, compact and easy to use, mounted on a fixed base. This CGM 250P-B300 generator is in an open version and is easy to handle and transport thanks to its base with pivoting feet.
The CGM 250P-B300 generator consists of a Stamford, Mecc Alte or Marelli Motori, self-excited, brushless alternator with AVR voltage regulator. The CGM 250P-B300 generator is equipped with an electric starter with a low fuel consumption battery, consuming only 41,5 litres per hour at 75% load. The fuel tank is incorporated in the crankcase for ease of use.
This generator is perfect for use outdoors, such as on construction sites.
The CGM 250P-B300 generator is part of the Industrial range and is characterised by its versatility for installation in urban environments such as shops or shopping centres, for the telecommunications environment, for military applications and much more.

Technical characteristics of the CGM 250P-B300 generator:
Phase type: Single-phase / Three-phase
Maximum three-phase power: 220 KW / 275 KVA
Three-phase continuous power: 200 KW / 250 KVA
Maximum single-phase power: 73.33 KW / 91.67 KVA
Single-phase continuous use power: 66.67 KW / 83.33 KVA
Fuel: Diesel
Voltage: 230 V / 400 V
Frequency: 50 Hz
Motor: PERKINS 1206A-E70TTAG3
Engine speed: 1500 rpm
Starting: Electric
Consumption: 41.5 Lt/h at 75% load
Length: 2800 mm
Width: 1310 mm
Height: 1800 mm
Weight: 2115 Kg
AVR

If you are looking for a product like the CGM 250P-B300 then you can browse the full range of CGM generators or other types of products in our catalogue to find the one that best suits your needs.

Images and technical data are not binding.
