CGM 170F-C200 WITH AUTOMATIC CONTROL PANEL

CGM 170F-C200 WITH AUTOMATIC CONTROL PANEL
search
  • CGM 170F-C200 WITH AUTOMATIC CONTROL PANEL

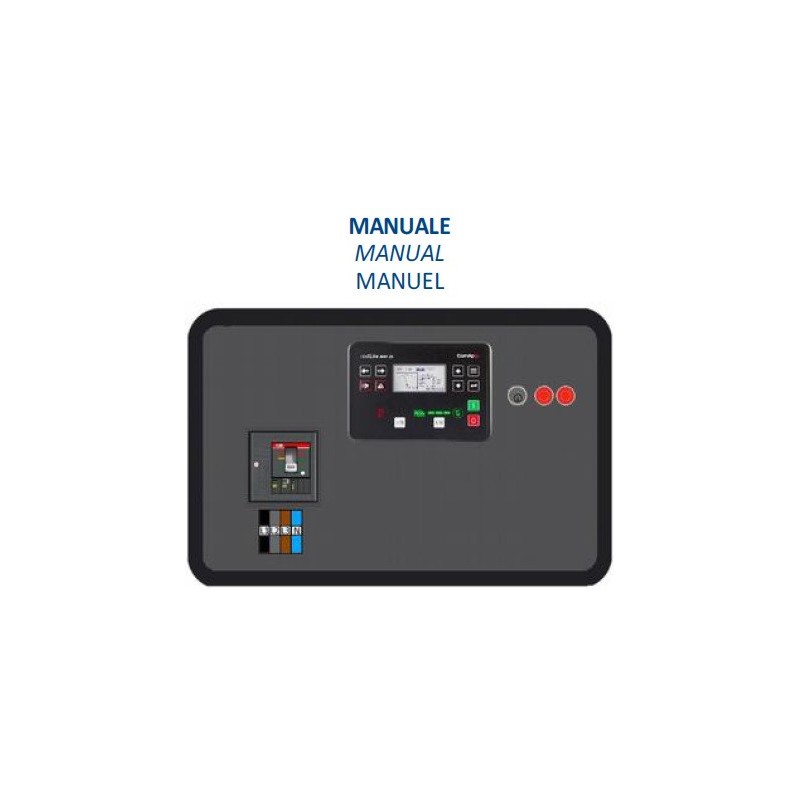

  • MANUAL CONTROL PANEL

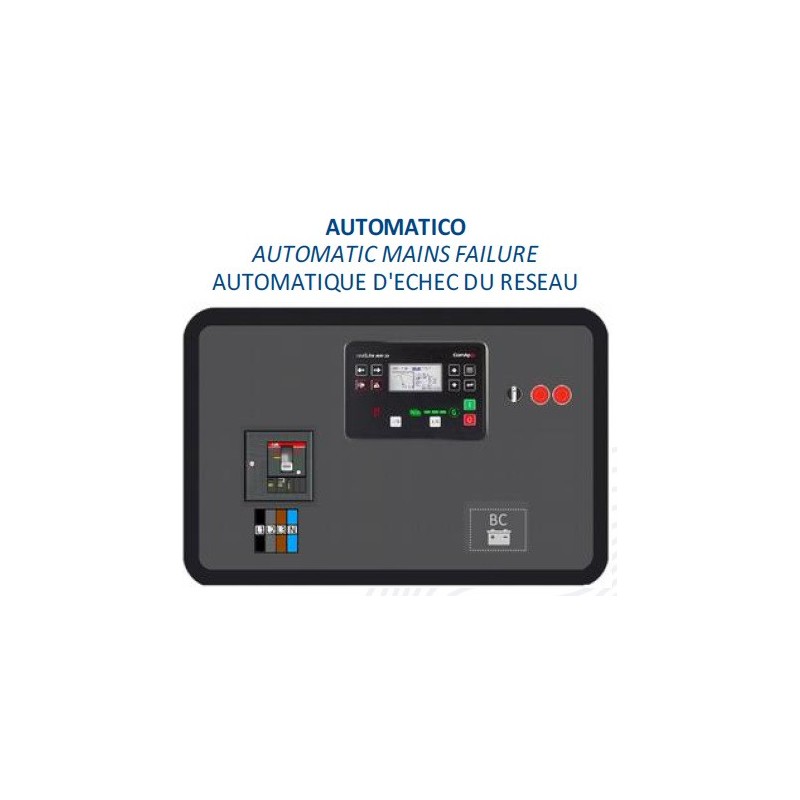

  • AUTOMATIC CONTROL PANEL
CGM
CGM 170F-C200 AUTOMATICO
New product

Phase type: Single-phase / Three-phase
Maximum three-phase power: 149.6 KW / 187 KVA
Three-phase continuous power: 136 KW / 170 KVA
Maximum single-phase power: 49.87 KW / 62.33 KVA
Single-phase continuous use power: 45.33 KW / 56.67 KVA
Fuel: Diesel
Voltage: 230 V / 400 V
Frequency: 50 Hz
Motor: FPT NEF N67TM4
Engine speed: 1500 rpm
Starting: Electric
Consumption: 28 Lt/h at 75% load
Length: 3200 mm
Width: 1100 mm
Height: 2090 mm
Weight: 2000 Kg
Super-silenced
AVR

Technical features
Phase
Single phase / Three phase
Maximum power single phase (KW)
49.87
Continuous power single phase (KW)
45.33
Maximum power single phase (KVA)
62.33
Continuous power single phase (KVA)
56.67
Maximum power three phase (KW)
149.6
Continuous power three phase (KW)
136
Maximum power three phase (KVA)
187
Continuous power three phase (KVA)
170
Fuel
Diesel
Frequency (Hz)
50
Voltage (V)
230 / 400
Sockets configuration
Terminal box
Engine
FPT (IVECO) NEFN67TM4
Emissions Regulations
Stationary Use
Engine rpm (rpm)
1500
Speed governor
Mechanical
Starting system
Electric
Engine capacity (cm³)
6
Number cylinders
6
Cooling
Water
Alternator
Brushless
Poles
4
Protection degree
IP44
Bore x stroke (mm)
104 x 132
Fuel tank capacity (L)
250
Consumption (L/h)
28
Running time (h)
8.9
Acoustic pressure
69 dB(A) at 7 m
Length (mm)
3200
Width (mm)
1100
Height (mm)
2090
Dry weight (Kg)
2000
AVR
Yes
Silenced
Yes
Super silenced
Yes
Product type
Generator
ATS Switch device
Optional
Voltage regulator
AVR
Engine manufacturer
FPT Iveco
Details

CGM 170F-C200 Single/three-phase 170KVA generator super-silenced with automatic control panel

The CGM 170F-C200 is a single/three phase 170KVA generator with a 1500 rpm FPT diesel engine, compact and easy to use, mounted on a fixed base. This generator is equipped with a soundproofed cabin made of structural steel plate, weatherproofed and lined with sound-absorbing material with high noise reduction, making the CGM 170F-C200 super-silenced.
The CGM 170F-C200 generator consists of a Stamford, Mecc Alte or Marelli Motori, self-excited, brushless alternator with AVR voltage regulator. The CGM 170F-C200 generator is equipped with an electric starter with a low fuel consumption battery, consuming only 28 litres per hour at 75% load. In addition, it has a control panel with automatic control unit and terminal box for automatic start-up.
This generator is perfect for use outdoors, such as on construction sites.
The CGM 170F-C200 generator is part of the Industrial range and is characterised by its versatility for installation in urban environments such as shops or shopping centres, for the telecommunications environment, for military applications and much more.

Technical characteristics of the CGM 170F-C200 generator:
Phase type: Single-phase / Three-phase
Maximum three-phase power: 149.6 KW / 187 KVA
Three-phase continuous power: 136 KW / 170 KVA
Maximum single-phase power: 49.87 KW / 62.33 KVA
Single-phase continuous use power: 45.33 KW / 56.67 KVA
Fuel: Diesel
Voltage: 230 V / 400 V
Frequency: 50 Hz
Motor: FPT NEF N67TM4
Engine speed: 1500 rpm
Starting: Electric
Consumption: 28 Lt/h at 75% load
Length: 3200 mm
Width: 1100 mm
Height: 2090 mm
Weight: 2000 Kg
Super-silenced
AVR

If you are looking for a product like the CGM 170F-C200 then you can browse the full range of CGM generators or other types of products in our catalogue to find the one that best suits your needs.
