Phase Type: Single Phase
Continuous Use Power: 8.5 KVA / 8.5 KW
Maximum Power: 9.4 KVA / 9.4 KW
Motor: KOHLER KDW702
Motor RPM: 3000 rpm
Emissions Standard: StageV
Start: Electric / Manual
Fuel: Diesel
Voltage: 230 V
Frequency: 50 Hz
Socket panel: 1 x CEE 32A 230V 3P / 1 x 3CEE 16A 230V 3P
Tank capacity: 50 l
Run time at 75% load: 18. 5 h
Consumption at 75% load: 2.7 Lt/h
Acoustic pressure: 75 dB(A) @ 7 m
Length: 1300 mm
Width: 700 mm
Height: 1000 mm
Dry weight: 380 Kg

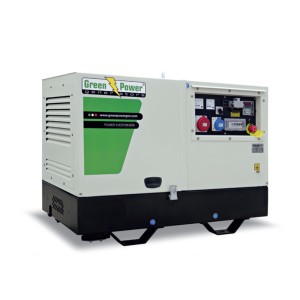

The generator GREEN POWER GP 10000SM/KW single-phase, is equipped with a KOHLER KDW702 StageV Diesel-powered engine, complete with capacitor voltage regulator (AVR optional).
The GREEN POWER GP 10000SM/KW is equipped with electric start with 12 V battery and with a low fuel consumption, in fact it consumes only 2.7 liters/hour at 75% of the load, combined with a large tank of 50 l maximum capacity, will give you a range of about 18 hours.
The generator is equipped with a soundproof cabin, made of carbon steel 20/10 thick, bent and electro-welded, with protection class IP23 and openable in two sections. This cabin allows the super-silenced GREEN POWER GP 10000SM/KW to deliver a sound pressure of only 75 dB(A) @ 7 meters.
The generator provides efficient and quiet operation thanks to the KOHLER KDW702 StageV engine, which allows it to deliver a maximum power of 9KVA.
GREEN POWER GP 10000SM/KW is equipped with "mobile" STAGEV motorization, as required by European Regulation 2016/1628. These new motorizations allow to exponentially reduce the emissions of particulate matter and nitrogen oxides delivered by the generator to the environment, and ensure a reduction in environmental impact of 200% compared to standard motorizations.
The generator control panel consists of:
- Thermomagnetic circuit breaker and insulation control
- Sockets: 1 x CEE 32A 230V 3P / 1 x 6CEE 16A 230V 3P
- Control unit LOVATO RGK 30
- Votmeter + voltmetric switch
- Ammeter
- Frequency meter
- Hour meter
- Emergency stop button
TECHNICAL FEATURES GREENPOWER GP 10000SM/KW
Phase Type: Single Phase
Continuous Use output: 8.5 KVA / 8.5 KW
Maximum output: 9.4 KVA / 9.4 KW
Motor: KOHLER KDW702
Motor RPM: 3000 rpm
Emissions Standard: StageV
Start: Electric / Manual
Fuel: Diesel
Voltage: 230 V
Frequency: 50 Hz
Socket panel: 1 x CEE 32A 230V 3P / 1 x 3CEE 16A 230V 3P
Tank capacity: 50 l
Run time at 75% load: 18. 5 h
Consumption at 75% load: 2.7 Lt/h
Acoustic pressure: 75 dB(A) @ 7 m
Length: 1300 mm
Width: 700 mm
Height: 1000 mm
Dry weight: 380 Kg
Are you looking for a generator with different technical characteristics? Here you can find the area dedicated to GREENPOWER generators or other specialized brands.
Images and technical data not binding.
