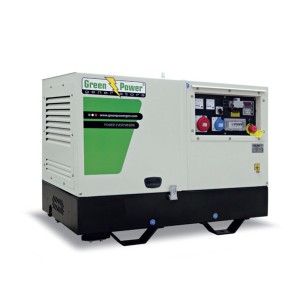

GREEN POWER GP 12000ST/KW SILENT GENERATOR SINGLE-PHASE / THREE-PHASE MANUAL CONTROL PANEL 11KVA

GREEN POWER GP 12000ST/KW SILENT GENERATOR SINGLE-PHASE / THREE-PHASE MANUAL CONTROL PANEL 11KVA

The generator GREEN POWER GP 12000ST/KW single/three-phase, is equipped with a KOHLER KDW702 StageV Diesel-supplied engine, complete with capacitor voltage regulator (AVR optional).

The GREEN POWER GP 12000ST/KW is equipped with electric start with 12 V battery and with a low fuel consumption, in fact it consumes only 2.7 liters/hour at 75% of the load, combined with a large tank of 55 l maximum capacity, will give you a range of about 20 hours.

The generator is equipped with a soundproof cabin, made of carbon steel 20/10 thick, bent and electro-welded, with protection class IP23 and openable in two sections. This cabin allows the super-silenced GREEN POWER GP 12000ST/KW to deliver a sound pressure of only 75 dB(A) @ 7 meters.

The generator provides efficient and quiet operation thanks to the KOHLER KDW702 StageV engine, which allows it to deliver a maximum output of 11KVA.

STAGEV EMISSIONS STANDARD

GREEN POWER GP 12000ST/KW is equipped with "mobile" STAGEV motorization, as required by European Regulation 2016/1628. These new motorizations allow to exponentially reduce the emissions of particulate matter and nitrogen oxides delivered by the generator to the environment, and ensure a reduction in environmental impact of 200% compared to standard motorizations.

The generator control panel consists of:

- Thermomagnetic circuit breaker and insulation control
- Sockets: 1 x CEE 16A 400V 5P / 1 x CEE 16A 230V 3P
- Control unit LOVATO RGK 30
- Votmeter + voltmetric switch
- Ammeter
- Frequency meter
- Hour meter
- Emergency stop button

TECHNICAL FEATURES GREENPOWER GP 12000ST/KW

Phase Type: Single/Three-phase
Singlephase continuous use output: 3,4 KVA / 2,7 KW
Singlephase maximum output: 3,8 KVA / 3 KW
Threephase continuous use output: 10 KVA / 8 KW
Threephase maximum output: 11 KVA / 8,8 KW
Motor: KOHLER KDW702
Engine speed: 3000 rpm
Emission regulation: StageV
Starting: Electric / Manual
Fuel: Diesel
Voltage: 230 / 400 V
Frequency: 50 Hz
Socket panel: 1 x CEE 16A 400V 5P / 1 x CEE 16A 230V 3P
Tank capacity: 55 l
Autonomy at 75% load: 20. 3 h
Consumption at 75% load: 2.7 Lt/h
Acoustic pressure: 75 dB(A) @ 7 m
Length: 1300 mm
Width: 700 mm
Height: 1000 mm
Dry weight: 386 Kg

Are you looking for a generator with different technical characteristics? Here you can find the area dedicated to GREENPOWER generators or other specialized brands.

Images and technical data not binding.
