GENERATOR SINGLE-PHASE 12KVA STAGE V

  • New
generator single phase 12kva stage v
search
  • generator single phase 12kva stage v
NO BRAND
GM12KVASV Condensatore
New product

Phase type: Single-phase
Maximum single-phase power: 11.8 KW
Single-phase continuous use power: 10.8 KW
Maximum single-phase power: 13.2 KVA
Single-phase continuous use power: 12 KVA
Fuel: Gasoline
Voltage: 230 V
Frequency: 50 Hz
Engine: BRIGGS & STRATTON 18HP
Engine revs: 3000 rpm
Starting: Electric
Voltage regulator system: Capacitor, AVR optional
Consumption: 4.3 Lt/h at 75% of the load
Tank capacity: 8.5 Lt
Autonomy: 2 h at 75% of the load
Length: 910 mm
Width: 580 mm
Height: 640 mm
Weight: 125 Kg

Technical features
Phase
Single phase
Maximum power single phase (KW)
11.8
Continuous power single phase (KW)
10.8
Maximum power single phase (KVA)
13.2
Continuous power single phase (KVA)
12
Fuel
Gasoline
Frequency (Hz)
50
Voltage (V)
230
Sockets configuration
1 x 230V 16A 3P CEE - 1 x 230V 32A 3P CEE
Engine
Briggs&Stratton
Emissions Regulations
Stage 5
Engine rpm (rpm)
3000
Starting system
Electric
Engine capacity (cm³)
570
Number cylinders
2
Alternator
Made in Italy
Poles
2
Fuel tank capacity (L)
8.5
Consumption (L/h)
4.3
Running time (h)
2
Length (mm)
910
Width (mm)
580
Height (mm)
640
Dry weight (Kg)
125
Silenced
No
Super silenced
No
Product type
Generator
ATS Switch device
Optional
Voltage regulator
Capacitor / AVR (optional)
Details

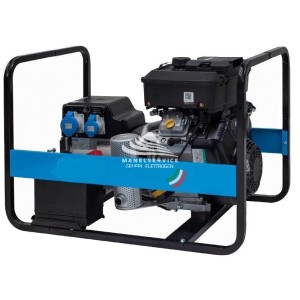

GENERATOR SINGLE-PHASE 12 KVA

Single phase 12 KVA generator set with Briggs & Stratton engine powered by STAGE V petrol at 3000 rpm, compact and easy to use, mounted on a fixed base with vibration dampers. The generator set consists of a Made in Italy alternator from Linz or NSM, self-excited without brushes and with optional capacitor or AVR voltage regulator. The generator set is equipped with electric starter and low fuel consumption, in fact it consumes only 4.3 litres/hour at 75% of the load. This generator set is perfect for outdoor use such as hobby use.
The generator set is part of the CLASSIC series and is easily adaptable to a variety of uses such as homes, street installations, camping sites, hobbies, construction sites, etc.. The generator set at 3000 rpm is only suitable for emergency use. We do not recommend use for more than 6 consecutive hours and more than 500 hours per year.

Technical characteristics of the generator set:
Phase type: Single-phase
Maximum single-phase power: 11.8 KW
Single-phase continuous use power: 10.8 KW
Maximum single-phase power: 13.2 KVA
Single-phase continuous use power: 12 KVA
Fuel: Gasoline
Voltage: 230 V
Frequency: 50 Hz
Engine: BRIGGS & STRATTON 18HP
Engine revs: 3000 rpm
Starting: Electric
Voltage regulator system: Capacitor, AVR optional
Consumption: 4.3 Lt/h at 75% of the load
Tank capacity: 8.5 Lt
Autonomy: 2 h at 75% of the load
Length: 910 mm
Width: 580 mm
Height: 640 mm
Weight: 125 Kg

Discover the entire range reserved for generators of other top brands by browsing our catalog to find the one that best suits your needs.

Images and technical data are not binding.

The CGM C13000E is composed of a Made in Italy alternator by Linz or NSM, self-excited without brushes and with capacitor voltage regulator or

List price
4.928,80 € tax incl.
4.040,00 € tax excl.
Discounted Price
2.909,70 € tax incl.
2.385,00 € tax excl.
Voltage Regulator
Quantity

loader
50,00 € shipped to Italy

Calculate Shipping Cost
Add to wishlist
Download PDF
Ask a question
