PRAMAC PX10000 SINGLE-PHASE GENERATOR 10,3 KVA AVR STAGEV

  • New
pramac px10000 single phase generator 103 kva avr stagev
search
  • pramac px10000 single phase generator 103 kva avr stagev
  • pramac px10000 single phase generator 103 kva avr stagev
  • pramac px10000 single phase generator 103 kva avr stagev
PRAMAC
PK852SXB000
New product

Phase type: Single phase
Continuous use power: 9.4 KVA / 8.5 KW
Maximum power: 10.3 KVA / 9.3 KW
Motor: Pramac LC196FD < br /> Engine revs: 3000 rpm
Emissions standard: STAGEV
Starting: Electric / Manual
Fuel: Petrol
Voltage: 230 V
Frequency: 50 Hz
Socket panel: 2 X SCHUKO 230V 16A | 2 X CEE 230V 32A | 1X 12V DC 8.3A
Tank capacity: 48 l
Autonomy: 11.19 h at 75% of load
Consumption: 4.29 l / h at 75% of load
Sound pressure: 73 dB (A) @ 7 m
Length: 837 mm
Width: 785 mm
Height: 924 mm
Dry weight: 143 Kg

Technical features
Phase
Single phase
Maximum power single phase (KW)
9.3
Continuous power single phase (KW)
8.5
Maximum power single phase (KVA)
10.3
Continuous power single phase (KVA)
9.4
Fuel
Gasoline
Frequency (Hz)
50
Voltage (V)
230
Sockets configuration
1 x 400V 16A 3P+N+T CEE - 1 x 230V 16A 2P+T CEE - 1 x 230V 16A SCHUKO
Engine
PRAMAC SR190F, naturally aspirated
Emissions Regulations
Stage 5
Engine rpm (rpm)
3000
Speed governor
Mechanical
Starting system
Manual / Electric
Engine capacity (cm³)
622
Oil capacity (L)
1.6
Cooling
Air
Poles
2
Fuel tank capacity (L)
48
Consumption (L/h)
4.29 l / h at 75% of load
Running time (h)
11.19 h at 75% of load
Acoustic pressure
73 dB(A) at 7 m
Length (mm)
837
Width (mm)
785
Height (mm)
924
Dry weight (Kg)
143
Silenced
Yes
Super silenced
No
ATS Switch device
No
Voltage regulator
AVR
Engine manufacturer
PRAMAC
Details

PRAMAC PX10000 SINGLE-PHASE GENERATOR 10,3 KVA AVR STAGEV

PRAMAC PX10000 single-phase generator with PRAMAC LC196FD STAGEV petrol-powered engine, capable of delivering a power of 10,3 KVA, complete with AVR voltage regulator.

The PRAMAC PX10000 unit is equipped with an electric start with battery, but it is also equipped with a cord recoil for manual starting. The PRAMAC PX10000 generator set alternator is with AVR voltage regulator.

The purpose of the AVR in a power source is to keep the output stable. And if its operation is very simple when resistive loads are supplied, the situation is more complex in the case of mainly inductive loads: the delayed phase-shifted current contrasts the inductor magnetic field, causing a voltage drop at the alternator output terminals. ; to compensate for the phenomenon, the AVR automatically intervenes by increasing the excitation current, until the output returns to the nominal value.

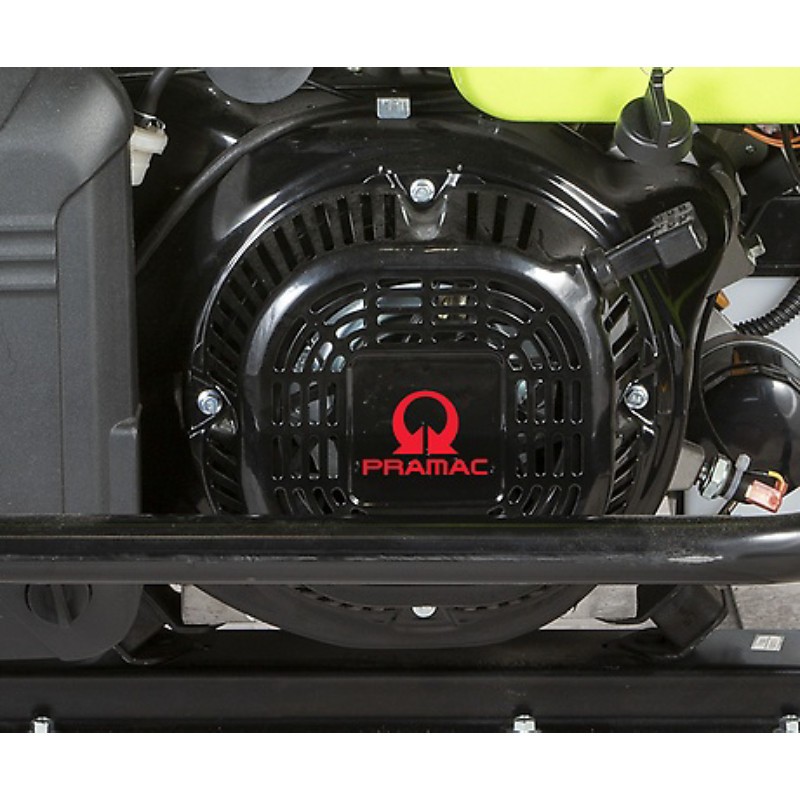

The PRAMAC LC196FD petrol engine makes the group very reliable as it has been built and designed using high quality materials.

Thanks to its very low weight and its compact size it is convenient to carry where you need it most. This generator set is suitable for outdoor use on small construction sites or for small outdoor jobs for hobby use.

This petrol generator is one of the latest Pramac innovations to guarantee a high level of quality and performance at an attractive price. The PRAMAC PX10000 generator set is compact, efficient and easy to use. The generator set is perfect for all your semi-professional applications.

STAGEV EMISSIONS REGULATION

The generator is equipped with a "mobile" STAGEV motorization, as required by the European Regulation 2016/1628. These new engines make it possible to exponentially reduce the emissions of particulate matter and nitrogen oxides delivered by the generator into the environment, and ensure a reduction in the environmental impact of 200% compared to standard engines.

PRAMAC PX10000 TECHNICAL FEATURES:

Phase type: Single phase
Continuous use power: 9.4 KVA / 8.5 KW
Maximum power: 10.3 KVA / 9.3 KW
Motor: Pramac LC196FD < br /> Engine revs: 3000 rpm
Emissions standard: STAGEV
Starting: Electric / Manual
Fuel: Petrol
Voltage: 230 V
Frequency: 50 Hz
Socket panel: 2 X SCHUKO 230V 16A | 2 X CEE 230V 32A | 1X 12V DC 8.3A
Tank capacity: 48 l
Autonomy: 11.19 h at 75% of load
Consumption: 4.29 l / h at 75% of load
Sound pressure: 73 dB (A) @ 7 m
Length: 837 mm
Width: 785 mm
Height: 924 mm
Dry weight: 143 Kg

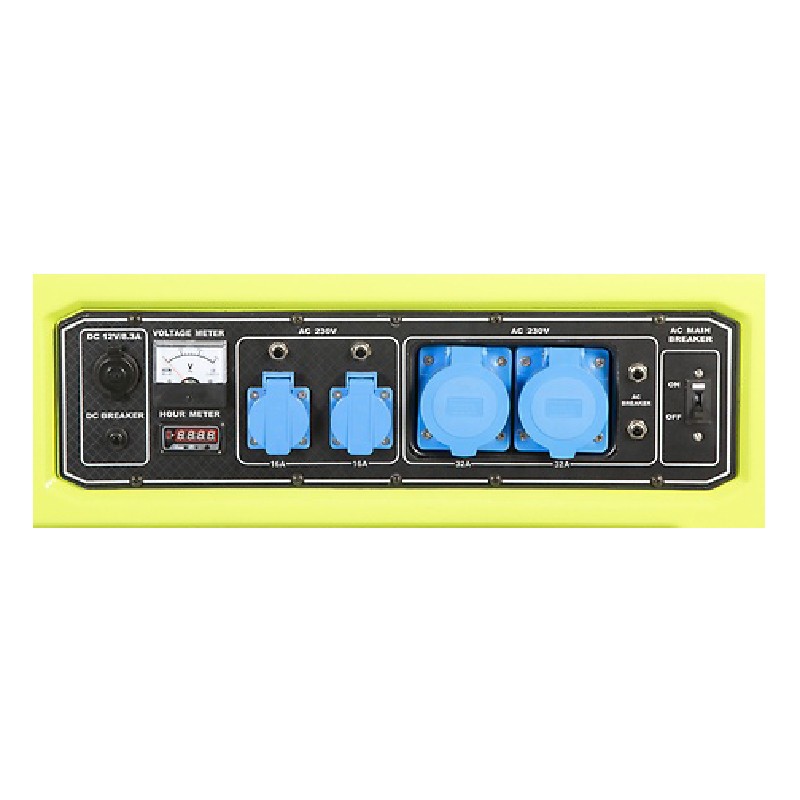

CONTROL PANEL

Commands:
- Ignition key: OFF -ON -START

Instrumentation:
- Voltmeter
- Ammeter
- Fuel level indicator

Protections:
- Thermal protection
- Oil Guard (low oil pressure)

Output:
- 12V DC 8.3A

Sockets:
n ° 2 SCHUKO 230V 16A IP44
n ° 2 2P + T CEE 230V 32A IP44


Are you looking for a generator with different technical characteristics? HERE you can find the area dedicated to PRAMAC generators or other specialized brands.

Images and technical data not binding.
