PRAMAC P4000 GENERATOR 3,5 KVA SINGLE-PHASE STAGEV

  • New
pramac p4000 generator 35 kva single phase stagev
search
  • pramac p4000 generator 35 kva single phase stagev
PRAMAC
PF322SYAZ00
New product

Phase type: Single-phase
Continuous use power: 3.24 KVA / 2.92 KW
Maximum power: 3.57 KVA / 3.21 KW
Engine: Yanmar L70V
Engine speed: 3000 rpm
Emissions standard: STAGEV
Starting: Electric
Fuel: Diesel
Voltage: 230 V
Frequency: 50 Hz
Voltage regulator: Capacitor (AVR Optional )

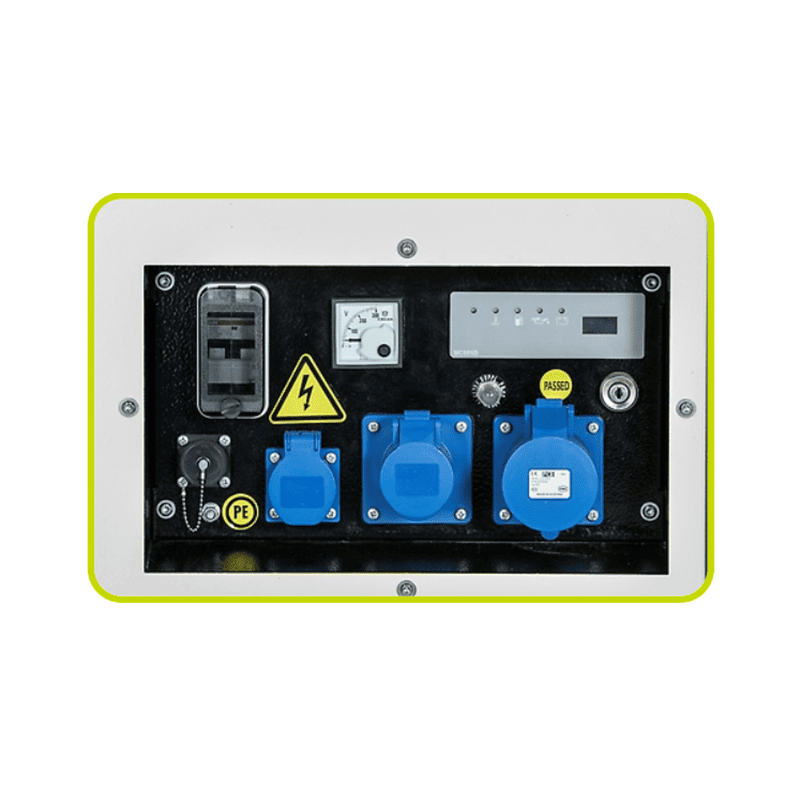

Socket panel: 1 X SCHUKO 230V 16A | 1 X CEE 230V 16A | 1 X CEE 230V 32A
Tank capacity: 18 l
Autonomy: 15.25 h at 75% of load
Consumption: 1.18 l / h at 75% of load
Acoustic pressure: 68 dB (A) @ 7 m
Length: 800 mm
Width: 525 mm
Height: 850 mm
Dry weight: 132 Kg

Technical features
Phase
Single phase
Maximum power single phase (KW)
3.2
Continuous power single phase (KW)
2.9
Maximum power single phase (KVA)
3.5
Continuous power single phase (KVA)
3.2
Fuel
Diesel
Frequency (Hz)
50
Voltage (V)
230
Sockets configuration
1 X SCHUKO 230V 16A | 1 X CEE 230V 16A | 1 X CEE 230V 32A
Engine
Yanmar L70V, 4 stroke
Engine rpm (rpm)
3000
Speed governor
Mechanical
Starting system
Electric
Engine capacity (cm³)
320
Oil capacity (L)
1.01
Cooling
Air
Alternator
Brushless
Poles
2
Fuel tank capacity (L)
18
Consumption (L/h)
1.18 at 75% load
Running time (h)
15.25 at 75% load
Acoustic power
96 dB(A)
Acoustic pressure
68 dB(A) at 7 m
Length (mm)
800
Width (mm)
525
Height (mm)
850
Dry weight (Kg)
132
Silenced
Yes
Super silenced
Yes
Product type
Generator
ATS Switch device
Optional
Voltage regulator
Capacitor / AVR (optional)
Engine manufacturer
Yanmar
Details

PRAMAC P4000 GENERATOR 3,5 KVA SINGLE-PHASE STAGEV

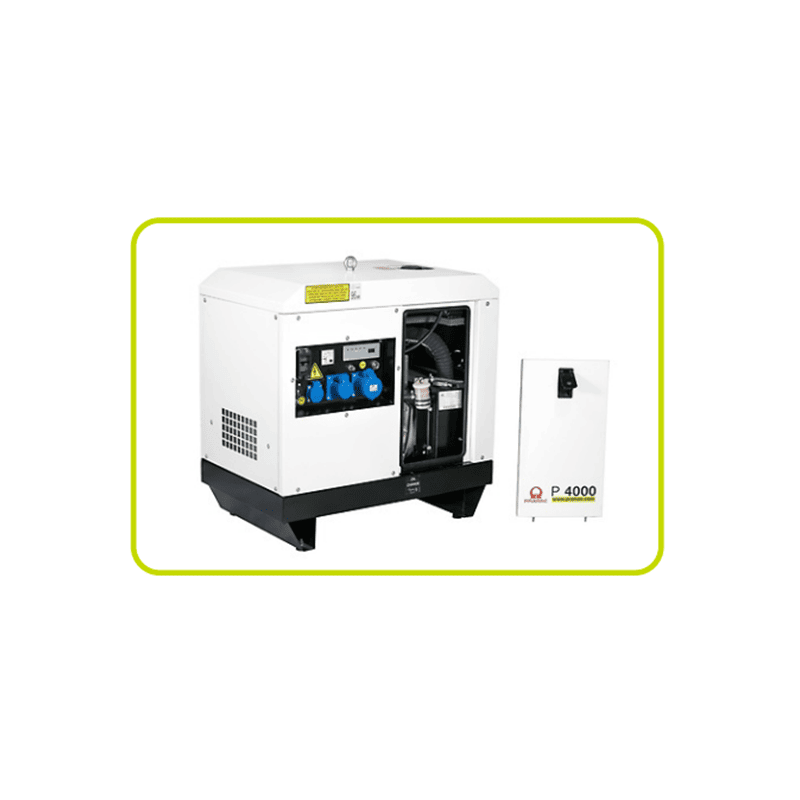

PRAMAC P4000 single-phase generator with Yanmar L70V STAGEV Diesel engine, capable of delivering a power of 3,5 KVA, complete with voltage regulator Condenser (AVR Optional) .

The Generator adapts perfectly to the most varied uses, thanks to the handling trolley that allows it to be relocated in perfect safety and simplicity. Thanks to the increased tank of 18 l, this generator has an extraordinary autonomy of 15 h with 75% of the load.

These generators are equipped with high quality components, light weight, compact, ease of use and also the modern design, equipped with a practical electric start.

The PRAMAC P4000 generator is equipped with electric or automatic starting via the ATS panel, which allows it to be switched on automatically in the event of a blackout.

STAGEV EMISSIONS REGULATION

The generating set is equipped with a "mobile" STAGEV motorization, as required by the European Regulation 2016/1628. These new engines make it possible to exponentially reduce the emissions of particulate matter and nitrogen oxides delivered by the generator into the environment, and ensure a reduction of the environmental impact of 200% compared to standard engines.

ATS AUTOMATIC STARTING PANEL (OPTIONAL)

The generator is set up for the use of an ATS automatic starting panel. Thanks to which you will no longer have to worry about blackouts because if it goes off the electricity grid this panel is able to automatically start the generator and will allow you to continue your business without losing your work data.

TECHNICAL CHARACTERISTICS PRAMAC P4000 :

Phase type: Single-phase
Continuous use power: 3.24 KVA / 2.92 KW
Maximum power: 3.57 KVA / 3.21 KW
Engine: Yanmar L70V
Engine speed: 3000 rpm
Emissions standard: STAGEV
Starting: Electric
Fuel: Diesel
Voltage: 230 V
Frequency: 50 Hz
Voltage regulator: Capacitor (AVR Optional )
Socket panel: 1 X SCHUKO 230V 16A | 1 X CEE 230V 16A | 1 X CEE 230V 32A
Tank capacity: 18 l
Autonomy: 15.25 h at 75% of load
Consumption: 1.18 l / h at 75% of load
Acoustic pressure: 68 dB (A) @ 7 m
Length: 800 mm
Width: 525 mm
Height: 850 mm
Dry weight: 132 Kg

Are you looking for a generator with different technical characteristics? HERE you can find the area dedicated to PRAMAC generators or other specialized brands.

Images and technical data not binding.

Related Accessories
List price
6.130,50 € tax incl.
5.025,00 € tax excl.
Discounted Price
4.597,88 € tax incl.
3.768,75 € tax excl.
Voltage Regulator
Quantity

loader
0,00 € shipped to Italy

Calculate Shipping Cost
Add to wishlist
Download PDF
Ask a question
Product: PRAMAC P4000 GENERATOR 3,5 KVA SINGLE-PHASE STAGEV
Offer on letterhead
Product: PRAMAC P4000 GENERATOR 3,5 KVA SINGLE-PHASE STAGEV
