GENERATOR SUPERSILENT SINGLE-PHASE/THREE-PHASE 46KVA AUTOMATIC PANEL

  • New
generator supersilent single phasethree phase 46kva automatic panel
search
  • generator supersilent single phasethree phase 46kva automatic panel
  • generator supersilent single phasethree phase 46kva automatic panel
  • generator supersilent single phasethree phase 46kva automatic panel
NO BRAND
DS46KVAA ML
New product

Phase Type: Single Phase / Three Phase
Continuous use power: 42 KVA / 33.6 KW
Maximum power: 46 KVA / 36.8 KW
Motor: Perkins 1103A-33TG1
Motor RPM: 1500 / 1800 rpm
Emission standard: Non-Emission
Starter: Electric / Automatic
Fuel: Diesel
Voltage available at terminals: 230 / 400 V
Frequency: 50 Hz
Voltage regulator: AVR
Socket panel: 1 x CEE 63A 400V 5P / Terminal block
Tank capacity: 100 l
Autonomy at 75% load: 12.2 h
Consumption at 75% load: 8.2 Lt/h
Acoustic pressure: 60 dB(A) @ 7 m
Length: 2100 mm
Width: 870 mm
Height: 1165 mm
Dry weight: 1005 kg

Technical features
Phase
Single phase / Three phase
Maximum power three phase (KW)
33
Continuous power three phase (KW)
36
Maximum power three phase (KVA)
46
Continuous power three phase (KVA)
42
Fuel
Diesel
Frequency (Hz)
50
Voltage (V)
230 / 400
Sockets configuration
1 x CEE 63A 400V 5P / Terminal block
Engine
Perkins 1103A-33TG1
Emissions Regulations
Not Emitted
Engine rpm (rpm)
1500 / 1800
Speed governor
Mechanical
Starting system
Electric / Automatic
Engine capacity (cm³)
3300
Number cylinders
4
Alternator
Linz / Stamford
Fuel tank capacity (L)
100
Consumption (L/h)
8.2 at 75% load
Running time (h)
12.2 at 75% load
Acoustic pressure
60 dB(A) at 7 m
Length (mm)
2100
Width (mm)
870
Height (mm)
1165
Dry weight (Kg)
1005
Silenced
Yes
Super silenced
Yes
Product type
Generator
ATS Switch device
Optional
Voltage regulator
AVR
Engine manufacturer
Perkins
Details

GENERATOR SUPERSILENT SINGLE-PHASE/THREE-PHASE 46KVA AUTOMATIC PANEL

The generator single-phase/three-phase is equipped with Perkins 1103A-33TG1 diesel powered engine, complete with AVR voltage regulator and automatic starter panel.

The generator is equipped with electric start with 12 V battery and with low fuel consumption, in fact it consumes only 8.2 litres/hour at 75% of the load, combined with a large 100 l capacity; maximum, it will give you; an autonomy of approximately 12 hours.

The generator is equipped with a soundproofed cabin, made of 20/10 thick carbon steel, folded and electro-welded, with IP23 protection class and which can be opened in two sections. This cabin allows the super-silenced generator to deliver an acoustic pressure of only 60 dB(A) @ 7 metres.

The generator guarantees efficient and silent operation thanks to the Perkins 1103A-33TG1 engine, which allows it to deliver a maximum power of 46KVA. The generator is equipped with electric or automatic starting via the ATS panel, which allows automatic ignition in the event of a blackout.

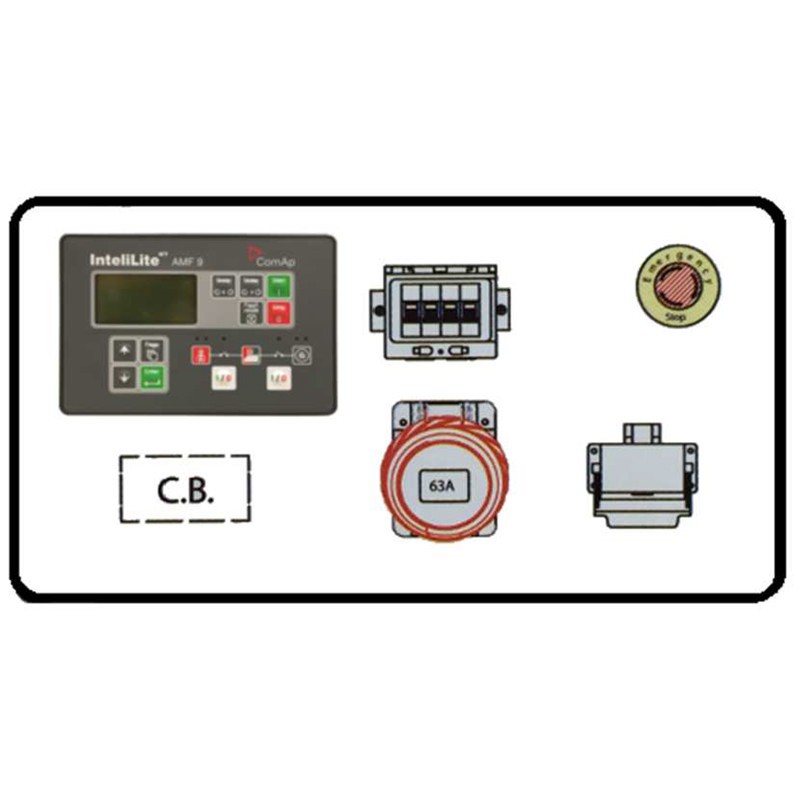

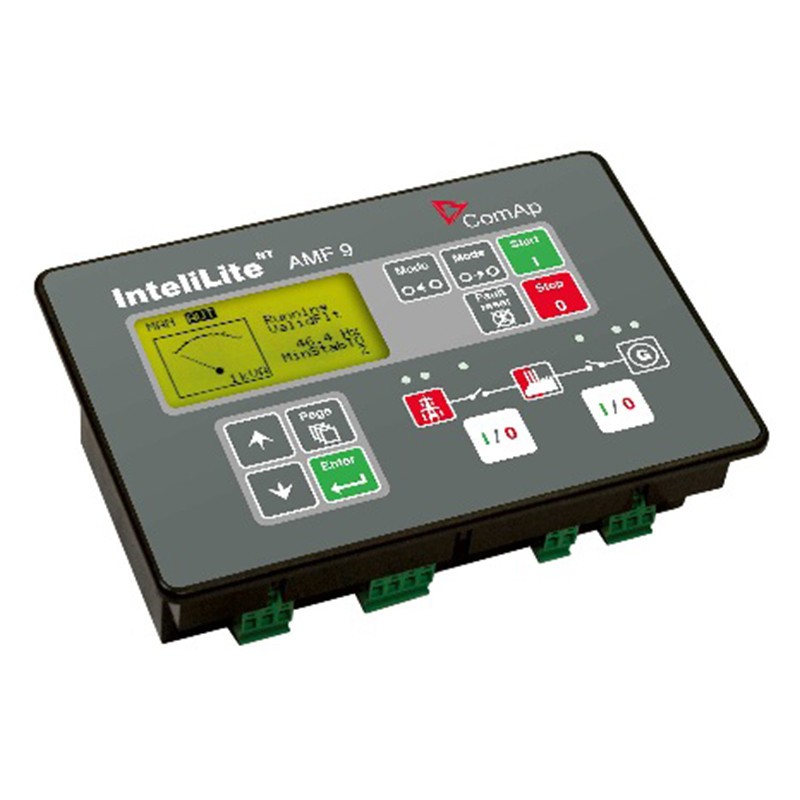

AUTOMATIC START PANEL ATS

The Generator is now running. prearranged for the use of automatic starting panel ATS. Thanks to which you will no longer have to; worry about blackouts  in the event of a mains voltage failure, this panel is able to make it start automatically and will allow you to start it automatically. to continue your business; without losing your work data.

 The generator comes complete with:

- Oil pressure sensor on the control unit
- Digital water temperature gauge on the control unit
- Water heater

TECHNICAL FEATURES

Phase Type: Single Phase / Three Phase
Continuous use power: 42 KVA / 33.6 KW
Maximum power: 46 KVA / 36.8 KW
Motor: Perkins 1103A-33TG1
Motor RPM: 1500 / 1800 rpm
Emission standard: Non-Emission
Starter: Electric / Automatic
Fuel: Diesel
Voltage available at terminals: 230 / 400 V
Frequency: 50 Hz
Voltage regulator: AVR
Socket panel: 1 x CEE 63A 400V 5P / Terminal block
Tank capacity: 100 l
Autonomy at 75% load: 12.2 h
Consumption at 75% load: 8.2 Lt/h
Acoustic pressure: 60 dB(A) @ 7 m
Length: 2100 mm
Width: 870 mm
Height: 1165 mm
Dry weight: 1005 kg

Are you looking for a generator with different technical characteristics? HERE you can find the area dedicated to specialized brand generators.

Non-binding images and technical data.
