GENMAC Wonder-GAS RG10000HS NG GENERATOR 9.8KVA NATURAL GAS SINGLE-PHASE

  • New
genmac wonder gas rg10000hs ng generator 98kva natural gas single phase
search
  • genmac wonder gas rg10000hs ng generator 98kva natural gas single phase
  • genmac wonder gas rg10000hs ng generator 98kva natural gas single phase
GENMAC
Wonder-GAS RG10000HS NG |Condensatore
New product

Phase Type: Single Phase
Continuous Power: 8 KVA / 7.2 KW
Maximum Power: 8.8 KVA / 7.9 KW
VAC Voltage: 230 V
Frequency (Hz): 50
Starter Panel: Electric/ Automatic
Engine: Honda GX690
Emission standard: Not Emitted
RPM RPM: 3000
Power Supply: Natural Gas
Consumption @ 75 % load: 3.8 m³/h
Acoustic pressure: 63 dB(A) @ 7m
Controller model: Comap Intelinano Plus
Socket panel: 1 x Schuko 230V 16A / 1 x CEE 230V 16A / 1 x CEE 230V 63A
Length: 1100 mm
Width: 540 mm
Height: 924 mm
Net weight: 278 kg

Technical features
Phase
Single phase
Maximum power single phase (KW)
7.9
Continuous power single phase (KW)
7.2
Maximum power single phase (KVA)
8.8
Continuous power single phase (KVA)
8
Fuel
Natural Gas
Frequency (Hz)
50
Voltage (V)
230
Sockets configuration
1 x Schuko 230V 16A / 1 x CEE 230V 16A / 1 x CEE 230V 63A
Engine
Honda GX690
Emissions Regulations
Not Emitted
Engine rpm (rpm)
3000
Starting system
Electric
Cooling
Air
Natural Gas consumption (m³/h)
3.8
Acoustic pressure
63 dB(A) at 7 m
Length (mm)
1100
Width (mm)
540
Height (mm)
924
Dry weight (Kg)
278
Silenced
Yes
Super silenced
Yes
ATS Switch device
Optional
Voltage regulator
Capacitor / AVR (optional)
Engine manufacturer
Honda
Details

GENMAC Wonder-GAS RG10000HS NG GENERATOR 9.8KVA NATURAL GAS SINGLE-PHASE

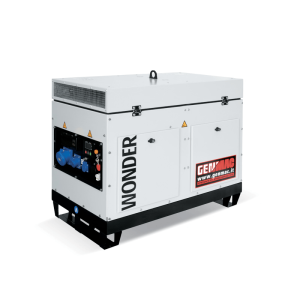

The GENMAC Wonder-GAS RG10000HS NG single-phase generator is equipped with a Honda GX690 Methane GAS engine, capable of delivering a maximum power output of 9.8KVA, complete with capacitor Voltage Regulator (AVR optional).

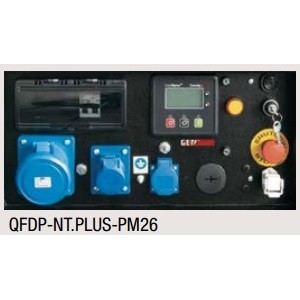

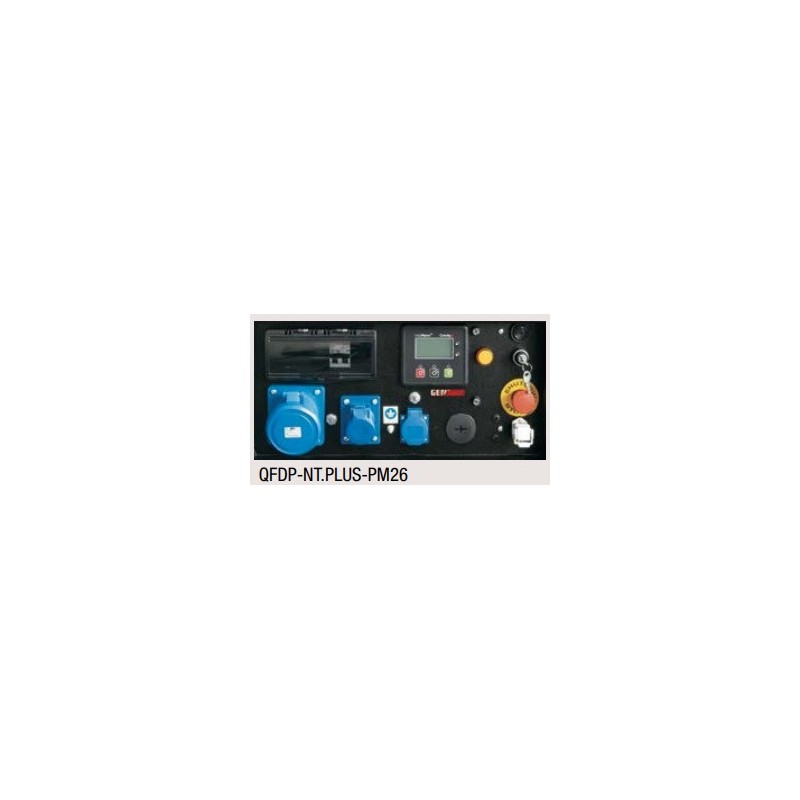

The GENMAC Wonder-GAS RG10000HS NG is equipped with electric start with 12 V battery, the generator is equipped with automatic panel with Comap Intelinano Plus control unit, which allows to display of all electrical parameters of the engine and generator, functions, states of the genset, manage the genset entirely and display, in case they occur, the errors or alarms of the system.

The Genmac Wonder-GAS RG10000HS NG generator is an efficient natural gas-fueled power source. With an output of 9.8KVA, it can provide a reliable supply of power for a wide range of single-phase applications.

This generator is particularly suitable for residential, commercial and industrial uses where natural gas is available as a fuel source. Due to its gas operation, the Genmac Wonder-GAS RG10000HS NG offers numerous advantages, including lower cost than other fuels, lower pollutant emissions, and longer operating range.

The 9.8KVA power output enables it to easily and reliably power appliances, tools and machinery with moderate energy demand. It can handle loads such as lights, refrigerators, computers, electric pumps and more. In addition, its single-phase design makes it compatible with power supply needs in small to medium-sized domestic or commercial environments.

QUADRO DI AVVIAMENTO AUTOMATICO ATS (Optional)

The GENMAC Wonder-GAS RG10000HS NG generator has provision for connection with the ATS automatic start-up panel. Thanks to which you will no longer have to worry about blackouts because if the power grid goes out, this panel is able to automatically start the generator and allow you to continue your activity without losing your work data.

TECHNICAL CHARACTERISTICS GENMAC Wonder-GAS RG10000HS NG

Phase Type: Single Phase
Continuous Power: 8 KVA / 7.2 KW
Maximum Power: 8.8 KVA / 7.9 KW
VAC Voltage: 230 V
Frequency (Hz): 50
Starter Panel: Electric/ Automatic
Engine: Honda GX690
Emission standard: Not Emitted
RPM RPM: 3000
Power Supply: Natural Gas
Consumption @ 75 % load: 3.8 m³/h
Acoustic pressure: 63 dB(A) @ 7m
Controller model: Comap Intelinano Plus
Socket panel: 1 x Schuko 230V 16A / 1 x CEE 230V 16A / 1 x CEE 230V 63A
Length: 1100 mm
Width: 540 mm
Height: 924 mm
Net weight: 278 kg

Looking for a product with different technical characteristics? HERE you can find the area dedicated to generators from specialized brands.

Non-binding images and technical data.
