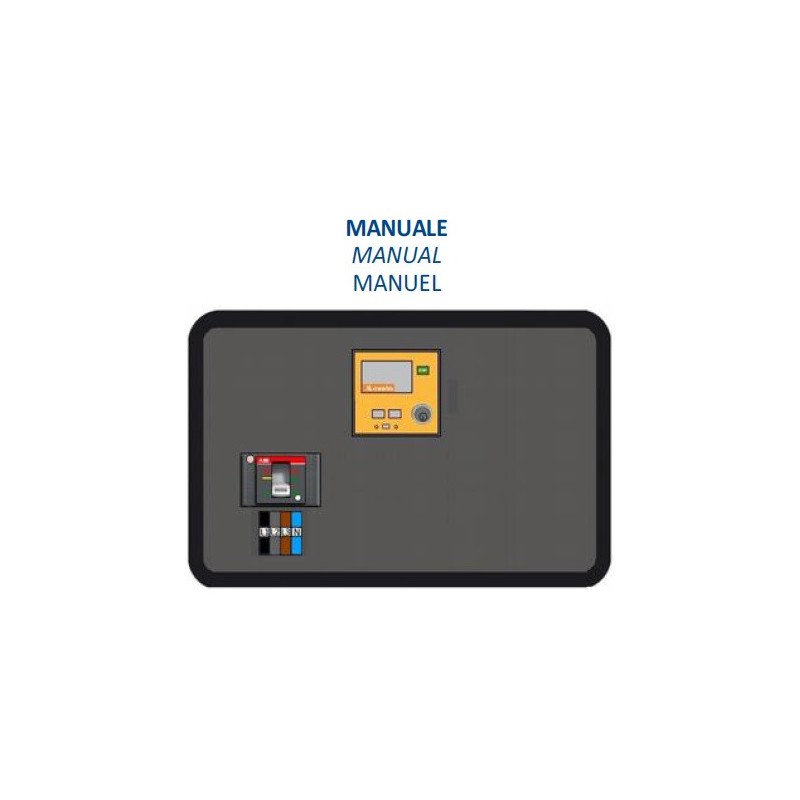

GENERATOR SINGLE-PHASE / THREE-PHASE 200KVA WITH MANUAL CONTROL PANEL STAGE V

  • New
GRUPPO ELETTROGENO 100 kva
search
  • GRUPPO ELETTROGENO 100 kva
  • MANUAL CONTROL PANEL
  • AUTOMATIC CONTROL PANEL
NO BRAND
GMT200KVAA
New product

Phase type: Single-phase / Three-phase
Maximum three-phase power: 176 KW / 220 KVA
Three-phase continuous power: 160 KW / 200 KVA
Maximum single-phase power: 58.67 KW / 73.33 KVA
Single-phase continuous use power: 53.33 KW / 66.67 KVA
Fuel: Diesel
Voltage: 230 V / 400 V
Frequency: 50 Hz
Motor: FPT NEF N67 TEVP05.00
Engine speed: 1500 rpm
Starting: Electric
Consumption: 31.4 Lt/h at 75% load
Length: 3600 mm
Width: 1200 mm
Height: 2300 mm
Weight: 3200 Kg
Super-silenced
AVR

Technical features
Phase
Single phase / Three phase
Maximum power single phase (KW)
58.67
Continuous power single phase (KW)
53.33
Maximum power single phase (KVA)
73.3
Continuous power single phase (KVA)
66.67
Maximum power three phase (KW)
176
Continuous power three phase (KW)
160
Maximum power three phase (KVA)
220
Continuous power three phase (KVA)
200
Fuel
Diesel
Frequency (Hz)
50
Voltage (V)
230 / 400
Sockets configuration
Terminal box
Engine
FPT NEF N67 TEVP05.00
Emissions Regulations
Stage 5
Engine rpm (rpm)
1500
Speed governor
Electronic
Starting system
Electric
Engine capacity (cm³)
6
Number cylinders
6
Cooling
Water
Alternator
Brushless
Poles
4
Protection degree
IP44
Bore x stroke (mm)
104 x 132
Fuel tank capacity (L)
250
Consumption (L/h)
31.4 at 75% of the load
Running time (h)
8 at 75% of the load
Acoustic pressure
69 dB(A) at 7 m
Length (mm)
3600
Width (mm)
1200
Height (mm)
2300
Dry weight (Kg)
3200
AVR
Yes
Silenced
Yes
Super silenced
Yes
Product type
Generator
ATS Switch device
No
Voltage regulator
AVR
Engine manufacturer
FPT Iveco
Details

GENERATOR SINGLE-PHASE / THREE-PHASE 200KVA with manual control panel

Single/three phase 200KVA generator with a 1500 rpm Perkins diesel engine, compact and easy to use, mounted on a fixed base. The is equipped with a weatherproof, structural steel sheet soundproof cabin and an interior cladding of high noise reduction material, making the supersilenced.
The generator consists of a self-excited, brushless alternator with AVR voltage regulator. The generator is equipped with an electric starter with a low fuel consumption battery, consuming only 31,4 litres per hour at 75% load. The fuel tank is incorporated in the crankcase for ease of use.
This generator is perfect for use outdoors, such as on construction sites.
The generator is part of the Industrial range and is characterised by its versatility for installation in urban environments such as shops or shopping centres, for the telecommunications environment, for military applications and much more.

Technical characteristics of the generator:
Phase type: Single-phase / Three-phase
Maximum three-phase power: 176 KW / 220 KVA
Three-phase continuous power: 160 KW / 200 KVA
Maximum single-phase power: 58.67 KW / 73.33 KVA
Single-phase continuous use power: 53.33 KW / 66.67 KVA
Fuel: Diesel
Voltage: 230 V / 400 V
Frequency: 50 Hz
Motor: FPT NEF N67 TEVP05.00
Engine speed: 1500 rpm
Starting: Electric
Consumption: 31.4 Lt/h at 75% load
Length: 3600 mm
Width: 1200 mm
Height: 2300 mm
Weight: 3200 Kg
Super-silenced
AVR

If you are looking for a product like the then you can browse the full range of generators or other types of products in our catalogue to find the one that best suits your needs.

Images and technical data are not binding.
