CUMMINS C450D5Q GENERATOR 450KVA SINGLE/THREE PHASE SILENCED

  • New
cummins c450d5q generator 450kva singlethree phase silenced
search
  • cummins c450d5q generator 450kva singlethree phase silenced
  • cummins c450d5q generator 450kva singlethree phase silenced
CUMMINS ONAN
C450D5Q S
New product

Phase type: Single-phase / Three-phase
Continuous power: 409 KVA / 327 KW
Maximum Power: 450 KVA / 360 KW
Engine: Cummins QSG12-G4
Power supply: Diesel
Engine speed: 1500 rpm
Speed control: Mechanical
Alternator: Stamford S4L1D-G41
Emission standard: Not Emitted
Starter: Electric / Automatic
Voltage regulator: AVR
Voltage: 230/400 V
Frequency: 50 Hz
Socket panel: Terminal box
Tank capacity: 995 l
Consumption at 75 % load: 62.19 l/h
Autonomy at 75 % load: 16 h
Length: 4015 mm
Width: 1400 mm
Height: 2495 mm
Dry weight: 3840 kg

Technical features
Phase
Single phase / Three phase
Maximum power three phase (KW)
360
Continuous power three phase (KW)
327
Maximum power three phase (KVA)
450
Continuous power three phase (KVA)
409
Fuel
Diesel
Frequency (Hz)
50
Voltage (V)
230 / 400
Sockets configuration
Terminal box
Engine
4 stroke
Emissions Regulations
Not Emitted
Engine rpm (rpm)
1500
Speed governor
Mechanical
Number cylinders
6
Cylinders' position
In line
Cooling
Coolant Liquid
Poles
4
Bore x stroke (mm)
132 x 144
Fuel tank capacity (L)
995
Consumption (L/h)
62.19 to 75% of the load
Running time (h)
16 to 75% of the load
Acoustic pressure
71 dB(A) at 7 m
Length (mm)
4015
Width (mm)
1400
Height (mm)
2495
Dry weight (Kg)
3840
Silenced
Yes
Brushes
No
Product type
Generator
Control unit
PowerCommand 2.2
ATS Switch device
Optional
Voltage regulator
AVR
Engine manufacturer
Cummins
Precision of voltage regulation
± 1%
Details

CUMMINS C450D5Q GENERATOR 450KVA SINGLE/THREE PHASE SILENCED

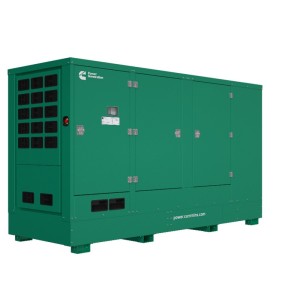

The CUMMINS C450D5Q generator is equipped with a Cummins QSG12-G4 diesel-powered engine and is capable of delivering a maximum output of 450KVA, complete with AVR voltage regulator.

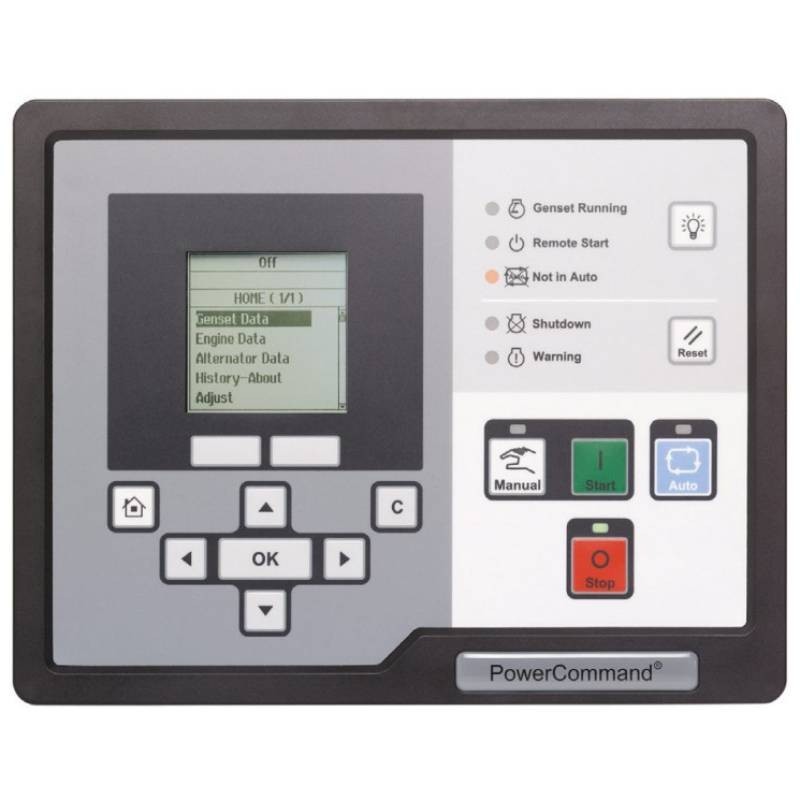

The CUMMINS C450D5Q is equipped with the PowerCommand 2.2 unit, which enables the display of all electrical parameters of the engine and generator, the functions, statuses of the genset, the complete management of the genset, and the display of system errors or alarms should they occur. The unit provides a simple interface, automatic/manual and remote start/stop control and shutdown fault indication. The integration of all functions in a single control provides greater reliability and performance than conventional genset control systems.

Standard features of the Cummins C450D5Q generator include the Cummins diesel engine, a robust industrial 4-stroke that ensures reliable power generation and fast responsiveness to load changes. The alternator, part of the Stamford S series, is self-exciting, ensuring efficient generation. An optional permanent magnet alternator is also available.

Control is via the microprocessor-based PowerCommand monitoring, which ensures accurate genset control. Open and encapsulated versions of the genset are available.

The Cummins C450D5Q generator is backed by a comprehensive warranty and an extensive network of distributors and dealers. In addition, the engine is equipped with a 230 V coolant heater as standard, which ensures starting even in low ambient temperatures by circulating the heated coolant inside.

In addition, it is equipped with an automatic start via the ATS panel, which allows autonomous start-up in the event of a power failure.

Thanks to the advanced unit, the generator is equipped with :

PC-based software service tool
Inpower Modbus interface for interconnection with PLC/BMS
Configurable inputs and outputs
Configurable alarm inputs to trigger a shutdown or warning response

ATS AUTOMATIC TRANSFER SWITCH ARRANGEMENT

The CUMMINS C450D5Q generator is prepared for connection to the Automatic Transfer Switch ATS. Thanks to which you no longer have to worry about blackouts, since in the event of a power failure this panel is able to switch on the unit and allow you to continue your activity without losing your work data.

CUMMINS C450D5Q TECHNICAL CHARACTERISTICS

Phase type: Single-phase / Three-phase
Continuous power: 409 KVA / 327 KW
Maximum Power: 450 KVA / 360 KW
Engine: Cummins QSG12-G4
Power supply: Diesel
Engine speed: 1500 rpm
Speed control: Mechanical
Alternator: Stamford S4L1D-G41
Emission standard: Not Emitted
Starter: Electric / Automatic
Voltage regulator: AVR
Voltage: 230/400 V
Frequency: 50 Hz
Socket panel: Terminal box
Tank capacity: 995 l
Consumption at 75 % load: 62.19 l/h
Autonomy at 75 % load: 16 h
Length: 4015 mm
Width: 1400 mm
Height: 2495 mm
Dry weight: 3840 kg

Looking for a generator with different technical characteristics? HERE you can find the full range of CUMMINS generators and other specialised brands.

Images and technical data are not binding and may be subject to revision by the manufacturer.
