PRAMAC GSW220D AUTOMATIC SILENCED

  • New
PRAMAC GSW10Y COFANATO CON QUADRO COMANDO MANUALE (MCP)
search
  • PRAMAC GSW10Y COFANATO CON QUADRO COMANDO MANUALE (MCP)
  • PRAMAC GSW10Y COFANATO CON QUADRO COMANDO MANUALE (MCP)
PRAMAC

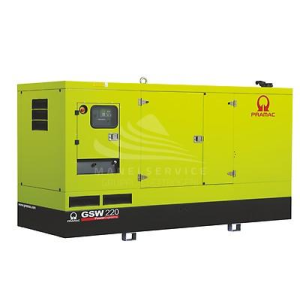

PRAMAC GSW220D
New product

Maximum power three-phase: 176 KW

Three-phase continuous output: 162.97 KW

Fuel: Diesel

Voltage: 400 V

Frequency: 50 Hz

Engine: Deutz BF6M1013FC G3

Use: Stationary

Starter: Electric

Consumption: 49.24 Lt/h at 100% load

Length: 3400 mm

Width: 1250 mm

Height: 1947.5 mm

Weight: 2540 Kg

AVR

Technical features
Phase
Three phase
Maximum power three phase (KW)
176
Continuous power three phase (KW)
163
Maximum power three phase (KVA)
220
Continuous power three phase (KVA)
195.71
Fuel
Diesel
Frequency (Hz)
50
Voltage (V)
400
Engine
Deutz BF6M1013FCG3, turbo intercooler
Speed governor
Electronic
Starting system
Electric
Engine capacity (cm³)
7146
Number cylinders
6
Cylinders' position
In line
Oil capacity (L)
20
Cooling
Water
Alternator
Mecc Alte
Poles
4
Fuel tank capacity (L)
340
Consumption (L/h)
33.6 at 75% of the load / 44.1 at 100% of the load
Running time (h)
10.1 at 75% of the load / 7.7 at 100% of the load
Acoustic power
97 dB(A)
Acoustic pressure
68 dB(A) at 7 m
Length (mm)
3400
Width (mm)
1250
Height (mm)
1770
Dry weight (Kg)
2540
Silenced
Yes
Super silenced
Yes
ATS Switch device
Optional
Voltage regulator
AVR
Engine manufacturer
Deutz
Details
Related Accessories
List price
63.860,90 € tax incl.
52.345,00 € tax excl.
Discounted Price
32.984,20 € tax incl.
27.036,23 € tax excl.
Quantity

loader
shipped to

Calculate Shipping Cost
Add to wishlist
Download PDF
Ask a question
Product: PRAMAC GSW220D AUTOMATIC SILENCED
Offer on letterhead
Product: PRAMAC GSW220D AUTOMATIC SILENCED
