Three-phase maximum power: 30.4 KW
Three-phase continuous power: 27.2 KW
Fuel: Diesel
Voltage: 400 V
Frequency: 50 Hz
Engine: Yanmar 4TNV98C
Emissions standard: STAGE V
Starting: Electric
Measured sound power LwA: 90 dB(A) (65 dB(A) @ 7m)
Consumption: 5.9 Lt/h at 75% load
Performance class: G3
Autonomy (75% PRP): 25 h
Tank capacity: 150 l
Length: 2050 mm
Width: 900 mm
Height: 1415 mm
Weight: 975 kg
Supersilenced

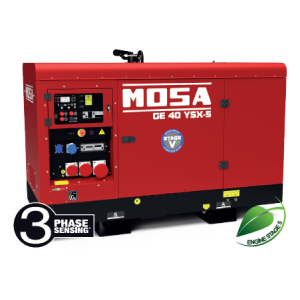

The MOSA GE40 YSX5 Genset is a 30.4 KW three-phase genset with a Yanmar STAGE V diesel-powered engine. The MOSA GE40 YSX5 genset is equipped with electric start. MOSA GE40 YSX5 is synchronous, three-phase, self-excited, self-regulated, brushless with class H insulation.
This MOSA GE40 YSX5 genset is compact and convenient to manoeuvre and transport thanks to its compact dimensions, with a weight of 975 kg, as well as its practical drilled base. A genset with enclosure to reduce noise emissions, making it supersilenced.
The MOSA GE40 YSX5 with 150-litre tank has a fuel consumption of 5.9 litres/hour at 75% load for an autonomy of 25 hours.
Version with MOSA 350-litre Long Run tank to be requested when ordering:
350-litre tank: The genset increases the start-up autonomy by about 59 hours.
Dimensions with 350 litre long run tank: 2050x900x1725 mm
Weight with 350 litre long run tank: 1165 Kg.
MOSA Output sockets:
1x 400V 63A 3P+N+E CEE IP67
1x 400V 32A 3P+N+E CEE IP67
1x 400V 16A 3P+N+E CEE IP67
1x 230V 16A 2P+E CEE IP67
1x 230V 16A 2P+E SCHUKO
standard: DIGITAL CONTROL PANEL (terminal board only)
3way: (terminal board only)
3-way valve with quick couplings for supply from external tank
TOP: (terminal board only)
- Electronic differential relay
- 3-way valve with quick couplings for supply from external reservoir
- Crankcase leak detection sensor
- 350l fuel reservoir
Technical specifications of the MOSA GE40 YSX5 genset:
Three-phase maximum power: 30.4 KW
Three-phase continuous power: 27.2 KW
Fuel: Diesel
Voltage: 400 V
Frequency: 50 Hz
Engine: Yanmar 4TNV98C
Emissions standard: STAGE V
Starting: Electric
Measured sound power LwA: 90 dB(A) (65 dB(A) @ 7m)
Consumption: 5.9 Lt/h at 75% load
Performance class: G3
Autonomy (75% PRP): 25 h
Reservoir capacity: 150 l
Length: 2050 mm
Width: 900 mm
Height: 1415 mm
Weight: 975 kg
Supersilenced
If you are looking for another product like the generator set MOSA GE40 YSX-5 then you can see on our catalog other terrestrial generators.
Images and technical data are not binding.
Three-phase maximum power: 30.4 KW
Three-phase continuous power: 27.2 KW
Fuel: Diesel
Voltage: 400 V
Frequency: 50 Hz
Engine: Yanmar 4TNV98C
Emissions standard: STAGE V
Starting: Electric
Measured sound power LwA: 90 dB(A) (65 dB(A) @ 7m)
Consumption: 5.9 Lt/h at 75% load
Performance class: G3
Autonomy (75% PRP): 25 h
Tank capacity: 150 l
Length: 2050 mm
Width: 900 mm
Height: 1415 mm
Weight: 975 kg
Supersilenced
