GENERATOR 22KVA SINGLE-PHASE / THREE-PHASE AVR

GENERATOR 22KVA SINGLE-PHASE / THREE-PHASE AVR

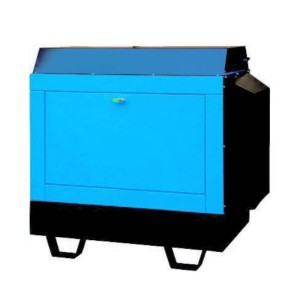

Generator 22 KVA three-phase with Kohler engine fueled by diesel at 3000 rpm, compact and easy to use, mounted on a fixed base with vibration dampers. The Generator is composed of a Made in Italy alternator, self-excited with brushes and with AVR voltage regulator. The Generator  it is equipped with electric start with battery with low fuel consumption in fact it consumes only 4,2 liters / hour at 75% of the load. This Generator is perfect for outdoor use such as for building site use.
Thanks to the hood, the generator has low noise emissions and is super silent. This Generator is at 3000 rpm, with KOHLER diesel engine with electric start with key and battery. The Generator is characterized by lower consumption and a longer life expectancy than the petrol-powered range. The generator at 3000 rpm is suitable for emergency use only. It is not recommended to use for longer than a year. of 6 continuous hours and for more; 500 hours a year.

Technical characteristics:

Phase type: Single-phase/Three-phase
Three-phase continuous power: 20 KVA / 16 KW
Three-phase maximum power: 22 KVA / 17.6 KW
Fuel: Diesel
Voltage: 230 / 400 V
Frequency: 50 Hz
Engine: KOHLER KD625
Engine speed: 3000 rpm
Emissions standard: StageV
Starter: Electric
Regulator voltage: AVR
Socket configuration: 1 x Schuko | 1 x 16A 3P 230V | 1 x 32A 5P 400V
Consumption: 4.2 Lt/h at 75% of the load
Tank capacity: 50 Lt
Autonomy: 11.9 h at 75% of the load
Length: 1300 mm
Width: 600 mm
Height: 1080 mm
Weight: 365 Kg

Discover the full range of land generating sets on our catalog to find the most suitable one. suitable for your needs.

Non-binding images and technical data.
