GENSET MG 50 I-SY - SINGLE-PHASE/THREE-PHASE GENERATOR 44 KVA AVR Stage 0
Maximum three-phase power: 44 KVA
Maximum three-phase power: 35.2 KW
Three-phase continuous use power: 39.6 KVA
Three-phase continuous use power: 31.68 KW
Single-phase maximum power: 14.6 KVA
Maximum power single-phase: 11.68 KW
Fuel: Diesel
Voltage: 230/400 V
Frequency: 50 Hz
Engine: Yanmar 4TNV98T (STAGE 0)
Starter: Electric
Consumption: 8.1 Lt/h
Length: 1900 mm
Width: 910 mm
Height: 1100 mm
Weight: 735 Kg
Super silenced
AVR
- Phase
- Single phase / Three phase
- Maximum power single phase (KW)
- 11.68
- Maximum power single phase (KVA)
- 14.6
- Maximum power three phase (KW)
- 35.2
- Continuous power three phase (KW)
- 31.68
- Maximum power three phase (KVA)
- 44
- Continuous power three phase (KVA)
- 39.6
- Fuel
- Diesel
- Frequency (Hz)
- 50
- Voltage (V)
- 230 / 400
- Sockets configuration

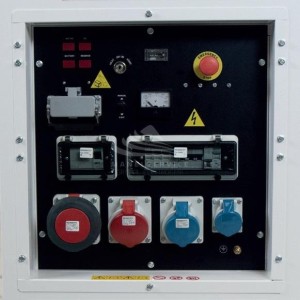

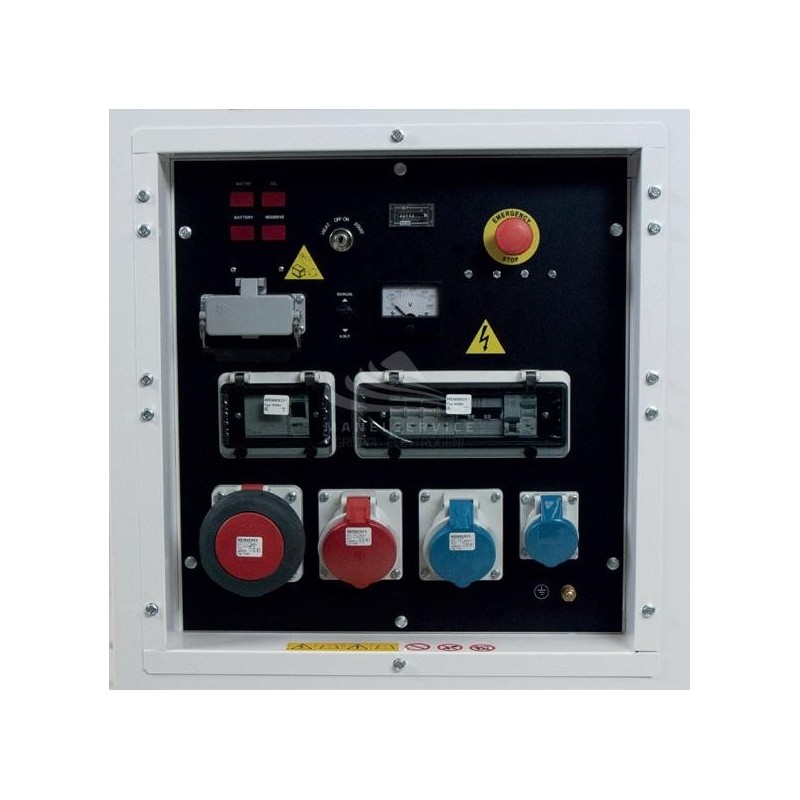

- 1 x 400V 63A CEE - 1 x 400V 32A CEE - 1 x 230V 32A CEE - 230V 16A CEE
- Engine
- Yanmar 4TNV98T, 4 stroke
- Emissions Regulations
- Stage 0
- Engine rpm (rpm)
- 1500
- Starting system
- Electric
- Engine capacity (cm³)
- 3319
- Number cylinders
- 4
- Cooling
- Water
- Alternator
- Synchronous
- Protection degree
- IP23
- Motor insulation class
- H
- Fuel tank capacity (L)
- 40
- Consumption (L/h)
- 8.1
- Running time (h)
- 4.94
- Acoustic power
- 95 dB(A)
- Acoustic pressure
- 70 dB(A) at 7 m
- Length (mm)
- 1900
- Width (mm)
- 910
- Height (mm)
- 1100
- Dry weight (Kg)
- 735
- Silenced
- Yes
- Super silenced
- Yes
- Product type
- Generator
- ATS Switch device
- Optional
- Voltage regulator
- AVR
- Engine manufacturer
- Yanmar

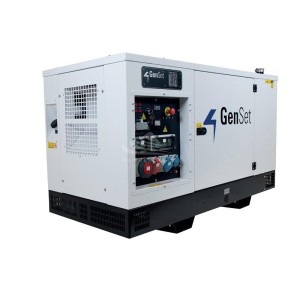

GENSET MG 50 I-SY - SINGLE-PHASE-THREE-PHASE ELECTRIC GENERATOR 44 KVA AVR Stage 0
The three-phase 44 KVA diesel generator is the ideal solution for those who need a reliable and powerful energy source in professional or domestic contexts.
Main features GENSET MG 50 I-SY:
High power:
Three-phase maximum power: 44 KVA (35.2 kW)
Three-phase continuous power: 39.6 KVA (31.68 kW)
Single-phase maximum power: 14.6 KVA (11.68 kW)

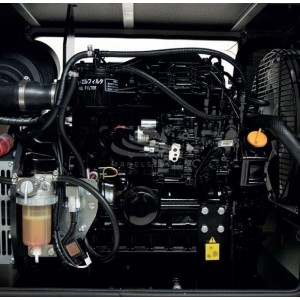

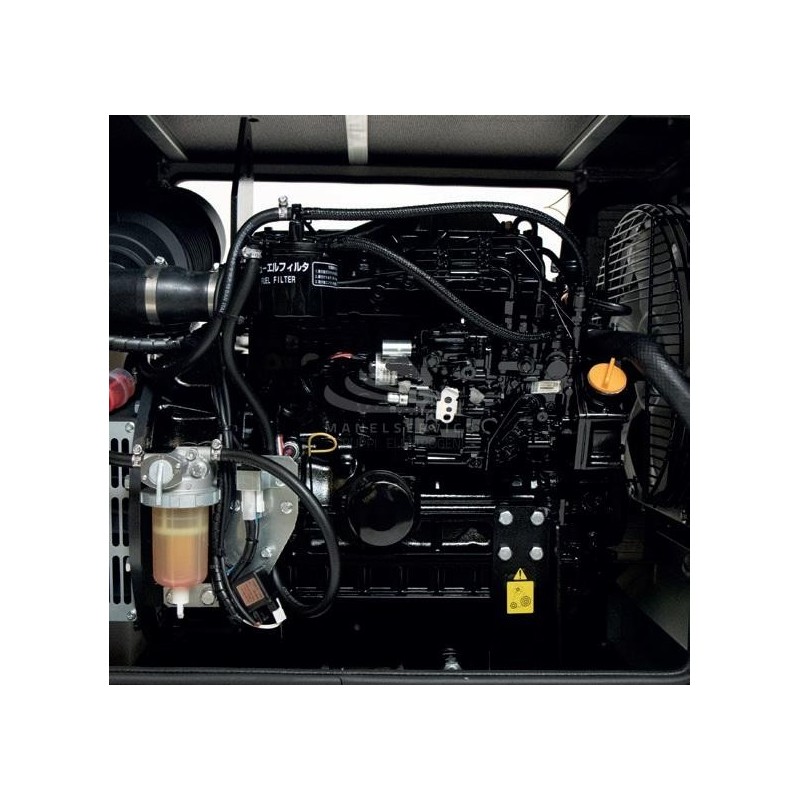

Yanmar 4TNV98T engine (STAGE 0): Reliable, high-performance, liquid-cooled 4-cylinder diesel engine complying with STAGE 0 emission standards.
Electric start: Quick and easy starting with key.
Efficient consumption: Low fuel consumption (8.1 Lt/h) for optimum range.
Super silent: Soundproof design for silent operation.
Robust construction: Compact and robust design for easy transport and storage
Technical specifications GENSET MG 50 I-SY
Maximum three-phase power: 44 KVA
Maximum three-phase power: 35.2 KW
Three-phase continuous use power: 39.6 KVA
Three-phase continuous use power: 31.68 KW
Single-phase maximum power: 14.6 KVA
Maximum power single-phase: 11.68 KW
Fuel: Diesel
Voltage: 230/400 V
Frequency: 50 Hz
Engine: Yanmar 4TNV98T (STAGE 0)
Starter: Electric
Consumption: 8.1 Lt/h
Tank: 40 lt
Length: 1900 mm
Width: 910 mm
Height: 1100 mm
Weight: 735 Kg
Super silenced
AVR
if you are looking for a generator set such as GENSET MG 50 I-SY or with similar characteristics? CLICK HERE.
Images and technical data are not binding.
