Maximum three-phase power: 22 KVA
Maximum three-phase power: 17.6 KVA
Maximum single-phase power: 7.3 KVA
Single-phase maximum power: 5.84 KW
Fuel: Diesel
Voltage: 230/400 V
Frequency: 50 Hz
Acoustic power: 93 (68 dB at 7 m)
Engine: Yanmar 4TNV88
Emission standard: StageV
No. Cylinders: 4
Power: 24.1 HP (18 kWm)
Displacement: 2190 cm3
Cooling: Coolant
Tank capacity: 200lt
Starter: Electric
Fuel consumption @80%: 3,5 lt/h
Degree of protection: IP23
Length: 1650 mm
Width: 815 mm
Height: 1345 mm
Weight: 684 kg
Silenced
The GENSET MG23ISY Gruppo Elettrogeno StageV 200lt is a high-quality silent generator,
designed to ensure excellent performance and reliability in various operating conditions.
The GENSET MG23ISY StageV is part of GENSET's renowned Smart series, and
stands out for its compactness and robustness, making it ideal for frequent use and
easy handling.
Main Features of GENSET MG23ISY Gruppo Elettrogeno StageV 200lt:

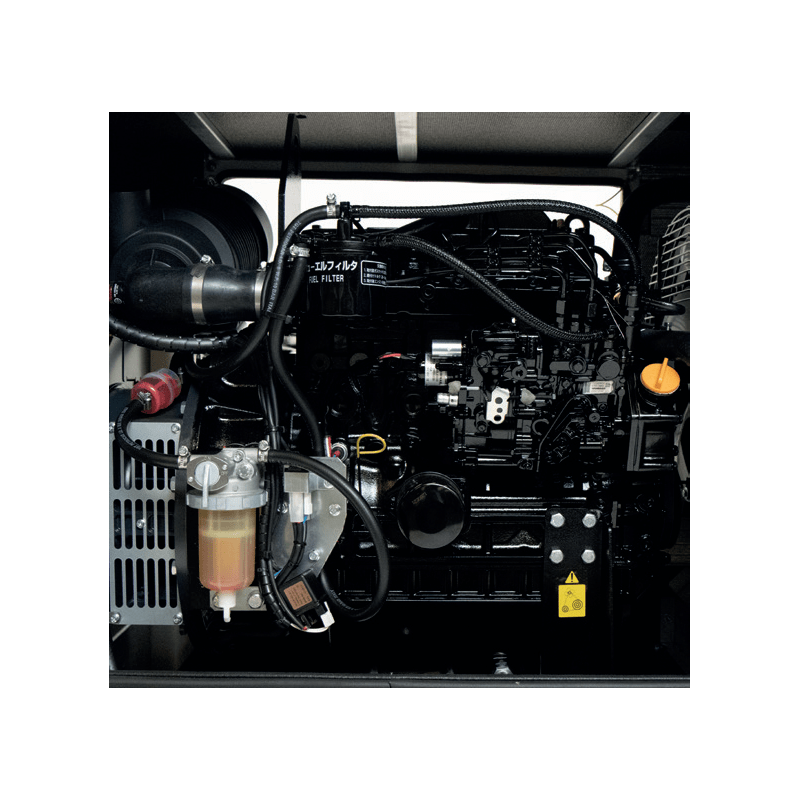

Yanmar Engine at 1500 rpm: The Yanmar diesel engine offers a power output of 24.1 HP
(18 kWm), ensuring efficient and long-lasting operation.
Tank Capacity: With a 200-liter tank, the MG23ISY allows for long periods of operation
without the need for frequent refueling.
Stage V: Compliant with Stage V regulations, this generator significantly reduces
emissions, contributing to a cleaner environment.
Automatic Shutdown System: Equipped with a safety system that shuts down the
engine in case of anomalies such as low fuel level, low oil pressure,
or high coolant temperature.
Ease of Maintenance: Designed for easy access during maintenance operations,
ensuring a long operational life and uninterrupted functionality.

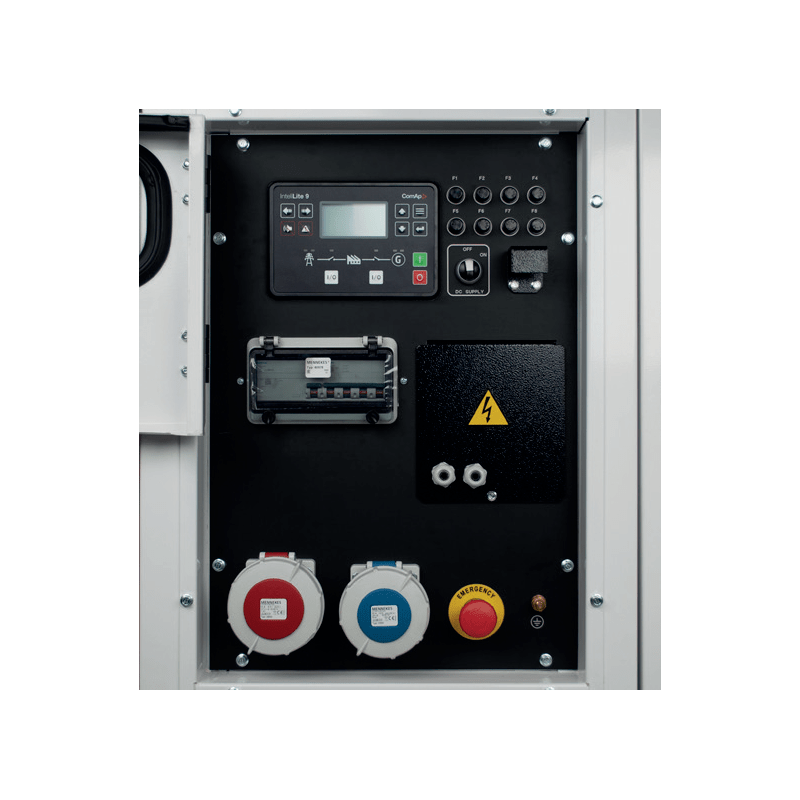

Control Panel and Sockets: Includes a control panel with multiple sockets for
single-phase and three-phase connections, allowing for versatile use.
Technical Specifications:
Maximum Power: 22 kVA (three-phase) and 7.3 kVA (single-phase) with a power factor
of cos φ 0.8.
Fuel Consumption: 3.5 liters/hour at 80% load.
Noise Level: 93 dB (68 dB at 7 meters), ensuring relatively quiet operation.
Dimensions: 1650x815x1345 mm, ideal for confined spaces.
Weight: 660 kg, facilitating handling and transportation.
Standard Equipment:
Hour Counter and Voltmeter
Emergency Stop Button
Fuel Level Indicator
Power Output Protections and Differential Switch
Connector for AMF-ATS Panel and Remote Control
Forklift Tubes and Lifting Hook
The GENSET MG23ISY Gruppo Elettrogeno StageV 200lt is the perfect choice for
those who need a reliable and powerful generator, with low emissions and
simple maintenance. This model represents an advanced and eco-friendly solution,
ideal for a wide range of industrial and commercial applications. Thanks to its technical
features and standard equipment, the GENSET MG23ISY Gruppo Elettrogeno StageV is
synonymous with quality and performance in the generator sector.
Looking for a power generator with different characteristics? HERE you can find the full range of products from GENSET or other brands specializing in the field
Images and technical data are not binding and may be subject to revision by the supplier.
