MASE PD 70 Y GENERATOR 6,8 KVA SINGLE PHASE STAGEV

mase is 26
search
  • mase is 26
  • mase is 26
MASE
002131MA
New product

Type of phase: Single-phase
Continuous power: 6.25 KVA / 5 KW
Maximum power: 6.8 KVA / 5.4 KW
VAC voltage: 230 V
Frequency (Hz): 50
Voltage regulator: Capacitor (AVR Optional)
Ignition panel: Electric
Engine: Yanmar L100V
Emissions standard: Stage V
Revolutions per minute : 3000 rpm
Power supply: Diesel
Socket panel: 1 x CEE 16A 230V / 1 x CEE 32A 230V
Tank capacity: 5.5 l
Autonomy: 3.6 h at 75% load
Consumption: 1.5 l / h at 75% load
Acoustic pressure: 74 dB (A) @ 7 m
Length: 820 mm
Width: 580 mm
Height: 610 mm
Net weight: 110 Kg

Technical features
Phase
Single phase
Maximum power single phase (KW)
5.4
Continuous power single phase (KW)
5
Maximum power single phase (KVA)
6.8
Continuous power single phase (KVA)
6.25
Fuel
Diesel
Frequency (Hz)
50
Voltage (V)
230
Sockets configuration
2 x 230V 16A CE
Engine
Yanmar L100AE, 4 stroke
Emissions Regulations
Stage 5
Engine rpm (rpm)
3000
Starting system
Electric
Engine capacity (cm³)
435
Number cylinders
1
Cooling
Air
Alternator
Synchronous
Fuel tank capacity (L)
5.5
Consumption (L/h)
1.5 at 75% of the load / 2 at 100% of the load
Running time (h)
3.65 at 75% of the load
Acoustic power
99 dB(A)
Acoustic pressure
74 dB(A) at 7 m
Length (mm)
820
Width (mm)
580
Height (mm)
610
Dry weight (Kg)
110
Silenced
No
Super silenced
No
ATS Switch device
Optional
Voltage regulator
Capacitor / AVR (optional)
Engine manufacturer
Yanmar
Details

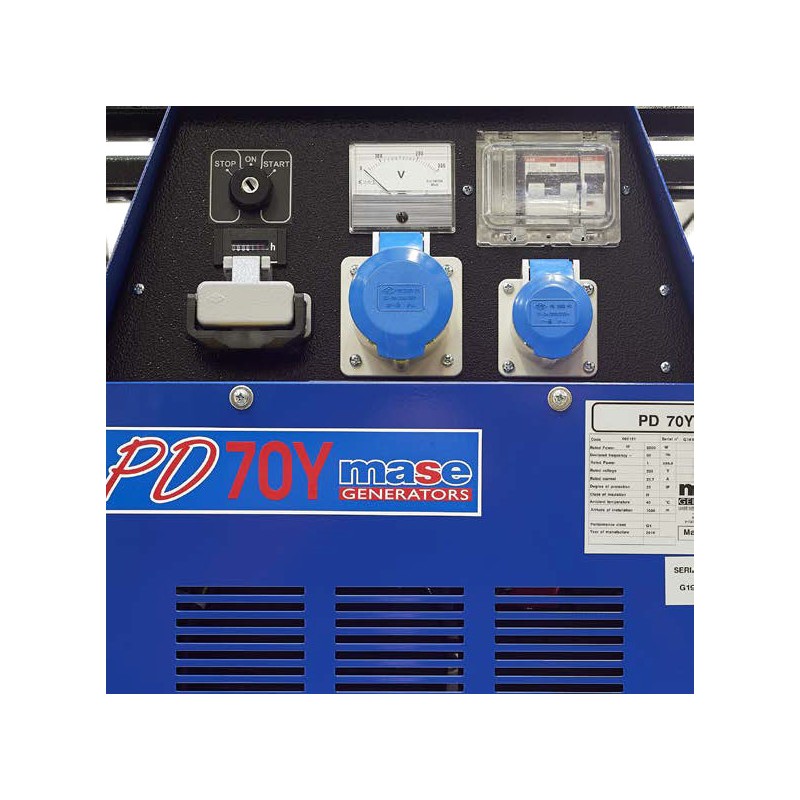

MASE PD 70 Y GENERATOR 6,8 KVA SINGLE PHASE STAGEV

MASE PD 70 Y is a single-phase generator equipped with a diesel-power Yanmar L100V StageV engine, complete with capacitor voltage regulator ( AVR optional ).

The generator is equipped with an electric start and has a low fuel consumption, in fact it consumes only 1.5 liters / hour at 75% of the load for an autonomy of up to 3.6 hours of operation.

MASE PD 70 Y provides reliable power for home, business and leisure environments Safely powering home appliances and other electronic devices energy solution for outdoor parties. Extremely practical sockets and controls make starting and operating the generator easier, making these operations extremely simple and fast.

STAGEV EMISSIONS REGULATION

With the abbreviation STAGEV, the guidelines and the limits of the gas emissions of the engines are defined. The legislation is respected through the installation of special anti-particulate filters in the genset but an essential condition for the filter to work properly is that the MASE PD 70 Y works at its design temperature.

TECHNICAL CHARACTERISTICS OF MASE PD 70 Y

Type of phase: Single-phase
Continuous power: 6.25 KVA / 5 KW
Maximum power: 6.8 KVA / 5.4 KW
VAC voltage: 230 V
Frequency (Hz): 50
Voltage regulator: Capacitor (AVR Optional)
Ignition panel: Electric
Engine: Yanmar L100V
Emissions standard: Stage V
Revolutions per minute : 3000 rpm
Fuel: Diesel
Socket panel: 1 x CEE 16A 230V / 1 x CEE 32A 230V
Tank capacity: 5.5 l
Autonomy: 3.6 h at 75% load
Consumption: 1.5 l / h at 75% load
Acoustic pressure: 74 dB (A) @ 7 m
Length: 820 mm
Width: 580 mm
Height: 610 mm
Net weight: 110 Kg

Are you looking for a product with different technical characteristics? HERE you can find the area dedicated to MASE generators and other specialized brands.

Non-binding images and technical data.
