Type of phase: Single-phase / Three-phase
Continuous singlephase power: 1.8 KVA / 1.4 KW
Maximum singlephase power: 2.1 KVA / 1.7 KW
Continuous threephase power: 5.5 KVA / 4.4 KW
Threephase maximum power: 6.3 KVA / 5 KW
VAC voltage: 230/400 V
Frequency (Hz): 50
Voltage regulator: Compound (AVR Optional)
Starting panel: Electric
Engine: Yanmar L100V
Emissions standard: Stage V
Rpm: 3000 rpm
Power supply: Diesel

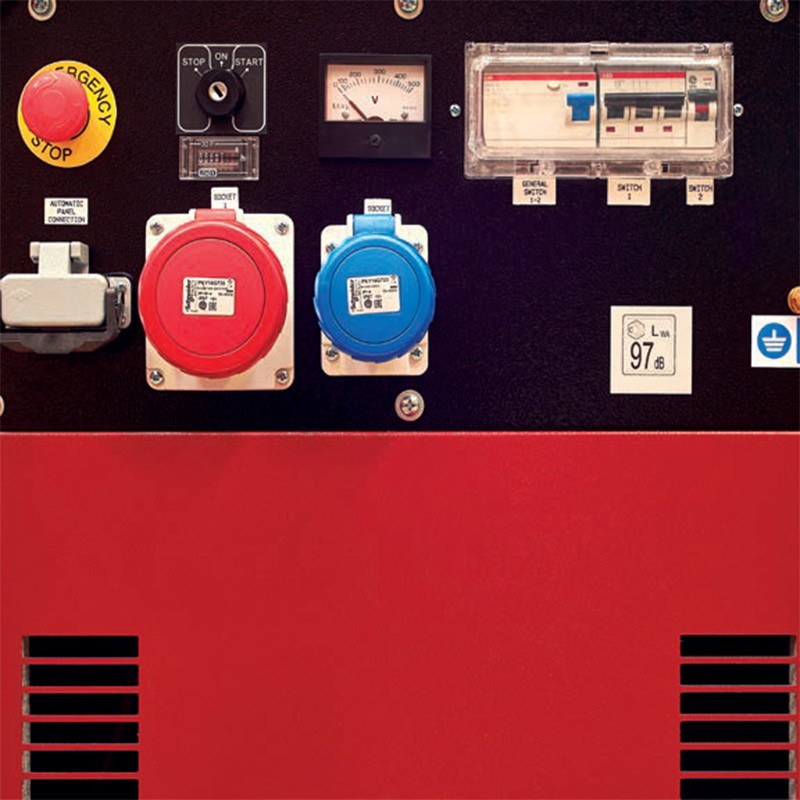

Socket panel : 1 x CEE 16A 230V / 1 x CEE 16A 400V
Tank capacity: 10.5 l
Autonomy: 7 h at 75% of the load
Consumption: 1.5 l / h at 75% of the load
Acoustic pressure: 72 dB (A) @ 7 m

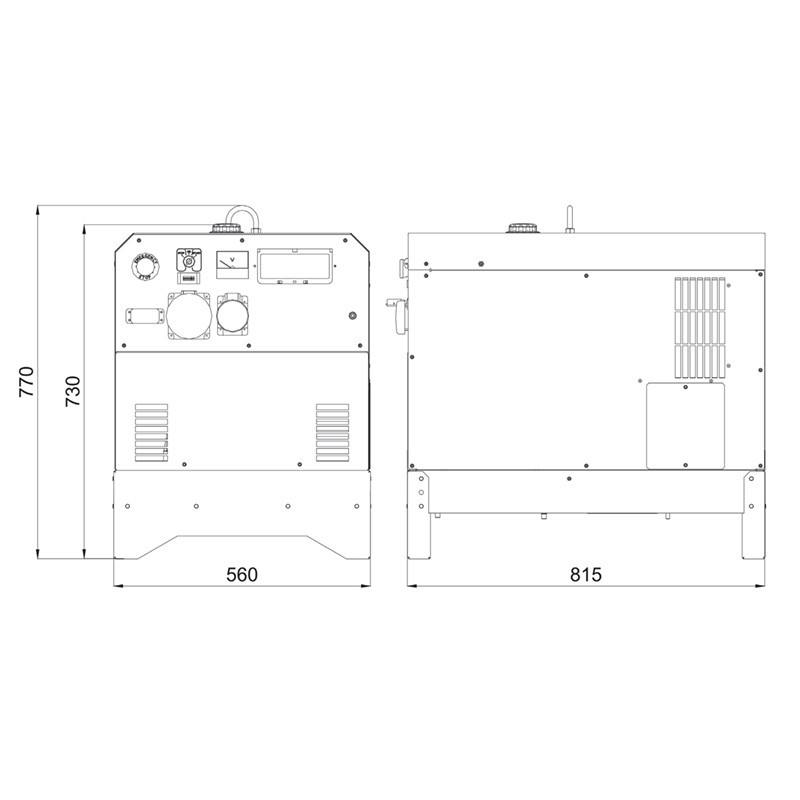

Length: 815 mm
Width: 560 mm
Height: 730 mm
Net weight: 150 Kg
MASE PD 7,4 S is a single / three-phase generator equipped with a diesel-powered Yanmar L100V StageV engine, complete with capacitor voltage regulator ( AVR optional ).
The generator is equipped with electric start and low fuel consumption, in fact it consumes only 1.5 liters / hour at 75% of the load for an autonomy of up to 7 hours of operation. The generator unit guarantees efficient and silent operation thanks to the Yanmar L100V StageV engine, which allows it to deliver maximum 6.3KVA.
The MASE PD 7.4 S is equipped with a soundproofed cabin, made of bent and electro-welded steel, with protection class IP23 and which can be opened in two sections. This cabin allows an incredible reduction of noise pollution, up to obtaining an acoustic pressure of only 72 dB (A) recorded at a distance of 7 meters.
The MASE PD 7.4 S is equipped with a "mobile" STAGEV motorization, as required by the 2016/1628 European Regulation. These new engines make it possible to exponentially reduce the emissions of particulate matter and nitrogen oxides delivered by the genset into the environment, and ensure a reduction in the environmental impact of 200% compared to standard engines.
TECHNICAL CHARACTERISTICS OF MASE PD 7.4 S
Type of phase: Single-phase / Three-phase
Continuous singlephase power: 1.8 KVA / 1.4 KW
Maximum singlephase power: 2.1 KVA / 1.7 KW
Continuous threephase power: 5.5 KVA / 4.4 KW
Threephase maximum power: 6.3 KVA / 5 KW
VAC voltage: 230/400 V
Frequency (Hz): 50
Voltage regulator: Compound (AVR Optional)
Starting panel: Electric
Engine: Yanmar L100V
Emissions standard: Stage V
Rpm: 3000 rpm
Fuel: Diesel
Socket panel : 1 x CEE 16A 230V / 1 x CEE 16A 400V
Tank capacity: 10.5 l
Autonomy: 7 h at 75% of the load
Consumption: 1.5 l / h at 75% of the load
Acoustic pressure: 72 dB (A) @ 7 m
Length: 815 mm
Width: 560 mm
Height: 730 mm
Net weight: 150 Kg
Are you looking for a product with different technical characteristics? HERE you can find the area dedicated to MASE generators and other specialized brands.
Non-binding images and technical data.
