TECNOGEN LD7500TESX

tecnogen h2700
search
  • tecnogen h2700
TECNOGEN
LD 7500 TESX - COMP
New product

 - 062 TROLLEY (ON REQUEST)

 - Standard control panel as shown in the image - QM306 version - 230v/400v

Continuous Three-phase Power: 4.6 kW
Maximum Three-phase Power: 5.1 KW
Maximum Three-phase Power: 6.4 KVA
Fuel: Diesel
Voltage: 400V
Engine: Kohler
Start: Electric
Length: 750 mm
Width: 560 mm
Height: 620 mm
Weight: 170 Kg

Technical features
Phase
Single phase / Three phase
Maximum power three phase (KW)
5.1
Maximum power three phase (KVA)
6.4
Fuel
Diesel
Frequency (Hz)
50 / 60
Voltage (V)
400
Engine
Kohler
Engine rpm (rpm)
3000
Starting system
Elettrico
Engine capacity (cm³)
442
Number cylinders
1
Cooling
Air
Fuel tank capacity (L)
20
Consumption (L/h)
1.6 al 75% del carico
Running time (h)
13.3
Acoustic power
95 dB(A)
Length (mm)
750
Width (mm)
560
Height (mm)
620
Dry weight (Kg)
170
Silenced
Yes
Super silenced
No
ATS Switch device
Optional
Voltage regulator
No
Continuous power [kW]
4.6
Details

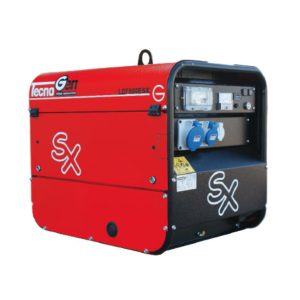

TECNOGEN LD7500TESX 6.4 KW Generator Set

TECNOGEN LD7500TESX three-phase 6.4 KW generator set with a Kohler engine running at 3000 rpm powered by diesel. The TECNOGEN LD7500TESX generator set is easy to use and is compact, manageable, and easy to maintain. The TECNOGEN LD7500TESX generator set is equipped with an electric start. This generator set is perfect for both hobby and professional use, thanks to the reliable diesel-powered Kohler engine and all the high-quality components it is made of.

Why buy an LD7500TESX generator set?
First of all, they solve power outage problems during blackouts in various environments, from homes to businesses. The TECNOGEN LD7500TESX generator set is also used to provide electricity on construction sites and for hobby use. Professional generators are lightweight, easy to transport, compact and robust machines, simple to use and with low 1 operating costs. They also have an excellent quality/price ratio.

Lifting hooks can be installed on the TECNOGEN LD7500TESX generator set, which are very convenient for moving the generator with an overhead crane or a small crane.

Below are the main features:

Continuous Three-phase Power: 4.6 kW
Maximum Three-phase Power: 5.1 KW
Maximum Three-phase Power: 6.4 KVA
Fuel: Diesel
Voltage: 400V
Engine: Kohler
Start: Electric
Length: 750 mm
Width: 560 mm
Height: 620 mm
Weight: 170 Kg
Are you looking for a different model of generator or generator set? Visit the section dedicated to land generator sets.

Images and technical data are not binding.

Technical Sheet / Manuals
Related Accessories
List price
6.771,00 € tax incl.
5.550,00 € tax excl.
Discounted Price
4.029,00 € tax incl.
3.302,46 € tax excl.
