MOSA GE 35 YSX GENETATOR SET 28 KW
Single-phase continuous use power: 10 KW
Maximum power three-phase: 30.4 KW
Three phase continuous use power: 28 KW
Fuel: Diesel
Voltage: 230 V / 400 V
Frequency: 50 Hz
Engine: Yanmar 4TNV98
Starting: Electric
Acoustic power measured LwA: 90 dB(A) (65 dB(A) @ 7m)
Consumption: 6.1 Lt/h at 75% of the load
Length: 2050 mm
Width: 900 mm
Height: 1420 mm
Weight: 960 Kg
Supersilenced
AVR
Emissions regulations: Stage 3A
- Phase
- Single phase / Three phase
- Maximum power three phase (KW)
- 30.4
- Continuous power three phase (KW)
- 28
- Maximum power three phase (KVA)
- 38
- Continuous power three phase (KVA)
- 35
- Fuel
- Diesel
- Frequency (Hz)
- 50
- Voltage (V)
- 230 / 400
- Engine
- Yanmar 4TNV98, 4 stroke naturally aspirated
- Emissions Regulations
- Stage 3A
- Engine rpm (rpm)
- 1500
- Starting system
- Electric
- Engine capacity (cm³)
- 3319
- Number cylinders
- 4
- Cooling
- Water
- Inyección
- Direct
- Alternator
- Sincrono trifase, autoeccitato, autoregolato, senza spazzole
- Product type
- Generator
- ATS Switch device
- Optional
- Voltage regulator
- AVR+Compound
- Engine manufacturer
- Yanmar

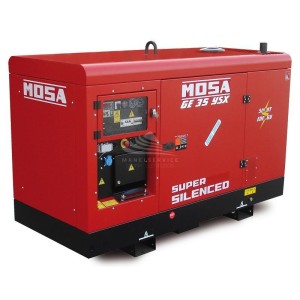

MOSA GE 35 YSX GENETATOR SET 28 KW Stage 3A
MOSA GE35 YSX three-phase 30,4 KW generator set with Yanmar diesel engine. The MOSA GE35 YSX generator set is equipped with electric start. The alternator of the MOSA GE35 YSX generator set is synchronous, three-phase, self-excited, self-regulated, brushless with class H insulation with AVR voltage regulator.
This MOSA compact and convenient to maneuver and transport thanks to its compact size, weighing 960 kg as well as its practical pierceable base. The MOSA GE35 YSX generator set with 100 liters tank has a fuel consumption of 6,1 liters/hour at 75% of the load for an autonomy of 16 hours.
Technical specifications:
Three-phase Stand-By output (LTP): 38 kVA (30.4 kW) / 400V / 54.8 A
Three-phase PRP output: 35 kVA (28 kW) / 400V / 50.5 A
Frequency: 50 Hz
Cos ϕ: 0.8
ENGINE TECHNICAL DATA
Model: YANMAR 4TNV98
Net stand-by output: 34.1 kW (46.4 hp)
Net PRP output: 30.7 kW (41.7 hp)
Cylinders / Displacement: 4/ 3.3. l
Bore / Stroke: 98 / 110 (mm)
Compression ratio: 18. 5 : 1
RPM controller: Mechanical
110 % (Standby power): 9 l/h
100 % PRP 8.1 l/h
75 % PRP 6.1 l/h
50 % PRP 4.2 l/h
TECHNICAL DATA ALTERNATOR
Continuous power: 35 kVA
Stand-by power: 39 kVA
Three-phase voltage: 380-415 Vac
Frequency: 50 Hz
A.V.R. model: HVR-30 (3ph. sensing)
Voltage regulation accuracy: ± 1.0 %
Sustained short-circuit current: 3 In
Transient Cdt (100% of load): 10 %
Response time: ≤ 3 sec.
Performance at 100% of load: 88. 6 % (400V - Cos ϕ 0. 8)
Isolation: Class H
GENERAL SPECIFICATIONS
Tank capacity: 100 lt.
Run time (75% of PRP): 16. 5 h
Measured acoustic power LwA: 90 dB(A) (65 dB(A) @ 7m)
Guaranteed acoustic power LwA: 97 dB(A) (72 dB(A) @ 7m)
Performance class: G2
Length: 2050 mm
Width: 900 mm
Height: 1420 mm
Weight: 960 kg
Emissions regulations: Stage 3A
Features:
- Electronic AVR voltage regulation
- Rounded edges to allow rainwater runoff
- Sealed basement able to contain any leakage of liquids present in the engine avoiding environmental pollution
- External plugs for oil and water drainage
- Large access doors to allow easy maintenance (replacement of air filters, oil, fuel)
- Central lifting hook
- Side pockets for handling with forklifts
- Supersilenced
- Prepared for use with automatic panel EAS (AMF + ATS)
- Complies with EC directives for noise and safety
If you are looking for another product like the generator set MOSA GE35 YSX then you can see on our catalog other terrestrial generators.
Images and technical data are not binding.
MOSA COMANDO A DISTANZA TCM 35
KIT MESSA A TERRA 10 METRI
KIT MESSA A TERRA 25 METRI
KIT MESSA A TERRA 35 METRI
MOSA CARRELLO TRAINO LENTO CTL 20
MOSAIC FAST TOWING TROLLEY CTV 1/O EYE JOINT

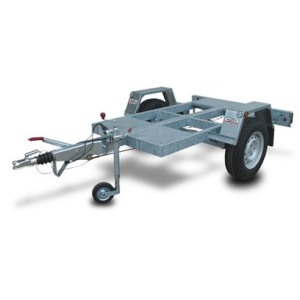

MOSA MOSA TOWING TROLLEY FAST CTV 1/S BALL JOINT
MOSA INDICATORI DI TEMPERATURA ACQUA E PRESSIONE OLIO

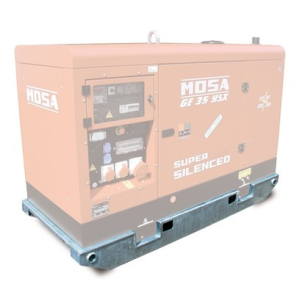

MOSA SLITTA DI TRASCINAMENTO

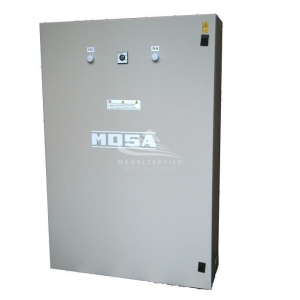

MOSA TELECOMMUTATION SWITCHBOARD PAC 70 (100 A)
