MOSA GE 8000 BBT
Single-phase continuous use power: 5.6 KW
Single-phase continuous use power: 7 kVA
Single-phase maximum power: 6.4 KW
Maximum power single-phase: 8 kVA
Fuel: Gasoline
Voltage: 230 V
Frequency: 50 Hz
Engine: B&S - XR2100
Starting: Manual recoil starter
Consumption: 1.9 Lt/h at 75% of the load
Acoustic power measured LwA: 99 dB(A) (74 dB(A) @ 7m)
Length: 770 mm
Width: 520 mm
Height: 650 mm
Weight: 79 Kg
- Phase
- Single phase / Three phase
- Continuous power single phase (KW)
- 3.2
- Continuous power single phase (KVA)
- 4
- Maximum power three phase (KW)
- 6.4
- Continuous power three phase (KW)
- 5.6
- Maximum power three phase (KVA)
- 8
- Continuous power three phase (KVA)
- 7
- Fuel
- Gasoline
- Frequency (Hz)
- 50
- Voltage (V)
- 230 / 400
- Sockets configuration
- 1 x 400V 16A 3P+N+T CEE - 1 x 230V 16A 2P+T CEE
- Engine
- Briggs&Stratton XR2100, 4 stroke, OHV
- Emissions Regulations
- Stage 5
- Engine rpm (rpm)
- 3000
- Speed governor
- Mechanical
- Ignition
- Recoil
- Starting system
- Pull starter
- Engine capacity (cm³)
- 420
- Number cylinders
- 1
- Oil capacity (L)
- 1.1
- Cooling
- Air
- Alternator
- Synchronous self-excited, self-regulated
- Bore x stroke (mm)
- 90 x 66

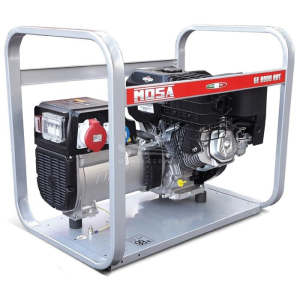

MOSA GE8000 BBT 6,4 KW
MOSA GE8000 BBT is a three-phase generating set with a gasoline-powered engine capable of delivering a power of 6.4 KW. The MOSA GE8000 BBT generator set is equipped with a manual recoil starter. The alternator of the MOSA GE8000 BBT generating set is synchronous, three-phase, self-excited, self-regulated, brushless and with class H insulation. MOSA is compact and convenient to maneuver and transport thanks to its compact size, its weight of 79 kg as well as its practical tubular handles.
The MOSA GE8000 BBT generator set with 6.6-liter tank has a fuel consumption of 2.7 liters/hour at 75% load for an autonomy of up to 2 hours.
The control panel consists of:
- Output sockets: 1x 400V 16A 3P+N +T CEE / 1x 230V 16A 2P+T CEE
- Voltmeter
- Thermomagnetic circuit breaker
- Earth terminal (PE)
Technical specifications MOSA GE8000 BBT:
Single-phase output Stand-by (LTP): 8 kVA (6.4 kW) / 400V / 11.5A
Single-phase output PRP: 7 kVA (5.6 kW) / 400V / 10.1A
Single-phase output PRP: 4 kVA / 230V / 17.3A
Frequency: 50 Hz
Cos ϕ: 0.8
MOTOR TECHNICAL DATA
Model: B&S - XR2100
Net stand-by output: 8.1 kWm (11 hp)
Net PRP output: 7.3 kWm (10 hp)
Cylinders/Displacement: 1 / 420 cm³ (0.42 lt. )
Bore / Stroke: 90 / 66 (mm)
RPM Controller: Mechanical
FUEL CONSUMPTION
110 % (Stand-by power): 4 lt./h
100 % PRP: 3. 6 lt./h
75 % PRP: 2.7 lt./h
50 % PRP: 1.8 lt./h
Cooling system: Air
Capacity oil in sump: 1.1 lt
ALTERNATOR
Continuous power: 7 kVA
Standby power: 7.7 kVA
Single-phase voltage: 400 Vac
Frequency. 50 Hz
Cos ϕ: 0.8
Voltage regulation accuracy: ± 4 %
Sustained short-circuit current: 3 In
Transient Cdt (100 % of load): < 15 %
Efficiency at 100 % of load: 80. 5 % (400V - Cos ϕ 1)
Isolation: Class H
Connection - Terminals: Series - No. 6
Electromagnetic Compatibility (Radio Interference Suppression): EN55011
Harmonic Distortion - THD: < 4 %
Direct Synchronous - Xd 270 %
Direct Transitory - X'd 20 %
Direct Subtransitory - X "d 6. 5 %
Synchronous in quad. - Xq 150 %
Transitory - T'd 33 ms
Subtransitory - T "d 5.5 ms
Unloaded - T'do 450ms
Short-circuit ratio Kcc 0.60
Protection class: IP 23
Cooling air flow: 0.062/ m³/sec
Coupling - Bearings: Direct J609b - N°1
GOVERNMENTAL SPECIFICATIONS
Tank capacity: 6.6 l.
Range time (75% of PRP): 2.5 h
Acoustic power LwA (LpA pressure): 99 dB(A) (74 dB(A) @ 7m)
Performance class G2
Length: 770 mm
Width: 520 mm
Height: 650 mm
Weight: 79 Kg
MOSA GE8000 BBT portable generator set - Briggs&Stratton gasoline engine rewind start - Three-phase alternator - Three-phase power 7 kVA (5. 6 kW)
Features:
- Recoil start
- Motor complete with tank and muffler
- Engine stop for low oil level
- Alternator with Compound
- Circuit breaker
- LED voltmeter
-. Fully protective open stretcher
- Portable
- Complies with CE safety directives
If you are looking for another product like the MOSA GE8000 BBT Generator Set then you can browse our catalog for more terrestrial generator sets.
Images and technical data are not binding.
.
