CGM 365DS-B400 WITH AUTOMATIC CONTROL PANEL

CGM 365DS-B400 WITH AUTOMATIC CONTROL PANEL
search
  • CGM 365DS-B400 WITH AUTOMATIC CONTROL PANEL
  • MANUAL CONTROL PANEL
  • AUTOMATIC CONTROL PANEL
CGM
CGM 365DS-B400 AUTOMATICO
New product

Phase type: Single-phase / Three-phase
Maximum three-phase power: 324 KW / 405 KVA
Three-phase continuous power: 292 KW / 365 KVA
Maximum single-phase power: 108 KW / 135 KVA
Single-phase continuous use power: 97.33 KW / 121.67 KVA
Fuel: Diesel
Voltage: 230 V / 400 V
Frequency: 50 Hz
Motor: DOOSAN DP126 LB
Engine speed: 1500 rpm
Starting: Electric
Consumption: 57 Lt/h at 75% load
Length: 2950 mm
Width: 1550 mm
Height: 2100 mm
Weight: 2860 Kg
AVR

Technical features
Phase
Single phase / Three phase
Maximum power single phase (KW)
108
Continuous power single phase (KW)
97.33
Maximum power single phase (KVA)
135
Continuous power single phase (KVA)
121.67
Maximum power three phase (KW)
324
Continuous power three phase (KW)
292
Maximum power three phase (KVA)
405
Continuous power three phase (KVA)
365
Fuel
Diesel
Frequency (Hz)
50
Voltage (V)
230 / 400
Sockets configuration
Terminal box
Engine
DOOSAN DP126 LB
Emissions Regulations
Stationary Use
Engine rpm (rpm)
1500
Speed governor
Electronic
Starting system
Electric
Engine capacity (cm³)
11051
Number cylinders
6
Cooling
Water
Alternator
Brushless
Poles
4
Protection degree
IP44
Bore x stroke (mm)
123 x 155
Fuel tank capacity (L)
400
Consumption (L/h)
57
Running time (h)
7
Width (mm)
1550
Height (mm)
2100
Dry weight (Kg)
2860
AVR
Yes
Silenced
No
Super silenced
No
Product type
Generator
ATS Switch device
Optional
Voltage regulator
AVR
Engine manufacturer
Doosan
Details

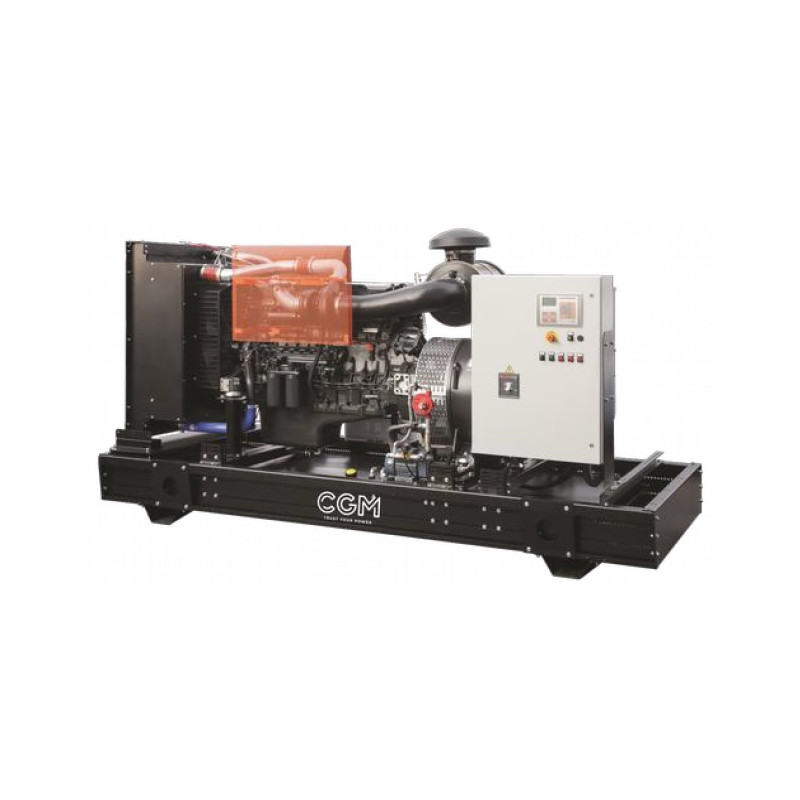

CGM 365DS-B400 Single/three-phase 365KVA generator with automatic control panel

The CGM 365DS-B400 is a single/three phase 365KVA generator with a 1500 rpm Doosan diesel engine, compact and easy to use, mounted on a fixed base. This CGM 365DS-B400 generator is in an open version and is easy to handle and transport thanks to its base with pivoting feet.
The CGM 365DS-B400 generator consists of a Stamford, Mecc Alte or Marelli Motori, self-excited, brushless alternator with AVR voltage regulator. The CGM 365DS-B400 generator is equipped with an electric starter with a low fuel consumption battery, consuming only 57 litres per hour at 75% load. In addition, it has a control panel with automatic control unit and terminal box for automatic start-up.
This generator is perfect for use outdoors, such as on construction sites.
The CGM 365DS-B400 generator is part of the Industrial range and is characterised by its versatility for installation in urban environments such as shops or shopping centres, for the telecommunications environment, for military applications and much more.

Technical characteristics of the CGM 365DS-B400 generator:
Phase type: Single-phase / Three-phase
Maximum three-phase power: 324 KW / 405 KVA
Three-phase continuous power: 292 KW / 365 KVA
Maximum single-phase power: 108 KW / 135 KVA
Single-phase continuous use power: 97.33 KW / 121.67 KVA
Fuel: Diesel
Voltage: 230 V / 400 V
Frequency: 50 Hz
Motor: DOOSAN DP126 LB
Engine speed: 1500 rpm
Starting: Electric
Consumption: 57 Lt/h at 75% load
Length: 2950 mm
Width: 1550 mm
Height: 2100 mm
Weight: 2860 Kg
AVR

If you are looking for a product like the CGM 365DS-B400 then you can browse the full range of CGM generators or other types of products in our catalogue to find the one that best suits your needs.

Images and technical data are not binding.

Technical Sheet / Manuals
Related Accessories
List price
82.398,80 € tax incl.
67.540,00 € tax excl.
Discounted Price
51.499,86 € tax incl.
42.213,00 € tax excl.
