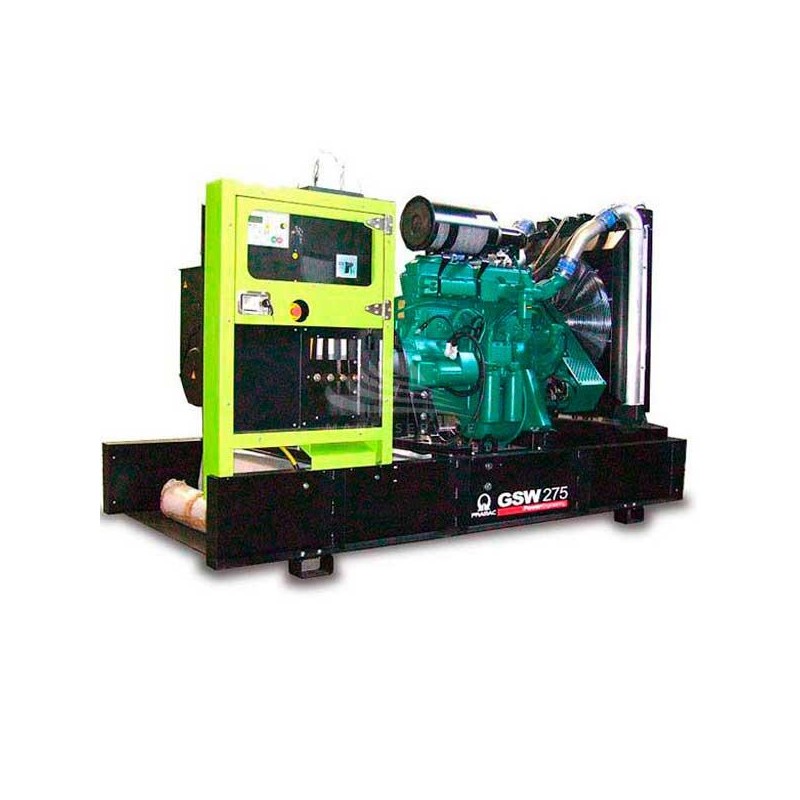

PRAMAC GSW10Y COFANATO CON QUADRO COMANDO MANUALE (MCP)

PRAMAC GSW10Y COFANATO CON QUADRO COMANDO MANUALE (MCP)
search
  • PRAMAC GSW10Y COFANATO CON QUADRO COMANDO MANUALE (MCP)
  • PRAMAC GSW10Y COFANATO CON QUADRO COMANDO MANUALE (MCP)
PRAMAC
SG371TWAR04 /
New product

OUT OF PRODUCTION

Technical features
Phase
Three phase
Maximum power three phase (KW)
332.86
Continuous power three phase (KW)
303.87
Maximum power three phase (KVA)
416.07
Continuous power three phase (KVA)
379.84
Fuel
Diesel
Frequency (Hz)
50
Voltage (V)
400
Engine
VOLVO TAD1343GE, turbo intercooled
Emissions Regulations
Stage 2
Speed governor
Electronic
Starting system
Electric
Engine capacity (cm³)
12780
Number cylinders
6
Cylinders' position
In line
Oil capacity (L)
36
Cooling
Water
Alternator
Mecc Alte ECO40-1S/4, brushless
Poles
4
Fuel tank capacity (L)
636
Consumption (L/h)
58.1 at 75% of the load / 76.6 at 100% of the load
Running time (h)
10.9 at 75% of the load / 8.3 at 100% of the load
Length (mm)
3300
Width (mm)
1400
Height (mm)
1917
Dry weight (Kg)
3050
Silenced
No
Super silenced
No
ATS Switch device
Optional
Voltage regulator
AVR
Engine manufacturer
Volvo
Details
Technical Sheet / Manuals
icona_scheda

Scheda tecnica GSW415V APERTO

(781.83k)
icona_scheda

Technical data GSW415V OPEN

(803.7k)
icona_scheda

Disegno installazione GSW415V

(497.47k)
