BM2 HOT AIR GENERATOR GP 45M

BM2 FORCED AIR SPACE HEATERS GP 45
search
  • BM2 FORCED AIR SPACE HEATERS GP 45

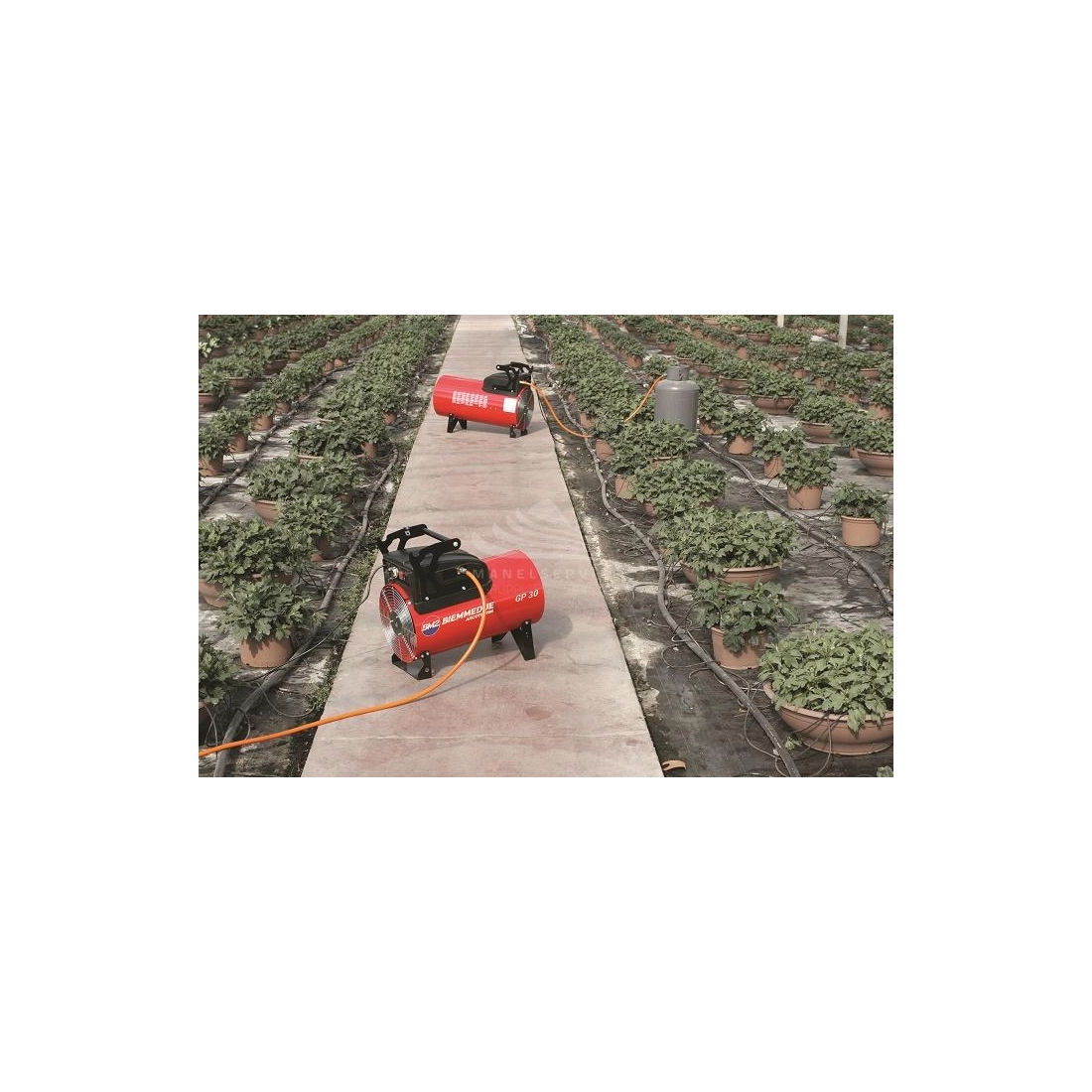

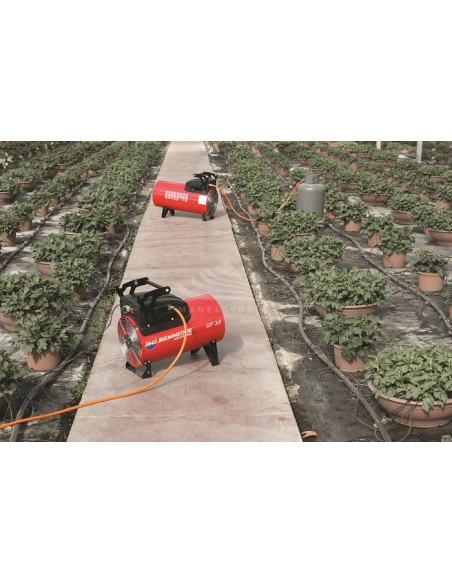

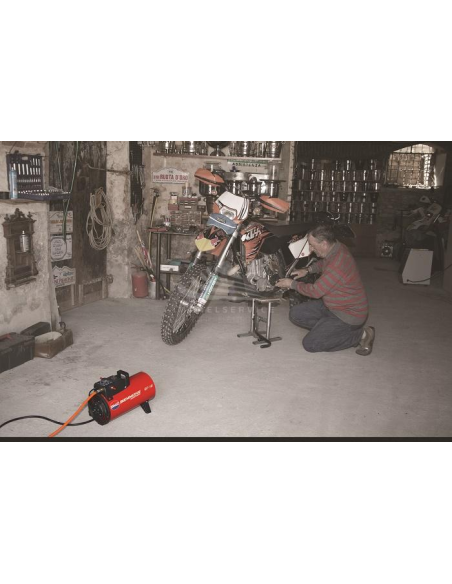

  • BM2 FORCED AIR SPACE HEATERS GP - Application

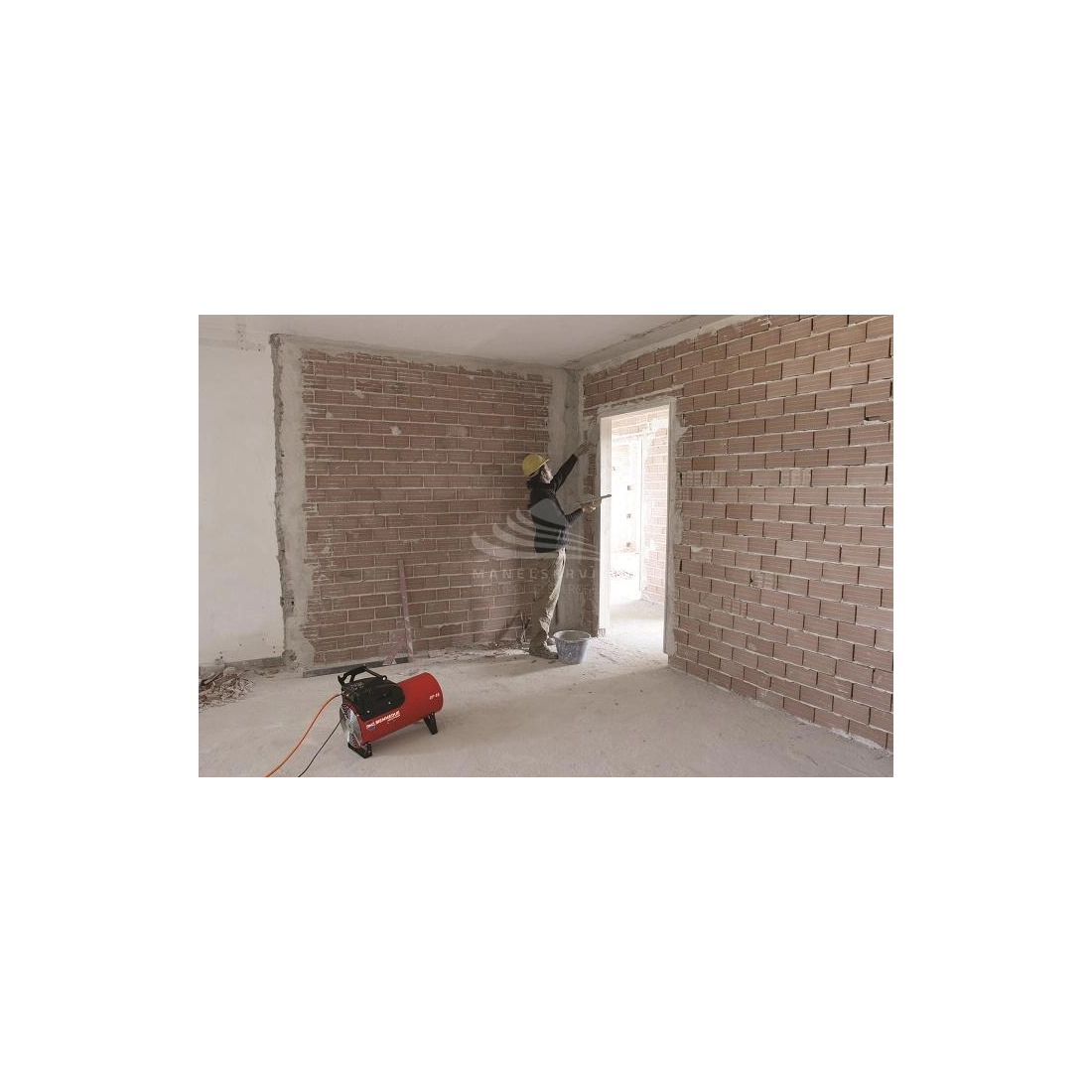

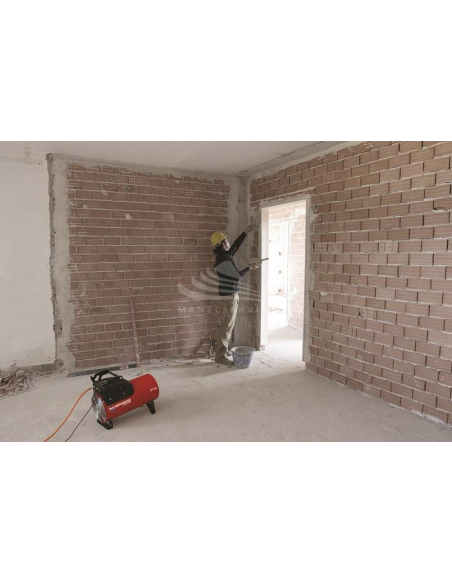

  • BM2 FORCED AIR SPACE HEATERS GP - Application

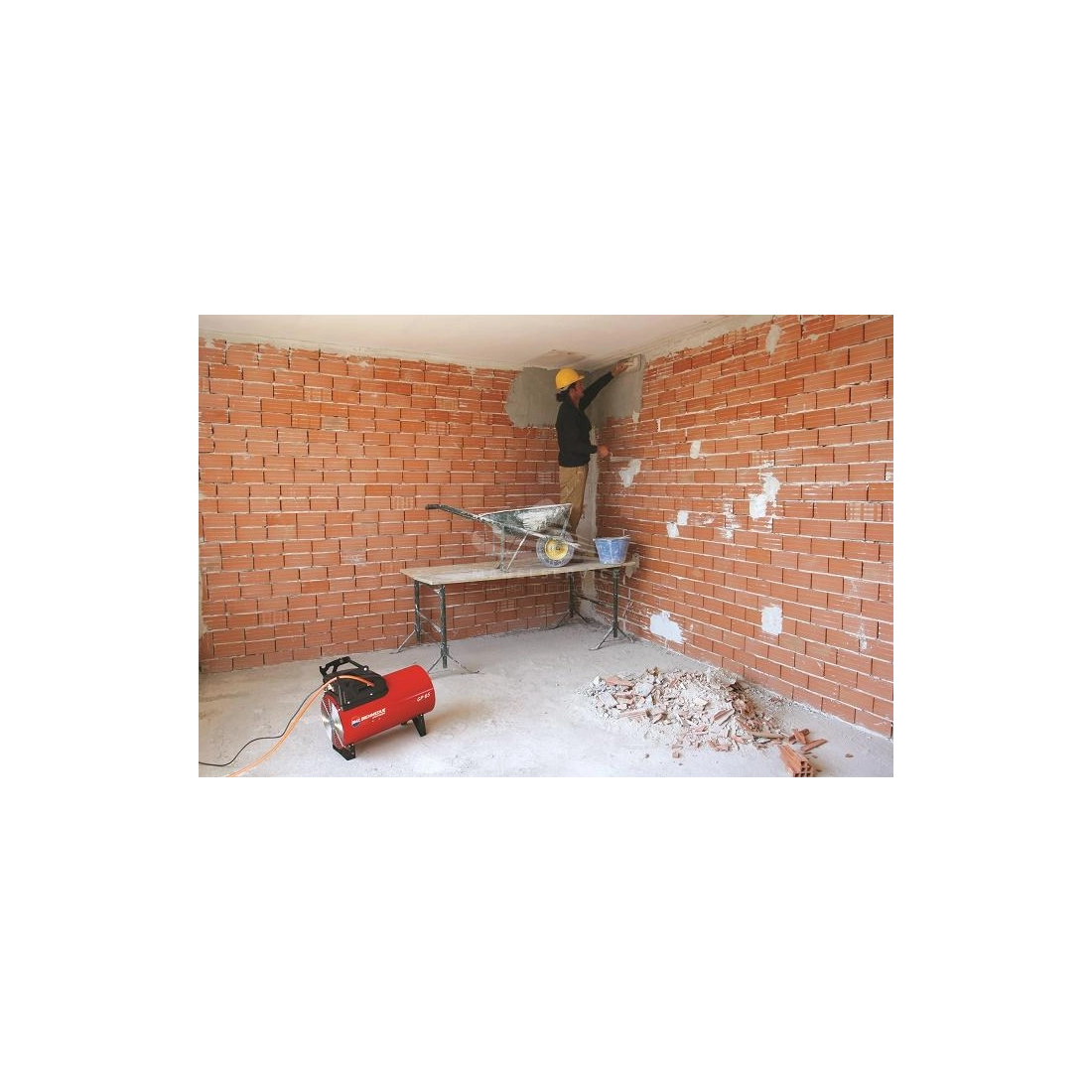

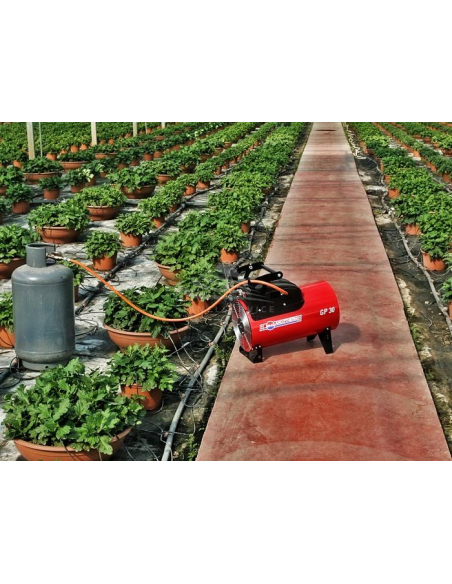

  • BM2 FORCED AIR SPACE HEATERS GP - Application

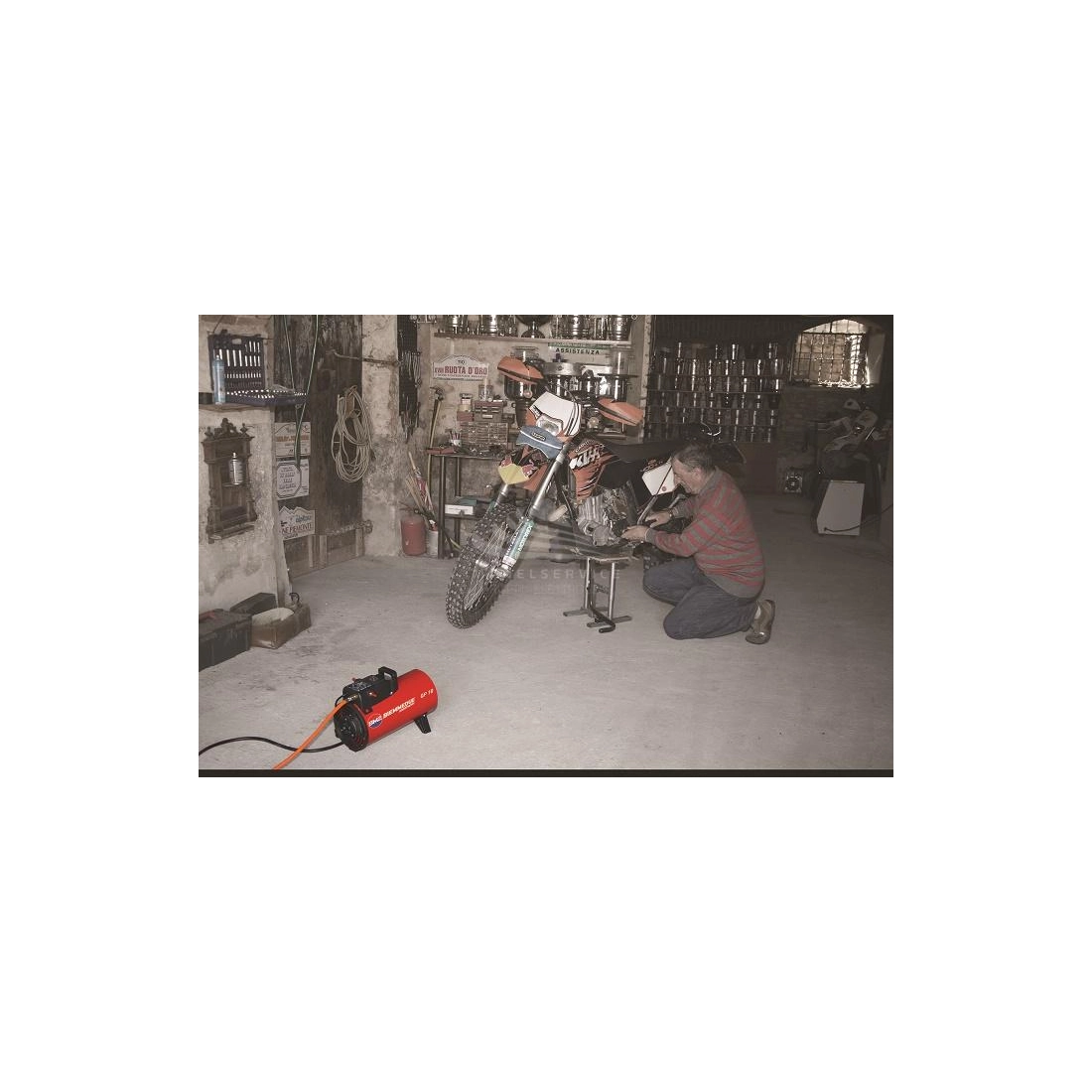

  • BM2 FORCED AIR SPACE HEATERS GP - Application
  • BM2 FORCED AIR SPACE HEATERS GP - Application
BIEMMEDUE
03GP104
New product

Maximum heat output: 46.73 KW / 40,180 kcal/h / 159,450 BTU/h
Minimum heat output: 22.76 KW / 19,570 kcal/h / 77660 BTU/h
Power supply: LPG
Maximum gas consumption: 2,979 Kg/h
Minimum gas consumption: 1,454 Kg/h
Gas pressure: 1.5 - 0. 4 bar
Efficiency: 100 %
Air flow: 1250 m3/h
Air temperature at 20°C: 62 °C
Electrical power: 112 W
Voltage: 230 V
Phase: Single phase
Frequency: 50/60 Hz
Width: 575 mm
Length: 277 mm
Height: 511 mm
Dry weight: 13.6 Kg

Technical features
Phase
Single phase
Fuel
LPG
Frequency (Hz)
50 / 60
Voltage (V)
230
Max rated heat power
46.73 KW - 40180 Kcal/h - 159450 BTU/h
Min rated heat power
22.76 KW - 19570 Kcal/h - 77660 BTU/h
Max Gas consumption (Kg/h)
2.979
Min Gas consumption (Kg/h)
1.454
Gas pressure (bar)
1.5÷0.4
Heat efficiency (%)
100
Air flow (m³/h)
1250
Air temperature at 20°C (°C)
62
Power consumption (W)
112
Length (mm)
575
Width (mm)
277
Height (mm)
511
Dry weight (Kg)
13.6
Details

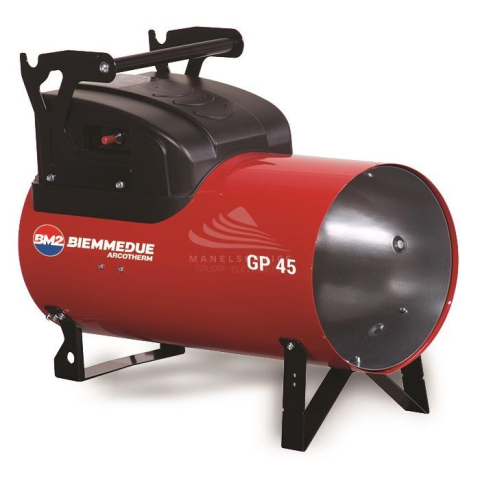

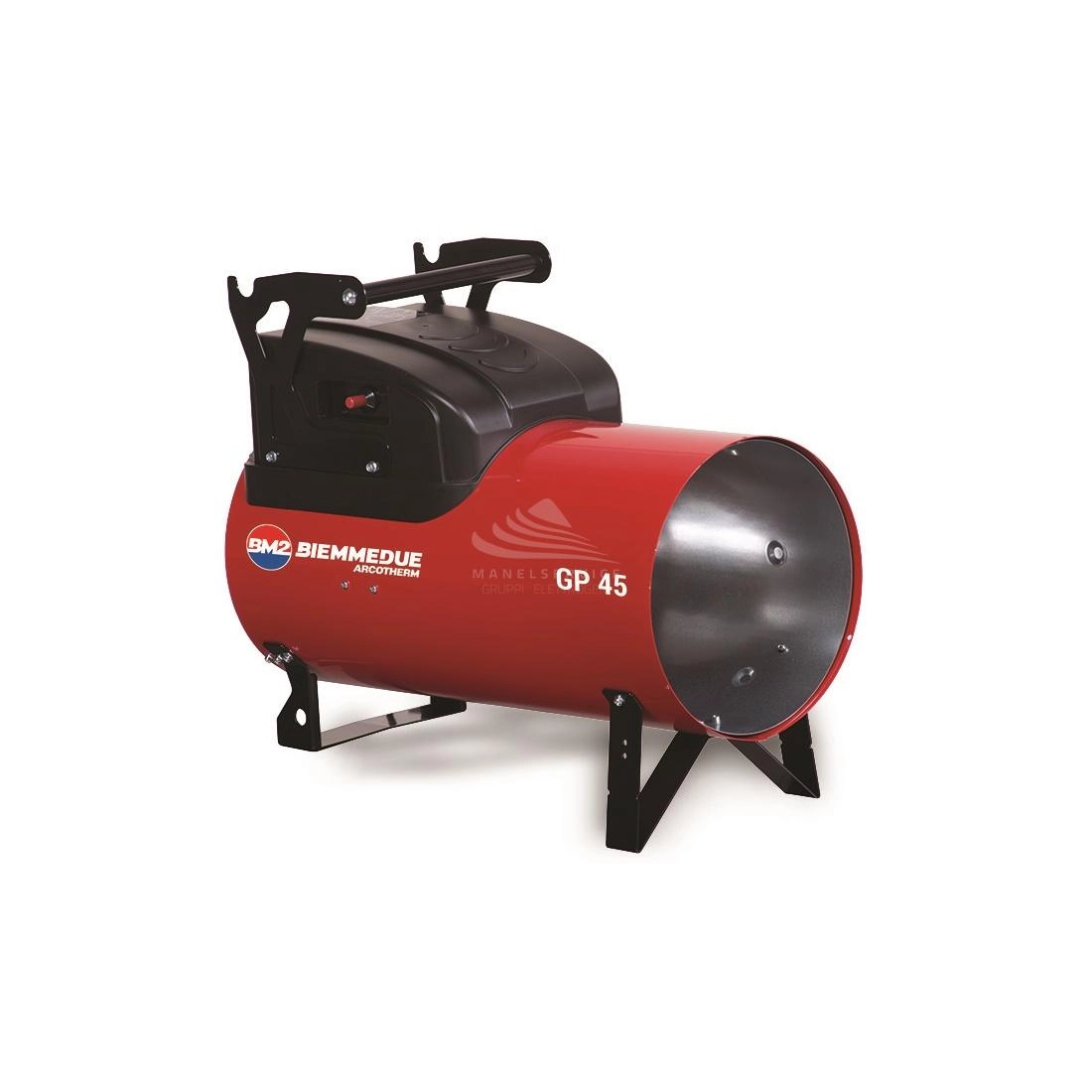

BM2 HOT AIR GENERATOR GP 45M

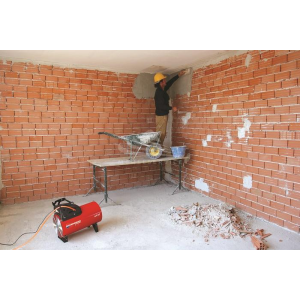

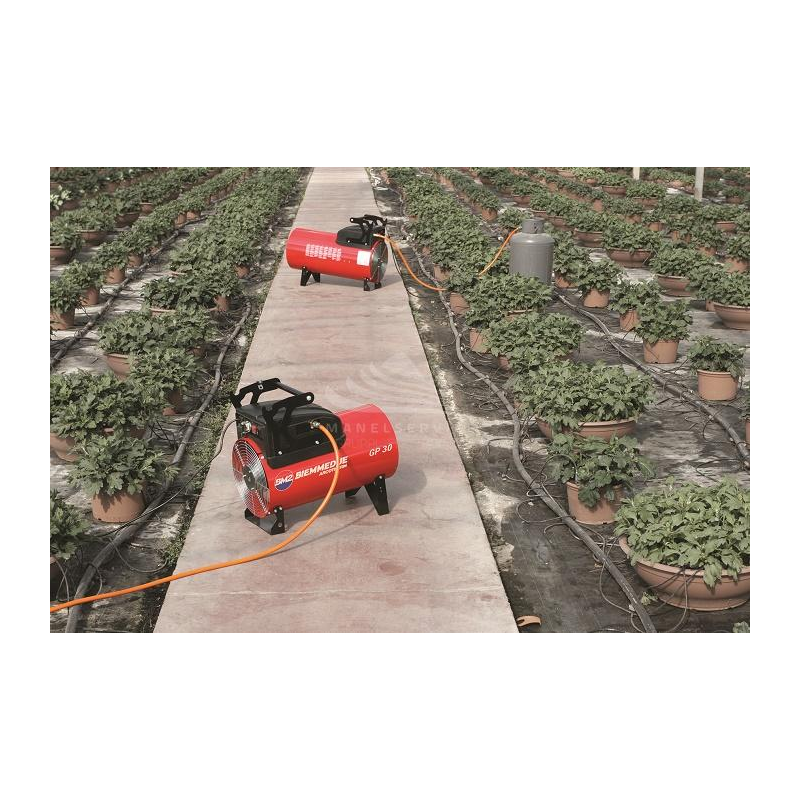

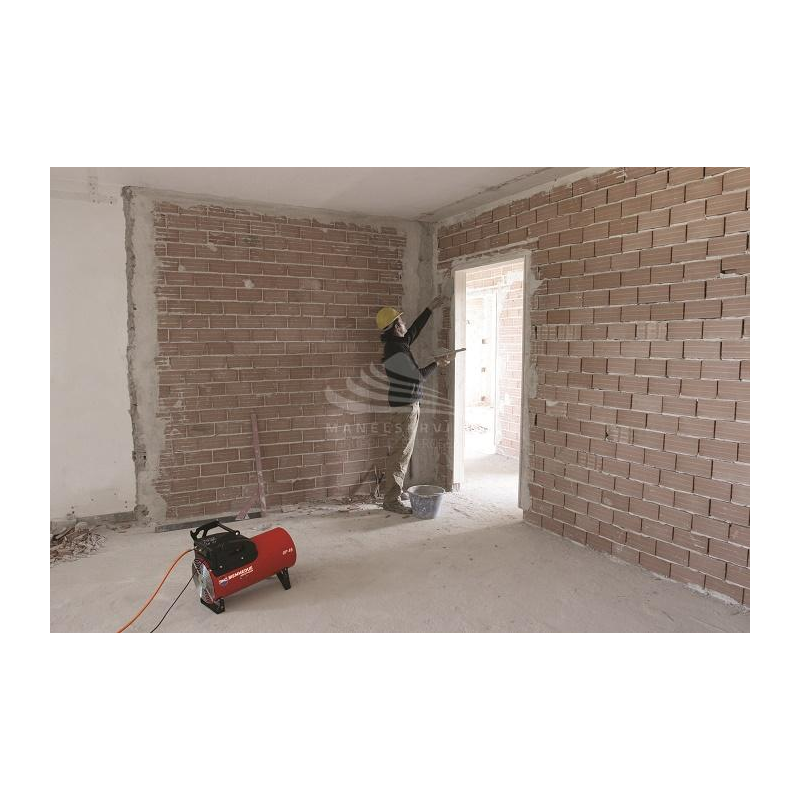

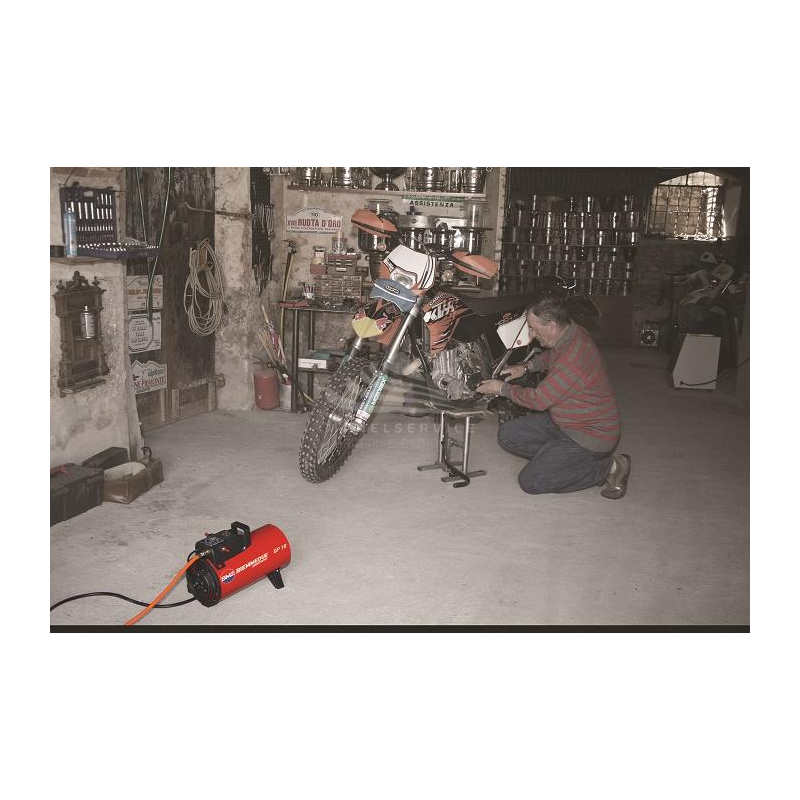

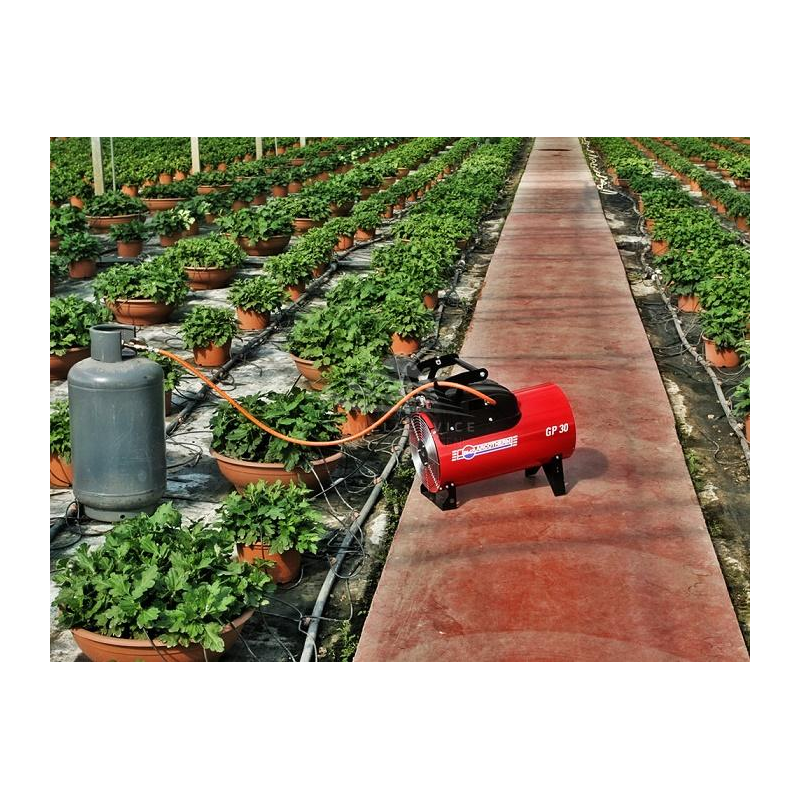

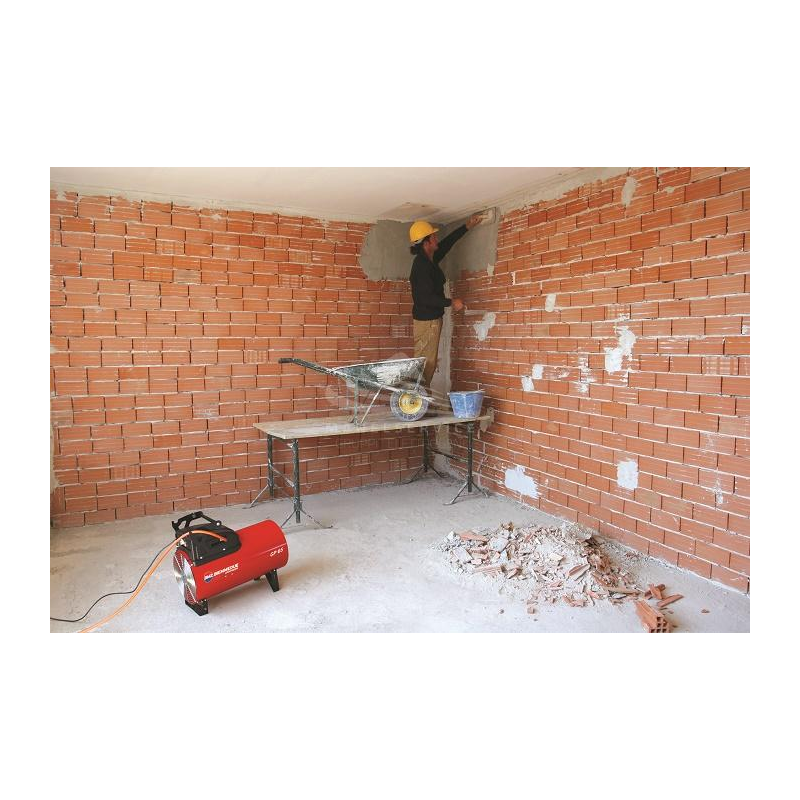

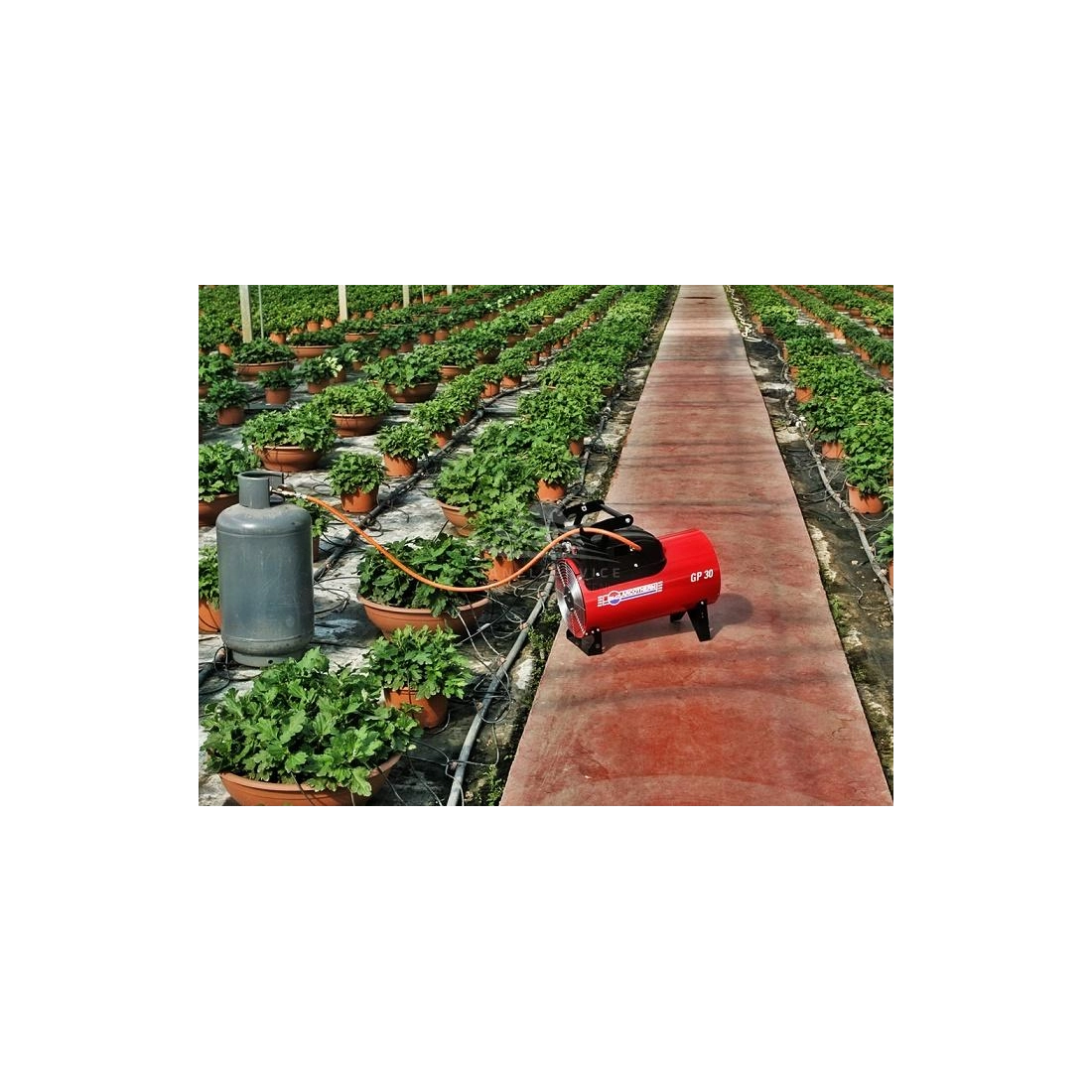

BM2 GP45M is a manual start hot air generator powered by LPG, perfect for heating closed but ventilated rooms such as construction sites, greenhouses and farms.

BM2 GP45M is powered by high-pressure LPG, with an integrated, direct-burning burner. BM2 GP45M hot air generator is manufactured with manual ignition by piezoelectric. For their power supply they are usually connected to LPG cylinders, which makes them handy and very economical.

The hot air generator BM2 GP45M is supplied complete with:

- Built-in LPG burner
- Safety thermostat
- Control with thermocouple and gas valve
- Power supply cable with plug
- Manual ignition with piezo-electric system
- Complies with UNI EN 1596:2008

TECHNICAL FEATURES BM2 GP45M

Maximum heat output: 46.73 KW / 40,180 kcal/h / 159,450 BTU/h
Minimum heat output: 22.76 KW / 19,570 kcal/h / 77660 BTU/h
Power supply: LPG
Maximum gas consumption: 2,979 Kg/h
Minimum gas consumption: 1,454 Kg/h
Gas pressure: 1.5 - 0. 4 bar
Efficiency: 100 %
Air flow: 1250 m3/h
Air temperature at 20°C: 62 °C
Electrical power: 112 W
Voltage: 230 V
Phase: Single phase
Frequency: 50/60 Hz
Width: 575 mm
Length: 277 mm
Height: 511 mm
Dry weight: 13.6 Kg

Are you looking for a hot air generator with different technical characteristics? Here you can find the full range of hot air generators BM2 or other specialized brands.

Images and technical data are not binding and may be subject to revisions by the manufacturer.

bm2 Pellentesque sollicitudin consectetur dui nec suscipit. Pellentesque semper massa et auctor tincidunt. Pellentesque vitae finibus diam. Cras urna ligula, fermentum quis cursus ut, dictum vitae dui. Morbi tincidunt, mi sit amet egestas pulvinar, leo nunc rhoncus risus, a blandit nisl felis non ante. Nulla facilisi. Nullam quis vulputate enim. Donec sit amet pretium dolor. Donec elit urna, venenatis ut dignissim nec, maximus non dolor. Pellentesque orci nibh, ornare eu ante nec, commodo consequat orci. Mauris et sagittis turpis, et congue nisl.

Related Accessories
List price
740,54 € tax incl.
607,00 € tax excl.
Discounted Price
555,41 € tax incl.
455,25 € tax excl.
Quantity

loader
15,00 € shipped to Italy

Calculate Shipping Cost
Add to wishlist
Download PDF
Ask a question
