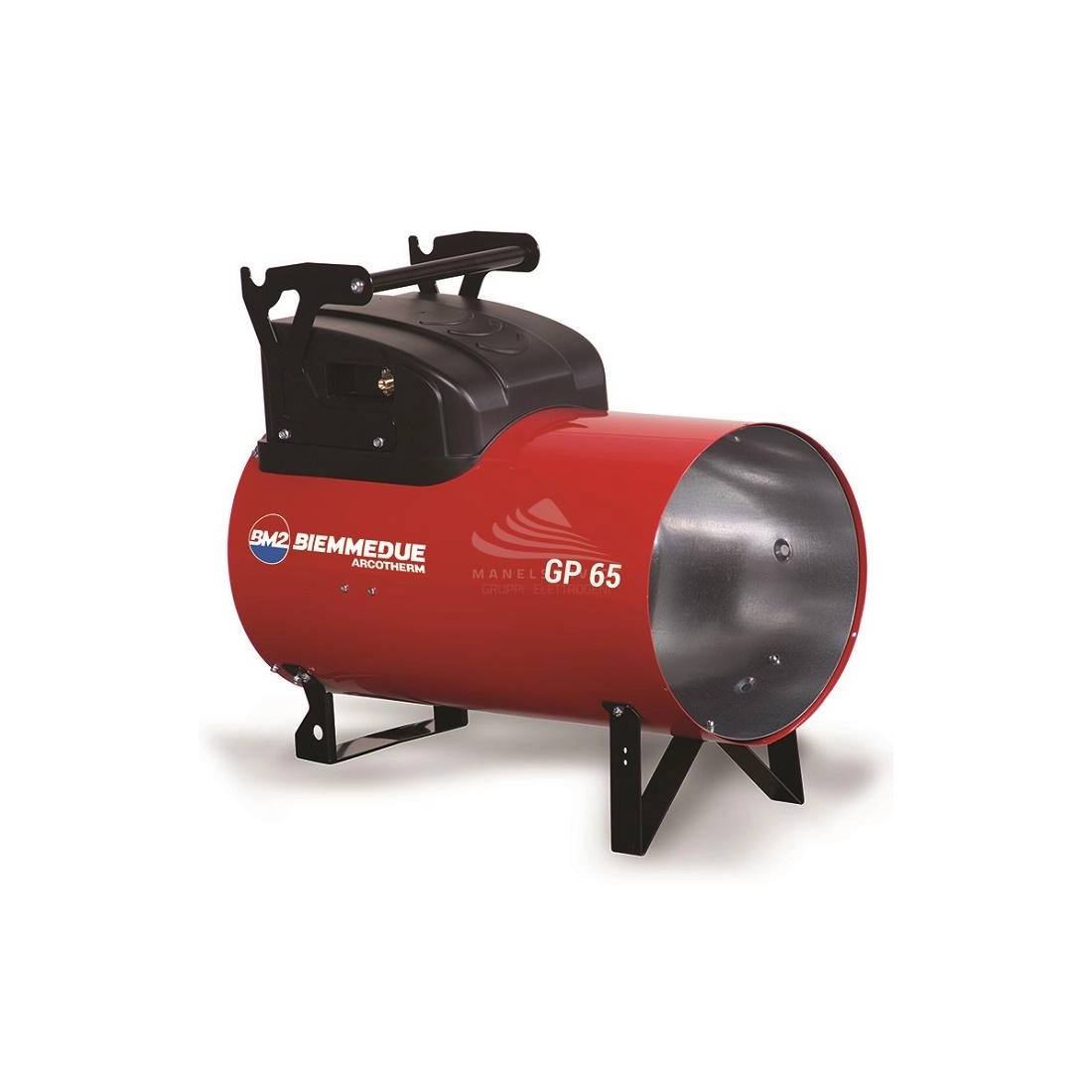

BM2 GP 65M HOT AIR GENERATOR GP 65M

BM2 FORCED AIR SPACE HEATERS GP 65
search
  • BM2 FORCED AIR SPACE HEATERS GP 65

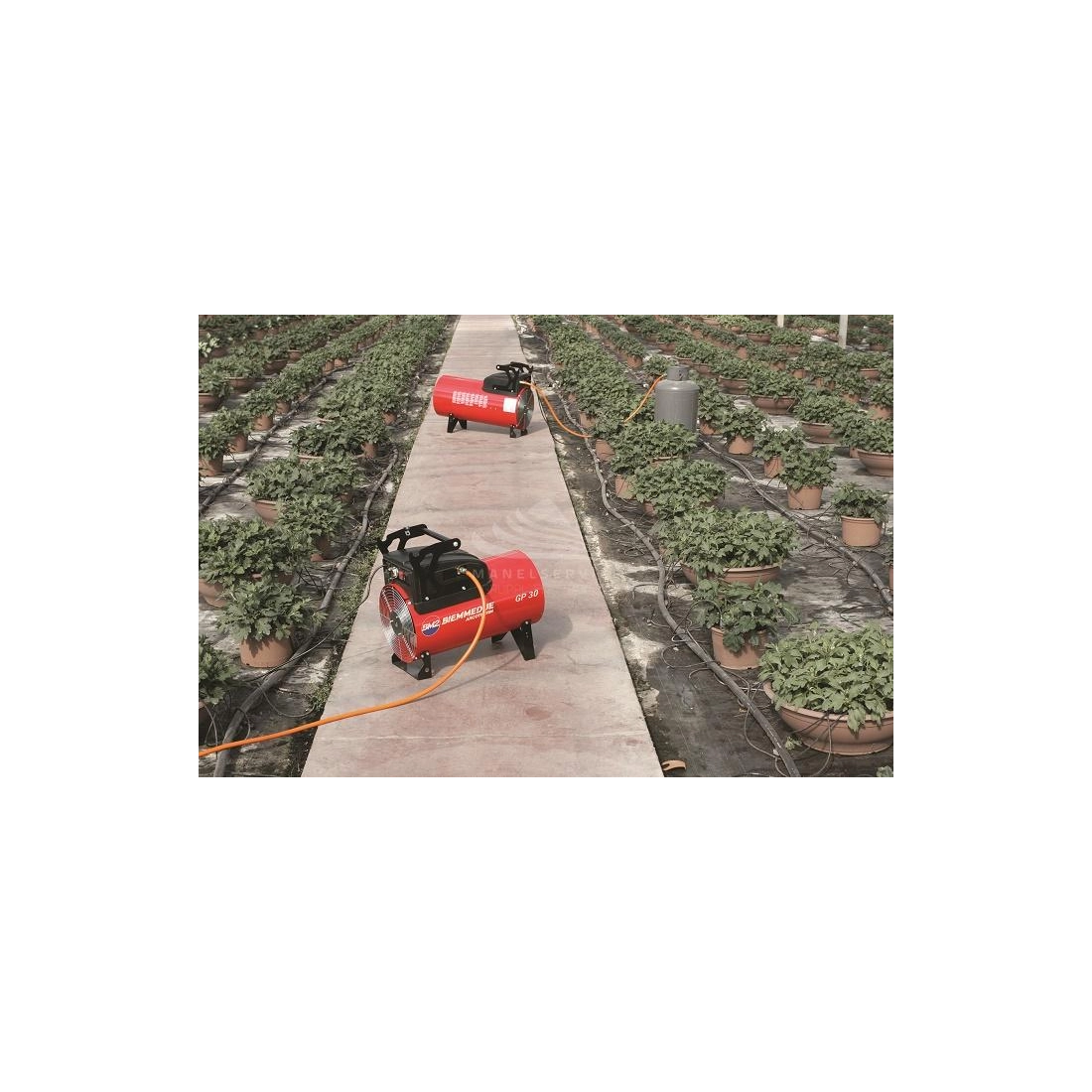

  • BM2 FORCED AIR SPACE HEATERS GP - Application

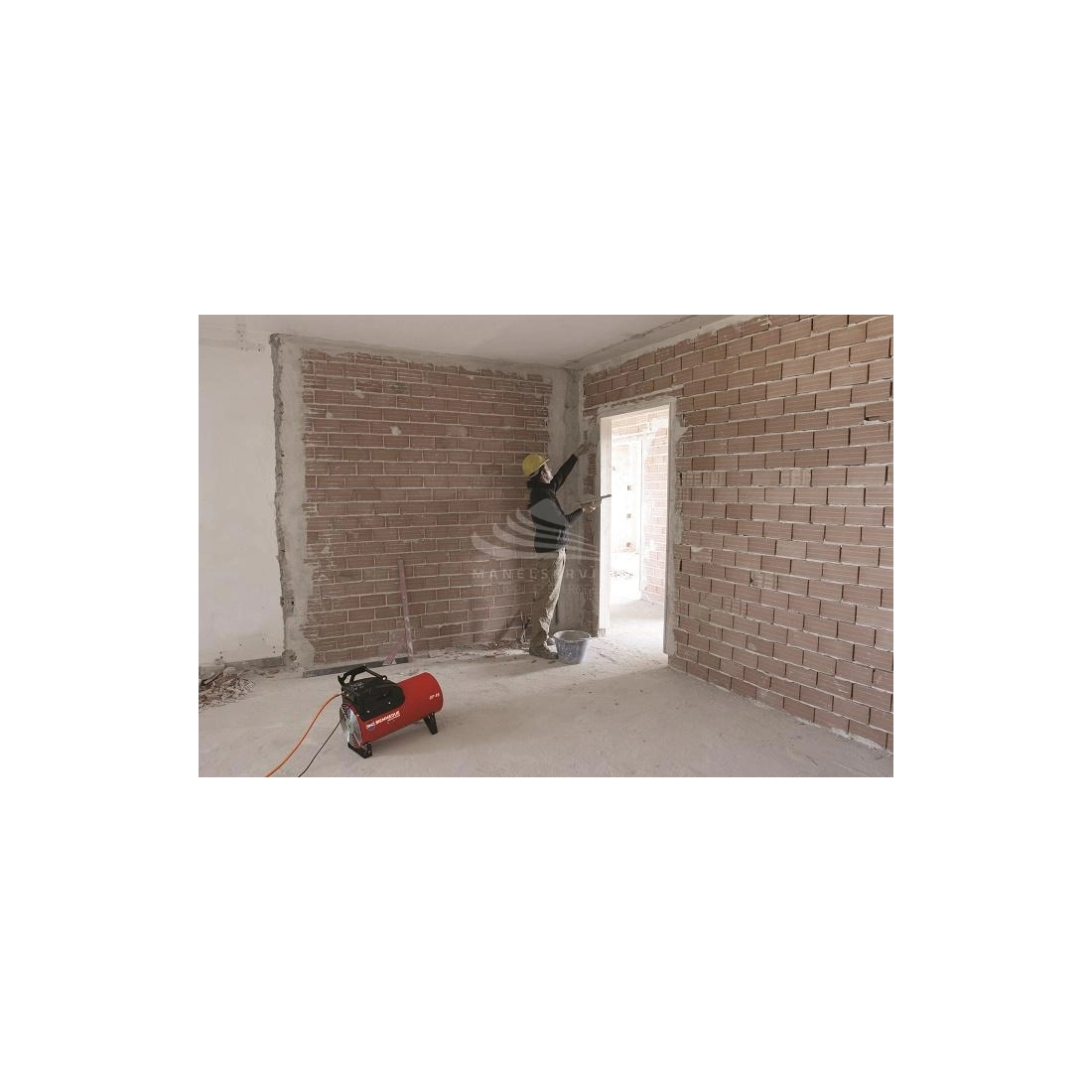

  • BM2 FORCED AIR SPACE HEATERS GP - Application

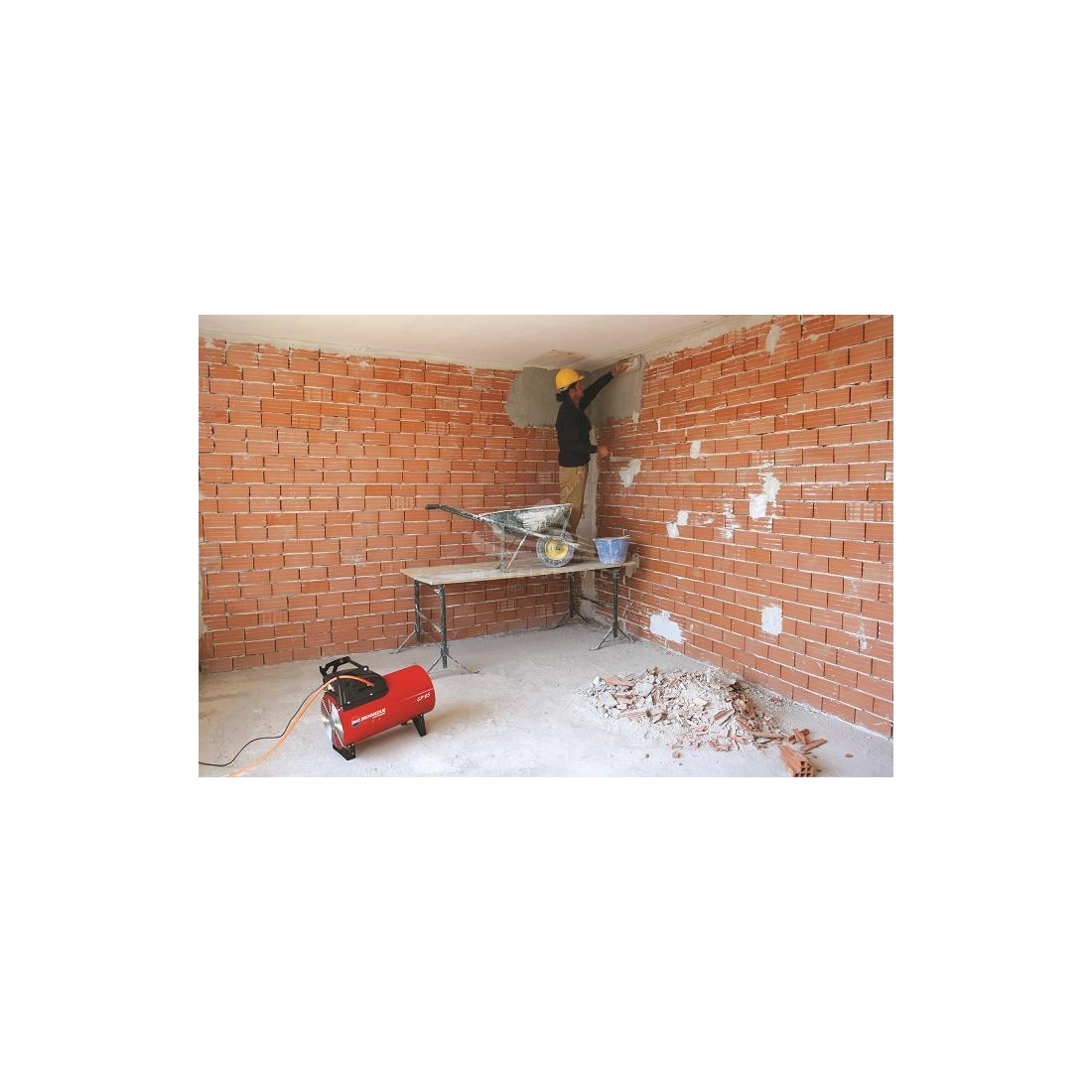

  • BM2 FORCED AIR SPACE HEATERS GP - Application

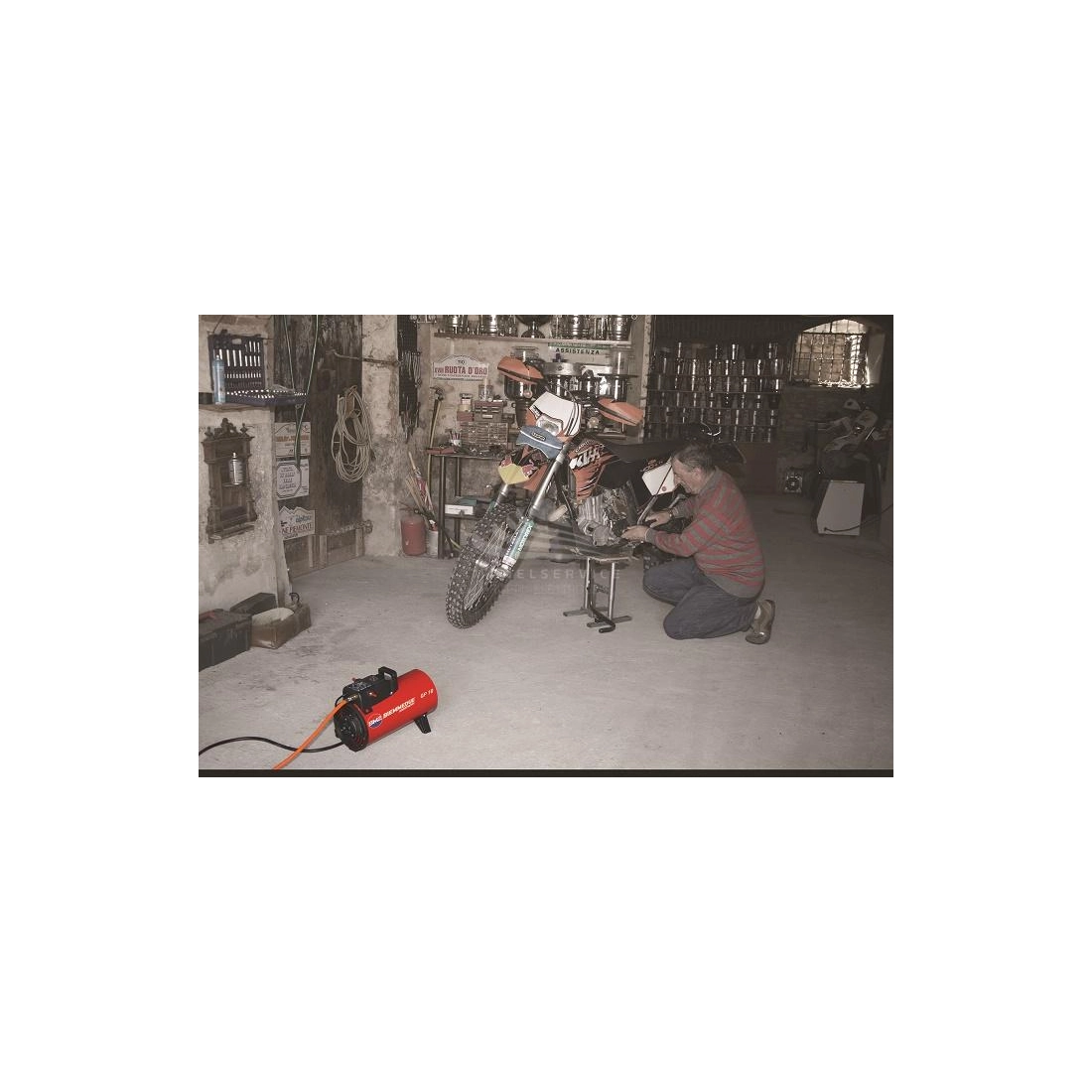

  • BM2 FORCED AIR SPACE HEATERS GP - Application

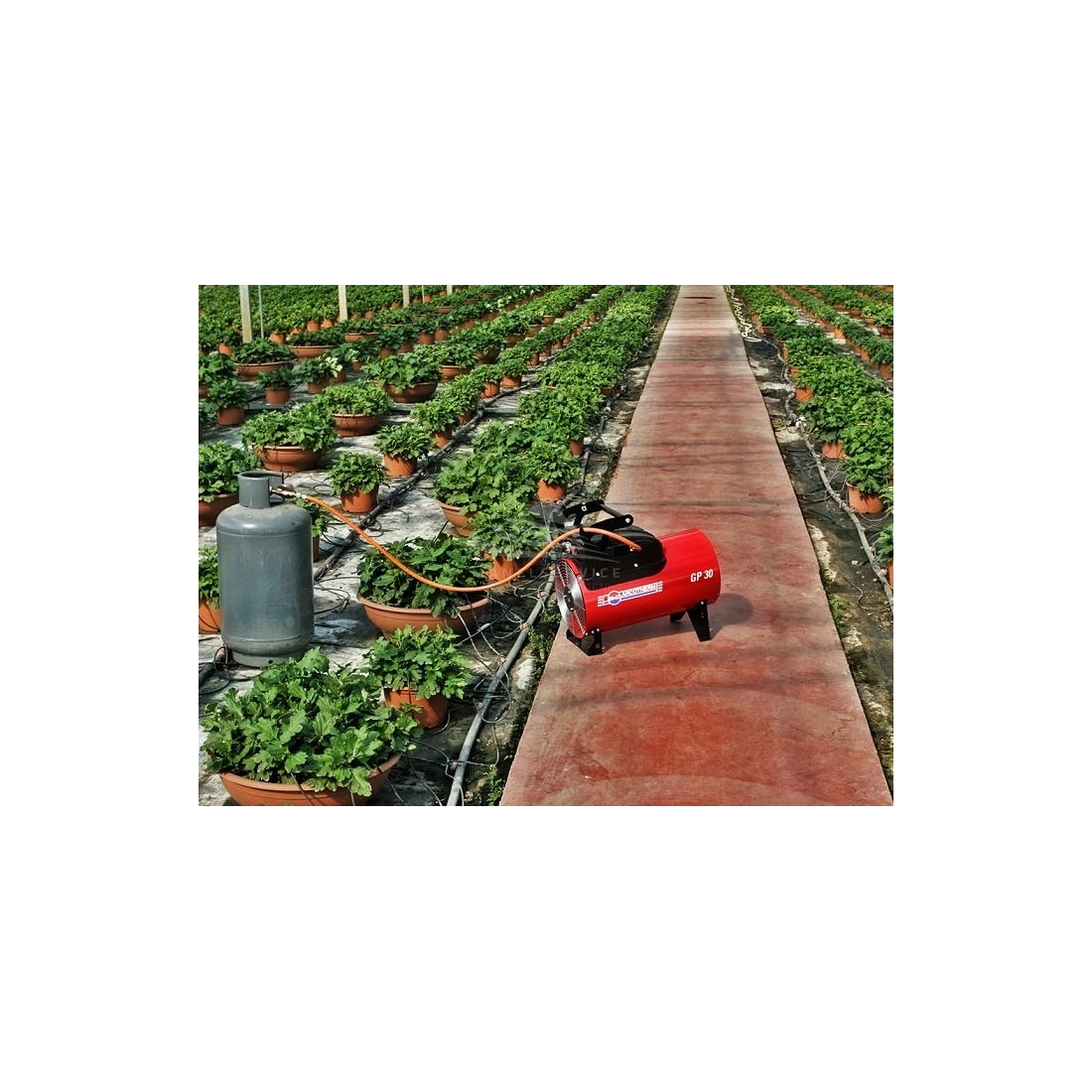

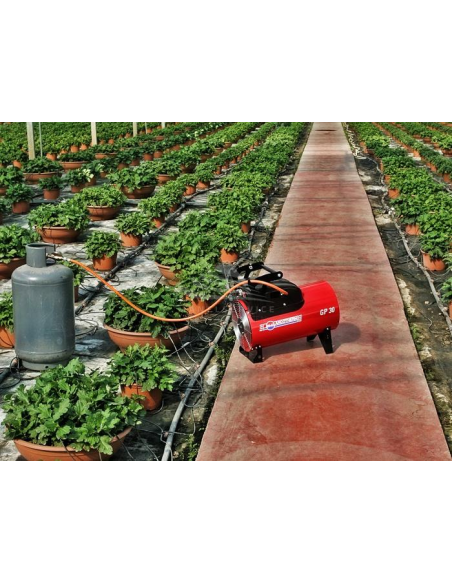

  • BM2 FORCED AIR SPACE HEATERS GP - Application
BIEMMEDUE
03GP105
New product

Maximum heat output: 66.25 KW / 56965 kcal/h / 226055 BTU/h
Minimum heat output: 32.33 KW / 27800 kcal/h / 110315 BTU/h
Power supply: LPG
Maximum gas consumption: 4.268 Kg/h
Minimum gas consumption: 2.097 Kg/h
Gas pressure: 1.5 - 0. 4 bar
Efficiency: 100 %
Air flow rate: 1950 m3/h
Air temperature at 20°C: 87 °C
Electrical power: 140 W
Voltage: 230 V
Phase: Single phase
Frequency: 50/60 Hz
Width: 580 mm
Length: 317 mm
Height: 538 mm
Dry weight: 14 Kg

Technical features
Phase
Single phase
Fuel
LPG
Frequency (Hz)
50 / 60
Voltage (V)
230
Max rated heat power
66.25 KW - 56965 Kcal/h - 226055 BTU/h
Min rated heat power
32.33 KW - 27800 Kcal/h - 110315 BTU/h
Max Gas consumption (Kg/h)
4.268
Min Gas consumption (Kg/h)
2.097
Gas pressure (bar)
1.5÷0.4
Heat efficiency (%)
100
Air flow (m³/h)
1950
Air temperature at 20°C (°C)
87
Power consumption (W)
140
Length (mm)
580
Width (mm)
317
Height (mm)
538
Dry weight (Kg)
14
Details

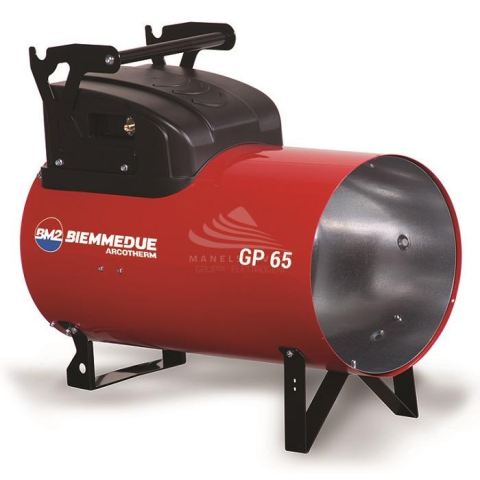

BM2 GP 65M HOT AIR GENERATOR GP 65M

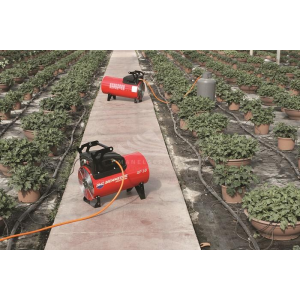

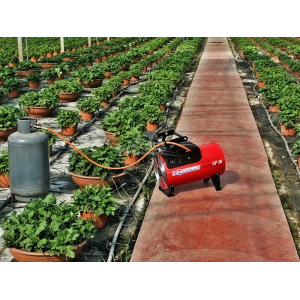

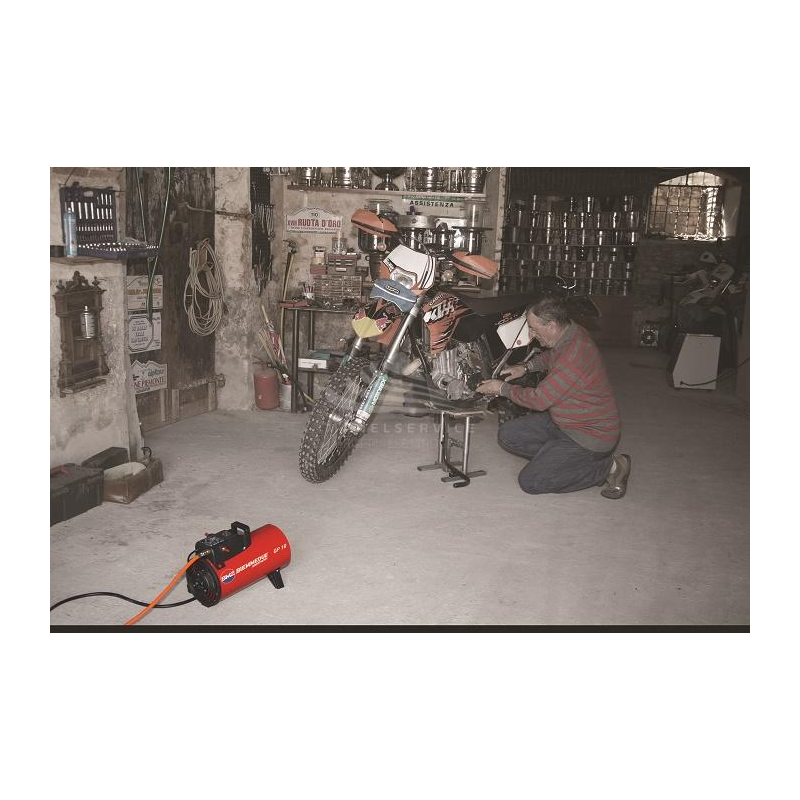

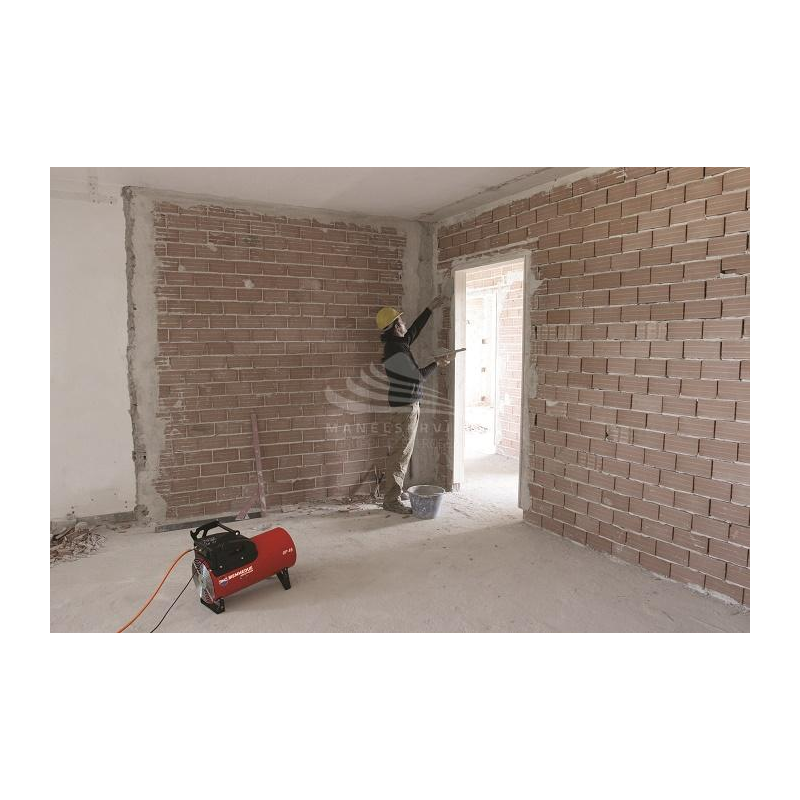

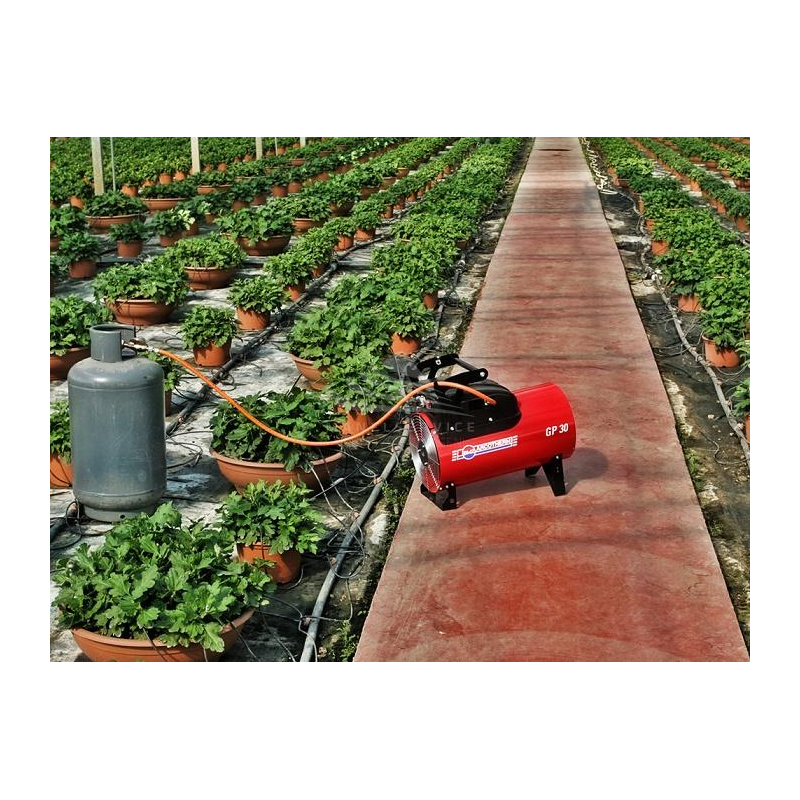

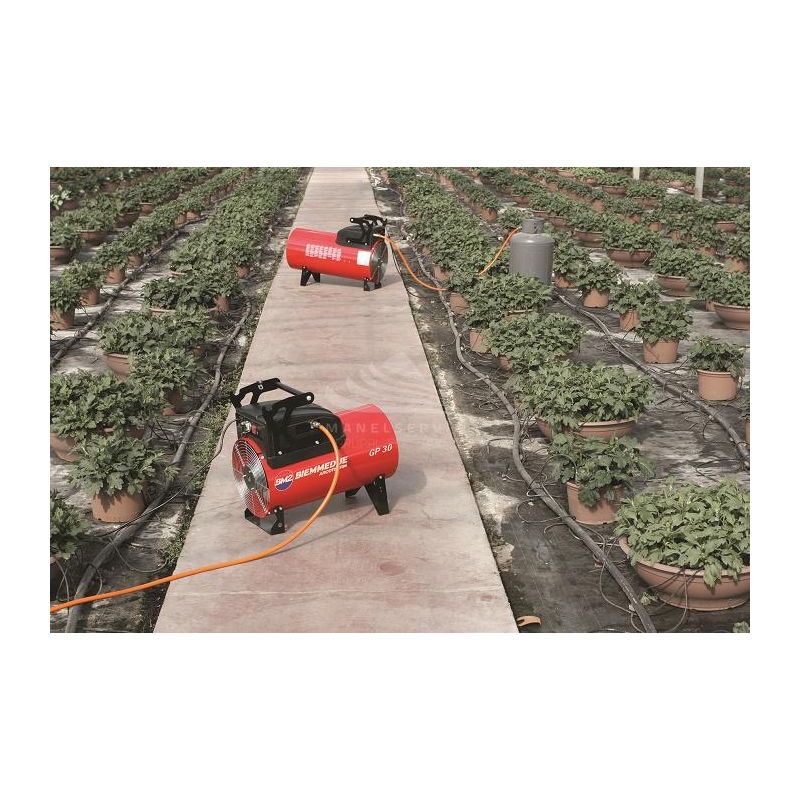

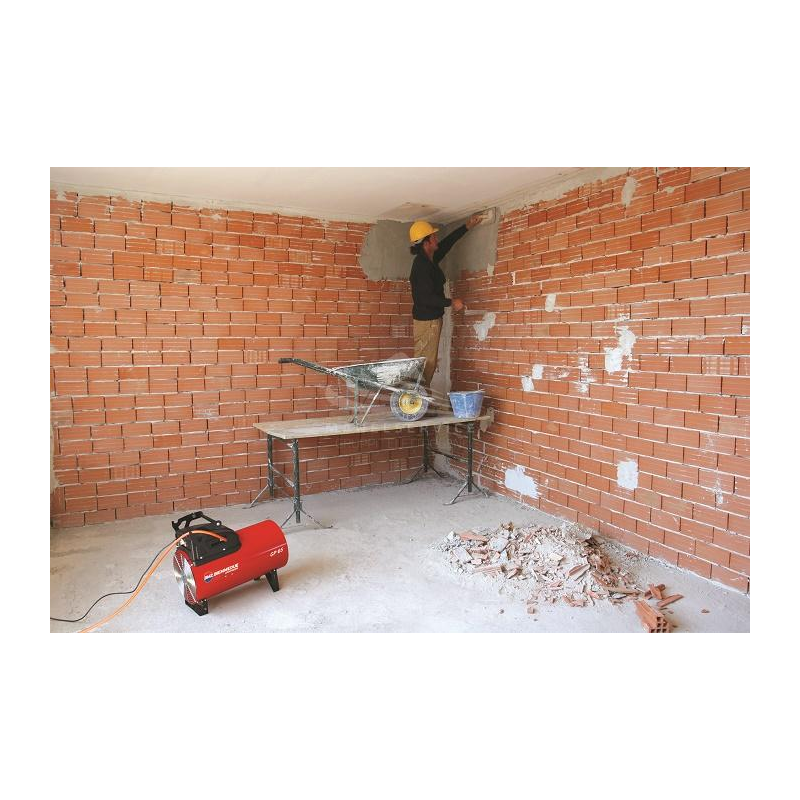

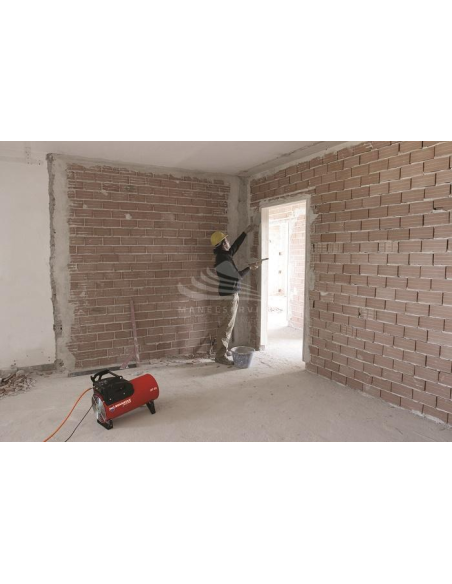

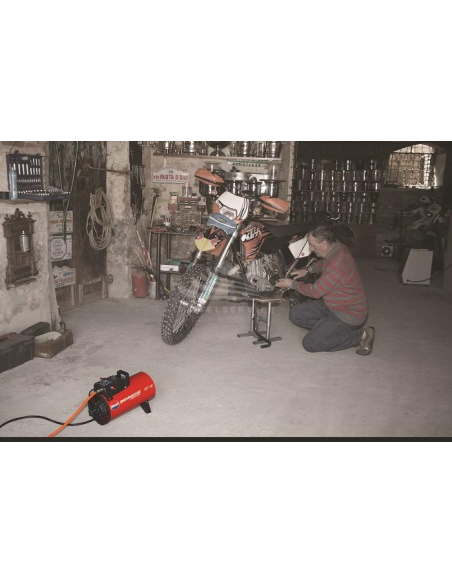

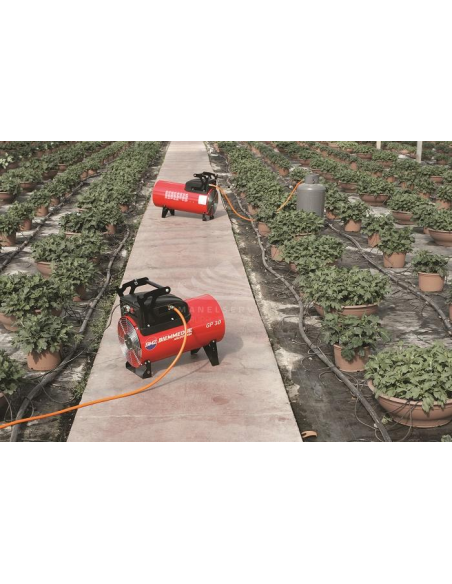

BM2 GP65M is a manual start LPG-fuelled hot air generator, perfect for heating closed but ventilated rooms such as construction sites, greenhouses and farms.

BM2 GP65M is powered by high-pressure LPG, with an integrated, direct-burning burner. BM2 GP65M hot air generator is manufactured with manual ignition by piezoelectric. For their power supply they are usually connected to LPG cylinders, which makes them handy and very economical.

The hot air generator BM2 GP65M is supplied complete with:

- Built-in LPG burner
- Safety thermostat
- Control with thermocouple and gas valve
- Power supply cable with plug
- Manual ignition with piezo-electric system
- Complies with UNI EN 1596:2008

TECHNICAL FEATURES BM2 GP65M

Maximum heat output: 66.25 KW / 56965 kcal/h / 226055 BTU/h
Minimum heat output: 32.33 KW / 27800 kcal/h / 110315 BTU/h
Power supply: LPG
Maximum gas consumption: 4.268 Kg/h
Minimum gas consumption: 2.097 Kg/h
Gas pressure: 1.5 - 0. 4 bar
Efficiency: 100 %
Air flow rate: 1950 m3/h
Air temperature at 20°C: 87 °C
Electrical power: 140 W
Voltage: 230 V
Phase: Single phase
Frequency: 50/60 Hz
Width: 580 mm
Length: 317 mm
Height: 538 mm
Dry weight: 14 Kg

Are you looking for a hot air generator with different technical characteristics? Here you can find the full range of hot air generators BM2 or other specialized brands.

.

Images and technical data are not binding and may be subject to revisions by the manufacturer.

bm2 cCras laoreet tempor purus at lacinia. Suspendisse ultricies, nunc at ultrices vulputate, nibh velit eleifend nisi, semper efficitur leo tellus eu sapien. Proin pharetra, dui a sodales interdum, augue metus congue mauris, sed commodo ante velit in augue. Morbi magna ligula, placerat ultricies sagittis sit amet, cursus vel erat. Nunc nec pellentesque ligula. Nunc congue mattis enim, eget pretium quam gravida ut. Vivamus tincidunt sapien et semper maximus. Proin at dolor lacus. Cras eget faucibus ante. In sollicitudin suscipit neque ut maximus.

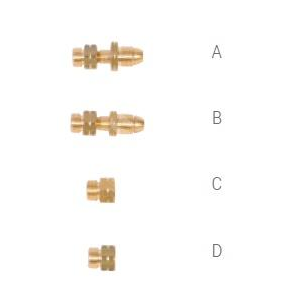

Related Accessories
