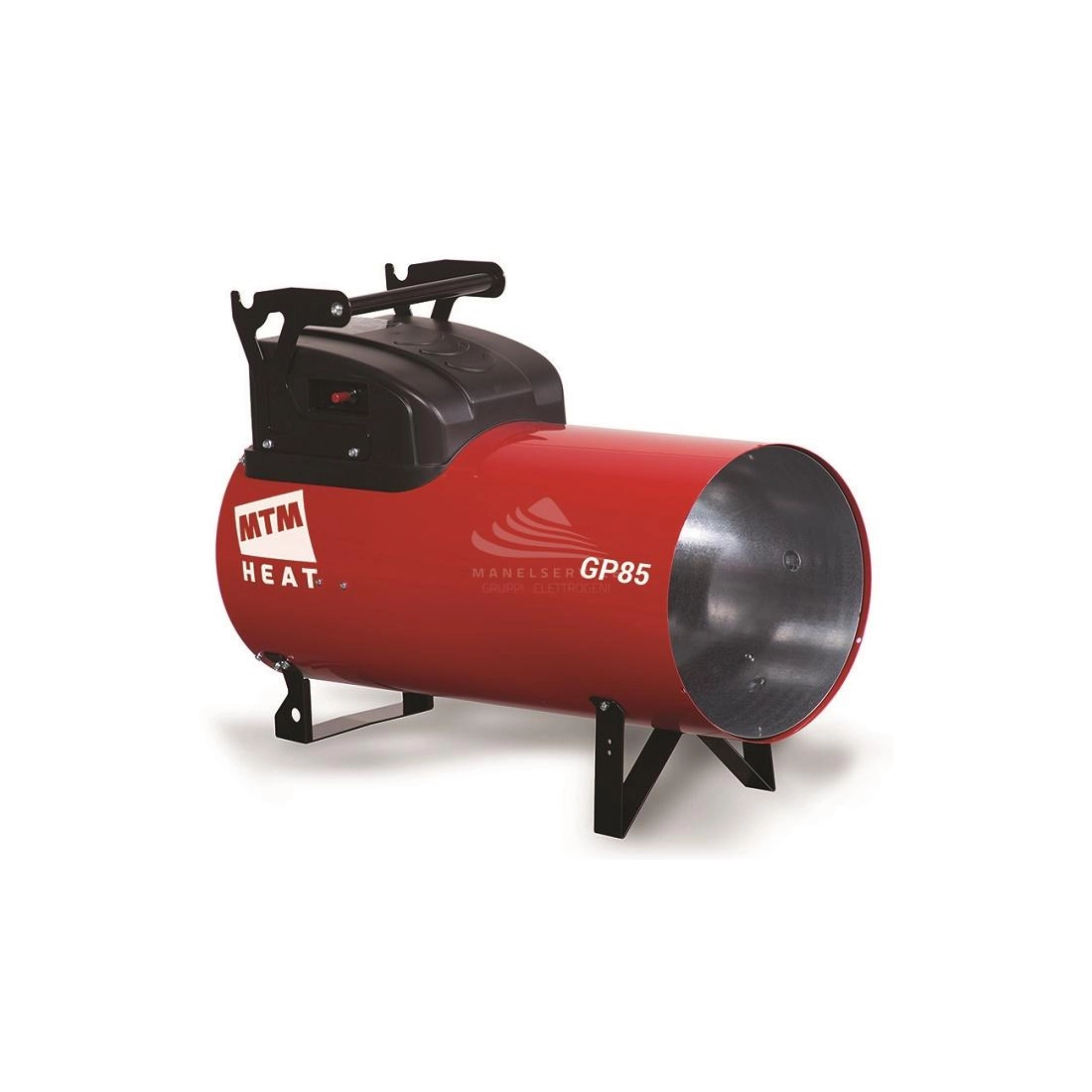

BM2 HOT AIR GENERATOR GP 85M

BM2 FORCED AIR SPACE HEATERS GP 85
search
  • BM2 FORCED AIR SPACE HEATERS GP 85

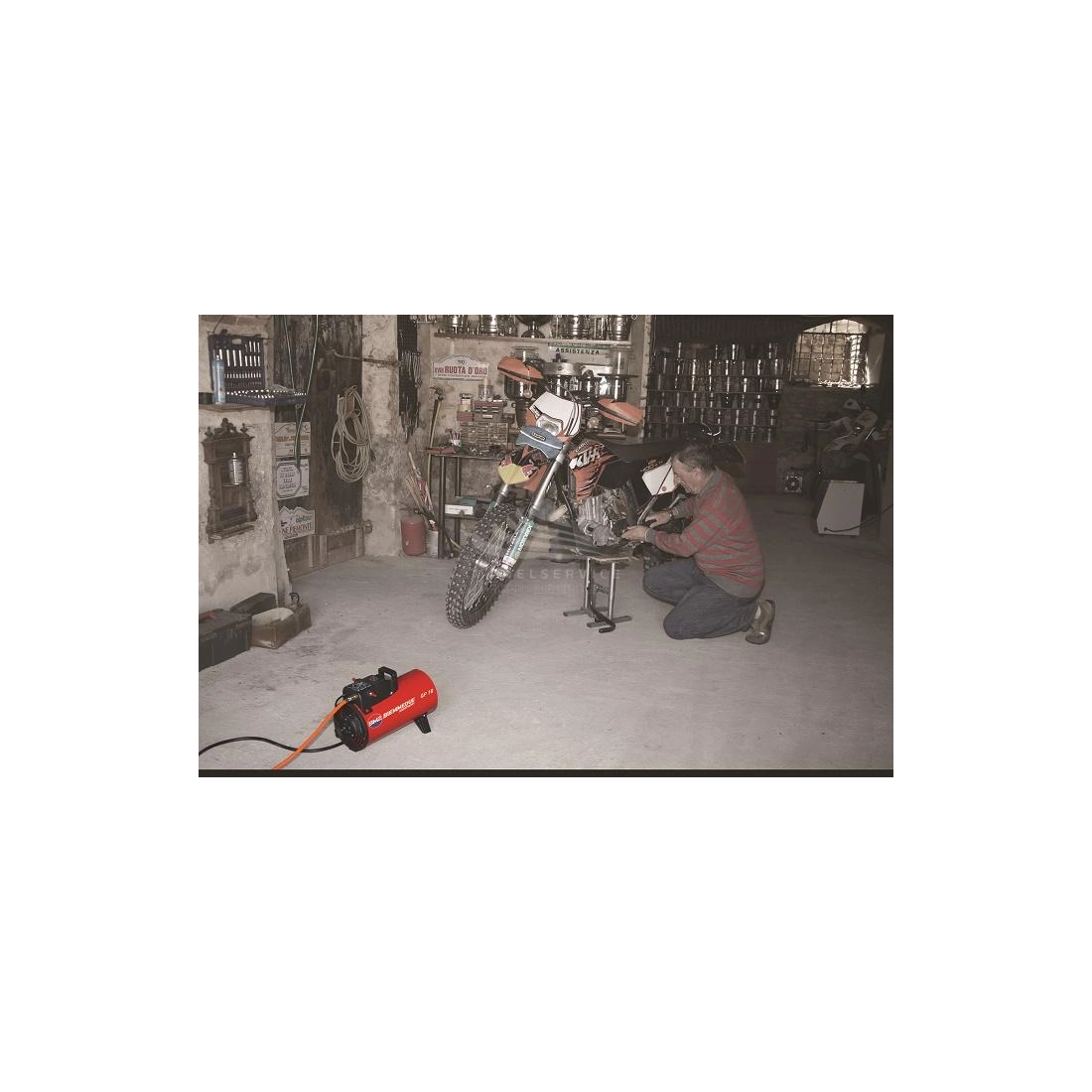

  • BM2 FORCED AIR SPACE HEATERS GP - Application

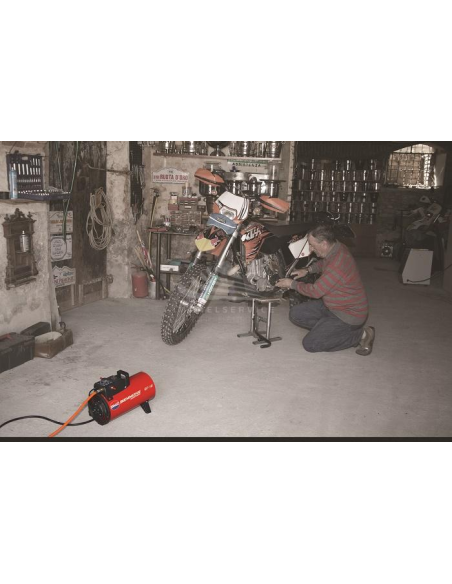

  • BM2 FORCED AIR SPACE HEATERS GP - Application

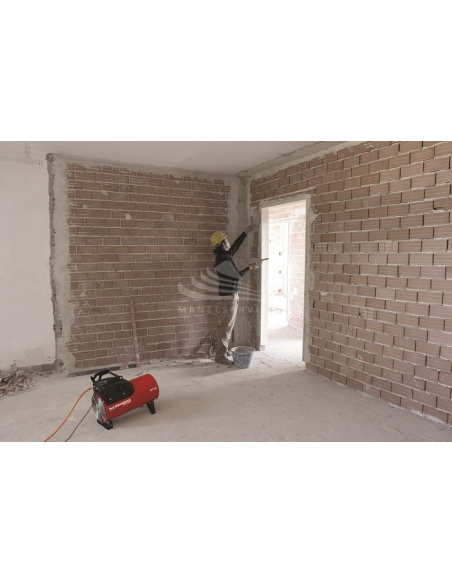

  • BM2 FORCED AIR SPACE HEATERS GP - Application

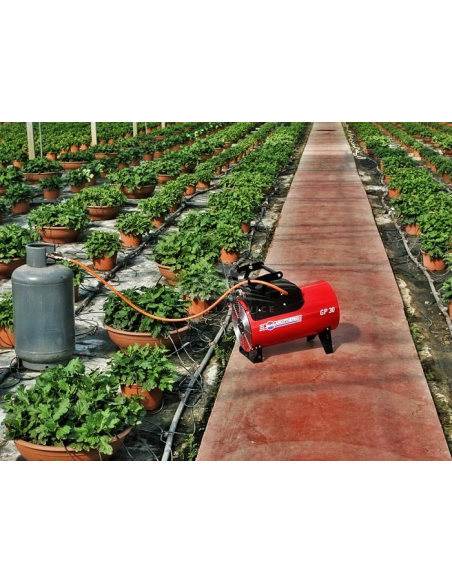

  • BM2 FORCED AIR SPACE HEATERS GP - Application

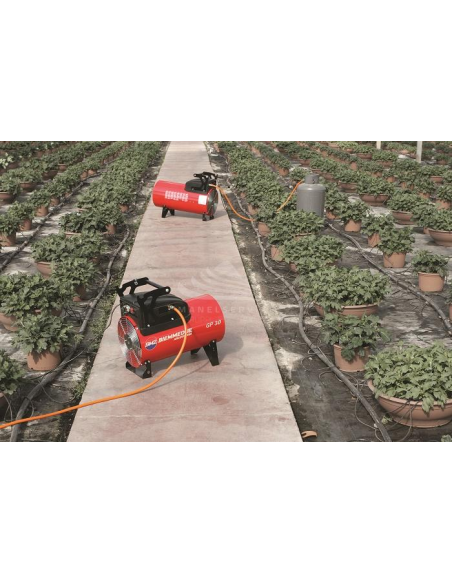

  • BM2 FORCED AIR SPACE HEATERS GP - Application
BIEMMEDUE
03GP106
New product

Maximum heat output: 84.81 KW / 72,925 kcal/h / 289385 BTU/h
Minimum heat output: 40.95 KW / 35,210 kcal/h / 139730 BTU/h
Power supply: LPG
Maximum gas consumption: 5.53 Kg/h
Minimum gas consumption: 2.458 Kg/h
Gas pressure: 1.5 - 0. 4 bar
Efficiency: 100 %
Air flow rate: 2550 m3/h
Air temperature at 20°C: 65 °C
Electrical power: 240 W
Voltage: 230 V
Phase: Single phase
Frequency: 50 Hz
Width: 700 mm
Length: 317 mm
Height: 538 mm
Dry weight: 16 Kg

Technical features
Phase
Single phase
Fuel
LPG
Frequency (Hz)
50
Voltage (V)
230
Max rated heat power
84.81 KW - 72925 Kcal/h - 289385 BTU/h
Min rated heat power
40.95 KW - 35210 Kcal/h - 139730 BTU/h
Max Gas consumption (Kg/h)
5.53
Min Gas consumption (Kg/h)
2.458
Gas pressure (bar)
1.5÷0.4
Heat efficiency (%)
100
Air flow (m³/h)
2550
Air temperature at 20°C (°C)
65
Power consumption (W)
240
Length (mm)
700
Width (mm)
317
Height (mm)
538
Dry weight (Kg)
16
Details

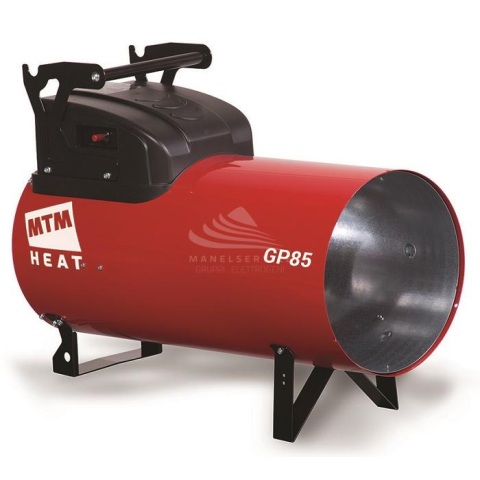

BM2 HOT AIR GENERATOR GP 85M

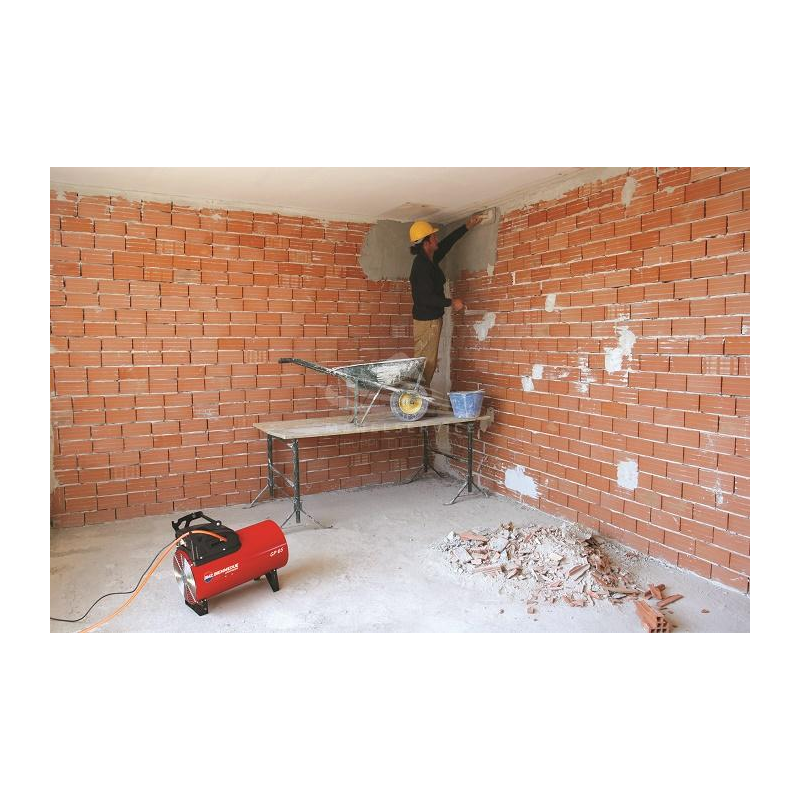

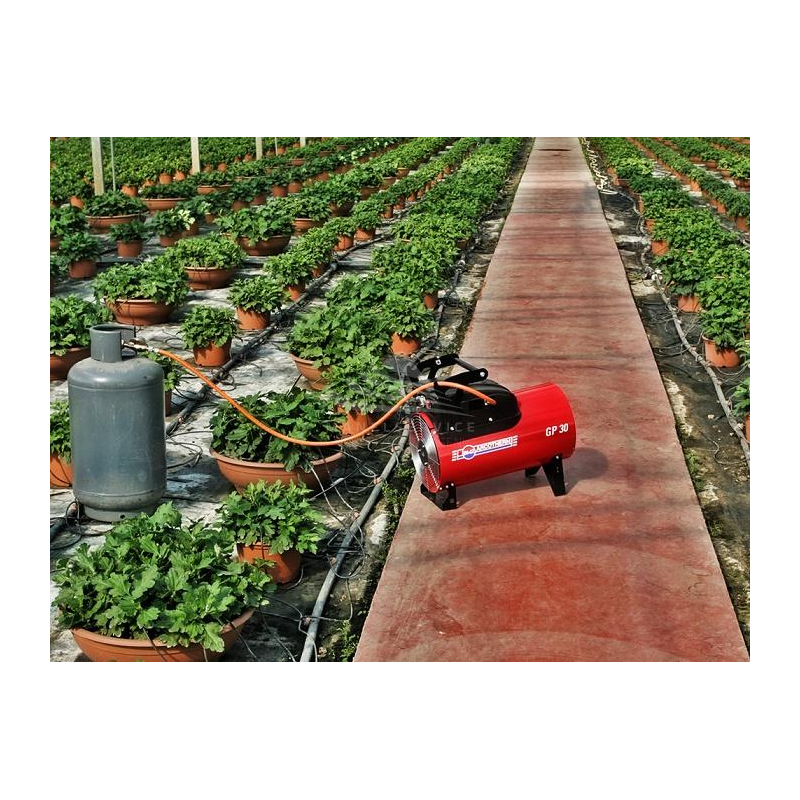

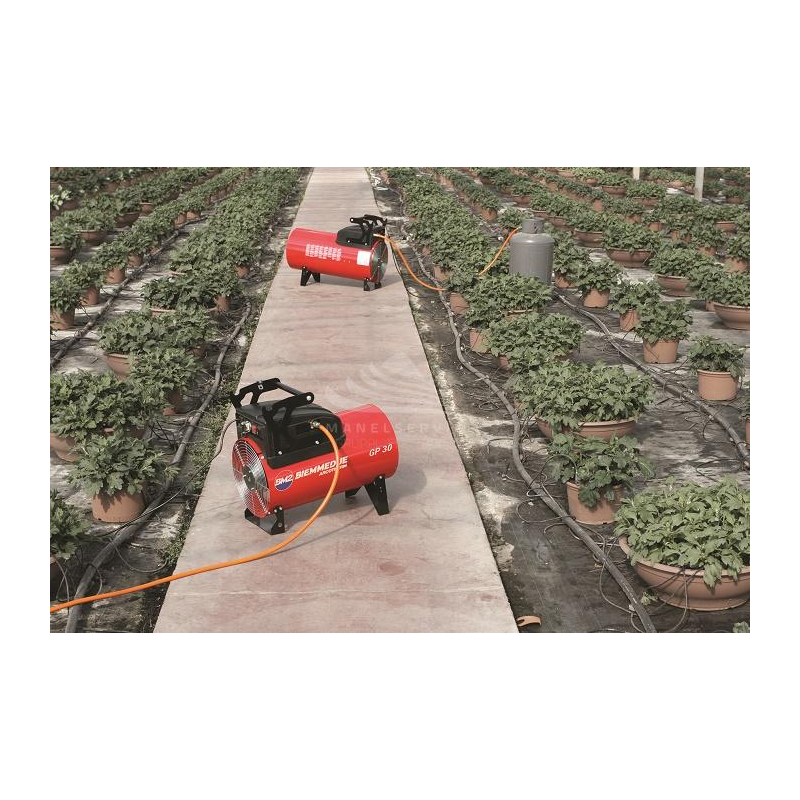

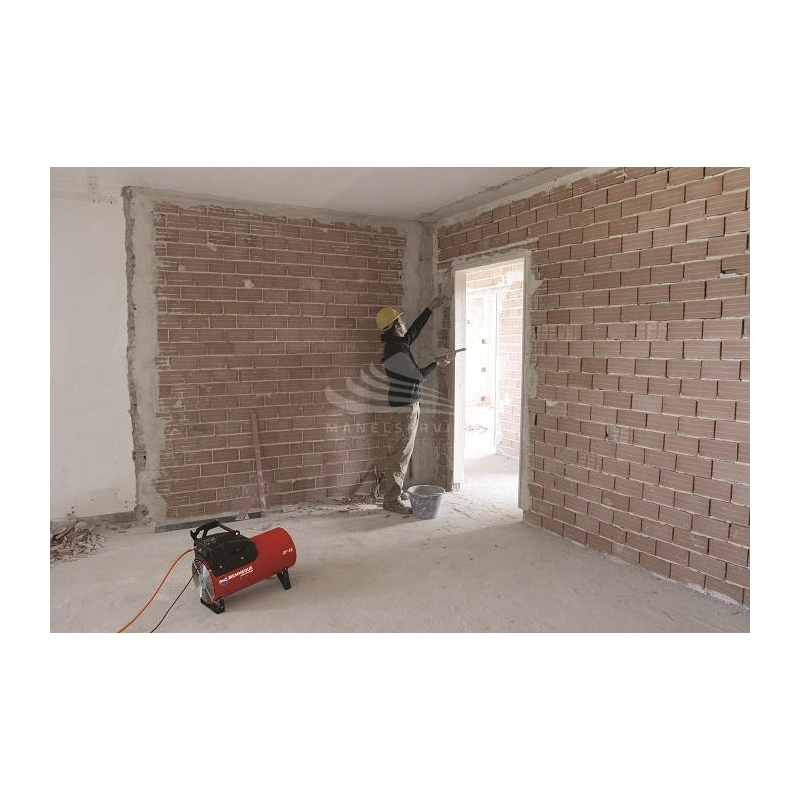

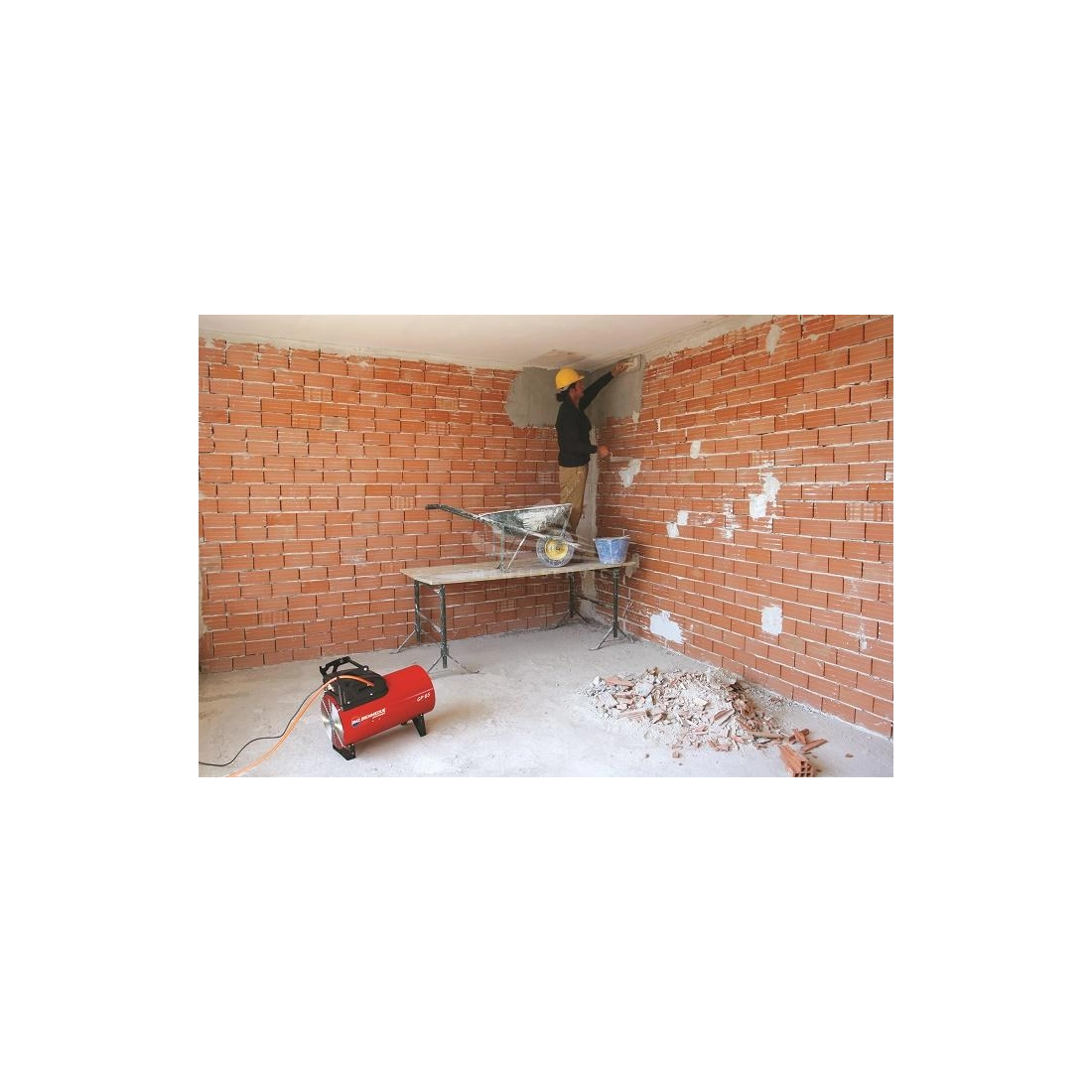

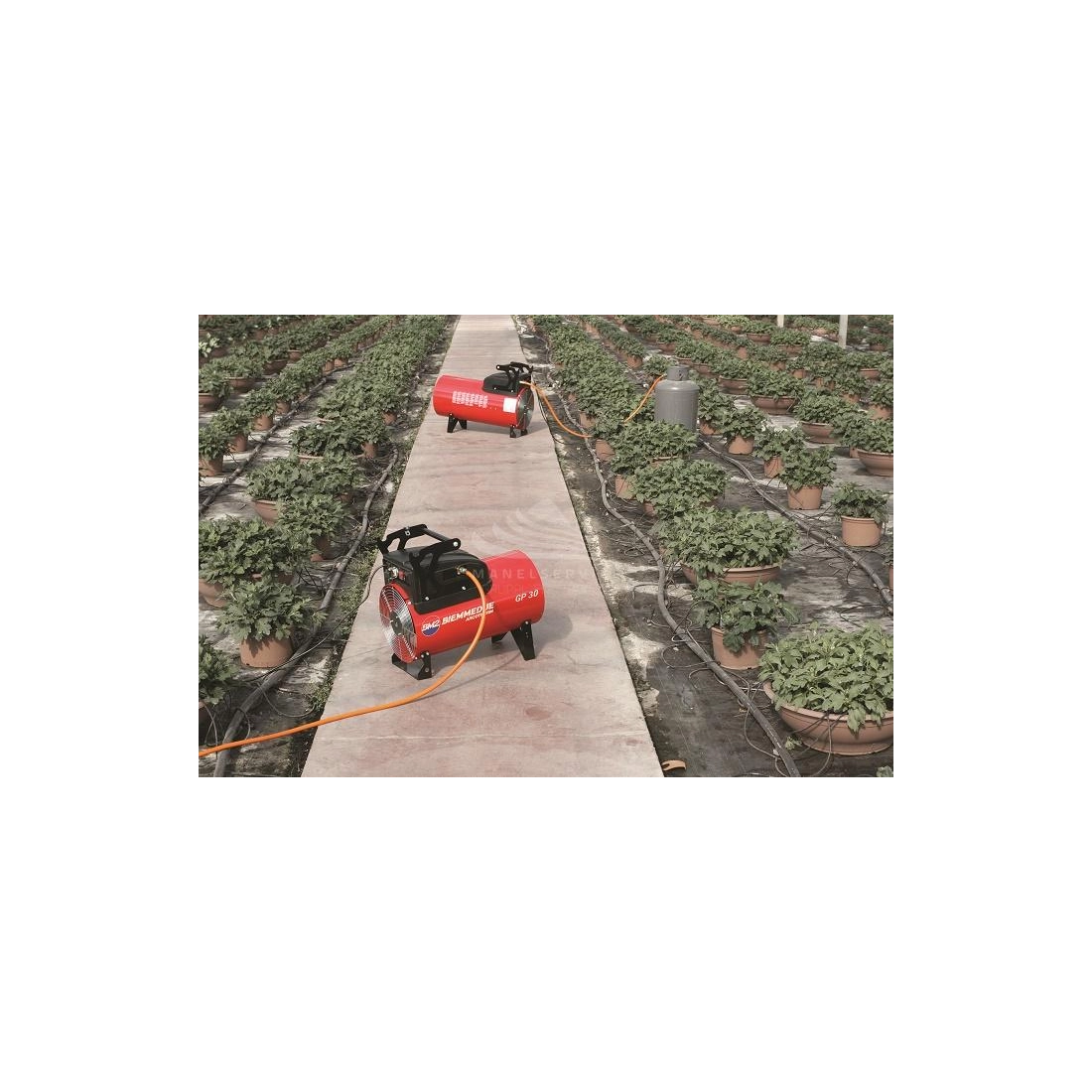

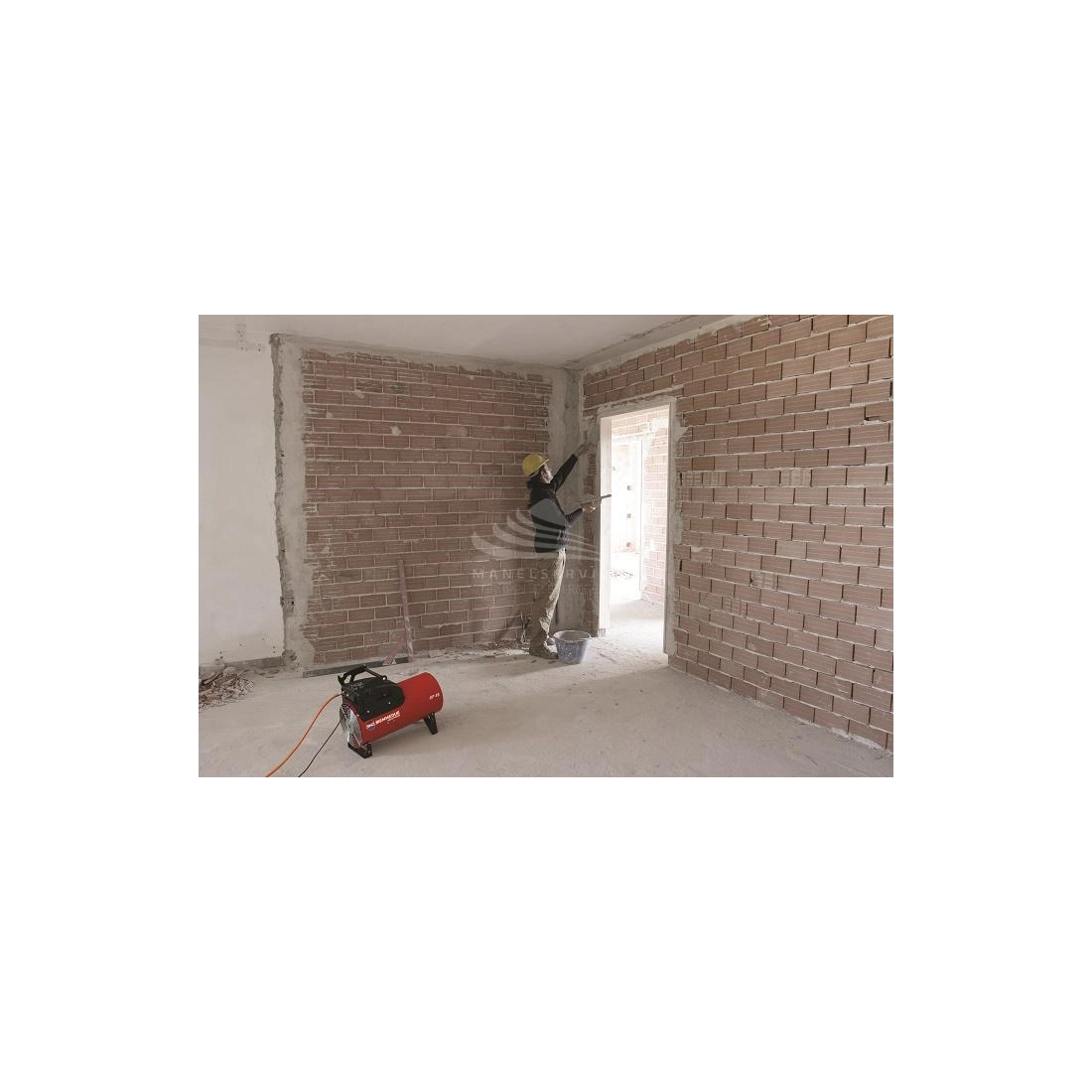

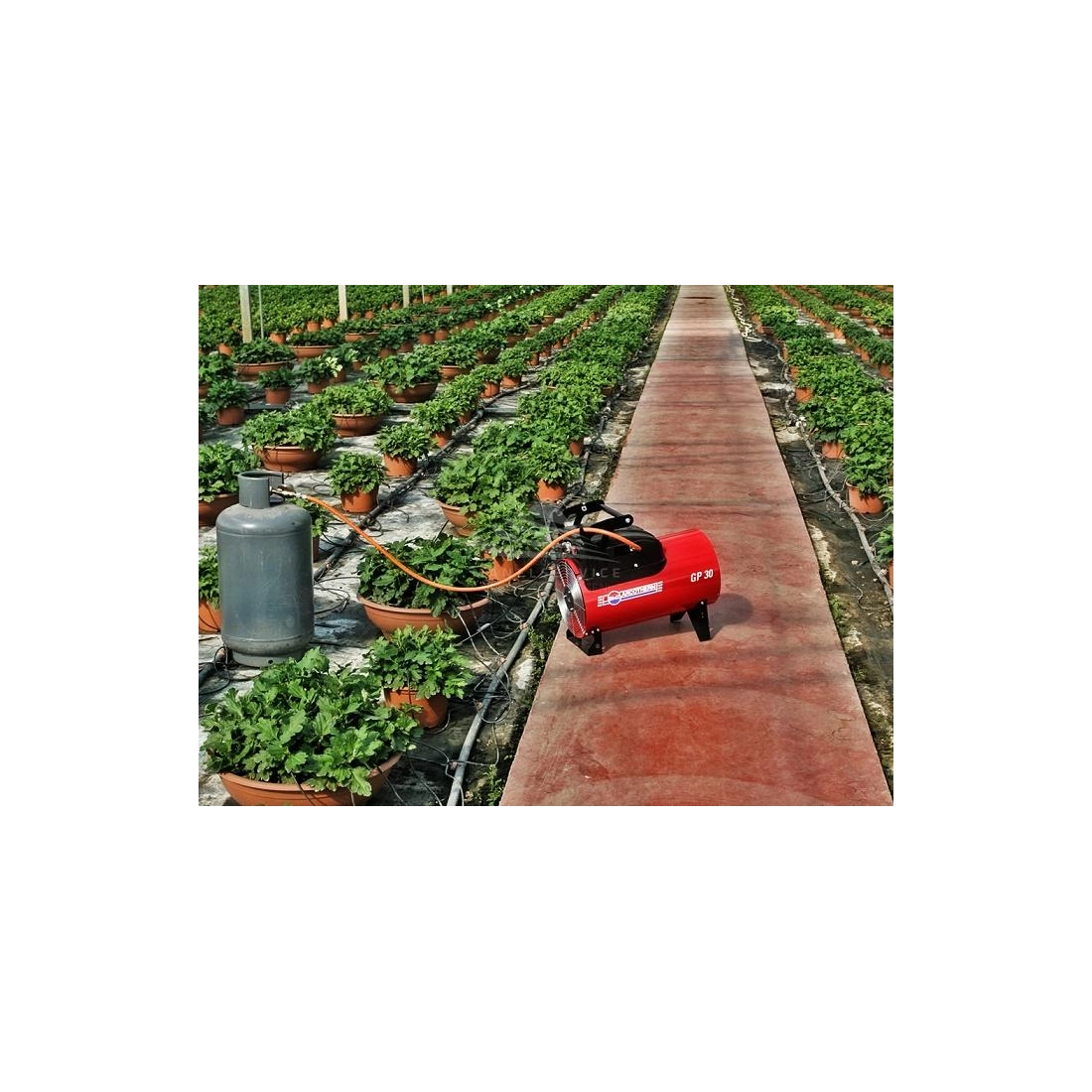

BM2 GP85M is a manual start hot air generator powered by LPG, perfect for heating closed but ventilated rooms such as construction sites, greenhouses and farms.

BM2 GP85M is powered by high-pressure LPG, with an integrated, direct-burning burner. BM2 GP85M hot air generator is manufactured with manual ignition by piezoelectric. For their power supply they are usually connected to LPG cylinders, which makes them handy and very economical.

The hot air generator BM2 GP85M is supplied complete with:

- Built-in LPG burner
- Safety thermostat
- Control with thermocouple and gas valve
- Power supply cable with plug
- Manual ignition with piezo-electric system
- Complies with UNI EN 1596:2008

TECHNICAL FEATURES BM2 GP85M

Maximum heat output: 84.81 KW / 72,925 kcal/h / 289385 BTU/h
Minimum heat output: 40.95 KW / 35,210 kcal/h / 139730 BTU/h
Power supply: LPG
Maximum gas consumption: 5.53 Kg/h
Minimum gas consumption: 2.458 Kg/h
Gas pressure: 1.5 - 0. 4 bar
Efficiency: 100 %
Air flow rate: 2550 m3/h
Air temperature at 20°C: 65 °C
Electrical power: 240 W
Voltage: 230 V
Phase: Single phase
Frequency: 50 Hz
Width: 700 mm
Length: 317 mm
Height: 538 mm
Dry weight: 16 Kg

Are you looking for a hot air generator with different technical characteristics? Here you can find the full range of hot air generators BM2 or other specialized brands.

Images and technical data are not binding and may be subject to revisions by the manufacturer.

bm2 consectetur, metus consectetur sollicitudin condimentum, sapien nulla consectetur diam, eget feugiat odio neque at metus. Nulla egestas, lectus sed faucibus fringilla, massa justo volutpat libero, aliquet placerat lectus augue eu urna. Nulla dolor urna, convallis sit amet sapien vitae, bibendum hendrerit nisl. Nullam molestie ligula erat, et auctor lorem vulputate nec. Curabitur blandit varius justo, at dignissim nulla sollicitudin ut. Morbi ultricies mauris vitae turpis venenatis, at bibendum massa elementum. Pellentesque vel feugiat enim, sit amet

Related Accessories
List price
1.266,36 € tax incl.
1.038,00 € tax excl.
Discounted Price
949,77 € tax incl.
778,50 € tax excl.
