BM2 HOT AIR GENERATOR GP65A

BM2 FORCED AIR SPACE HEATERS GP 65
search
  • BM2 FORCED AIR SPACE HEATERS GP 65
  • BM2 FORCED AIR SPACE HEATERS GP - Application
  • BM2 FORCED AIR SPACE HEATERS GP - Application
  • BM2 FORCED AIR SPACE HEATERS GP - Application
  • BM2 FORCED AIR SPACE HEATERS GP - Application
  • BM2 FORCED AIR SPACE HEATERS GP - Application
BIEMMEDUE
03GP155
New product

Maximum heat output: 66.25 KW / 56965 kcal/h / 226055 BTU/h
Minimum heat output: 32.33 KW / 27800 kcal/h / 110315 BTU/h
Power supply: LPG
Maximum gas consumption: 4.268 Kg/h
Minimum gas consumption: 2.097 Kg/h
Gas pressure: 1.5 - 0. 4 bar
Efficiency: 100 %
Air flow rate: 1950 m3/h
Air temperature at 20°C: 87 °C
Electrical power: 140 W
Voltage: 230 V
Phase: Single phase
Frequency: 50 Hz
Width: 580 mm
Length: 317 mm
Height: 538 mm
Dry weight: 14 Kg

Technical features
Phase
Single phase
Fuel
LPG
Frequency (Hz)
50 / 60
Voltage (V)
230
Max rated heat power
66.25 KW - 56965 Kcal/h - 226055 BTU/h
Min rated heat power
32.33 KW - 27800 Kcal/h - 110315 BTU/h
Max Gas consumption (Kg/h)
4.268
Min Gas consumption (Kg/h)
2.097
Gas pressure (bar)
1.5÷0.4
Heat efficiency (%)
100
Air flow (m³/h)
1950
Air temperature at 20°C (°C)
87
Power consumption (W)
140
Length (mm)
580
Width (mm)
317
Height (mm)
538
Dry weight (Kg)
14
Details

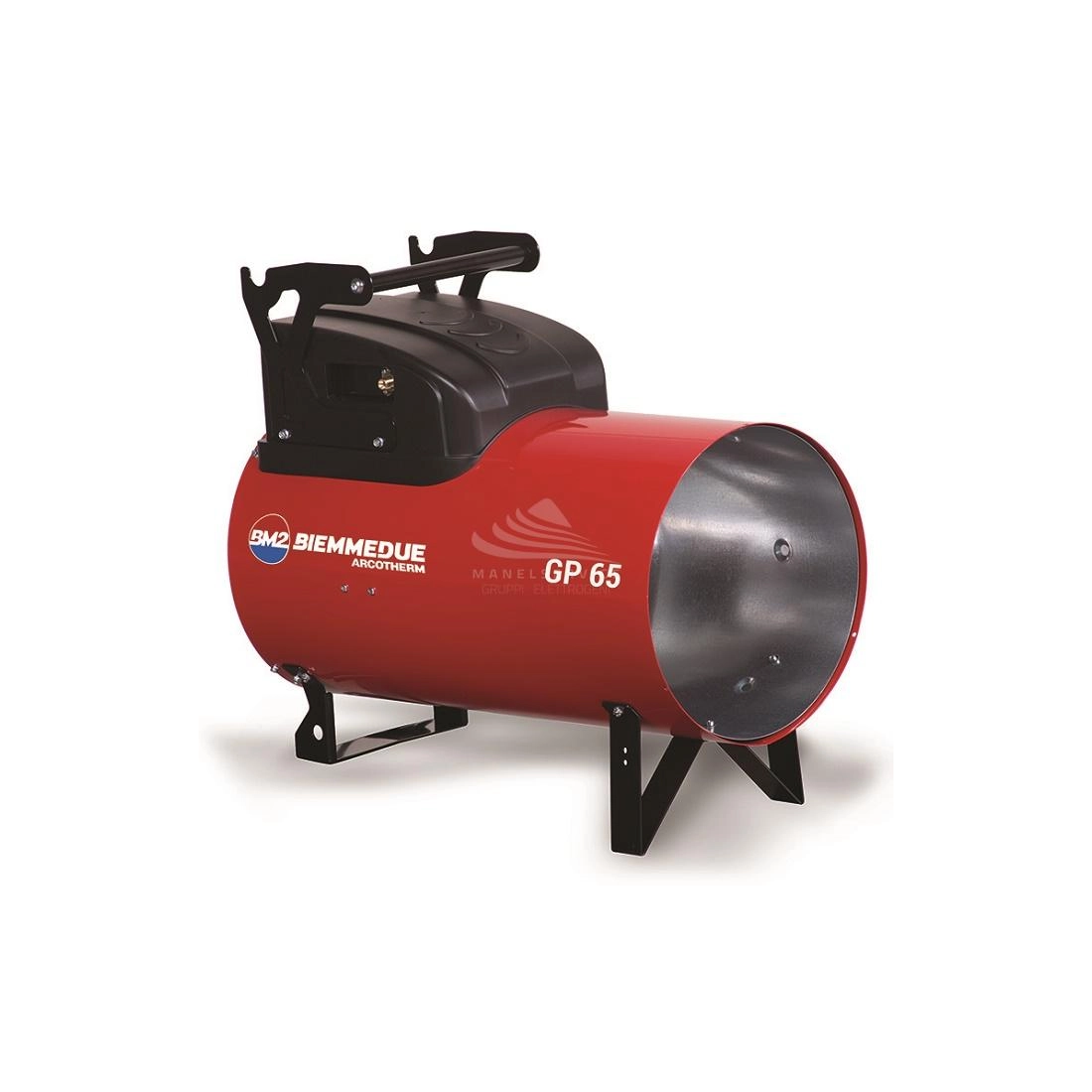

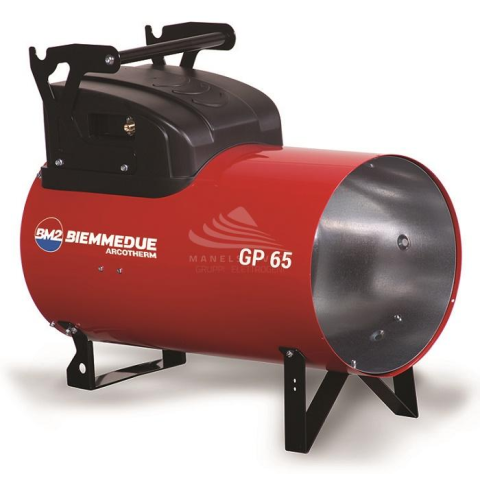

BM2 HOT AIR GENERATOR GP65A

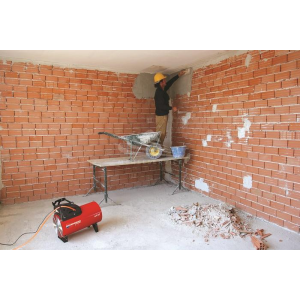

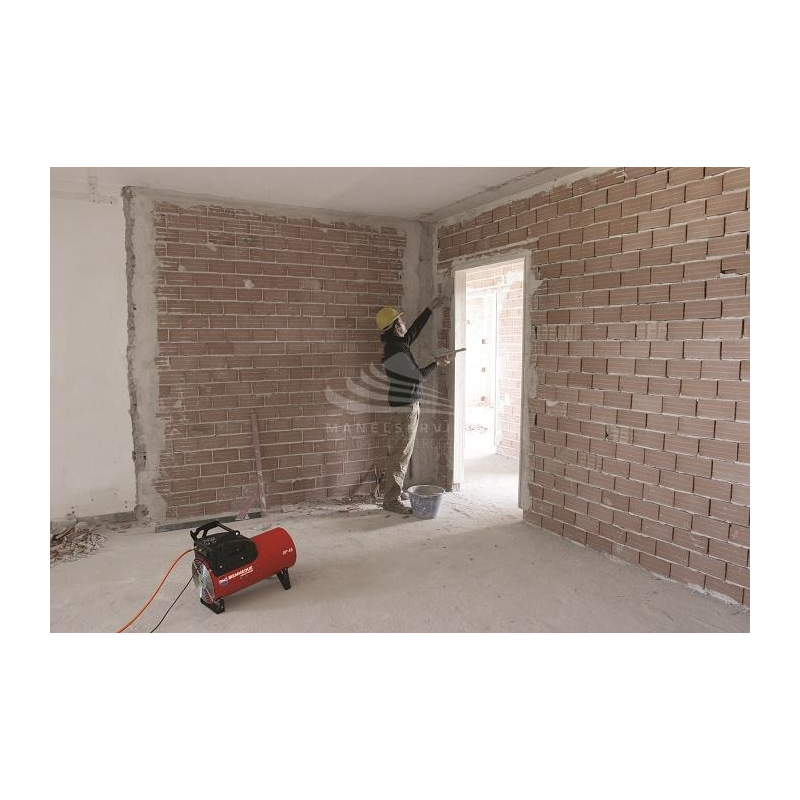

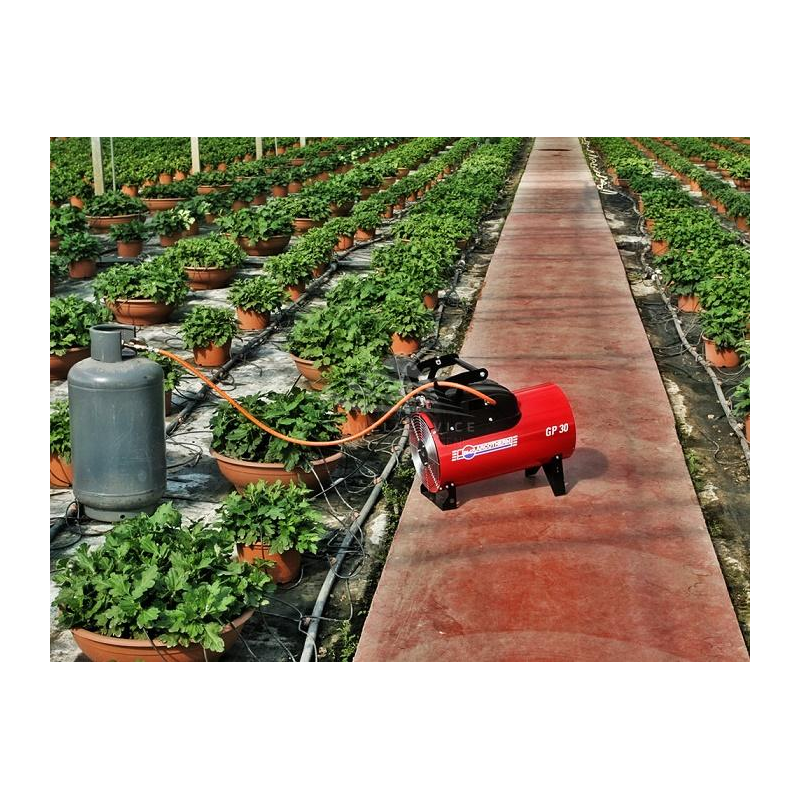

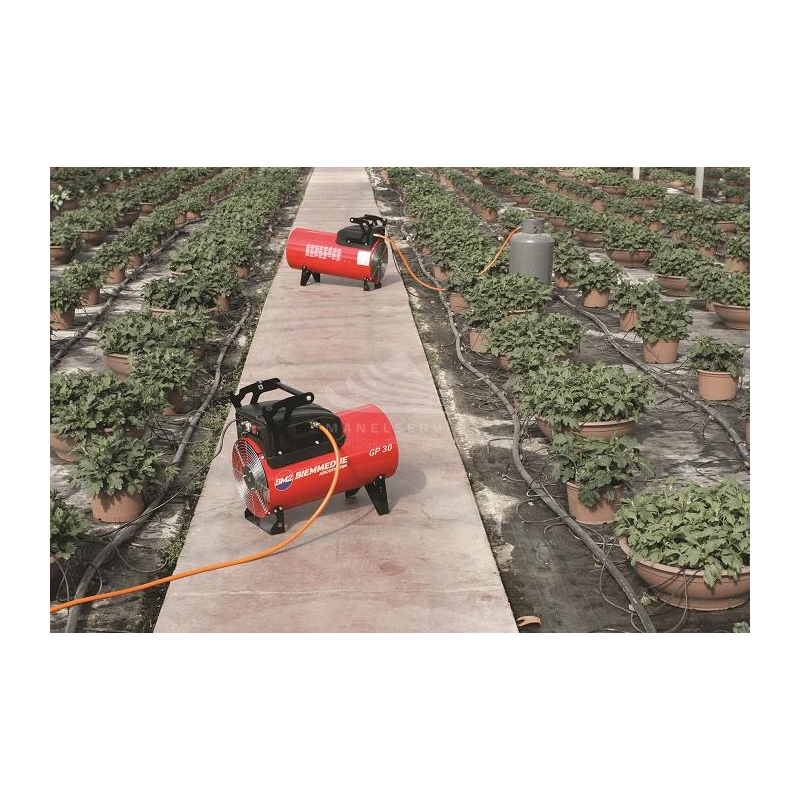

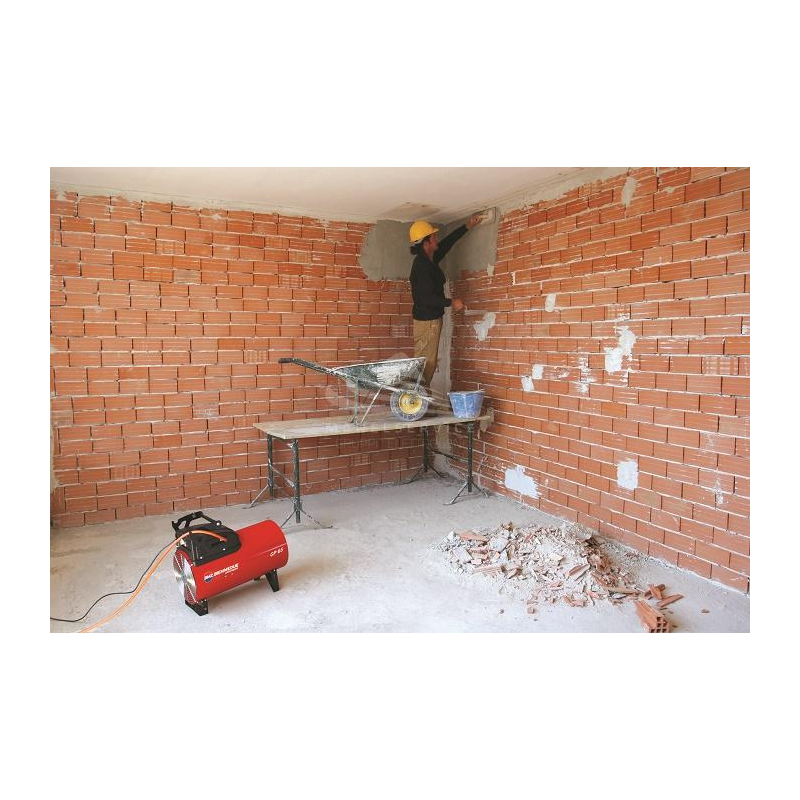

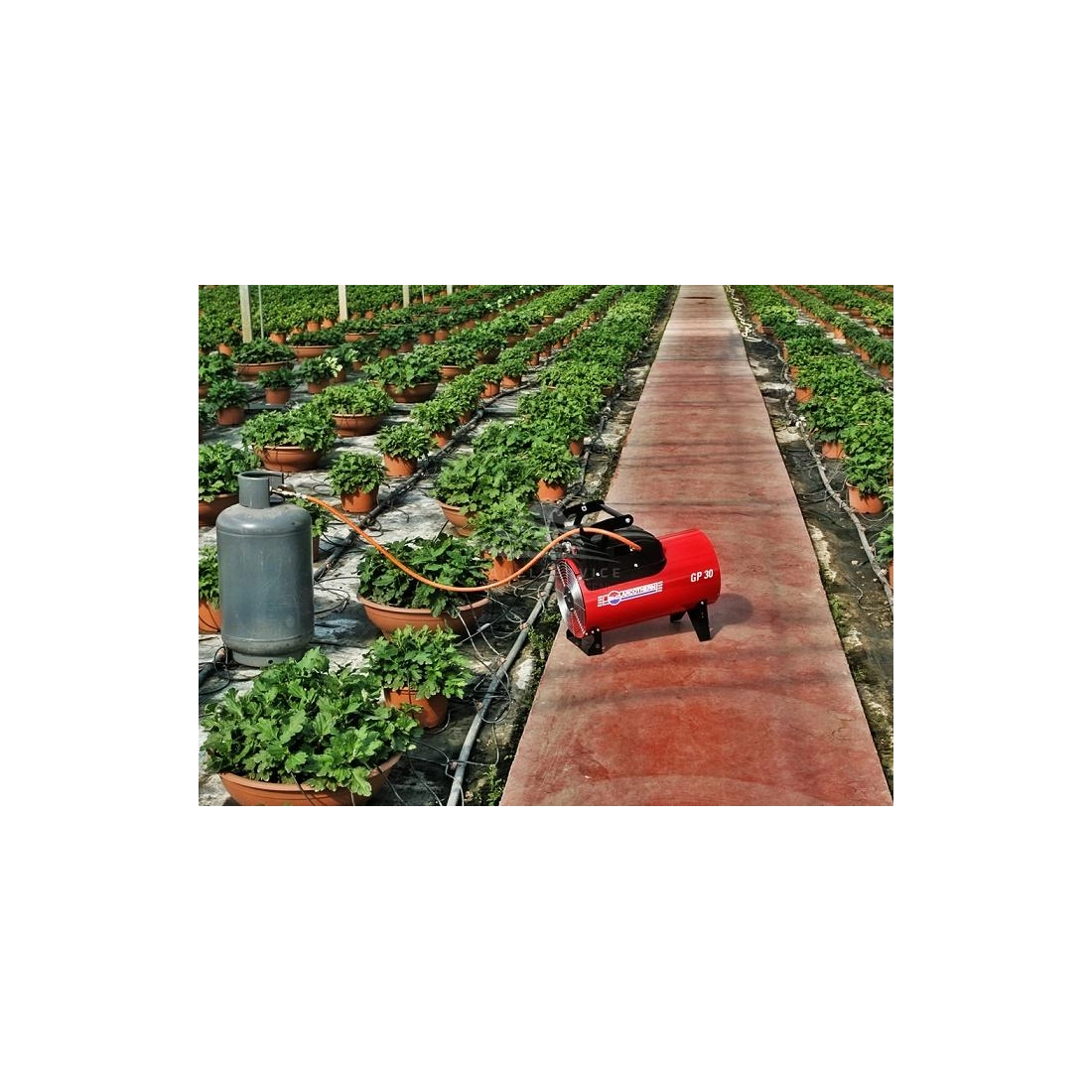

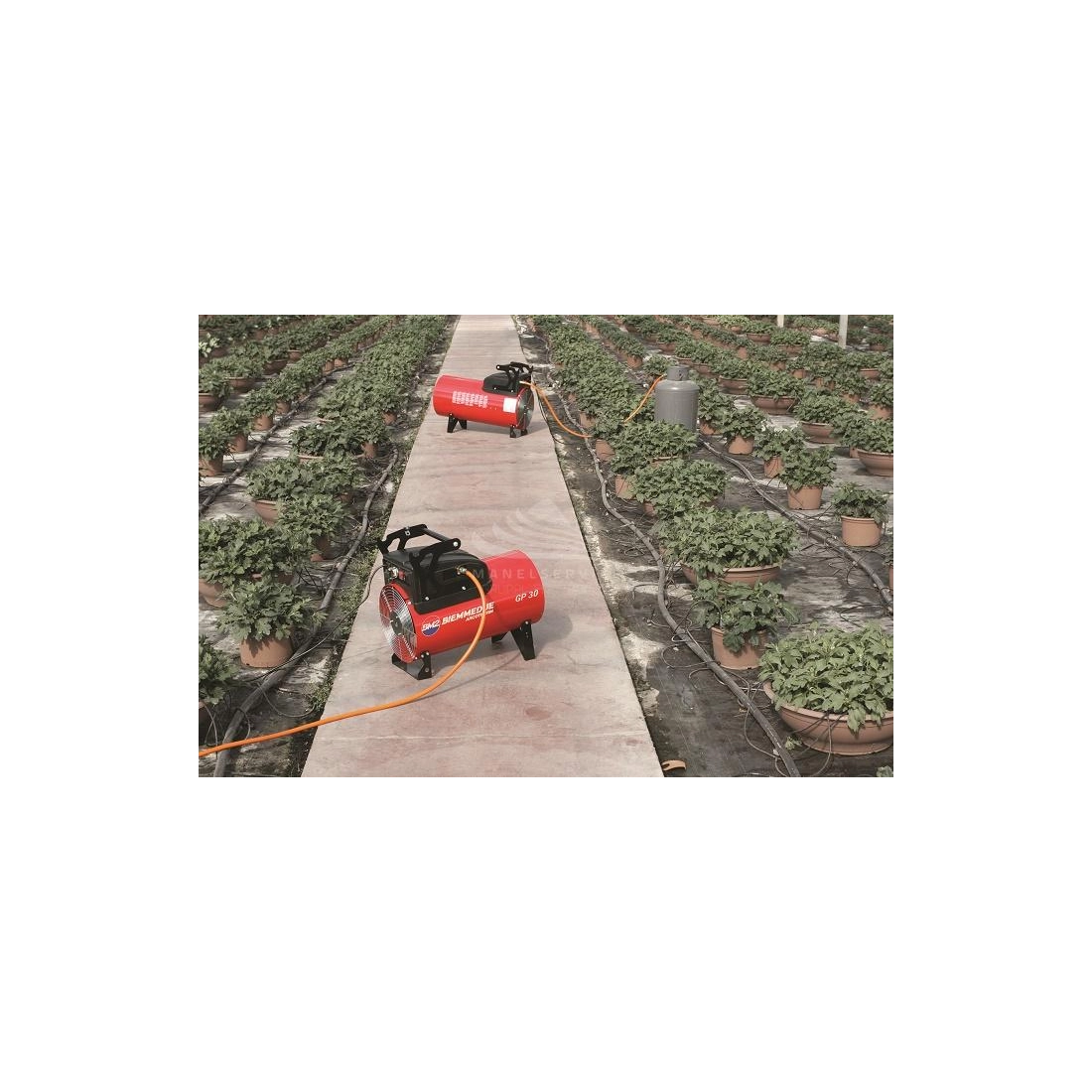

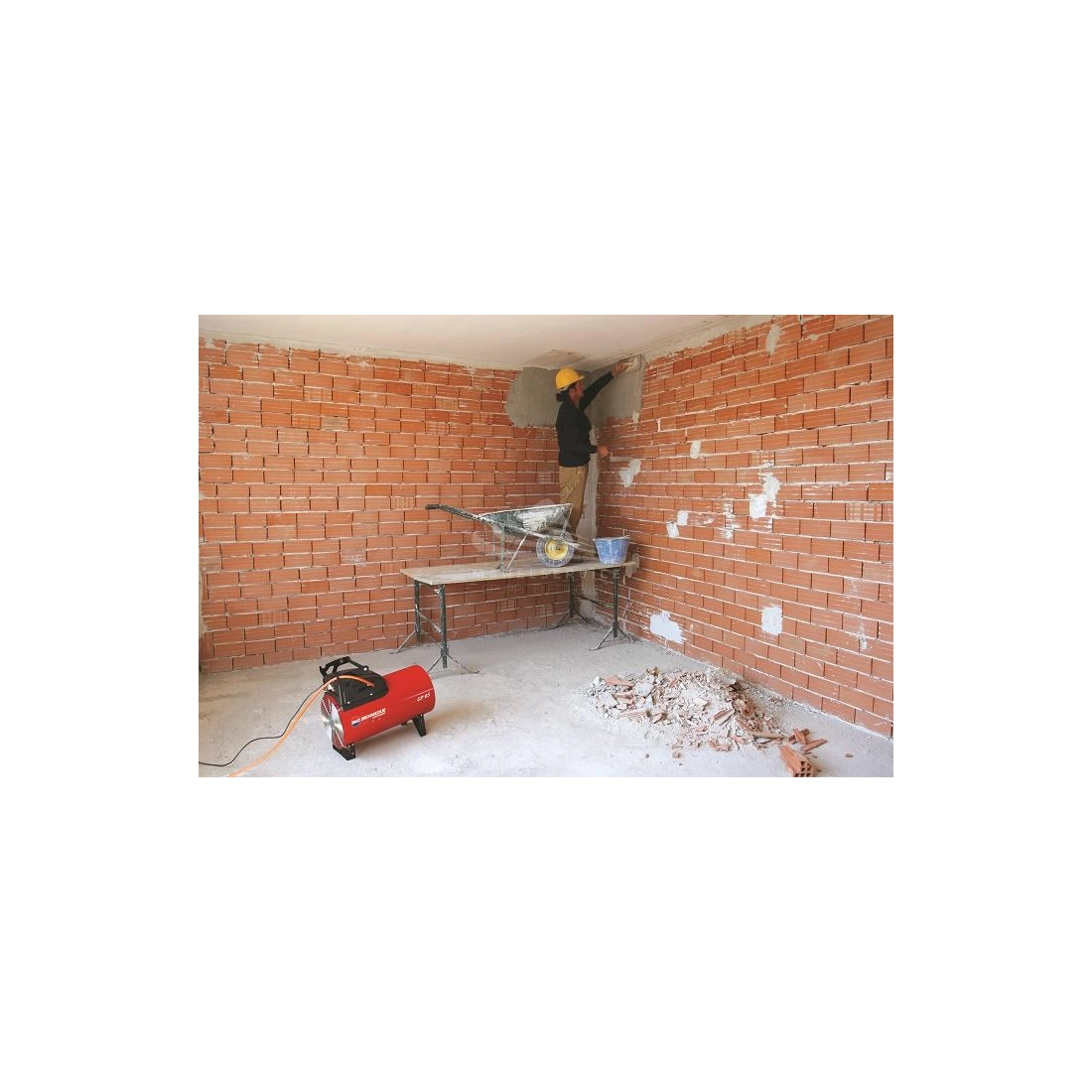

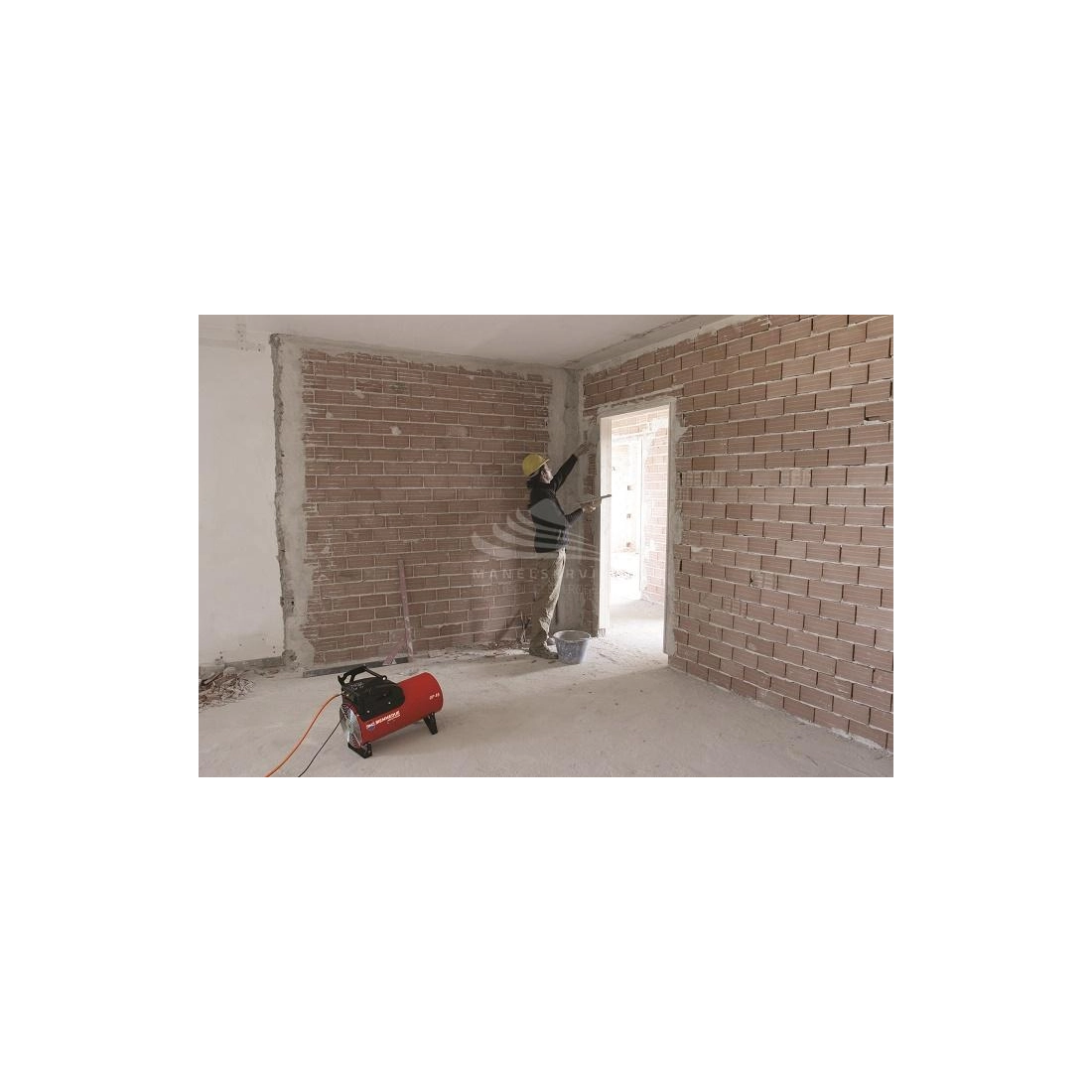

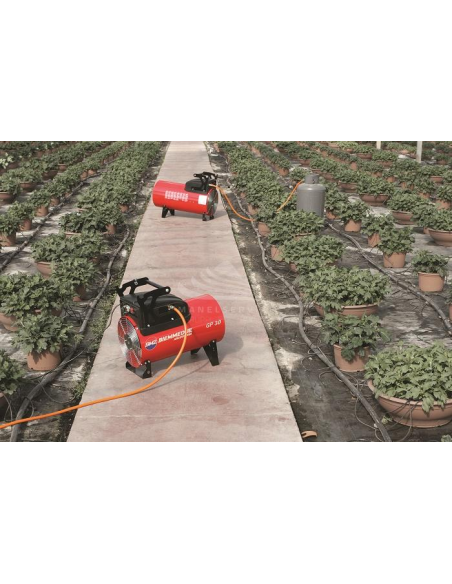

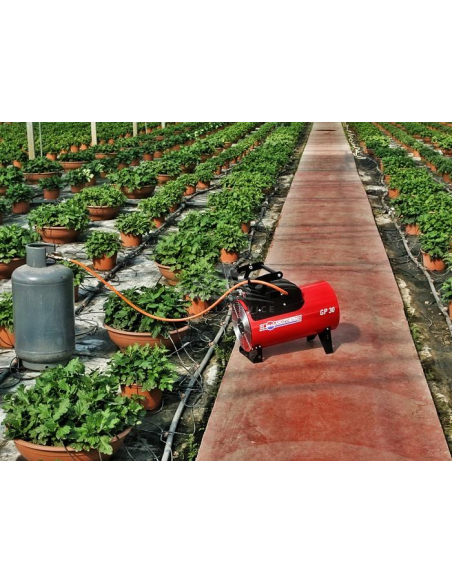

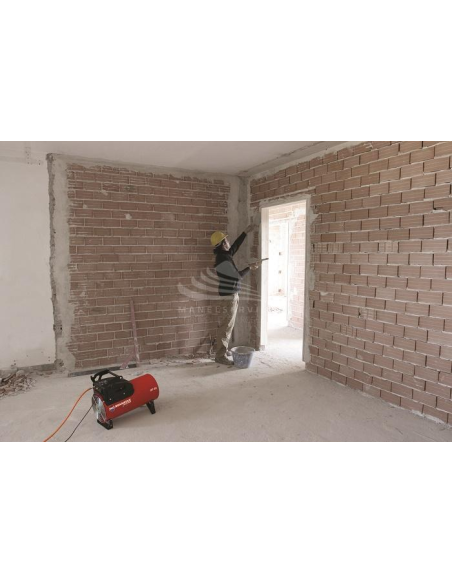

BM2 GP65A is an automatic start LPG-fuelled hot air generator, perfect for heating closed but ventilated rooms such as construction sites, greenhouses and farms.

BM2 GP65A is powered by high-pressure LPG, equipped with an integrated, direct-burning burner. The BM2 GP65A hot air generator is made with automatic ignition thanks to a flame control device, which allows the connection of a thermostat to control ignition and shutdown. For their power supply they are usually connected to LPG cylinders, which makes them handy and very economical.

The BM2 GP65A hot air generator comes complete with:

- Built-in LPG burner
- Safety thermostat
- Electronic flame control with ionization detection
- Power cord with plug
- Socket for connection to thermostat, humidistat or timer
- Complies with UNI EN 1596:2008

TECHNICAL FEATURES BM2 GP65A

Maximum heat output: 66.25 KW / 56965 kcal/h / 226055 BTU/h
Minimum heat output: 32.33 KW / 27800 kcal/h / 110315 BTU/h
Power supply: LPG
Maximum gas consumption: 4.268 Kg/h
Minimum gas consumption: 2.097 Kg/h
Gas pressure: 1.5 - 0. 4 bar
Efficiency: 100 %
Air flow rate: 1950 m3/h
Air temperature at 20°C: 87 °C
Electrical power: 140 W
Voltage: 230 V
Phase: Single phase
Frequency: 50 Hz
Width: 580 mm
Length: 317 mm
Height: 538 mm
Dry weight: 14 Kg

Are you looking for a hot air generator with different technical characteristics? Here you can find the full range of BM2 hot air generators or other specialized brands.

Images and technical data are not binding and may be subject to revisions by the manufacturer.
