BM2 HOT AIR GENERATOR GP85A

BM2 FORCED AIR SPACE HEATERS GP 85
search
  • BM2 FORCED AIR SPACE HEATERS GP 85
  • BM2 FORCED AIR SPACE HEATERS GP - Application
  • BM2 FORCED AIR SPACE HEATERS GP - Application
  • BM2 FORCED AIR SPACE HEATERS GP - Application
  • BM2 FORCED AIR SPACE HEATERS GP - Application
  • BM2 FORCED AIR SPACE HEATERS GP - Application
BIEMMEDUE
03GP156
New product

Maximum heat output: 84.81 KW / 72925 kcal/h / 289385 BTU/h
Minimum heat output: 40.95 KW / 35210 kcal/h / 139730 BTU/h
Power supply: LPG
Maximum gas consumption: 5.53 Kg/h
Minimum gas consumption: 2.458 Kg/h
Gas pressure: 1.5 - 0. 4 bar
Efficiency: 100 %
Air flow rate: 2550 m3/h
Air temperature at 20°C: 65 °C
Electrical power: 240 W
Voltage: 230 V
Phase: Single phase
Frequency: 50 Hz
Width: 700 mm
Length: 317 mm
Height: 538 mm
Dry weight: 16 Kg

Technical features
Phase
Single phase
Fuel
LPG
Frequency (Hz)
50
Voltage (V)
230
Max rated heat power
84.81 KW - 72925 Kcal/h - 289385 BTU/h
Min rated heat power
40.95 KW - 35210 Kcal/h - 139730 BTU/h
Max Gas consumption (Kg/h)
5.53
Min Gas consumption (Kg/h)
2.458
Gas pressure (bar)
1.5÷0.4
Heat efficiency (%)
100
Air flow (m³/h)
2550
Air temperature at 20°C (°C)
65
Power consumption (W)
240
Length (mm)
700
Width (mm)
317
Height (mm)
538
Dry weight (Kg)
16
Details

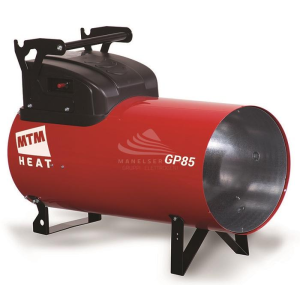

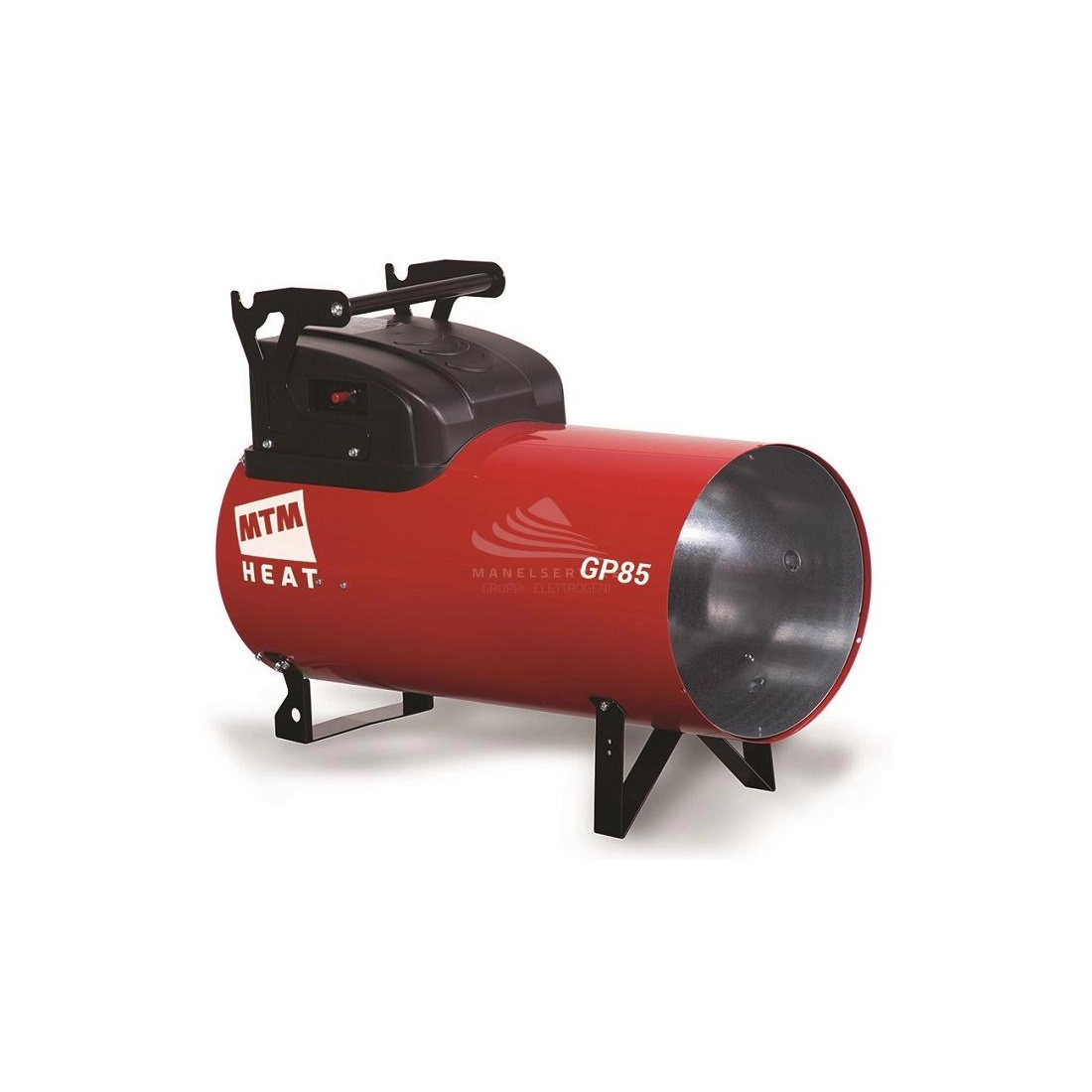

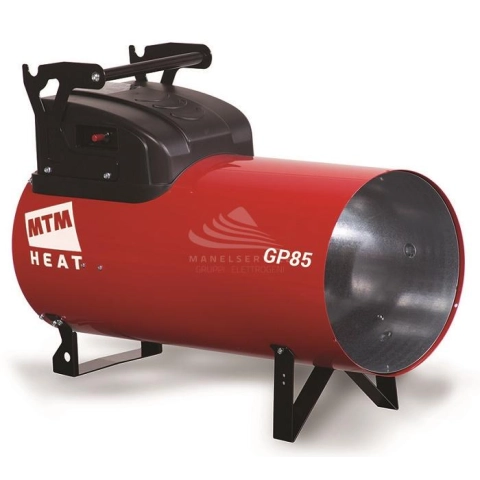

BM2 HOT AIR GENERATOR GP85A

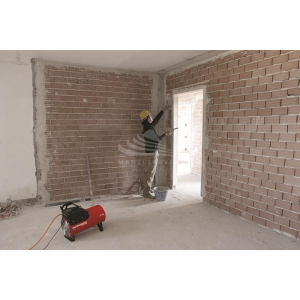

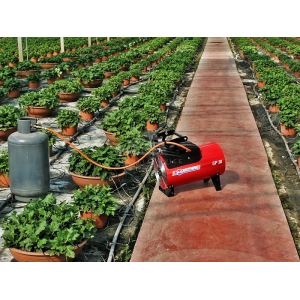

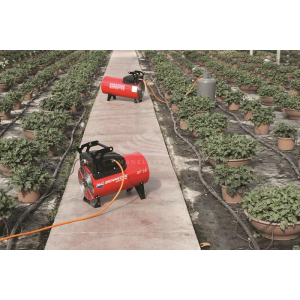

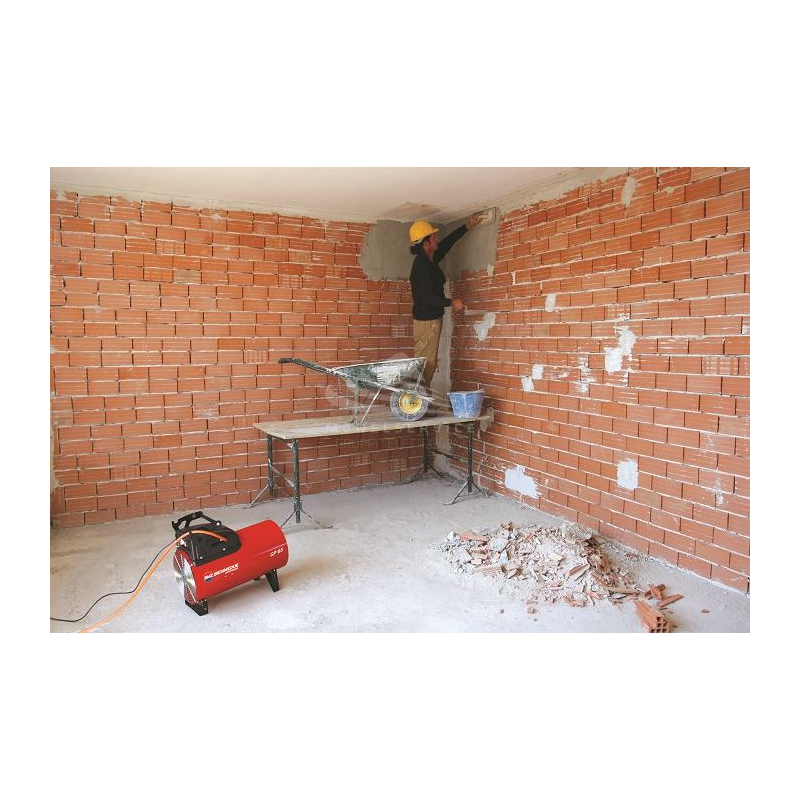

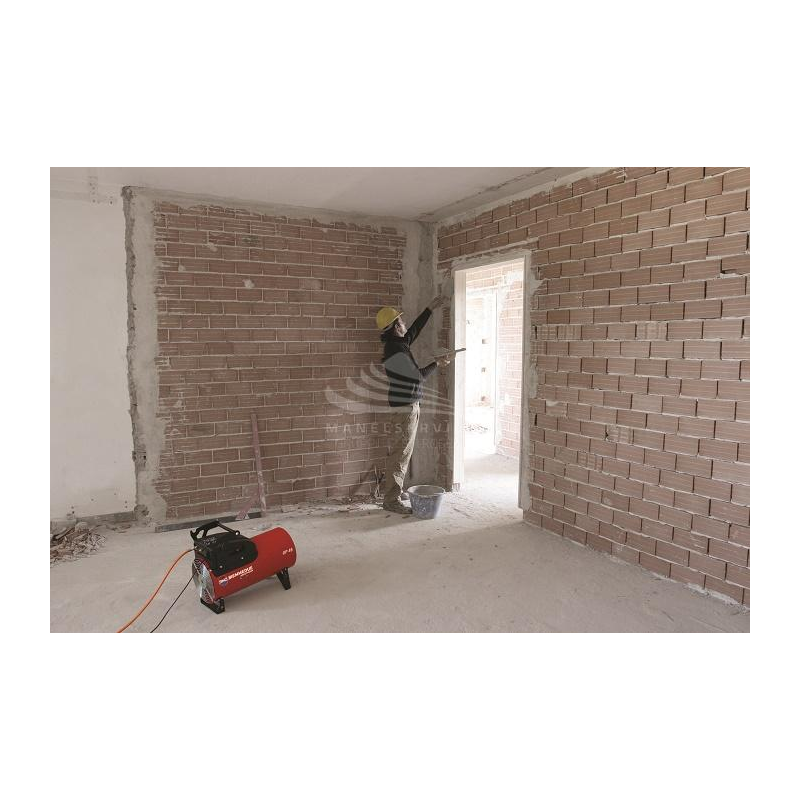

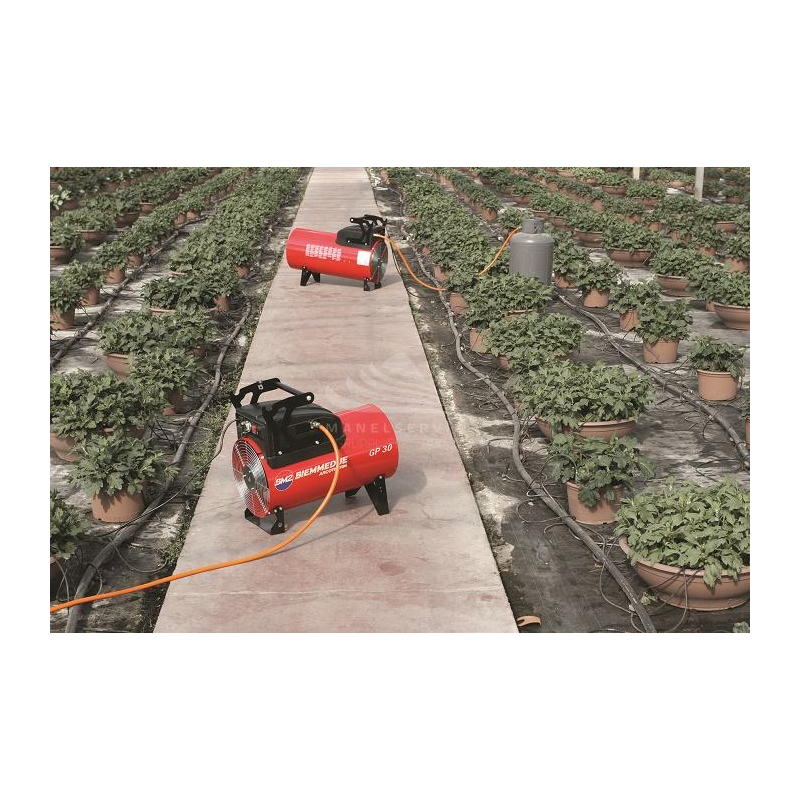

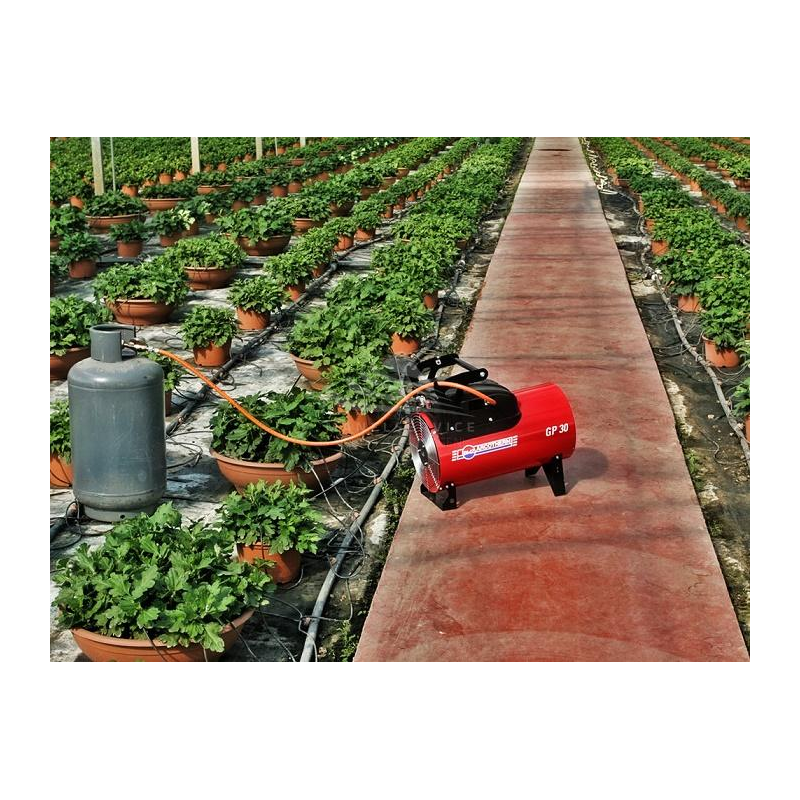

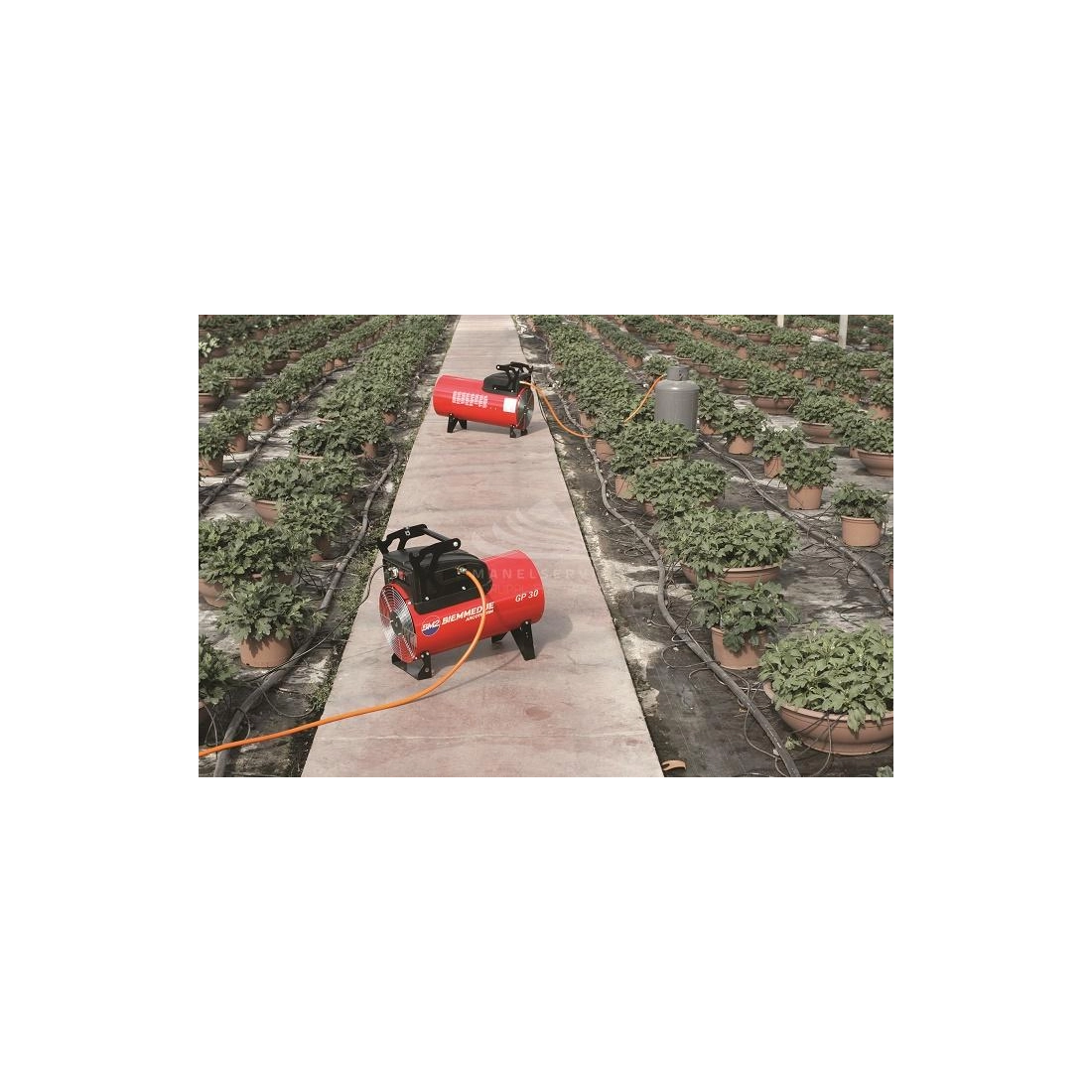

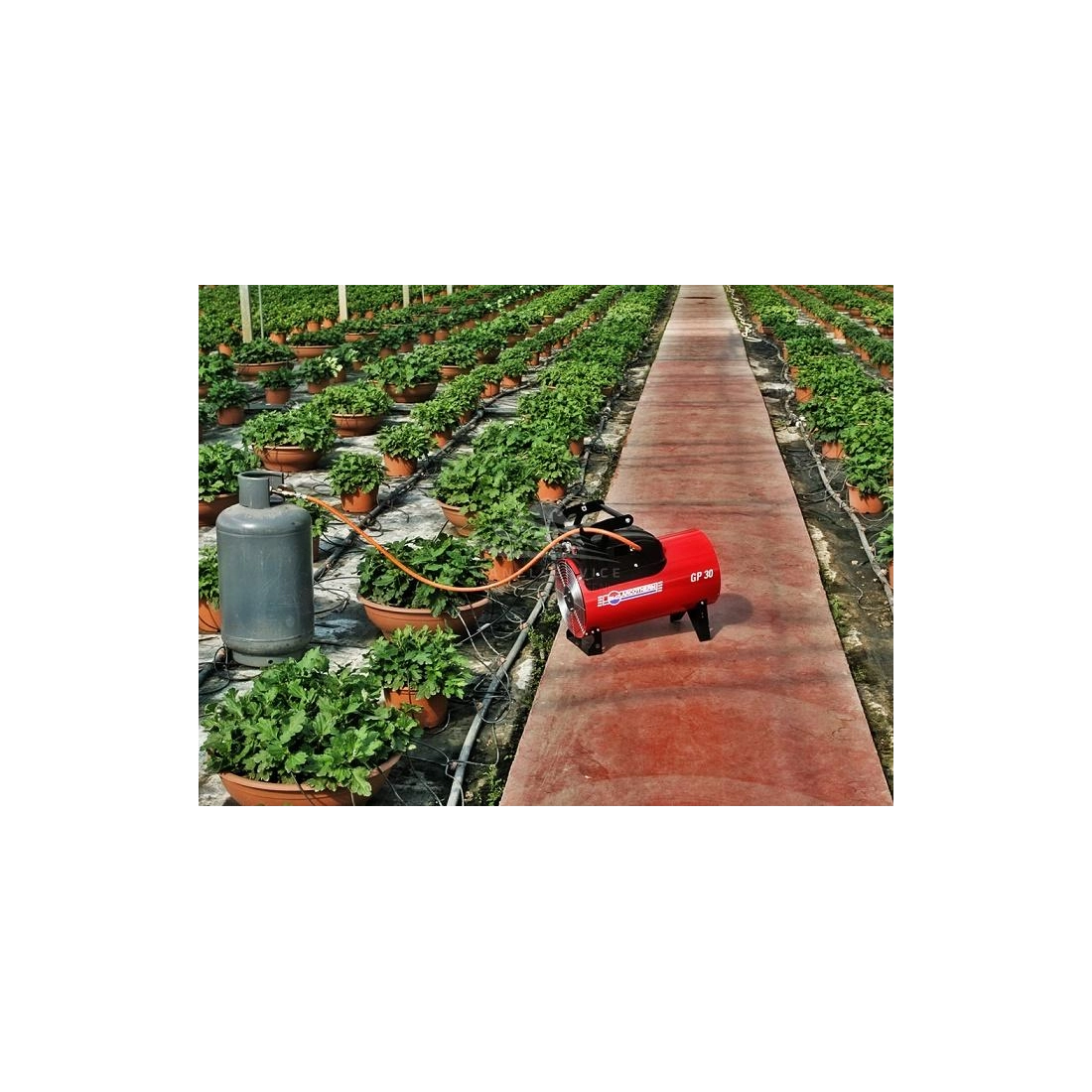

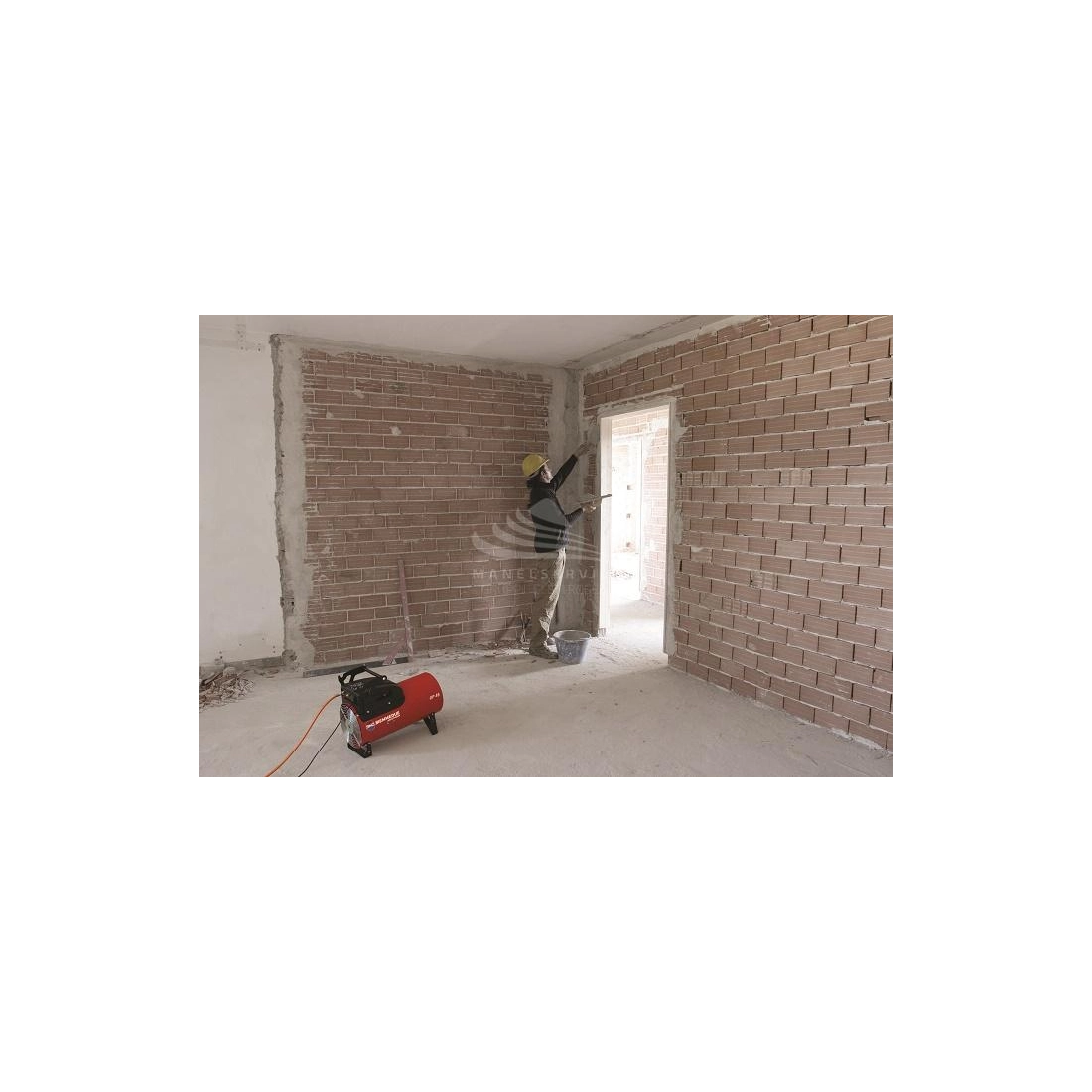

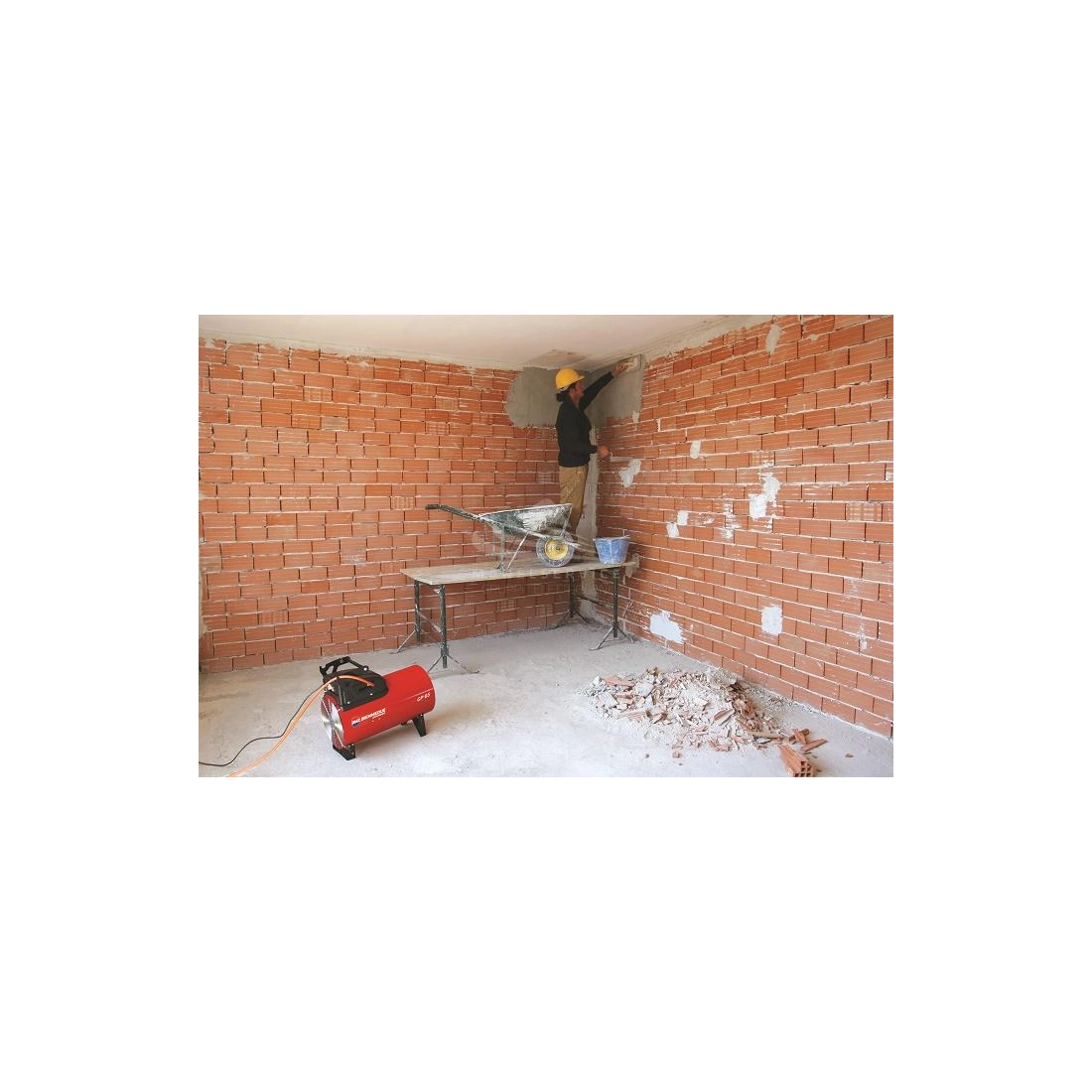

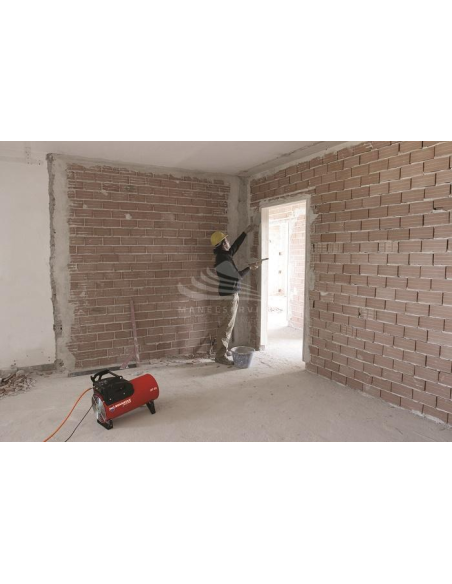

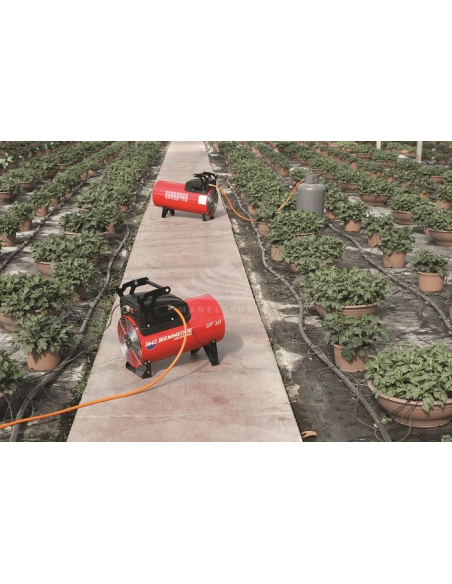

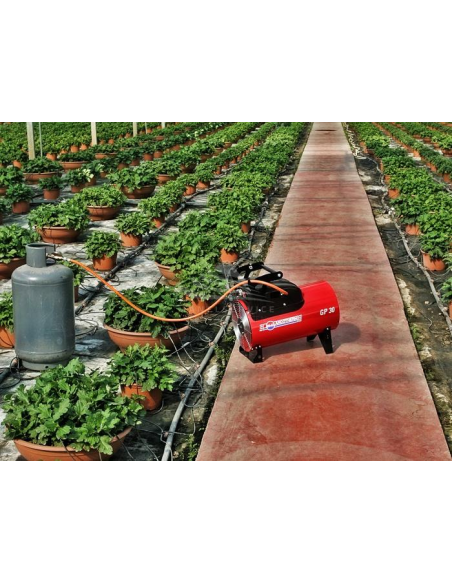

BM2 GP85A is an automatic start LPG-fuelled hot air generator, perfect for heating closed but ventilated rooms such as construction sites, greenhouses and farms.

BM2 GP85A is powered by high-pressure LPG, equipped with an integrated burner and direct combustion. The BM2 GP85A hot air generator is made with automatic ignition thanks to a flame control device, which allows the connection of a thermostat to control ignition and shutdown. For their power supply they are usually connected to LPG cylinders, which makes them handy and very economical.

The BM2 GP85A hot air generator comes complete with:

- Built-in LPG burner
- Safety thermostat
- Electronic flame control with ionization detection
- Power cord with plug
- Socket for connection to thermostat, humidistat or timer
- Complies with UNI EN 1596:2008

TECHNICAL FEATURES BM2 GP85A

Maximum heat output: 84.81 KW / 72925 kcal/h / 289385 BTU/h
Minimum heat output: 40.95 KW / 35210 kcal/h / 139730 BTU/h
Power supply: LPG
Maximum gas consumption: 5.53 Kg/h
Minimum gas consumption: 2.458 Kg/h
Gas pressure: 1.5 - 0. 4 bar
Efficiency: 100 %
Air flow rate: 2550 m3/h
Air temperature at 20°C: 65 °C
Electrical power: 240 W
Voltage: 230 V
Phase: Single phase
Frequency: 50 Hz
Width: 700 mm
Length: 317 mm
Height: 538 mm
Dry weight: 16 Kg

Are you looking for a hot air generator with different technical characteristics? Here you can find the full range of hot air generators BM2 or other specialized brands.

Images and technical data are not binding and may be subject to revisions by the manufacturer.
