BM2 HOT AIR GENERATOR GP 105A

BM2 FORCED AIR SPACE HEATERS GP 105
search
  • BM2 FORCED AIR SPACE HEATERS GP 105

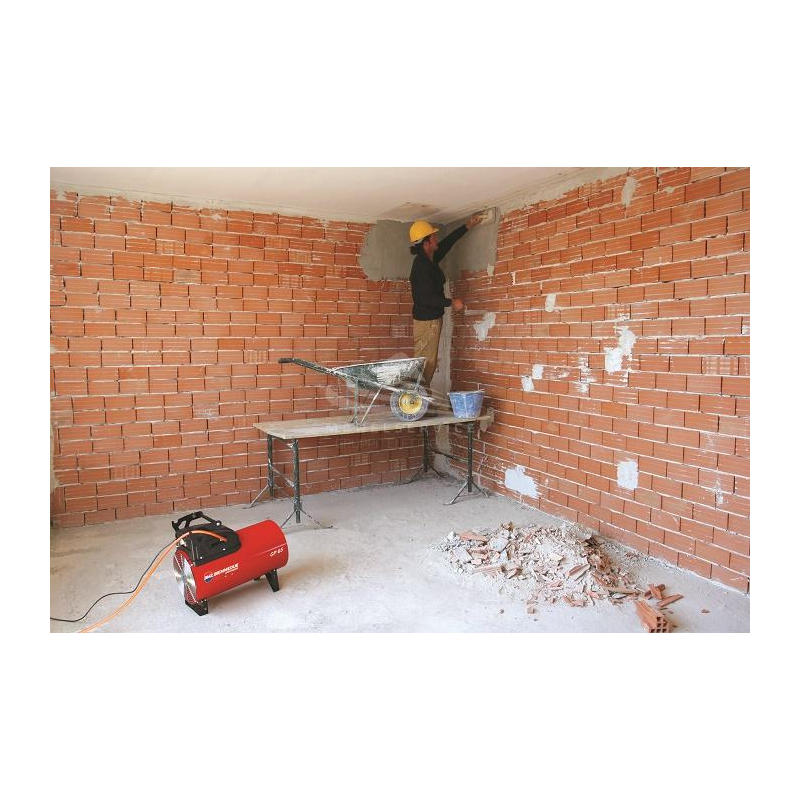

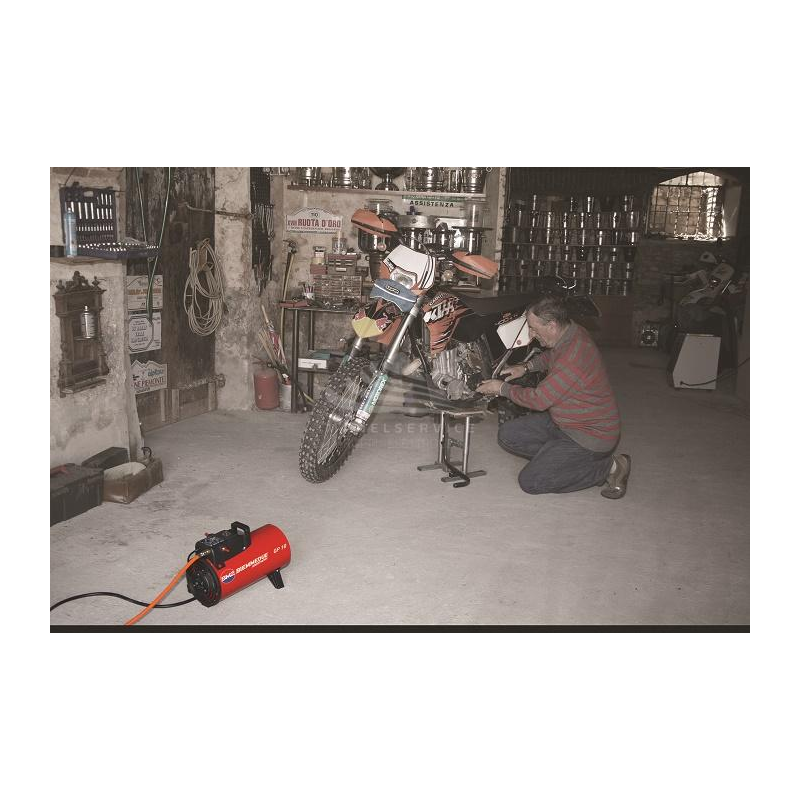

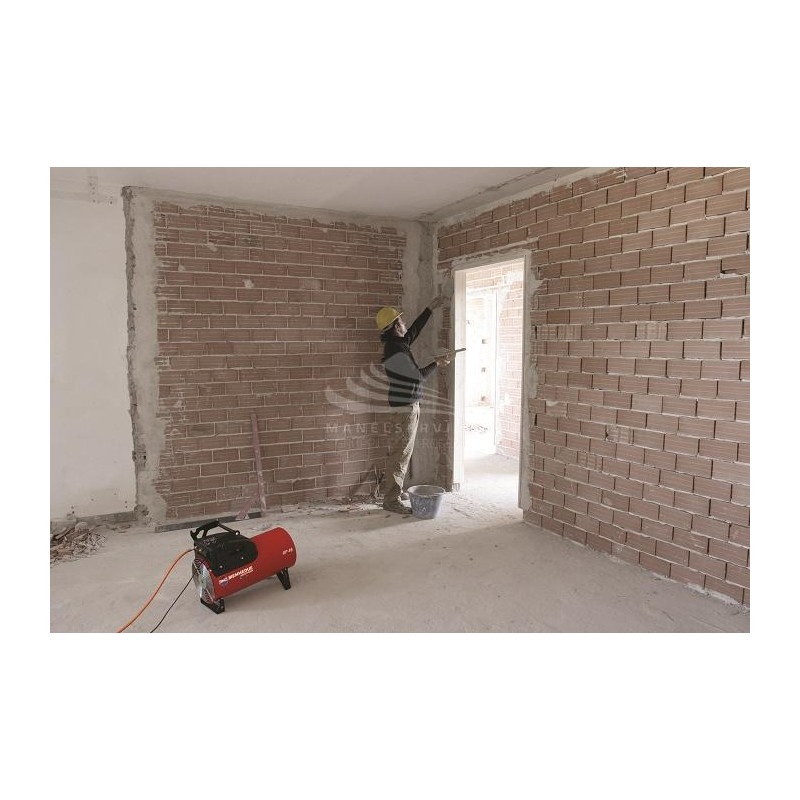

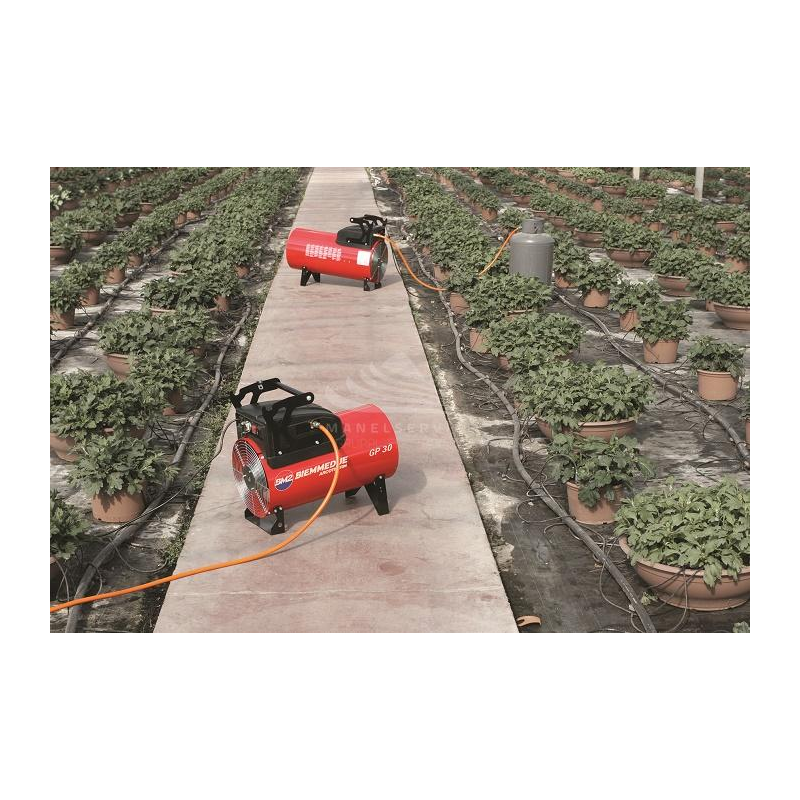

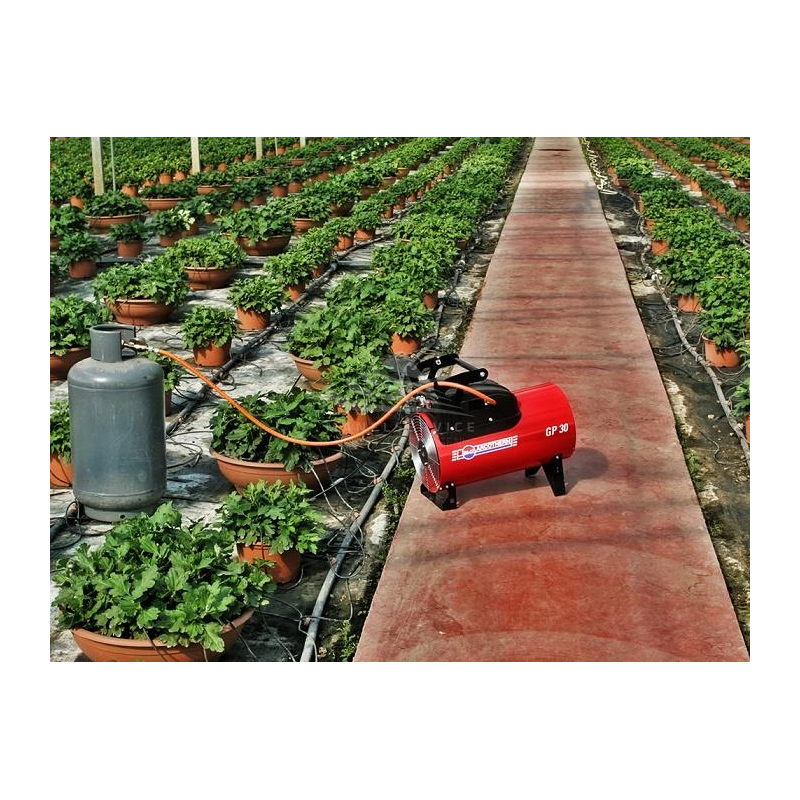

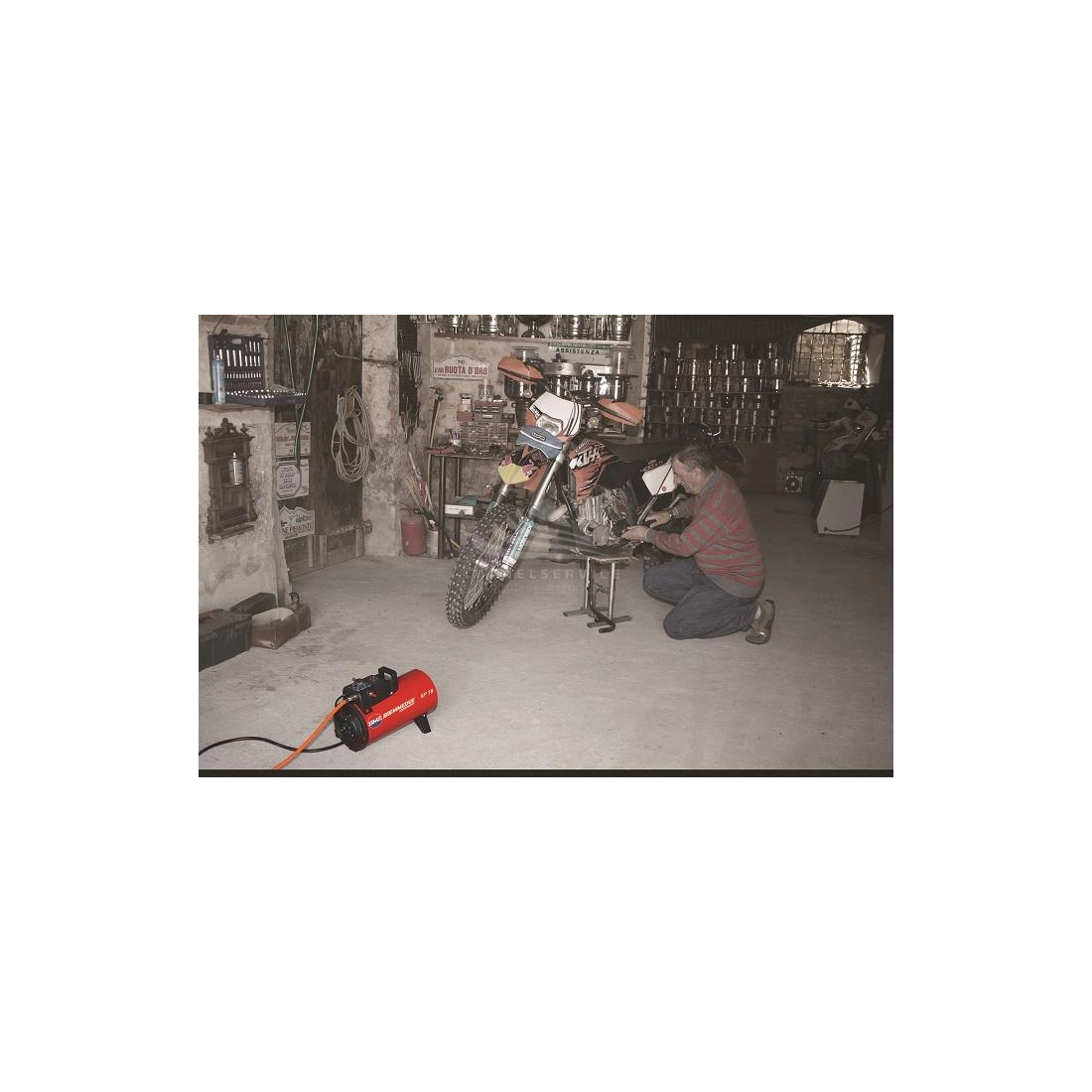

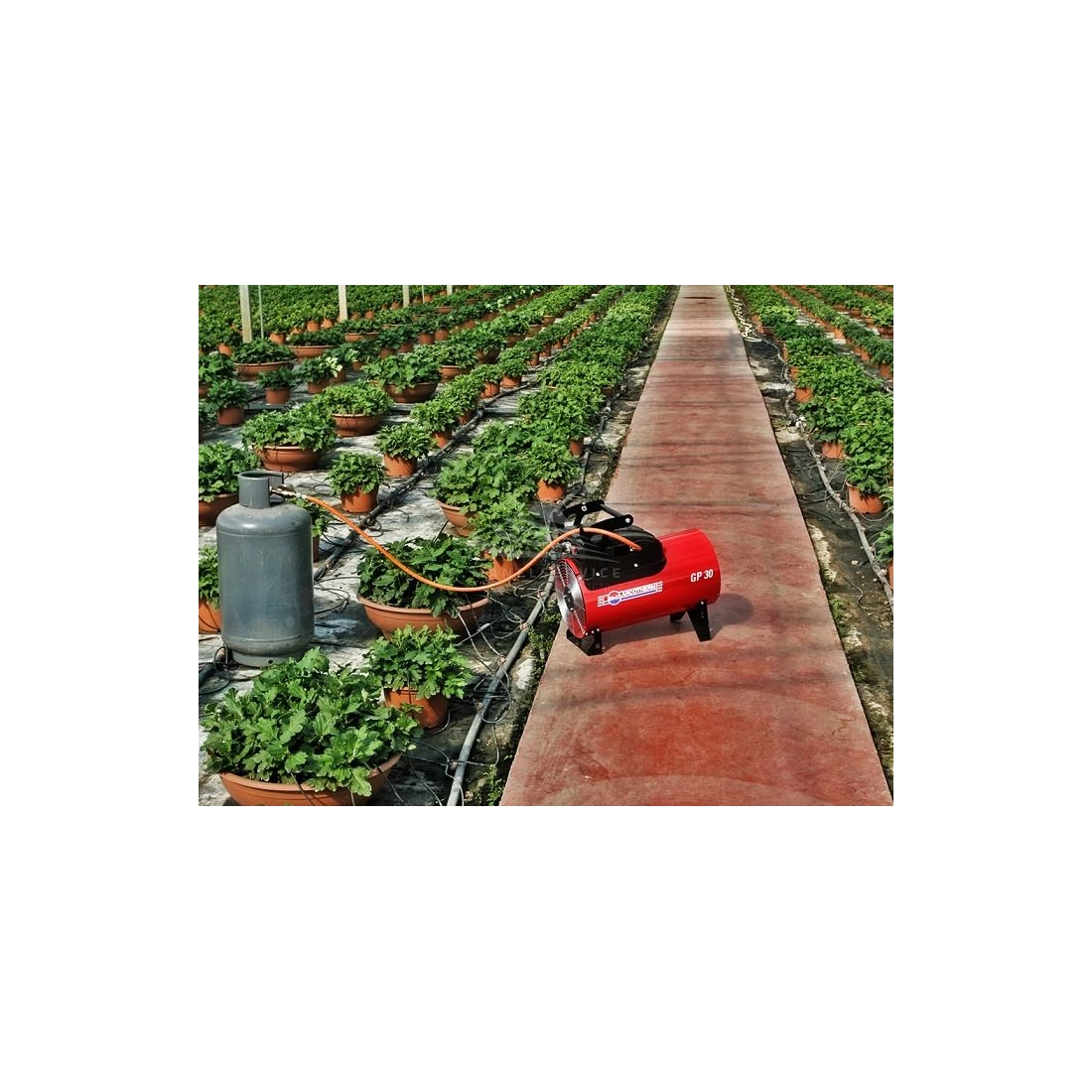

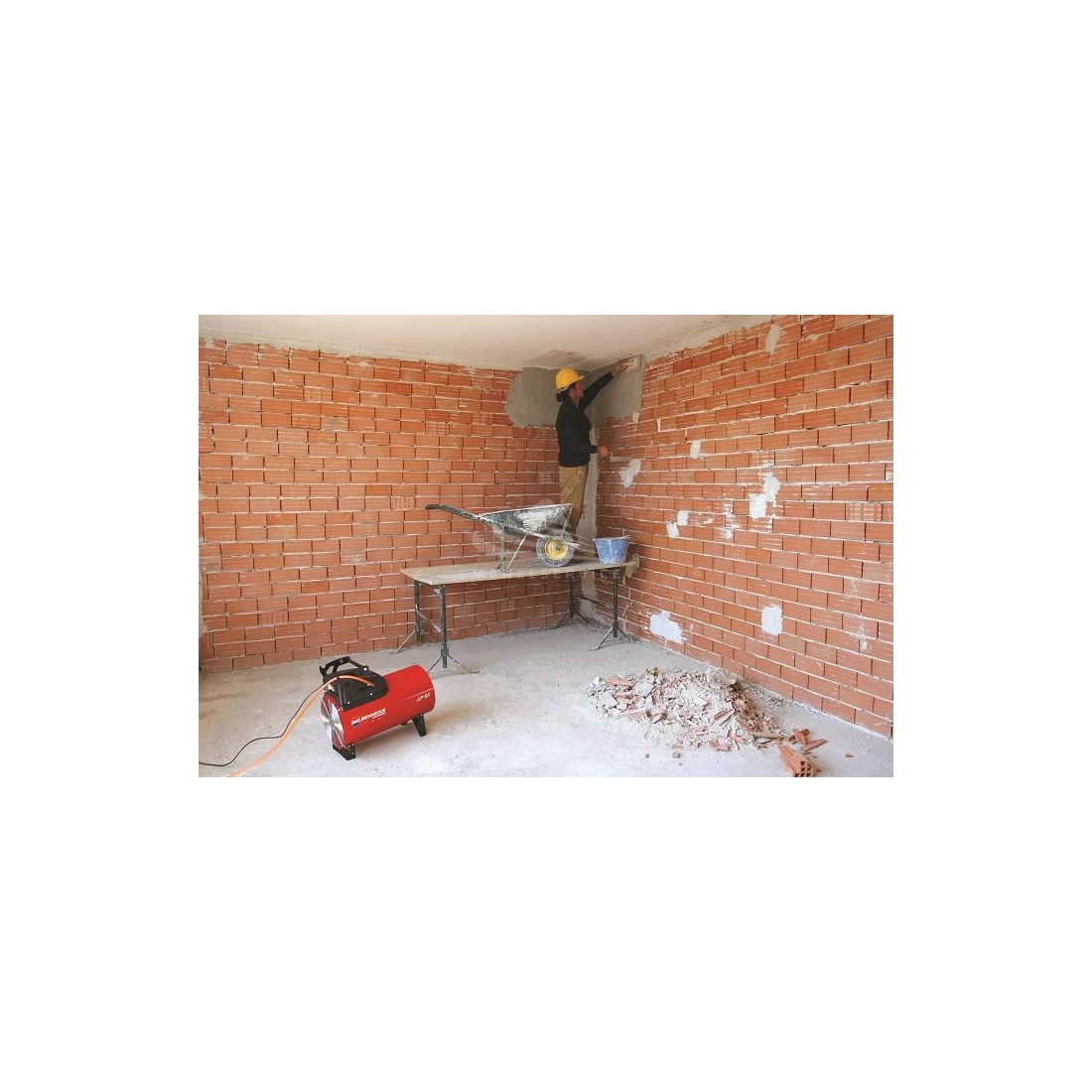

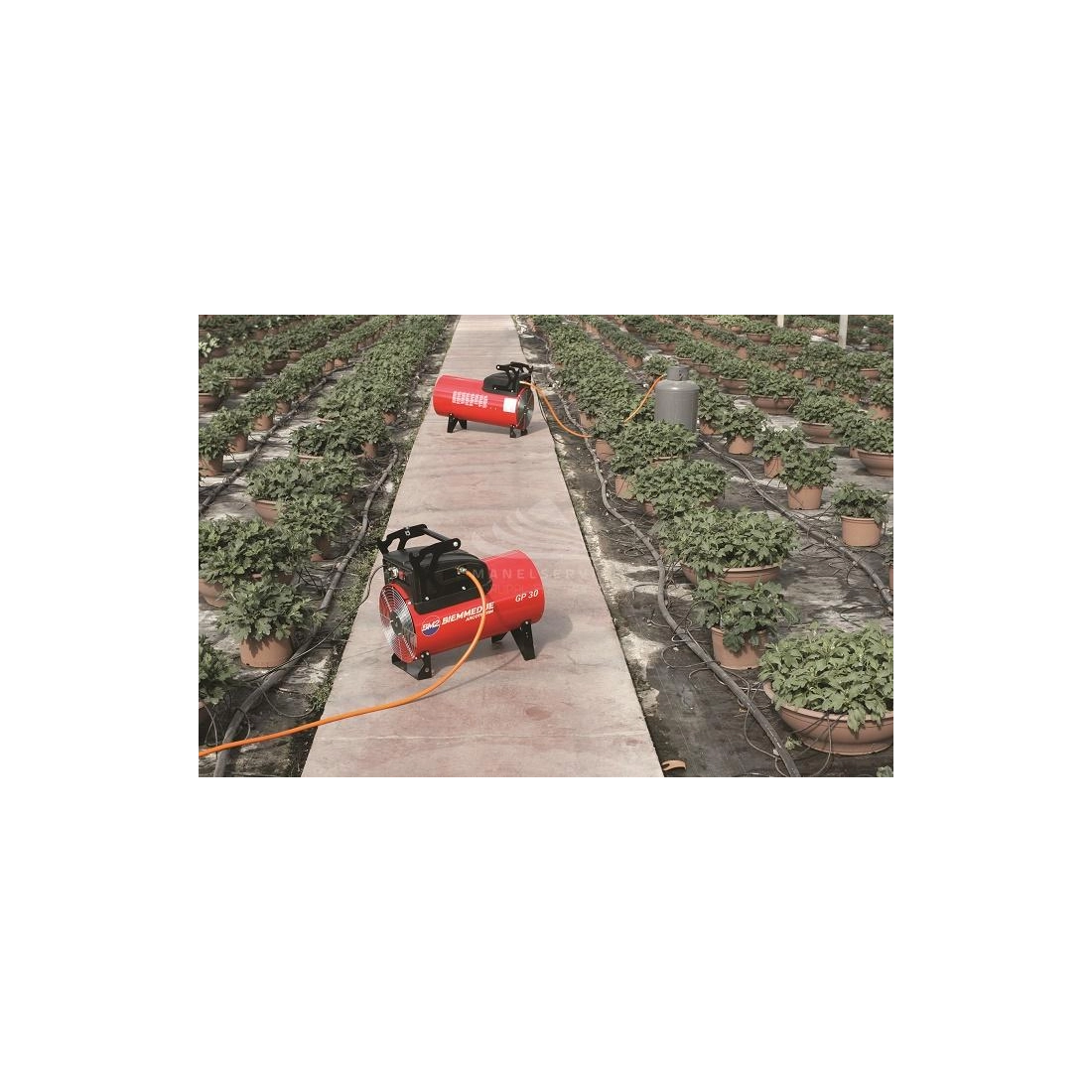

  • BM2 FORCED AIR SPACE HEATERS GP - Application

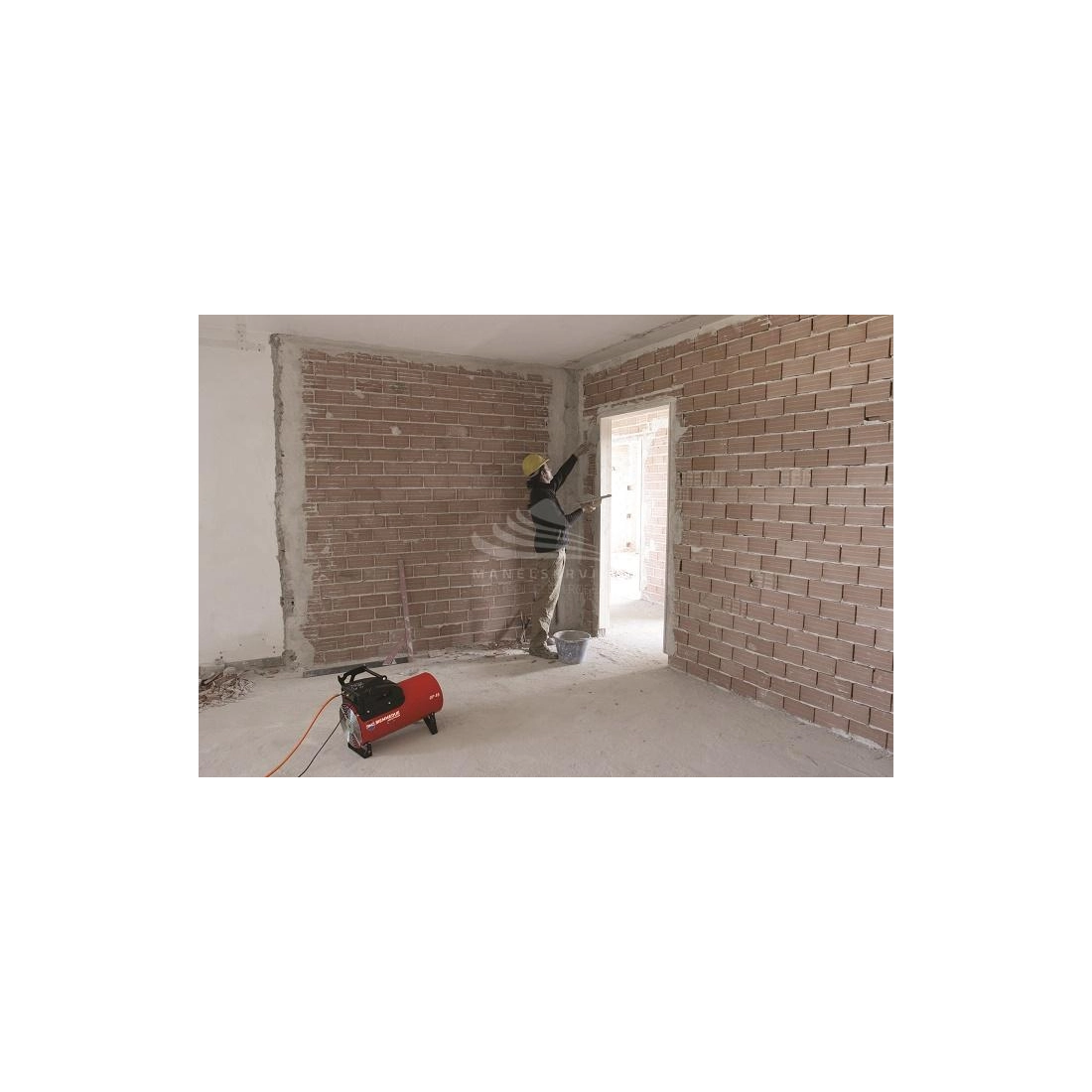

  • BM2 FORCED AIR SPACE HEATERS GP - Application

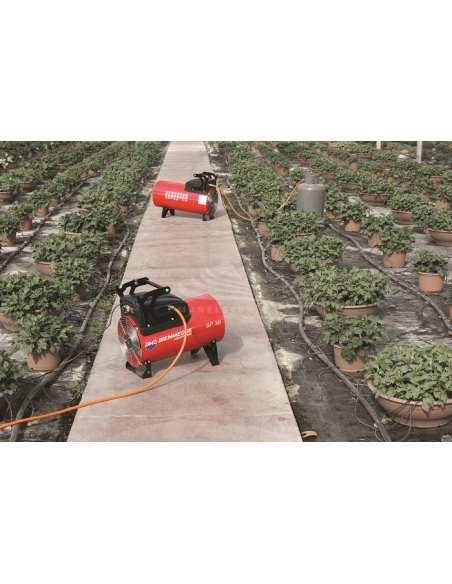

  • BM2 FORCED AIR SPACE HEATERS GP - Application

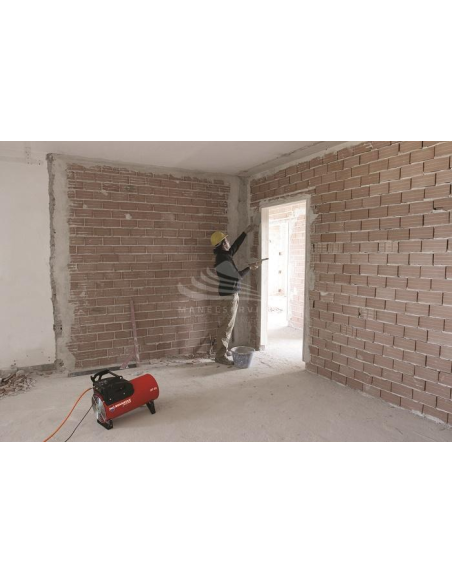

  • BM2 FORCED AIR SPACE HEATERS GP - Application

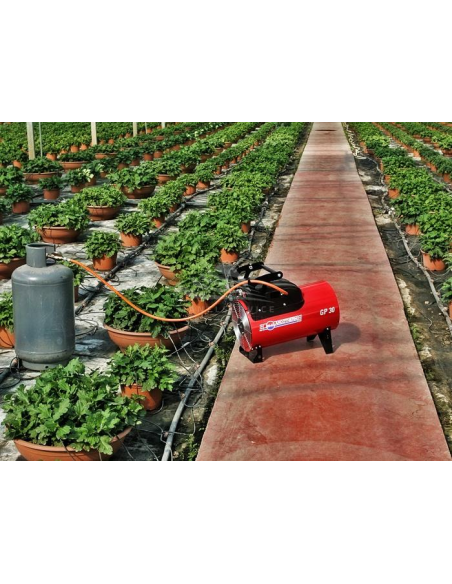

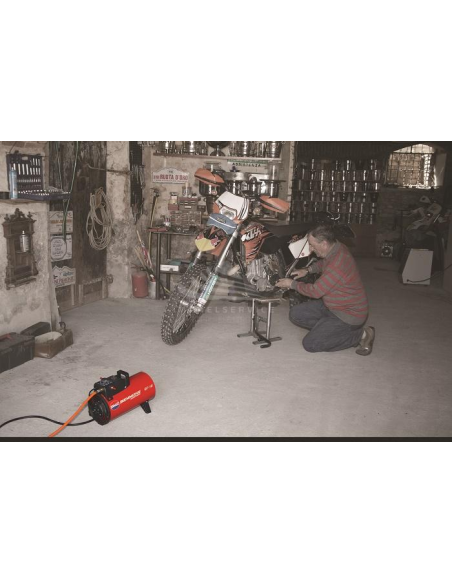

  • BM2 FORCED AIR SPACE HEATERS GP - Application
BIEMMEDUE
03GP157GP105A
New product

Maximum heat output: 108.71 KW / 93590 kcal/h / 371390 BTU/h
Minimum heat output: 48.81 KW / 41970 kcal/h / 166545 BTU/h
Power supply: LPG
Maximum gas consumption: 6.899 Kg/h
Minimum gas consumption: 3.094 Kg/h
Gas pressure: 1.5 - 0. 4 bar
Efficiency: 100 %
Air flow rate: 3700 m3/h
Air temperature at 20°C : 71 °C
Electrical power: 400 W
Voltage: 230 V
Phase: Single phase
Frequency: 50 Hz
Width: 835 mm
Length: 438 mm
Height: 606 mm
Dry weight: 26 Kg

Technical features
Phase
Single phase
Fuel
LPG
Frequency (Hz)
50
Voltage (V)
230
Max rated heat power
108.71 KW - 93590 Kcal/h - 371390 BTU/h
Min rated heat power
48.81 KW - 41970 Kcal/h - 166545 BTU/h
Max Gas consumption (Kg/h)
6.899
Min Gas consumption (Kg/h)
3.094
Gas pressure (bar)
1.5÷0.4
Heat efficiency (%)
100
Air flow (m³/h)
3700
Air temperature at 20°C (°C)
71
Power consumption (W)
400
Length (mm)
835
Width (mm)
438
Height (mm)
606
Dry weight (Kg)
26
Details

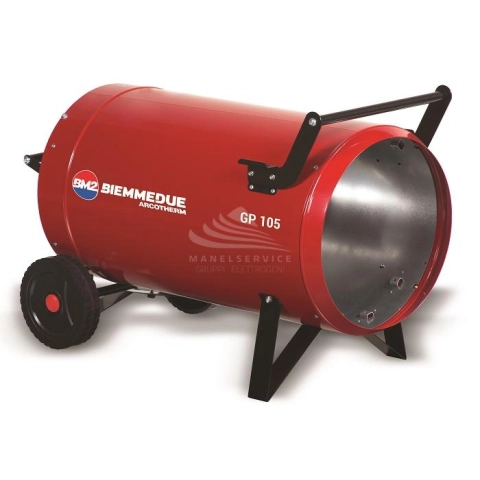

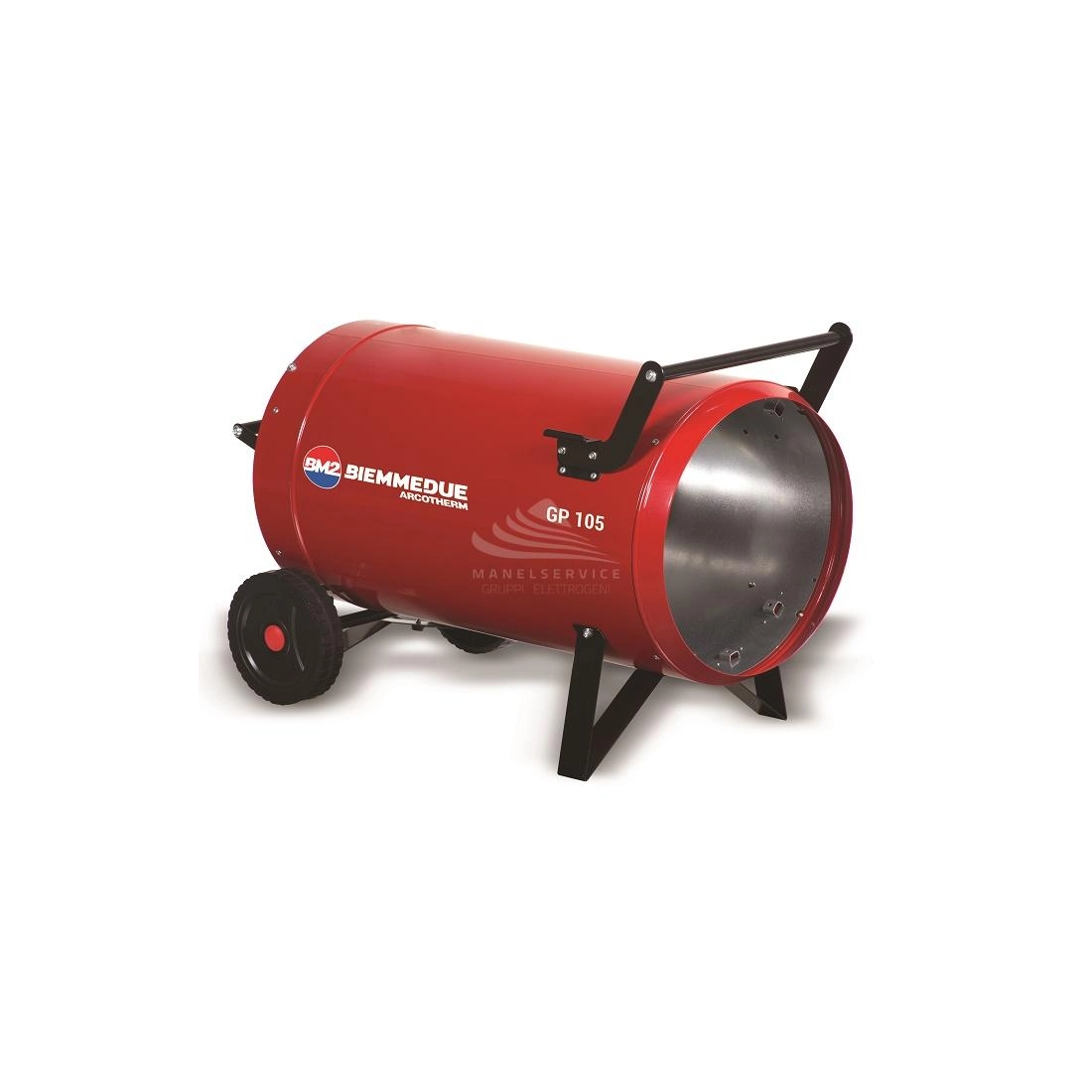

BM2 HOT AIR GENERATOR GP105A

BM2 GP105A is an automatic start LPG-fuelled hot air generator, perfect for heating closed but ventilated rooms such as construction sites, greenhouses and farms.

BM2 GP105A is powered by high-pressure LPG, equipped with an integrated burner and direct combustion. The BM2 GP105A hot air generator is made with automatic ignition thanks to a flame control device, which allows the connection of a thermostat to control ignition and shutdown. For their power supply they are usually connected to LPG cylinders, which makes them handy and very economical.

The BM2 GP105A hot air generator comes complete with:

- Built-in LPG burner
- Safety thermostat
- Electronic flame control with ionization detection
- Power supply cable with plug
- Socket for connection to thermostat, humidistat or timer (A)
- Low voltage control (GP105A)
- Conforms to UNI EN 1596:2008

TECHNICAL FEATURES BM2 GP105A

Maximum heat output: 108.71 KW / 93590 kcal/h / 371390 BTU/h
Minimum heat output: 48.81 KW / 41970 kcal/h / 166545 BTU/h
Fuel: LPG
Maximum gas consumption: 6.899 Kg/h
Minimum gas consumption: 3.094 Kg/h
Gas pressure: 1.5 - 0. 4 bar
Efficiency: 100 %
Flow rate: 3700 m3/h
Temperature at 20°C : 71 °C
Electrical power: 400 W
Voltage: 230 V
Phase: Single phase
Frequency: 50 Hz
Width: 835 mm
Length: 438 mm
Height: 606 mm
Dry weight: 26 Kg

Are you looking for a hot air generator with different technical characteristics? Here you can find the full range of BM2 hot air generators or other specialized brands.

Images and technical data are not binding and may be subject to revisions by the manufacturer.
