GENSET LT 10000 K - LIGHT TOWER LED 9 KVA
LT 10000 K 150W
New product
Maximum power Single-phase: 9 KVA
Maximum power Single-phase: 7.2 KW
Power continuous use Single-phase: 8 KVA
Power continuous use Single-phase: 6.4 KW
Fuel: Diesel
Voltage: 230 V
Frequency: 50 Hz
Engine: Kubota D1105-E (STAGE V)
Starting: Electric
Consumption: 2 Lt/h

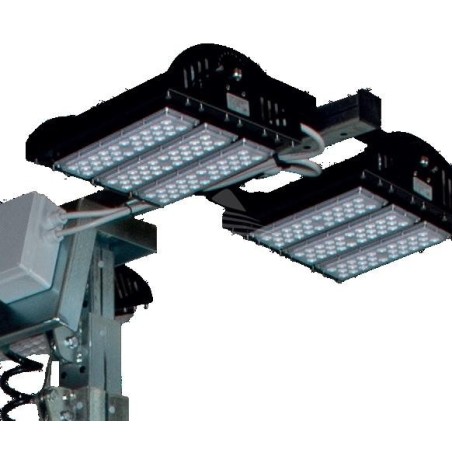

Lamps: 4x360 W LED
Illuminated area: 6000 m²
Riser: Manual
Maximum height: 8 m
Length: 2688 mm
Width: 1522 mm
Height: 2394 mm
Weight: 670 Kg
Super silenced
Technical features
- Phase
- Single phase
- Maximum power single phase (KW)
- 7.2
- Continuous power single phase (KW)
- 6.4
- Maximum power single phase (KVA)
- 9
- Continuous power single phase (KVA)
- 8
- Fuel
- Diesel
- Frequency (Hz)
- 50
- Voltage (V)
- 230
- Sockets configuration
- 1 x 230V 16A CEE
- Engine
- KUBOTA D1105-E
- Emissions Regulations
- Stage 5
- Engine rpm (rpm)
- 1500
- Starting system
- Electric
- Engine capacity (cm³)
- 1123
- Number cylinders
- 3
- Cooling
- Water
- Alternator
- Synchronous
- Protection degree
- IP32
- Motor insulation class
- H
- Type of lamps
- LED
- Lamps
- 4 x 360 W
- Illuminated area (m²)
- 6000
- Total lumens (Lm)
- 264000
- Lifting System
- Manual lifting system
- Maximum height (m)
- 8
- Mast rotation
- 340°
- Open size (mm)
- 2688 x 2614 x 8400
- Closed size (mm)
- 2688 x 1522 x 2394
- Lenght closed (mm)
- 2688
- Width closed (mm)
- 1522
- Height closed (mm)
- 2394
- With generator / Without generator
- With generator
- Transportability
- Slow Trailer
- Fuel tank capacity (L)
- 100
- Consumption (L/h)
- 2
- Running time (h)
- 50
- Acoustic power
- 97 dB(A)
- Acoustic pressure
- 72 dB(A) at 7 m
- Dry weight (Kg)
- 670
- Silenced
- Yes
- Super silenced
- Yes
- Product type
- Light tower
- Voltage regulator
- No
- Engine manufacturer
- Kubota
Details
GENSET LT 10000 K
The GENSET LT 10000 K is a light tower with 9 KVA single-phase diesel generator set with electric start.
With a maximum height of 8 meters and thanks to its 4 LED lamps of 360 W each, the GENSET LT 10000 K can illuminate an area of 6000 m².
The GENSET LT 10000 K also has low fuel consumption: only 2 Lt/h at 75% load.
Thanks to the high quality and efficiency of its components, the GENSET LT 10000 K light tower is ideal for lighting various sites - from small sites to large construction sites.
Images and technical data are not binding.
Technical Sheet / Manuals
Technical features
- Phase
- Single phase
- Maximum power single phase (KW)
- 7.2
- Continuous power single phase (KW)
- 6.4
- Maximum power single phase (KVA)
- 9
- Continuous power single phase (KVA)
- 8
- Fuel
- Diesel
- Frequency (Hz)
- 50
- Voltage (V)
- 230
- Sockets configuration
- 1 x 230V 16A CEE
- Engine
- KUBOTA D1105-E
- Emissions Regulations
- Stage 5
- Engine rpm (rpm)
- 1500
- Starting system
- Electric
- Engine capacity (cm³)
- 1123
- Number cylinders
- 3
- Cooling
- Water
- Alternator
- Synchronous
- Protection degree
- IP32
- Motor insulation class
- H
- Type of lamps
- LED
- Lamps
- 4 x 360 W
- Illuminated area (m²)
- 6000
- Total lumens (Lm)
- 264000
- Lifting System
- Manual lifting system
- Maximum height (m)
- 8
- Mast rotation
- 340°
- Open size (mm)
- 2688 x 2614 x 8400
- Closed size (mm)
- 2688 x 1522 x 2394
- Lenght closed (mm)
- 2688
- Width closed (mm)
- 1522
- Height closed (mm)
- 2394
- With generator / Without generator
- With generator
- Transportability
- Slow Trailer
- Fuel tank capacity (L)
- 100
- Consumption (L/h)
- 2
- Running time (h)
- 50
- Acoustic power
- 97 dB(A)
- Acoustic pressure
- 72 dB(A) at 7 m
- Dry weight (Kg)
- 670
- Silenced
- Yes
- Super silenced
- Yes
- Product type
- Light tower
- Voltage regulator
- No
- Engine manufacturer
- Kubota
Details
Technical Sheet / Manuals
