Towing Cart in TWO VERSIONS
• Slow for Construction Sites (L)
• Road Approved (V)
Projectors: 4 x 320 W LED
Illuminated Area: 9300 Sqm
Max Height: 8 m
Lifting: Manual
Engine: Kubota Z482
Maximum Single-Phase Power: 3.5 KVA
Emission Standard: STAGE V
Auxiliary Outlet: 1.3 KVA
Fuel: Diesel
Engine Speed: 1500 rpm
Max Wind Resistance: 80 km/h
Noise Level at 7 m: 65 dB (A)
Tank Capacity: 80 l
Autonomy: 145 h
Consumption: 0.55 l/h
Main / Generator Selector
Digital Control Panel DSE3110
Dusk Sensor
Liquid Collection Tank
The LUXTOWER Lux M11PLUS Light Tower is the ideal solution for illuminating large areas, thanks to its advanced technology and the robustness of its components. Designed to ensure maximum energy efficiency, this light tower provides powerful and uniform illumination, making it perfect for construction sites, events, and industrial applications.

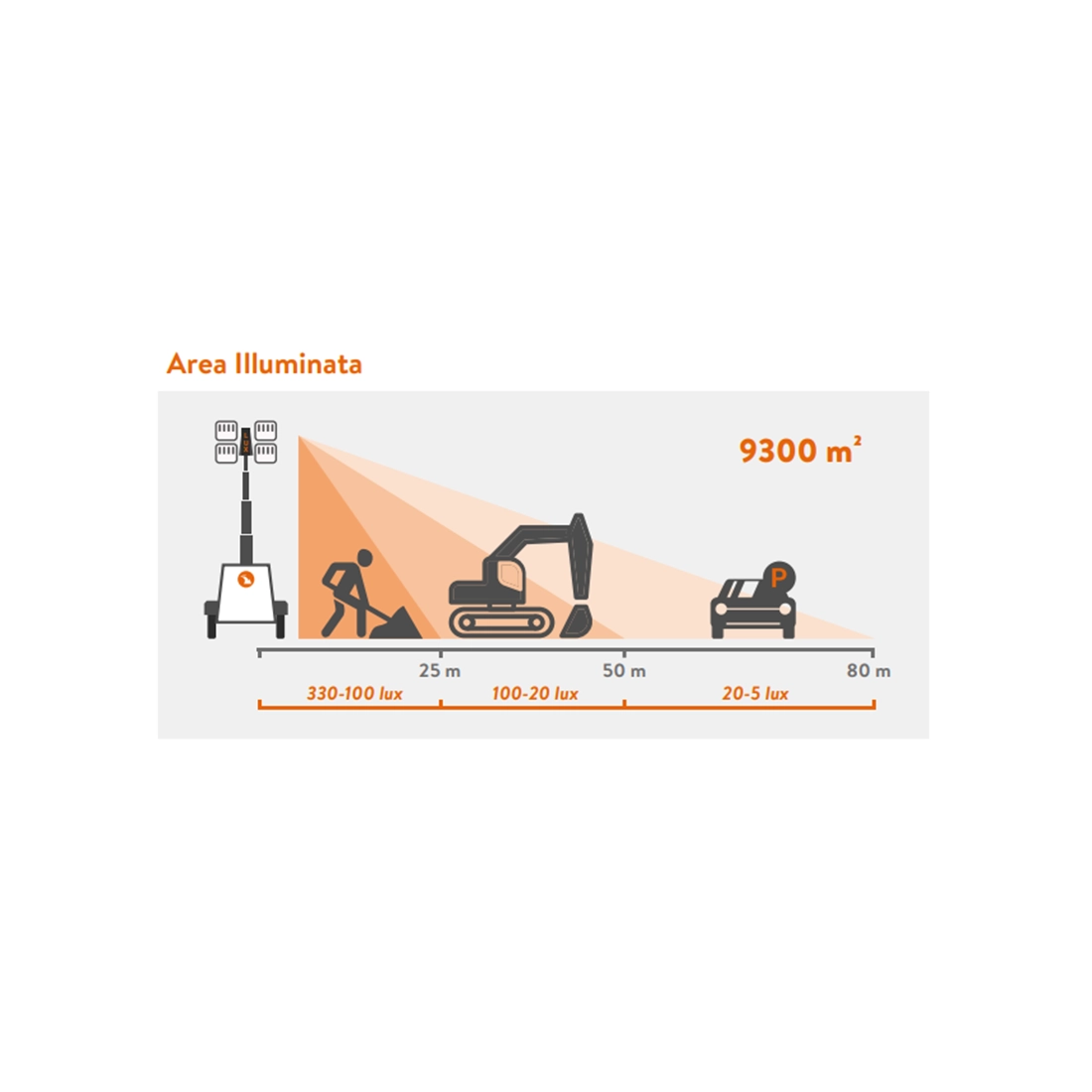

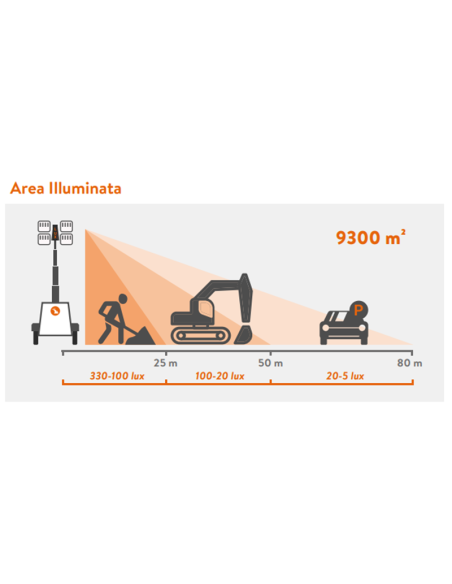

The LUXTOWER Lux M11PLUS is a compact and easily transportable light tower that can effectively illuminate areas up to 9300 sqm, with a reduced environmental impact.
Two versions available for every need:
The LUXTOWER Lux M11PLUS is available in two configurations:
Version L (Slow for Construction Sites) – Perfect for applications in enclosed spaces or with mobility restrictions.
Version V (Road Approved) – Suitable for road transport with all required safety standards.

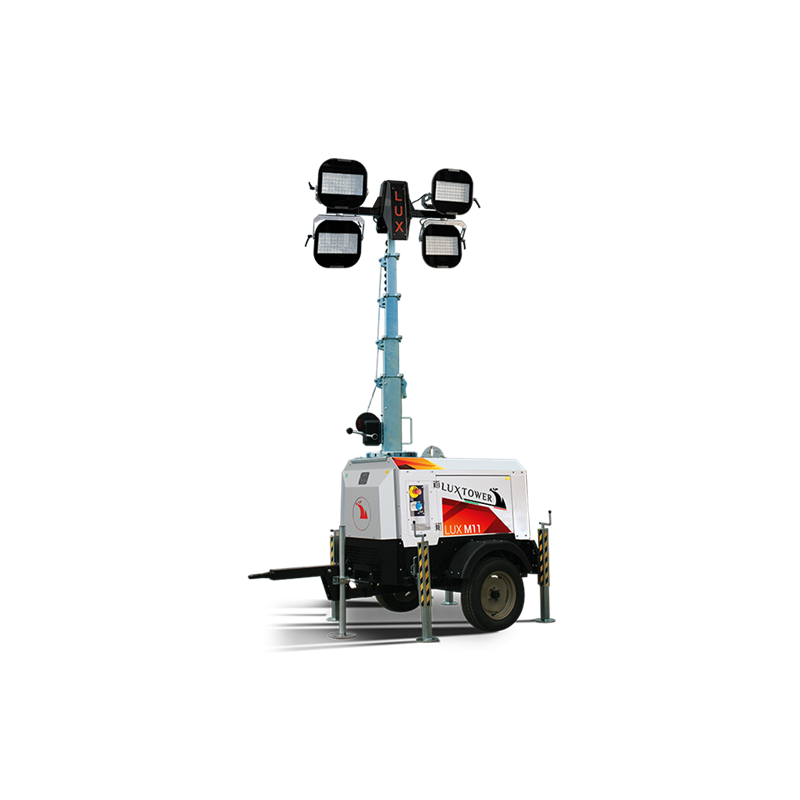

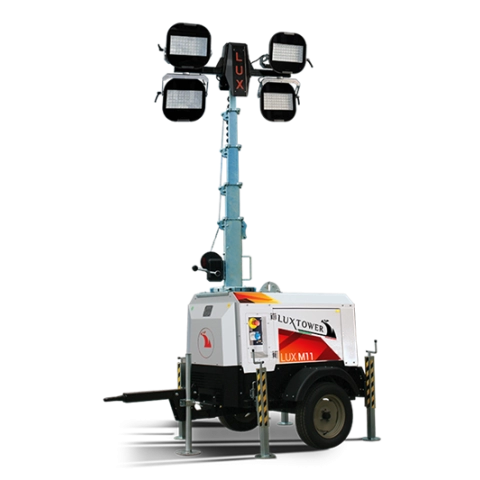

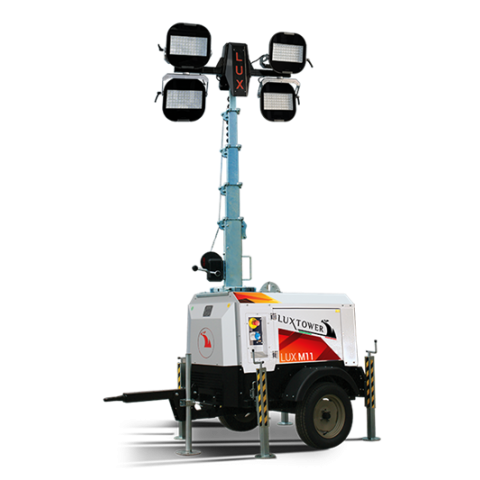

The LUXTOWER Lux M11PLUS light tower is equipped with an 8-meter vertical telescopic mast with manual lifting and 4x320 W LED high-efficiency floodlights.
The LUXTOWER Lux M11PLUS light tower consists of a single-phase 3.5 KVA generator set powered by a Kubota Z482 diesel engine operating at 1500 rpm, enclosed in a soundproofed casing that makes it ultra-quiet.

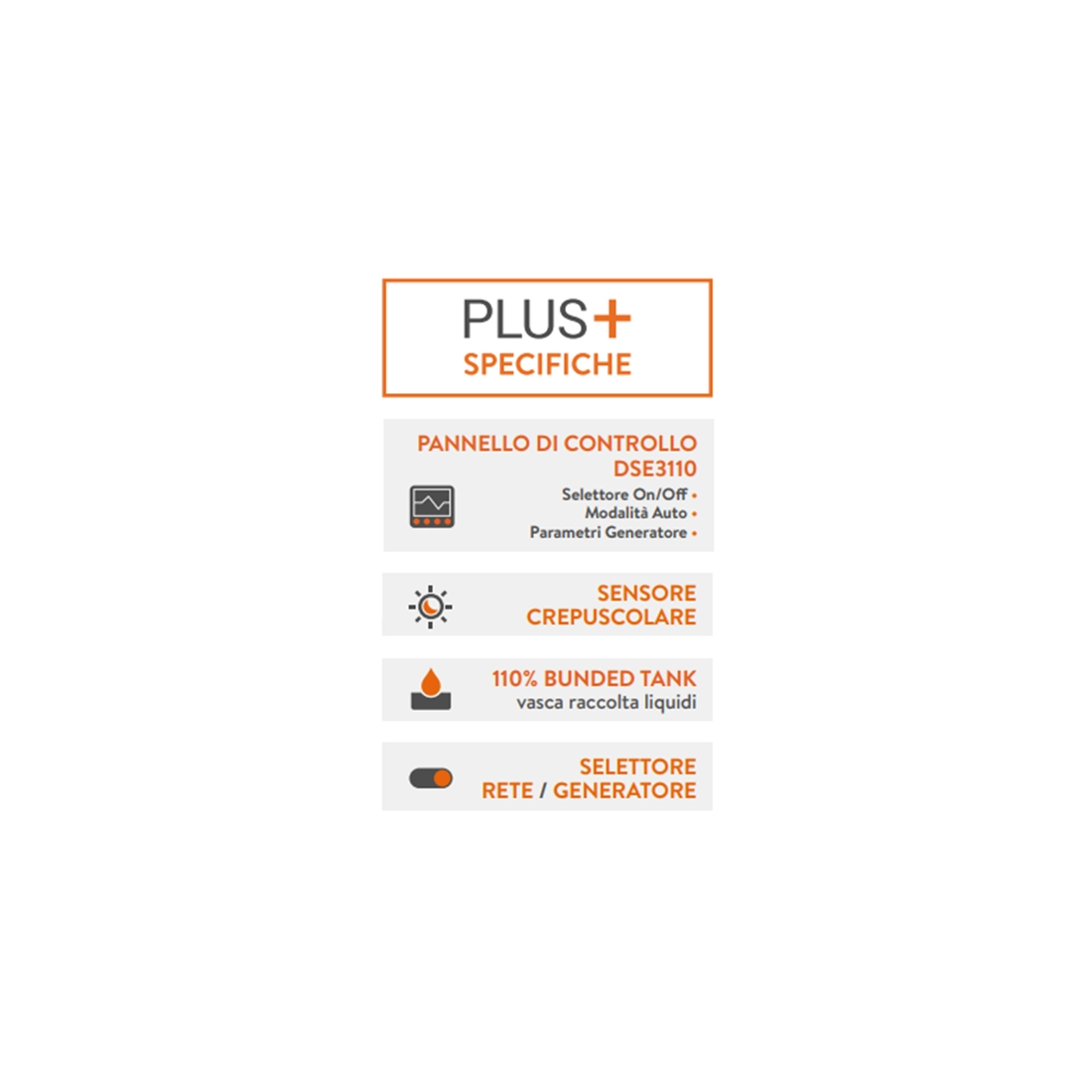

INCLUDED WITH THE LUXTOWER Lux M11PLUS
- DSE3110 control panel
- Main / Generator selector
- Dusk sensor
- Liquid collection tank
Technical Features of LUXTOWER Lux M11PLUS Light Tower:
Projectors: 4 x 320 W LED
Illuminated Area: 9300 Sqm
Max Height: 8 m
Lifting: Manual
Engine: Kubota Z482
Maximum Single-Phase Power: 3.5 KVA
Emission Standard: STAGE V
Auxiliary Outlet: 1.3 KVA
Fuel: Diesel
Engine Speed: 1500 rpm
Max Wind Resistance: 80 km/h
Noise Level at 7 m: 65 dB (A)
Tank Capacity: 80 l
Autonomy: 145 h
Consumption: 0.55 l/h
Main / Generator Selector
Digital Control Panel DSE3110
Dusk Sensor
Liquid Collection Tank
If you are looking for other light towers like the LUXTOWER Lux M11PLUS, you can browse our full catalog dedicated to light towers from LUXTOWER or other brands.
Images and technical data are not binding.
