Standard Accessories:
Fast towing type B
50 mm ball hitch
Suitable for right-hand drive
AMOSS KIT (automatic pole retraction with brake not engaged)
Twilight sensor
Mains/generator selector
Hydraulic lifting
Minimum dimensions (Length x Width x Height): 2156 x 1400 x 2403 mm
Maximum dimensions (Length x Width x Height): 3096 x 2166 x 8334 mm
Dry weight: 923 kg
Pole lifting system: Hydraulic
Pole rotation: 340°
Floodlights: 4 x 320W LED
Luminous flux: 211200 Lm
Illuminated area (1 lux min): 9200 m²
Engine: Kubota Z482
Engine cooling: Liquid
Cylinders (quantity): 2
Engine speed (50/60 Hz): 1500/1800 rpm
Alternator (50/60 Hz): 3.5kVA 230V / 4.2kV 240V
Output socket (16A): 1
Input socket (16A): 1
Average sound pressure: 60 dB(A) @ 7m
Tank capacity (gross/net): 200/180I
Autonomy: 257 h
Liquid containment (110%): yes
Wind resistance: 110 km/h

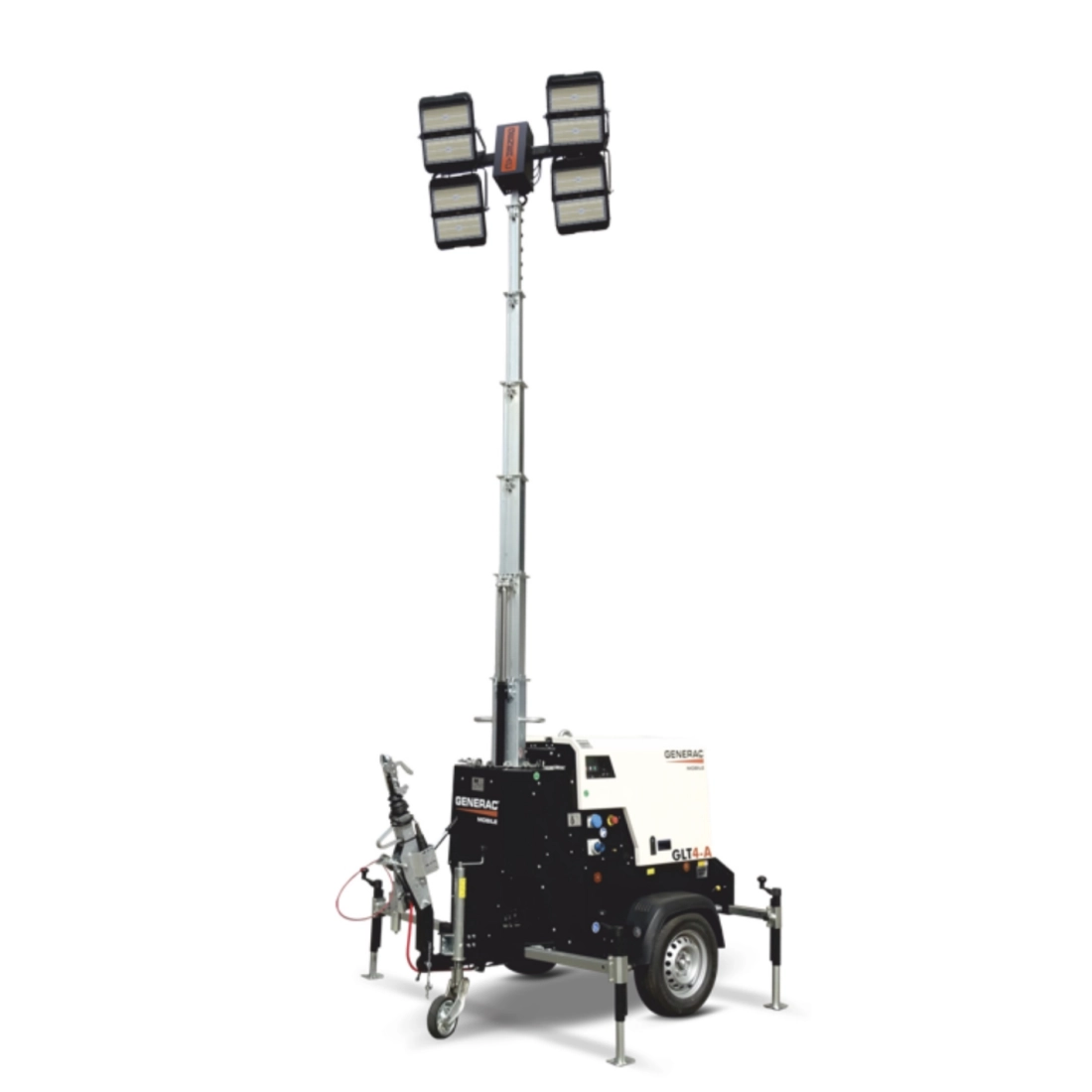

GENERAC GLT4-A K2 LIGHT TOWER 4x320W LED STAGEV is an advanced mobile lighting solution,
designed to offer high performance and reliability in various applications, from construction sites to outdoor events.
Key Features:
Powerful and Efficient Lighting:
Equipped with 4 x 320W LED projectors (G5 model), it guarantees a luminous flux of 211,200 Lm and an illuminated area of 9,200 m² (1 lux min).
LEDs offer a long lifespan, with over 50,000 hours of operation.
Robust and Accessible Design:
Compact dimensions to facilitate transport and storage (minimum dimensions: 2156 x 1400 x 2403 mm, maximum: 3096 x 2166 x 8334 mm).
"Gull-wing" doors for easy access to internal components.
Simplified control panel with DSE L401-MKII digital controller.
Efficiency and Sustainability:
Kubota Z482 2-cylinder, liquid-cooled engine, to reduce fuel consumption and CO2 emissions.
Large fuel tank (200/180 liters) for 257 hours of autonomy.
Liquid containment (110%) to prevent leaks.
Mobility and Robustness:
Road trailer with folding drawbar for easy transport.
Wind resistance up to 110 km/h.
Hydraulic mast lifting system and 340° rotation.
Dry weight of 923 kg.
Additional Features:
Output socket (16A) and input plug (16A).
Standard timer and optional darkness sensor.
Average sound pressure of 60 dB(A) @ 7m.
Alternator (50/60 Hz): 3.5kVA 230V / 4.2kV 240V.
Technical Specifications GENERAC GLT4-A K2 LIGHT TOWER 4x320W LED STAGEV:
Minimum dimensions (Length x Width x Height): 2156 x 1400 x 2403 mm
Maximum dimensions (Length x Width x Height): 3096 x 2166 x 8334 mm
Dry weight: 923 kg
Mast lifting system: Hydraulic
Are you looking for a lighting tower with different technical characteristics? HERE you can find the entire range of GENERAC lighting towers or other specialized brands.
Non-binding images and technical data.
Standard Accessories:
Fast towing type B
50 mm ball hitch
Suitable for right-hand drive
AMOSS KIT (automatic pole retraction with brake not engaged)
Twilight sensor
Mains/generator selector
Hydraulic lifting
Minimum dimensions (Length x Width x Height): 2156 x 1400 x 2403 mm
Maximum dimensions (Length x Width x Height): 3096 x 2166 x 8334 mm
Dry weight: 923 kg
Pole lifting system: Hydraulic
Pole rotation: 340°
Floodlights: 4 x 320W LED
Luminous flux: 211200 Lm
Illuminated area (1 lux min): 9200 m²
Engine: Kubota Z482
Engine cooling: Liquid
Cylinders (quantity): 2
Engine speed (50/60 Hz): 1500/1800 rpm
Alternator (50/60 Hz): 3.5kVA 230V / 4.2kV 240V
Output socket (16A): 1
Input socket (16A): 1
Average sound pressure: 60 dB(A) @ 7m
Tank capacity (gross/net): 200/180I
Autonomy: 257 h
Liquid containment (110%): yes
Wind resistance: 110 km/h
