Fisher Panda 5000i PMS Marine Generator

Brand: FISCHER PANDA

Reference: 0013227 - P NO

Condition: New product

Phase type: Single-phase
Maximum power Single-phase: 4 KW
Single-phase continuous power: 3.6 KW
Maximum single-phase power: 5 KVA
Single-phase continuous power: 4.5 KVA
Frequency: 50 Hz
Voltage: 230 V
Motor speed: 3000 rpm
Displacement: 309 cm³
Cooling: Water
Soundproofing: GFK
Acoustic pressure: 54 dB(A) at 7 m
Inverter
Cooling tube diameter: 20 mm
Exhaust pipe diameter: 40 mm
Length: 600 mm
Width: 399 mm
Height: 406 mm
Weight: 82 kg

Technical features

Phase: Single phase
Maximum power single phase (KW): 4
Continuous power single phase (KW): 3.6
Maximum power single phase (KVA): 5
Continuous power single phase (KVA): 4.2
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 230
Engine: Kubota EA300
Engine rpm (rpm): 3000
Speed governor: Electronic
Engine capacity (cm³): 309
Number cylinders: 1
Oil capacity (L): 1.3
Cooling: Water
Motor insulation class: H
Length (mm): 600
Width (mm): 399
Height (mm): 406
Dry weight (Kg): 82
Silenced: Yes
Super silenced: Yes
Product type: Generator
Voltage regulator: Inverter
Engine manufacturer: Kubota

Details

FISCHER PANDA 5000I PMS MARINE GENERATOR

The Fischer Panda 5000i PMS is a compact marine generator, specifically designed for use on board vessels.
This Fischer Panda marine generator from the iSeries uses Perfect Power technology,
which provides precise voltage control through the iControl system. With a nominal power of 5 kVA and
a continuous power of 4.5 kVA, the Fischer Panda ensures a stable energy supply to meet the power needs
on board.

The Fischer Panda 5000i PMS operates at a frequency of 50 Hz and has a voltage tolerance of ±3%,
making it ideal for maintaining a steady current flow under variable operating conditions. The Kubota
KU EA300 single-cylinder engine, with a displacement of 309 cm³, powers this marine generator,
ensuring continuous and reliable performance.

The structure of the Fischer Panda generator is enclosed in a GFK 3D soundproof capsule, which reduces
onboard noise levels, with sound emissions of 54 dB(A) at 7 meters, making it a quiet and functional solution

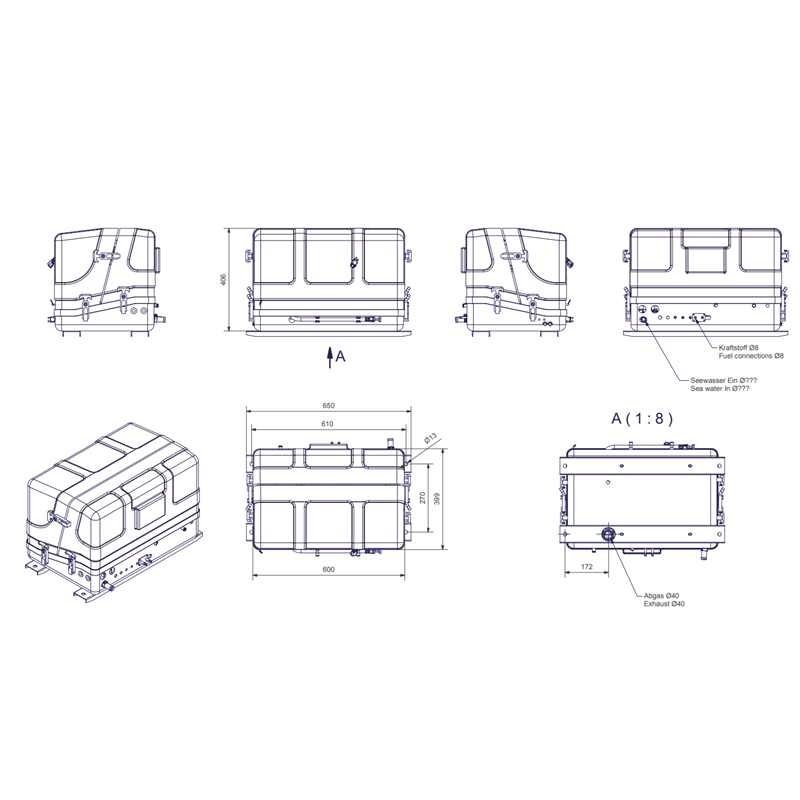

for marine environments. The Fischer Panda generator has compact dimensions of 600x399x406mm and
a weight of 82 kg, allowing for easy installation even in confined spaces.

The cooling system of the Fischer 5000i PMS is managed through freshwater and marine exhaust hoses,
with diameters of 20 mm for seawater and 40 mm for the exhaust hose, ensuring optimal efficiency of the
marine generator even during prolonged operation.

Technical Specifications of the Fischer Panda 5000i PMS:

Modell: Fischer Panda 5000i
Nominal voltage: 230V
Nominal power: 5 kVA
Continuous power: 4.5 kVA
Operating frequency: 50 Hz
Voltage tolerance: ±3%
Engine: Kubota KU EA300, 1 cylinder, displacement 309 cm³
Insulation system: GFK 3D with a noise level of 54 dB(A) at 7 meters
Total weight: 82 kg
Dimensions: 600 x 399 x 406 mm
Cooling hose diameter: 20 mm
Exhaust hose diameter: 40 mm

The Fischer Panda 5000i PMS is a reliable, compact marine generator, designed to provide consistent
performance and efficient installation on vessels of various sizes.

If you are looking for a marine generator like the Fischer 5000i, but with different technical specifications, CLICK HERE.

Images and technical data are non-binding.
