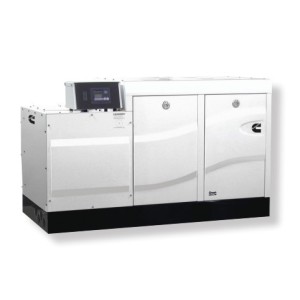

ONAN MDDCF MARINE GENERATOR SET 50 KW 0 KILOMETERS

CUMMINS ONAN MDDCY THREE PHASE MARINE GENERATOR SET 50 KW AVR SILENCED

Brand: CUMMINS ONAN

Reference: MDDCF

Condition: New product

Phase type: Three-phase

Power supply: Diesel

Three-phase power: 40 KW

Three-phase power: 50 KVA

Voltage: 230V/400V

Frequency: 50 Hz

24V

Rpm: 1500 rpm

Cooling: Liquid

Starting: Electric

Fuel consumption: 9 Lt/h at 75% load

Voltage regulator: AVR

Insulation class: H

Length: 1738 mm

Width: 840 mm

Height: 1039 mm

Weight: 1098 Kg

Supersilenced

Technical features

Phase: Three phase
Continuous power three phase (KW): 40
Continuous power three phase (KVA): 50
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 230 / 400
Engine: Cummins, 4 stroke
Engine rpm (rpm): 1500
Starting system: Electric
Engine capacity (cm³): 4500
Cooling: Water
Poles: 4
Consumption (L/h): 10.7 at 75% of the load / 14.7 at 100% of the load
Length (mm): 1078
Width (mm): 840
Height (mm): 1039
Dry weight (Kg): 109
Silenced: Yes
Super silenced: Yes
Product type: Generator
Voltage regulator: AVR
Engine manufacturer: Cummins
Precision of voltage regulation: ± 1%

Details

ONAN MDDCF MARINE GENERATOR SET 50 KW 0 KILOMETERS

CUMMINS ONAN MDDCF three-phase 50 KW marine generator with 1500 rpm motor. The CUMMINS ONAN MDDCF marine generator is designed with a soundproof enclosure that makes it supersilenced. The CUMMINS ONAN MDDCF is built with a Cummins 4-stroke diesel-powered engine. The alternator of the CUMMINS ONAN MDDCY is 4-pole with insulation class H and AVR voltage regulator. Due to its compactness and small size and weight it can be installed even on board of small boats. Due to its compactness it can be mounted on boats with narrow spaces.

Technical characteristics of CUMMINS ONAN MDDCF generator:
Phase type: Three phase
Power supply: Diesel
Three phase power: 40 KW
Three phase power: 50 KVA
Voltage: 230V/400V
Frequency: 50 Hz
24V
Rpm: 1500 rpm
Cooling: Liquid
Start: Electric
Fuel Consumption: 9 Lt/h at 75% load
Voltage regulator: AVR
Insulation class: H
Length: 1738 mm
Width: 840 mm
Height: 1039 mm
Weight: 1098 kg
Supersilenced

- Reliability, high quality and innovation make Cummins Onan the leader in the design and development of marine generators like the CUMMINS ONAN MDDCF, providing performance you can rely on.
- Quiet Diesel (QD) series digital models are the first marine generators with self-monitoring and network communication capabilities.
- The ONAN MDDCF's optional digital display offers user-friendly diagnostics, including detailed engine and alternator information, self-diagnostic functions and text displays.
- Marine generators like the CUMMINS ONAN MDDCF with advanced design and development processes use technology to reduce noise and vibration. Acoustic shields minimize noise and provide better sound quality output. Optimized mounting system greatly reduces vibration.
- Certified by the U.S. Environmental Protection Agency. (EPA) (60 Hz models only).

If you're looking for a boat product like the MDDCF marine generator, but with different technical features, then you can browse the entire catalog of marine generators.

Non-binding images and technical data.
