MASE MARINER 1460 S SILENCED MARINE GENERATOR 13.5KW

Name: MASE MARINER 1460 S SILENCED MARINE GENERATOR 13.5KW
SKU: MARINER 1460 S
Price: 10369 EUR
Availability: InStock

Brand: MASE

Reference: MARINER 1460 S

Condition: New product

Phase Type: Single Phase
Maximum Power: 14.6 KW
Fuel: Diesel
Voltage: 120 - 240 V
Frequency: 60 Hz
Engine: KUBOTA D1703, 4 Stroke
Mechanical Power: 24.3 Hp
Number of Cylinders: 3
Displacement: 1500 cc
Engine RPM: 1800 rpm
Fuel Consumption: 4. 5 l/h
Sound pressure: 52 dB(A) @ 7 m
Alternator: Synchronous Brushless
Voltage regulator: Yes
Length: 1040 mm
Width: 631 mm
Height: 694 mm
Weight: 390 Kg

Technical features

Phase: Single phase
Maximum power single phase (KW): 13.5
Fuel: Diesel
Frequency (Hz): 60
Voltage (V): 120 / 240
Engine: Yanmar 3TNV98, 4 stroke
Engine rpm (rpm): 1800
Engine capacity (cm³): 1642
Number cylinders: 3
Cooling: Air
Alternator: Synchronous, self-excited
Poles: 4
Consumption (L/h): 4 at 100% of the load
Acoustic pressure: 54 dB(A) at 7 m
Length (mm): 1040
Width (mm): 631
Height (mm): 694
Dry weight (Kg): 344
AVR: Yes
Silenced: Yes
Super silenced: Yes

Details

MASE MARINER 1460 S SILENCED MARINE GENERATOR 13.5KW

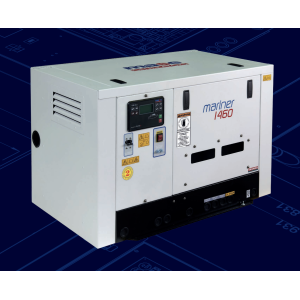

The MASE MARINER 1460 S is a silent marine generator designed to provide reliable and continuous power on board vessels. Thanks to its 1800 rpm diesel engine and 4-pole synchronous generator technology, this generator offers a maximum output of 13.5 kW and a continuous output of 12.3 kW, with adjustable voltage between 120V and 240V.

Main features:

Quietness: The soundproof marine aluminium cabin guarantees an extremely low noise level of only 54 dBA at a distance of 7 metres, ensuring acoustic comfort on board.

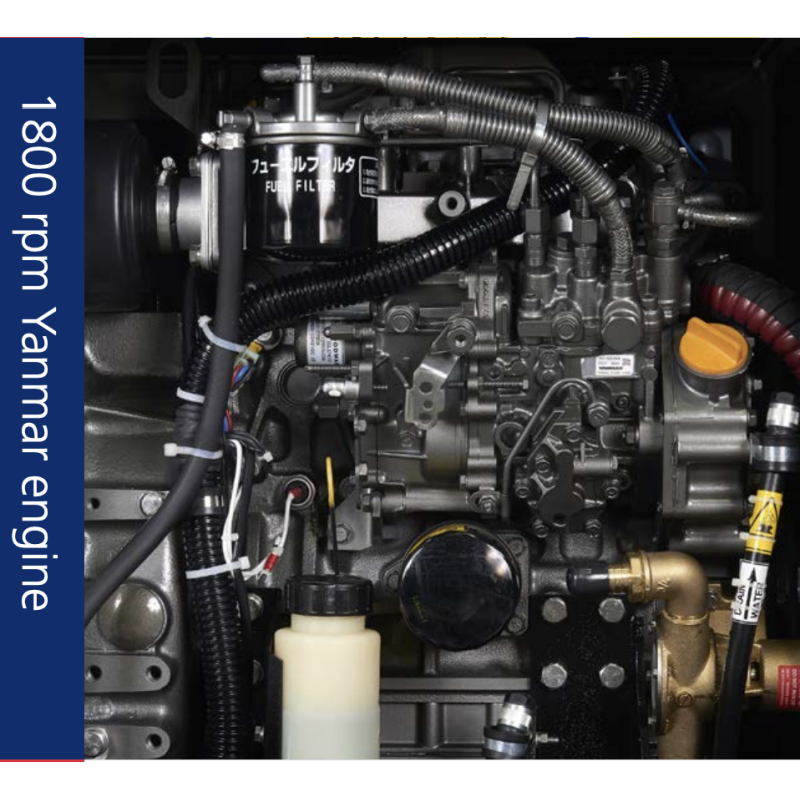

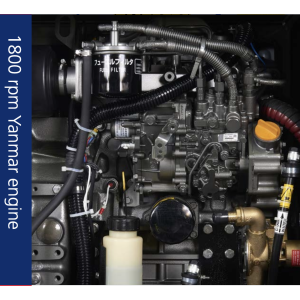

Reliability: The robust and reliable Yanmar 3TNV88 diesel engine is designed to operate in harsh marine environments. The cupronickel heat exchanger cooling system ensures efficient heat dissipation, while numerous safety systems protect the generator from malfunctions.

Compactness: With its compact dimensions (1040 x 631 x 694 mm) and a weight of only 344 kg, the MASE MARINER 1460 S is easy to install and operate on board.

Versatility: Thanks to its ability to operate in a wide range of temperatures and altitudes, and its IP23 protection, this generator is suitable for different types of vessels and operating conditions.

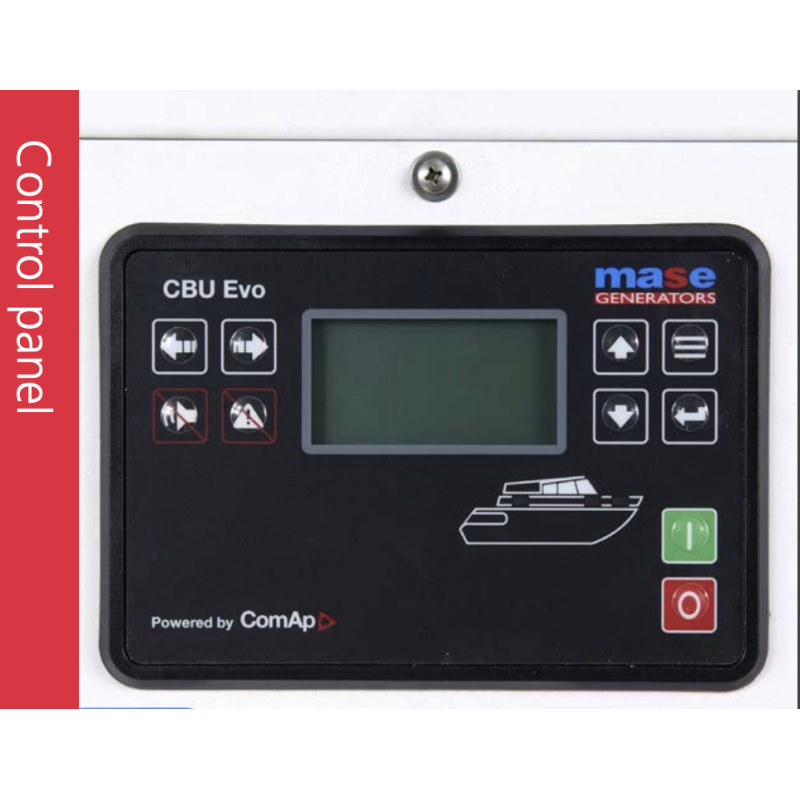

Control and Monitoring: The integrated digital controller allows complete monitoring of all generator parameters, ensuring optimal operation and signalling any anomalies.

Technical Specifications MASE MARINER 1460 S:

Diesel engine: 1800 rpm
Silenced version
AC generator - 60Hz: Type: synchronous, 4-pole, self-excited, brushless, with AVR
Cooling: air-cooled
Maximum power: 13.5 kW
Continuous power: 12.3 kW
Voltage (V): 120-240
Power factor: cos ф 1
Voltage stability: ±2%.
Frequency stability: ±5
Noise level: 54 dBA at 7mt
Insulation class: H
Ambient temperature: 40 °C - 104 °F ()
Altitude: 1000 mt
Mechanical protection: IP 23
Dimensions (L x W x H): 1040 x 631 x 694 mm
Dry weight: 344 kg
Maximum inclination: 30°
Water pump capacity: 25 lt/min
Cooling system: cupronickel exchanger (heat exchange between coolant and sea water)
Soundproof cabin

If you are looking for another marine generator then you can browse the entire catalog of marine generators .

Images and technical data are not binding.
