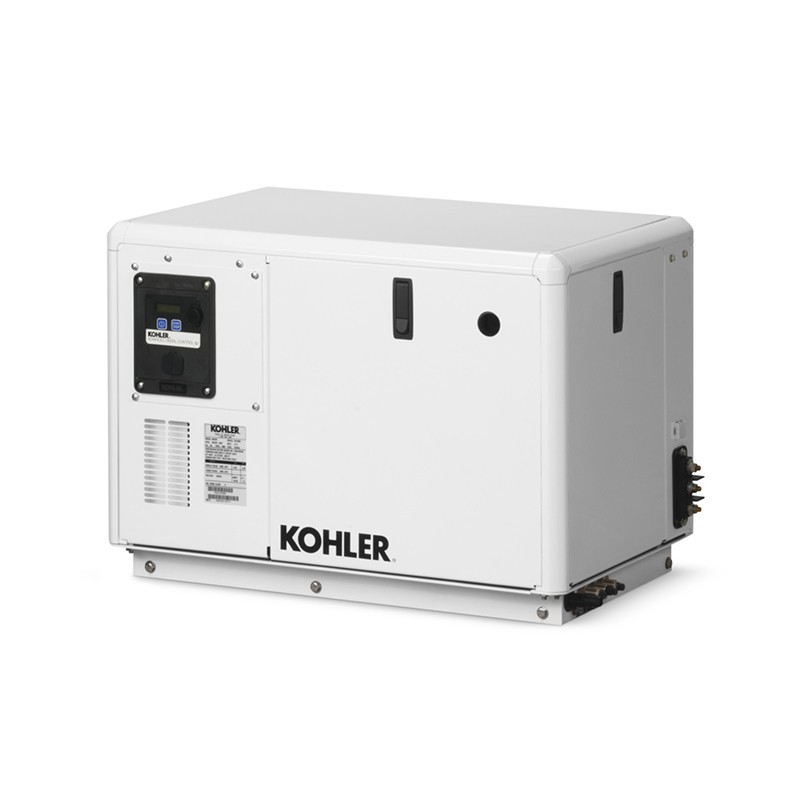

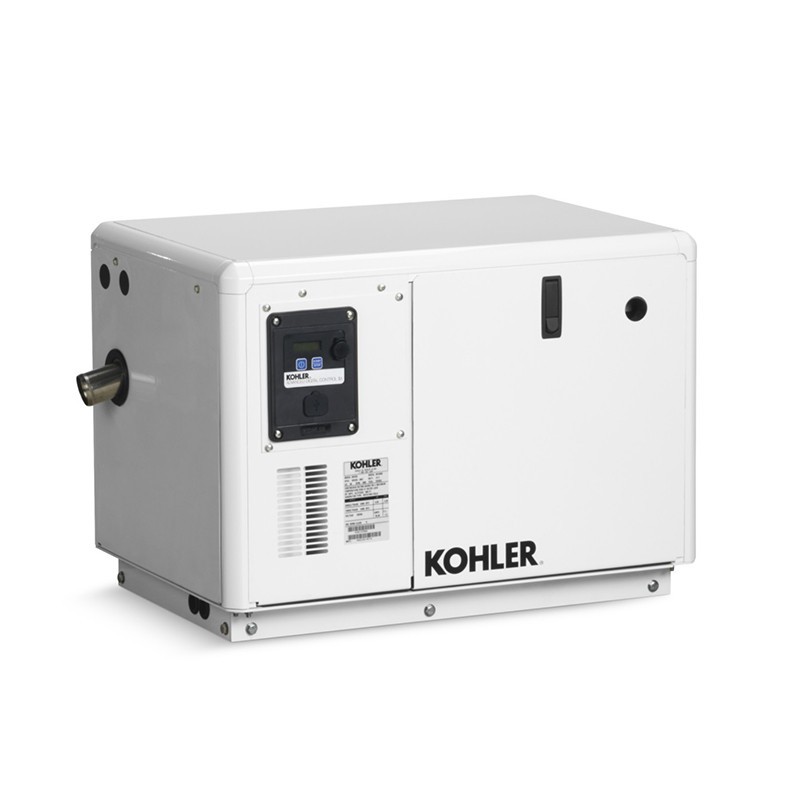

MARINE GENSET KOHLER 7EFKOZD Single-Phase 7 kVA

Super-silenced singlephase KOHLER 7EFKOZD marine generator 7 KVA AVR

Generator Kohler 7EFKOZD singlephase 7 KVA with 1500 rpm motor. The KOHLER 7EFKOZD single-phase marine generator is built with a soundproof enclosure that makes it supersilenced. The KOHLER 7EFKOZD single-phase marine generator is built with a 3-cylinder, 4-cycle, diesel-powered Kohler engine, closed cooling system with heat exchanger. The single-phase KOHLER 7EFKOZD marine generator alternator is brushless with AVR voltage regulator and water-cooled. The AVR voltage regulator protects your connected sensitive devices from power surges. With its small size, the 7EFKOZD marine generator is also suitable on boats of various sizes.

Main technical specifications of this nautical generator:
Phase Type: Single Phase
Power Supply: Diesel
Frequency: 50 Hz
Single-phase continuous power: 7 kW
Single-phase continuous power: 7 kVA
Voltage: choice of 115/230V, 230V or 240V
KoHLER 3-cylinder engine
Displacement: 1028 cc.
Revolutions per minute: 1500
Liquid-cooled
Length: 865 mm
Width: 528 mm
Height: 559 mm
Dry weight: 245 Kg

Features of the KOHLER 7EFKOZD generator

- 12-pole connector with remote start
- Class H insulation
- Multi-voltage adjustability
- 1.0% voltage regulation
- Radio suppression

Engine features of the KOHLER 7EFKOZD generator

- Diesel
- Environmental Protection Agency (EPA) certified for compliance with Tier III marine auxiliary standards (60 Hz model only)
- Three cylinders
- Four cycles
- Closed cooling system
- Heat exchanger
- Electric fuel lift pump
- Lifting eyelet
- Low oil pressure shutdown
- High temperature engine shutdown
- Low seawater pressure shutdown
- Vibromount
- Belt guard
- Disposable oil filter
- Oil drain valve
- Disposable fuel filter

Features of the KOHLER 7EFKOZD generator alternator

- Brushless rotating field design allows power to be obtained from stationary conductors.
- Windings are vacuum-impregnated with epoxy paint for reliability and long life.
- Rotors are dynamically balanced to minimize vibration.
- Copper windings ensure minimal heat buildup. Insulation meets NEMA standards for Class H insulation.
- Connected directly to the motor, the generator features sealed precision ball bearings with a precision machined steel sleeve in the end bracket to prevent shaft misalignment and extend bearing life.
- Mounted on a drip tray.
- Equipped with a four-conductor reconnectable stator.

Other marine generators such as the KOHLER 7EFKOZD can be found by browsing the entire catalog of marine generators.

Pictures and technical data are not binding.
