GENERATING SET 100KVA WITH AUTOMATIC CONTROL PANEL STAGE 2A

  • New
GRUPPO ELETTROGENO 100 kva
search
  • GRUPPO ELETTROGENO 100 kva

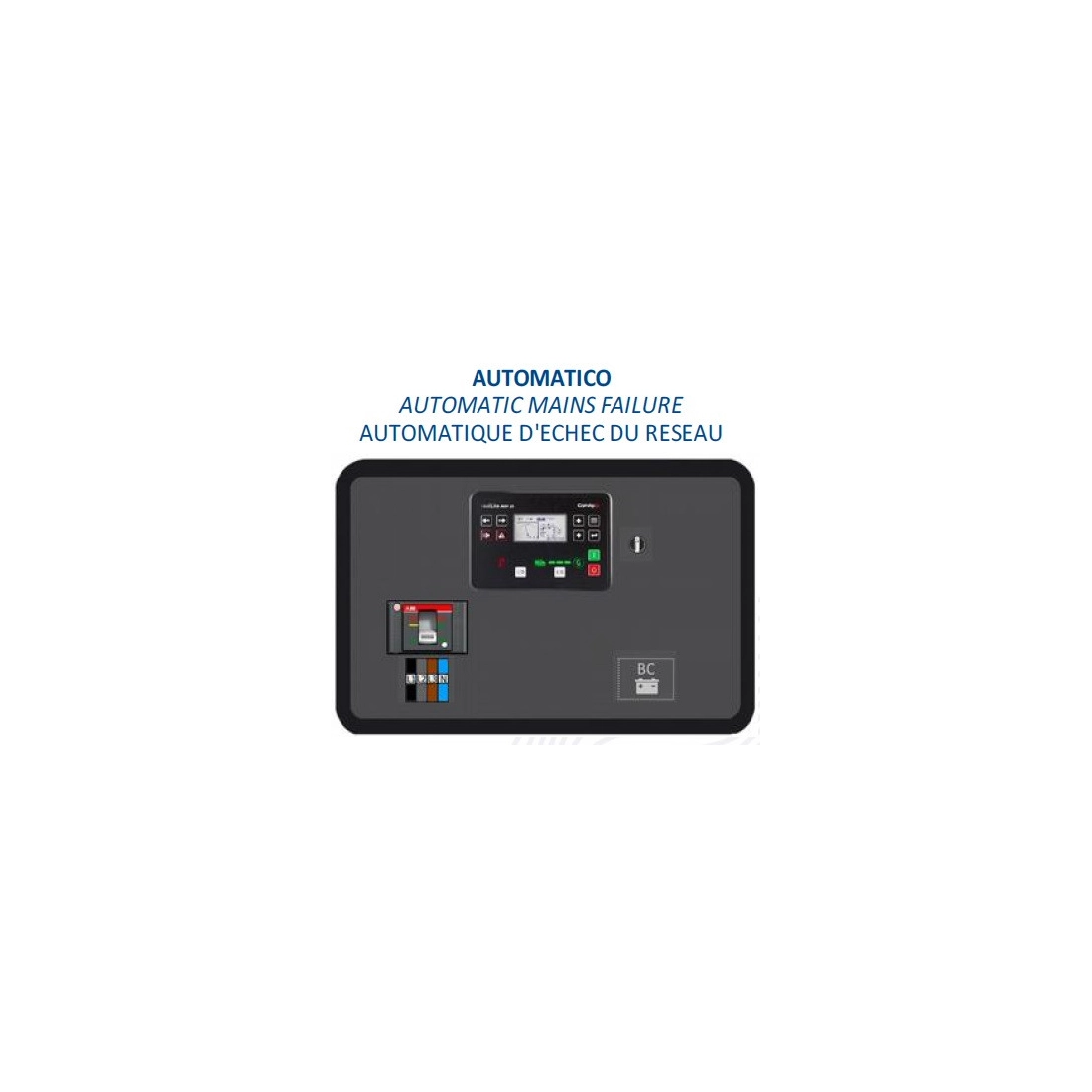

  • AUTOMATIC CONTROL PANEL
NO BRAND
100KVA Automatico FPT
New product

Phase type: Single-phase / Three-phase
Maximum three-phase power: 88 KW / 110 KVA
Three-phase continuous power: 80 KW / 100 KVA
Maximum single-phase power: 29.33 KW / 36.67 KVA
Single-phase continuous use power: 26.67 KW / 33.33 KVA
Fuel: Diesel
Voltage: 230 V / 400 V
Frequency: 50 Hz
Motor: FPT NEF N45TM2A
Engine speed: 1500 rpm
Starting: Electric
Consumption: 15.5 Lt/h at 75% load
Length: 2300 mm
Width: 1050 mm
Height: 1590 mm
Weight: 1410 Kg
Super-silenced
AVR
Emissions regulations: Stage 2A

Technical features
Phase
Single phase / Three phase
Maximum power single phase (KW)
29.33
Continuous power single phase (KW)
26.67
Maximum power single phase (KVA)
36.6
Continuous power single phase (KVA)
33.33
Maximum power three phase (KW)
88
Continuous power three phase (KW)
80
Maximum power three phase (KVA)
110
Continuous power three phase (KVA)
100
Fuel
Diesel
Frequency (Hz)
50
Voltage (V)
230 / 400
Sockets configuration
Terminal box
Engine
FPT (IVECO) NEFN45TM2A
Emissions Regulations
Stage 2
Engine rpm (rpm)
1500
Speed governor
Mechanical
Starting system
Electric
Engine capacity (cm³)
4500
Number cylinders
4
Cooling
Water
Alternator
Brushless
Poles
4
Protection degree
IP44
Bore x stroke (mm)
104 x 132
Fuel tank capacity (L)
120
Consumption (L/h)
15.5
Running time (h)
7.7
Acoustic pressure
69 dB(A) at 7 m
Length (mm)
2300
Width (mm)
1050
Height (mm)
1590
Dry weight (Kg)
1410
AVR
Yes
Silenced
Yes
Super silenced
Yes
Product type
Generator
ATS Switch device
No
Voltage regulator
AVR
Engine manufacturer
FPT Iveco
Details

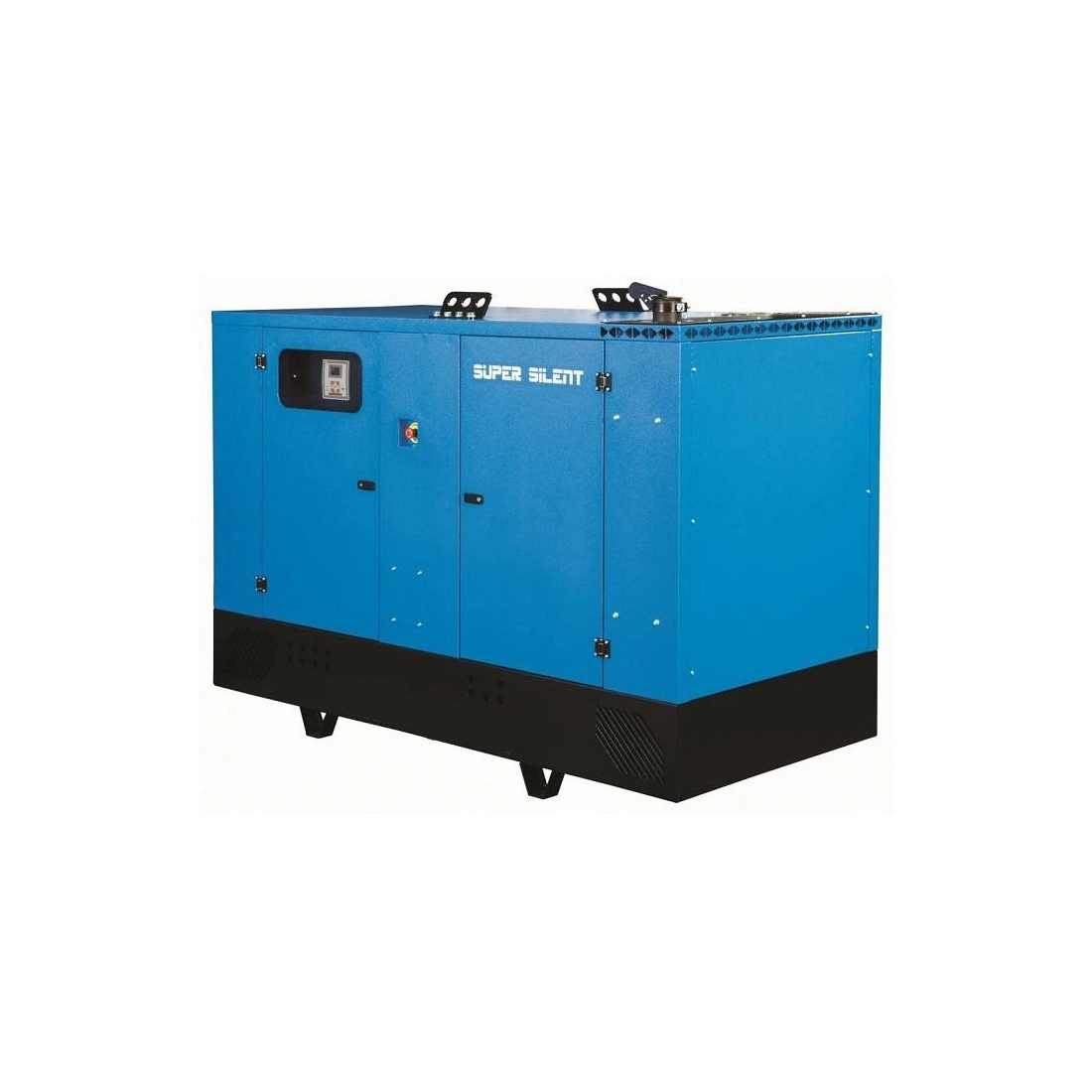

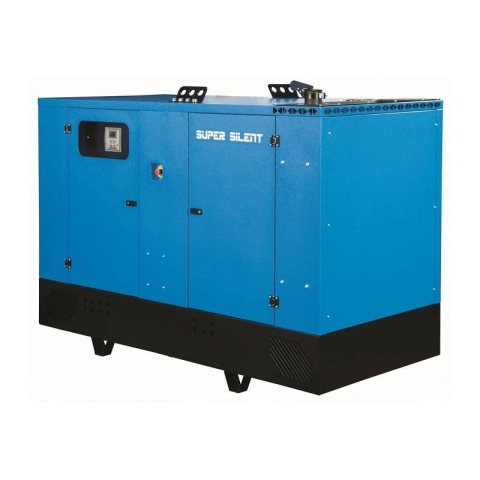

Single/three-phase 100KVA generator super-silenced with automatic control panel Stage 2A


Technical characteristics of the generator with automatic control panel Stage 2A:
Phase type: Single-phase / Three-phase
Maximum three-phase power: 88 KW / 110 KVA
Three-phase continuous power: 80 KW / 100 KVA
Maximum single-phase power: 29.33 KW / 36.67 KVA
Single-phase continuous use power: 26.67 KW / 33.33 KVA
Fuel: Diesel
Voltage: 230 V / 400 V
Frequency: 50 Hz
Motor: FPT NEF N45TM2A
Engine speed: 1500 rpm
Starting: Electric
Consumption: 15.5 Lt/h at 75% load
Length: 2300 mm
Width: 1050 mm
Height: 1590 mm
Weight: 1410 Kg
Super-silenced
AVR
Emissions regulations: Stage 2A


if you are looking for a product similar to this generator click here.

Images and technical data are not binding.
