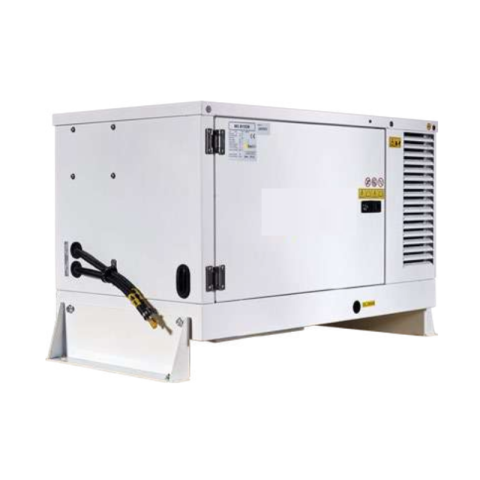

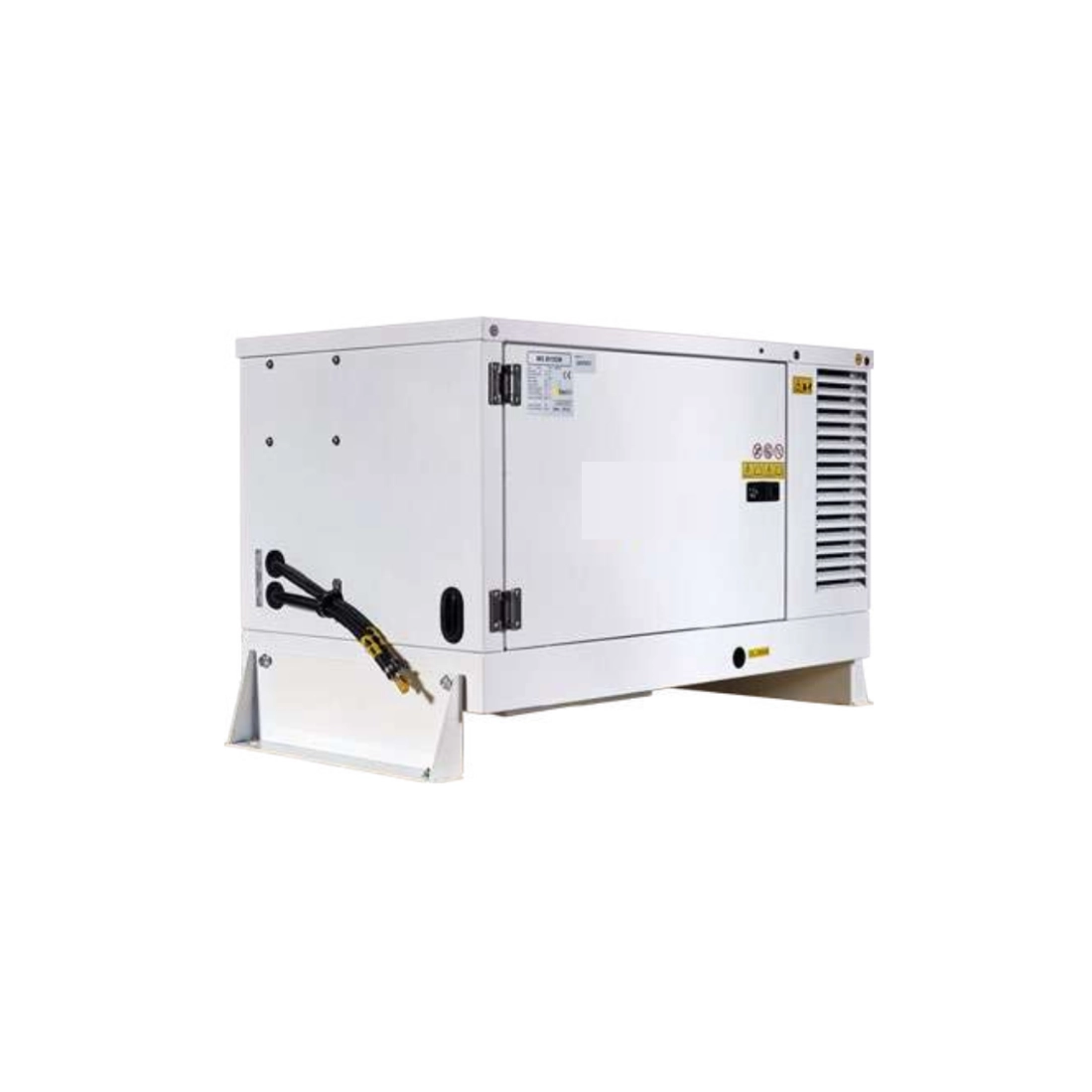

VEHICULAR GENERATOR 10.3 KVA STAGE V

  • New
vehicular generator 103 kva stage v
search
  • vehicular generator 103 kva stage v

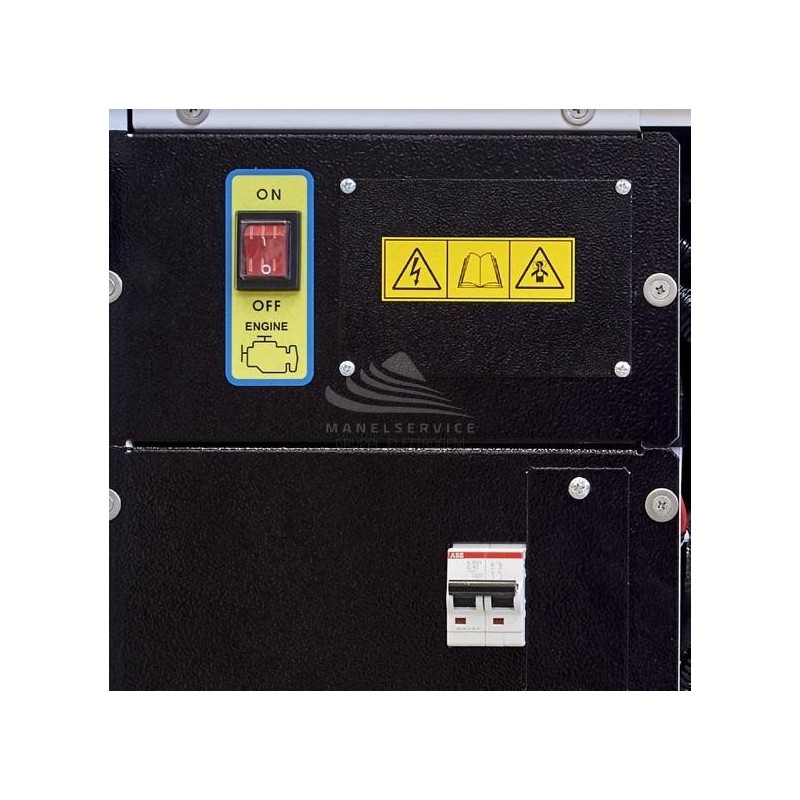

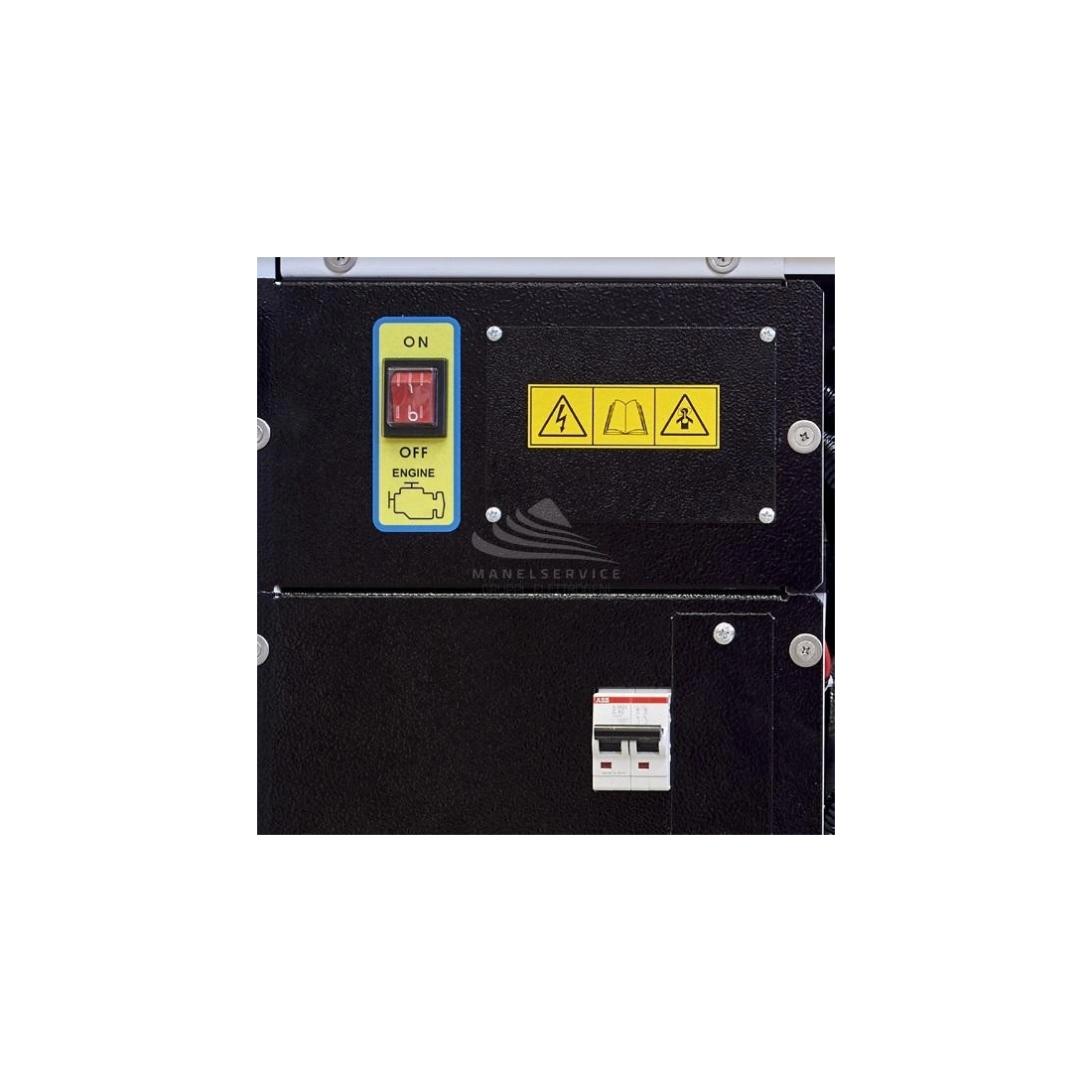

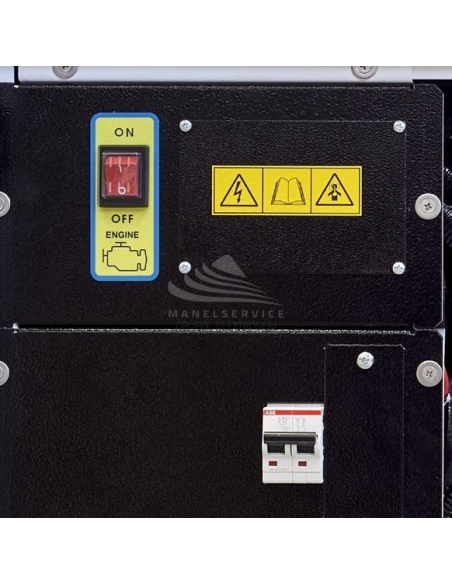

  • GENSET MG 9010 DM - Control panel

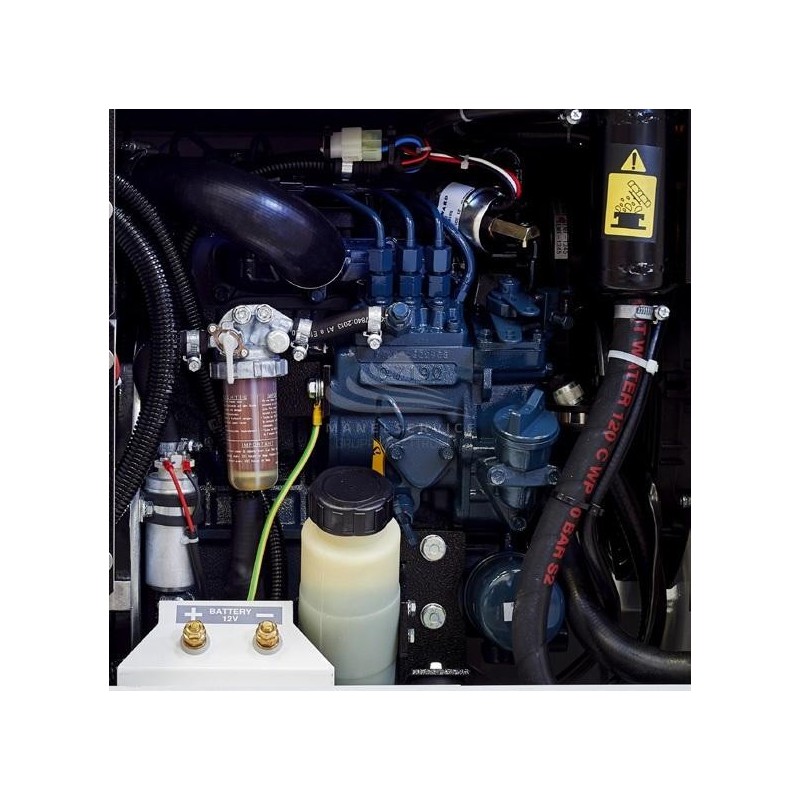

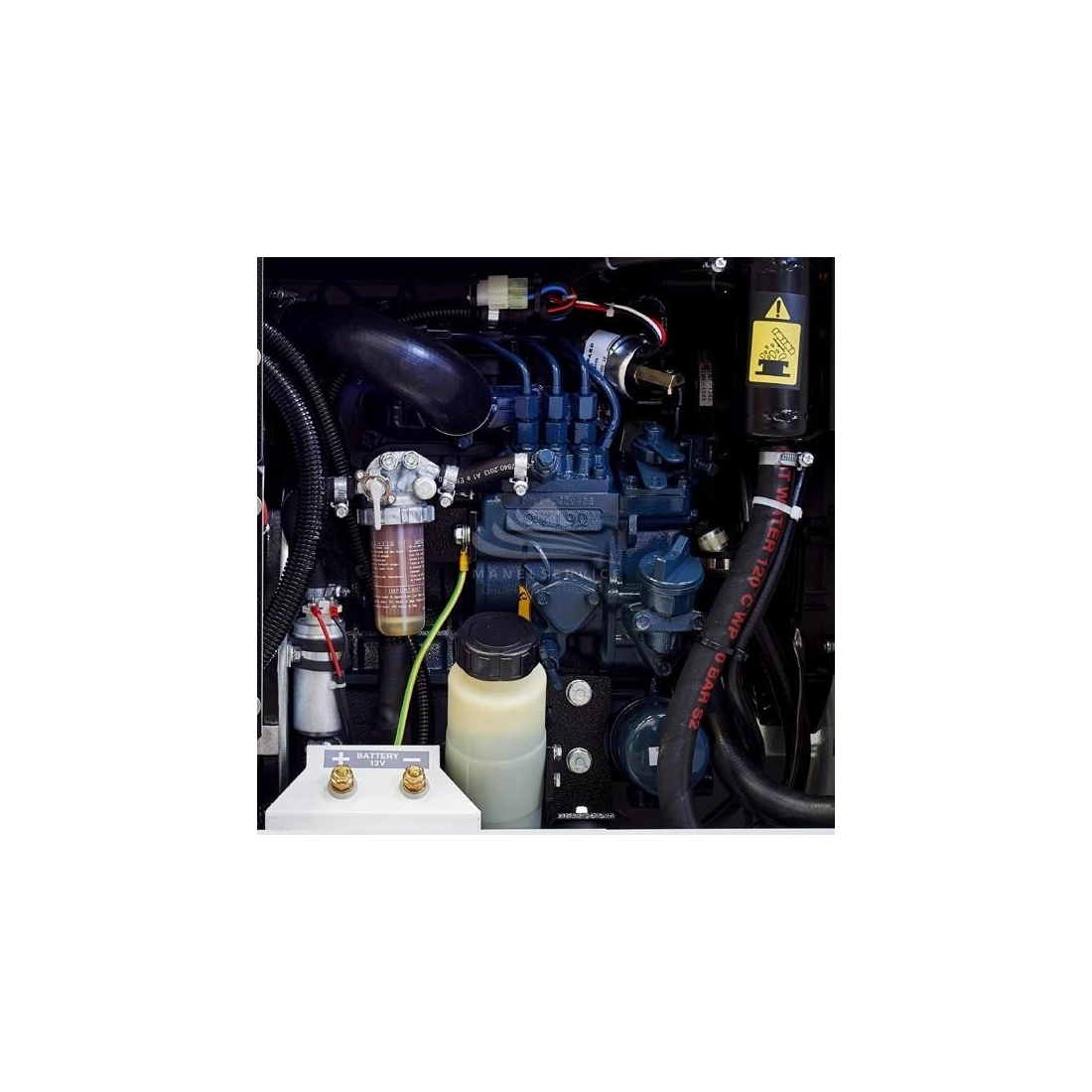

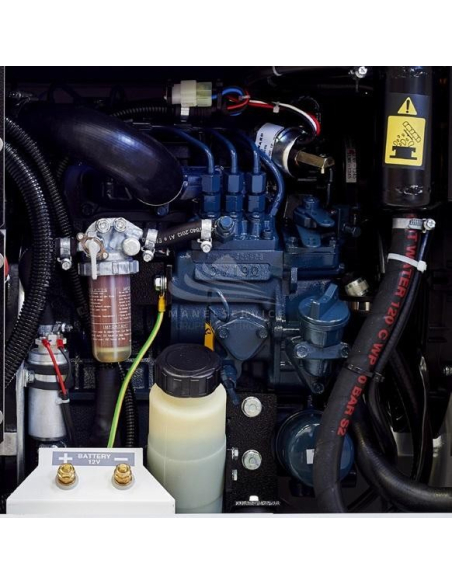

  • GENSET MG 9010 DM - Kubota engine

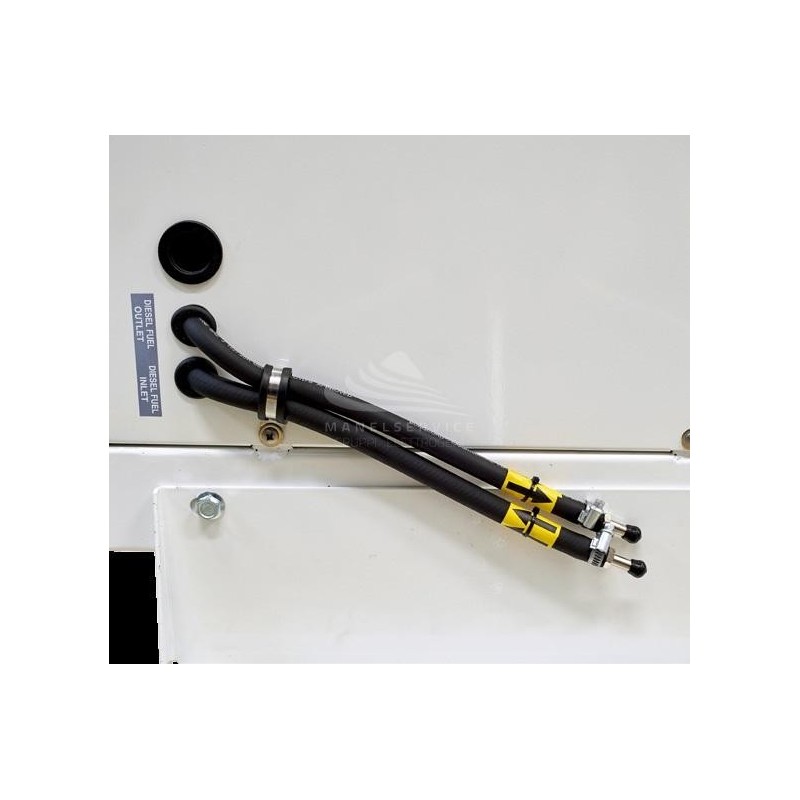

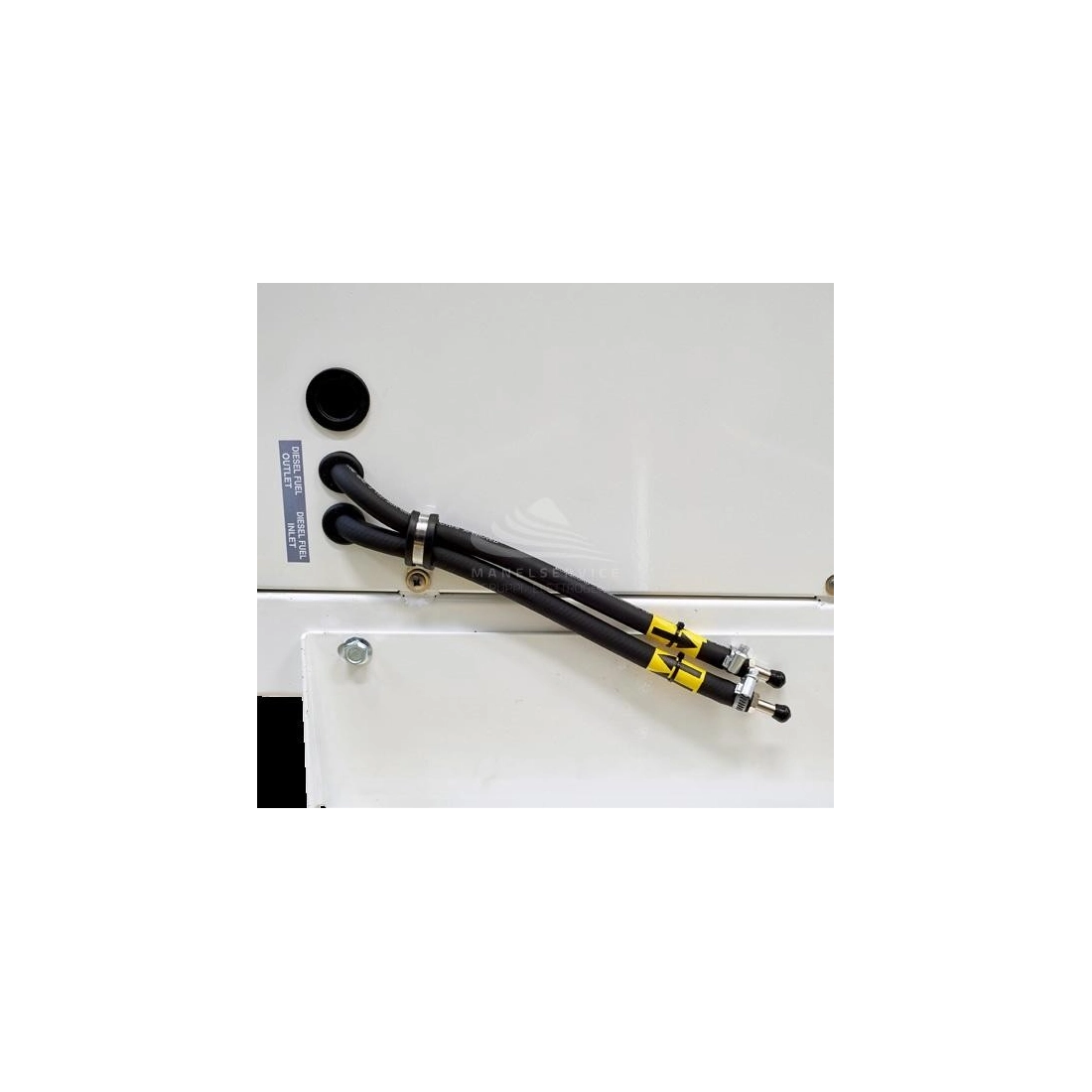

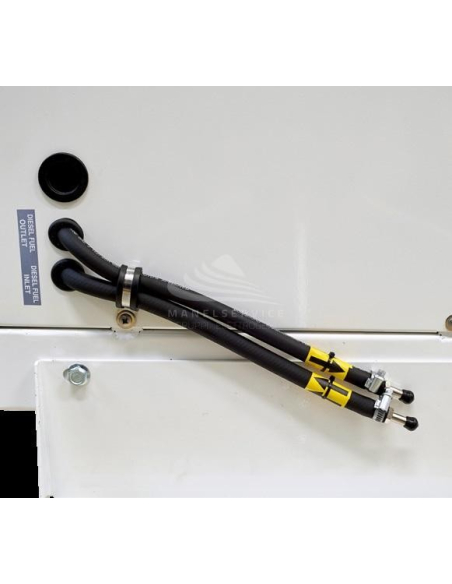

  • GENSET MG 9010 DM - Fuel inlet and outlet
NO BRAND
GEV10-3KVA
New product

Maximum power Single-phase: 10.3 KVA
Maximum power Single-phase: 8.24 KW
Fuel: Diesel
Voltage: 230 V
Frequency: 50 Hz
Engine: Kubota D722 (STAGE V)
Starting: Electric
Consumption: 3.3 Lt/h
Length: 1010 mm
Width: 550 mm
Height: 560 mm
Weight: 220 Kg

Technical features
Phase
Single phase
Maximum power single phase (KW)
8.24
Maximum power single phase (KVA)
10.3
Fuel
Diesel
Frequency (Hz)
50
Voltage (V)
230
Engine
KUBOTA D722, 4 stroke
Emissions Regulations
Stage 5
Engine rpm (rpm)
3000
Starting system
Electric
Engine capacity (cm³)
719
Number cylinders
3
Cooling
Water
Alternator
Synchronous
Protection degree
IP23
Motor insulation class
H
Consumption (L/h)
3.3
Acoustic power
87 dB(A)
Acoustic pressure
62 dB(A) at 7 m
Length (mm)
1010
Width (mm)
550
Height (mm)
560
Dry weight (Kg)
220
Silenced
Yes
Super silenced
Yes
Product type
Generator
ATS Switch device
No
Voltage regulator
No
Engine manufacturer
Kubota
Details

VEHICULAR genset 10.3 KVA STAGE V

Vehicle Generator Set 10.3 KVA: Power and Compactness for Your Needs on the Move

The 10.3 KVA Vehicle Generating Set is the ideal solution for those who need a reliable and compact power source to be installed on commercial or work vehicles.

Main features:

High single-phase power:
Maximum single-phase power: 10.3 KVA (8.24 kW)
Kubota D722 engine (STAGE V): Reliable, high-performance,
water-cooled 2-cylinder diesel engine complying with the latest STAGE V emission standards.
Electric start: Quick and easy key-operated start.
Efficient consumption: Low fuel consumption (3.3 Lt/h) for optimum autonomy.
Compact and lightweight design: Easy to install on vehicles of different sizes.
Robust construction: Durable construction for safe and long-lasting use.

Technical characteristics VEHICULAR Generator Set 10.3 KVA STAGE V:

Maximum power Single-phase: 10.3 KVA
Maximum power Single-phase: 8.24 KW
Fuel: Diesel
Voltage: 230 V
Frequency: 50 Hz
Engine: Kubota D722 (STAGE V)
Starting: Electric
Consumption: 3.3 Lt/h
Length: 1010 mm
Width: 550 mm
Height: 560 mm
Weight: 220 Kg

If you are looking for a similar product to genset with different characteristics CLICK HERE.

Images and technical data not binding.

List price
21.899,00 € tax incl.
17.950,00 € tax excl.
Discounted Price
12.921,02 € tax incl.
10.591,00 € tax excl.
