VEHICLE GENERATOR SET 14KWA STAGE V
Maximum single-phase power: 11.2 KW
Maximum single-phase power: 14 kva
Fuel: Diesel
Voltage: 230 V
Engine: Yanmar 3TNV88 (STAGE V)
consumption: 2.7 l/h
Length: 1440 mm
Width: 650 mm
Height: 810 mm
Weight: 485 kg
Protection class: IP 23
Ambient temperature: 40 degrees
- Phase
- Single phase
- Maximum power single phase (KW)
- 11.2
- Continuous power single phase (KW)
- 10.2
- Fuel
- Diesel
- Voltage (V)
- 230
- Engine
- Yanmar
- Emissions Regulations
- Stage 5
- Engine rpm (rpm)
- 1500
- Starting system
- Electric
- Engine capacity (cm³)
- 1642
- Number cylinders
- 3
- Cooling
- Water
- Alternator
- Synchronous
- Consumption (L/h)
- 2.7
- Acoustic power
- 87 dB(A)
- Acoustic pressure
- 62 dB(A) at 7 m
- Length (mm)
- 1440
- Width (mm)
- 650
- Height (mm)
- 810
- Dry weight (Kg)
- 485
- Silenced
- Yes
- Super silenced
- Yes
- ATS Switch device
- No
- Voltage regulator
- AVR
- Engine manufacturer
- Yanmar

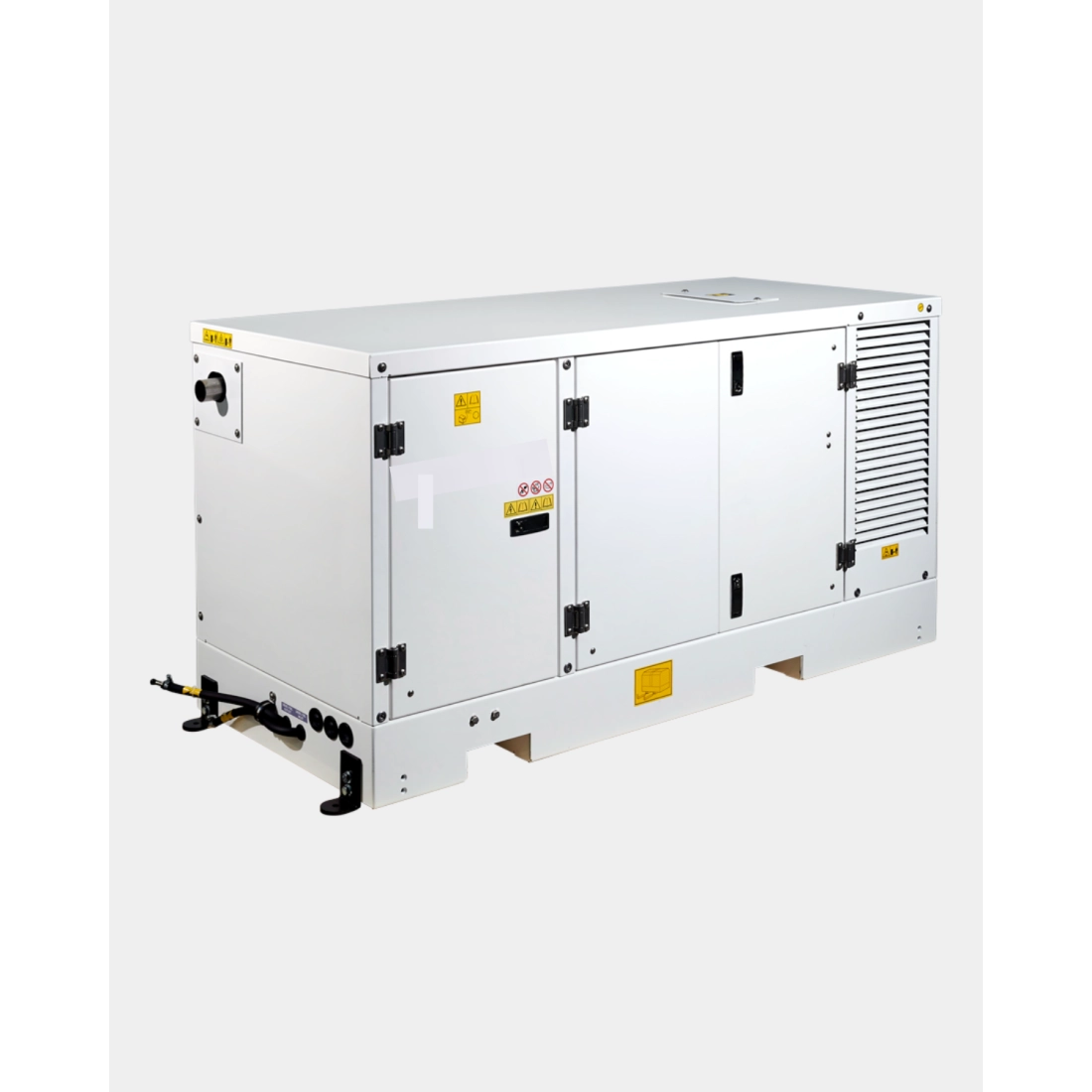

VEHICLE GENSET 14KWA STAGE V
Vehicle Generator Set 14 KVA STAGE V: Power and Quietness for Your Needs on the Move
The STAGE V 14 KVA Vehicle Generator Set is the ideal solution for those who need a reliable,
powerful and silent power source to be installed in commercial or work vehicles.
Main features:
High single-phase power:
Maximum single-phase power: 14 KVA (11.2 kW)
Yanmar 3TNV88 (STAGE V) engine: Reliable, high-performance,
water-cooled 3-cylinder diesel engine complying with the latest STAGE V emission standards.
Efficient consumption: Low fuel consumption (2.7 l/h) for optimal autonomy.
Compact and lightweight design: Easy to install on vehicles of different sizes.
Robust construction: Durable construction for safe and long-lasting use.
Quiet operation: Soundproof design for minimal noise impact.
Protection class IP 23: Protection against penetration by solids and water.
Ambient operating temperature: 40°C: Suitable for warm and airy climates.
Technical characteristics 14KWA STAGE V VEHICULAR ELECTRIC GENERATOR UNIT
Maximum single-phase power: 11.2 KW
Maximum single-phase power: 14 kva
Fuel: Diesel
Voltage: 230 V
Engine: Yanmar 3TNV88 (STAGE V)
consumption: 2.7 l/h
Length: 1440 mm
Width: 650 mm
Height: 810 mm
Weight: 485 kg
Protection class: IP 23
Ambient temperature: 40 degrees
If you are looking for a product with different technical characteristics click.
- Phase
- Single phase
- Maximum power single phase (KW)
- 11.2
- Continuous power single phase (KW)
- 10.2
- Fuel
- Diesel
- Voltage (V)
- 230
- Engine
- Yanmar
- Emissions Regulations
- Stage 5
- Engine rpm (rpm)
- 1500
- Starting system
- Electric
- Engine capacity (cm³)
- 1642
- Number cylinders
- 3
- Cooling
- Water
- Alternator
- Synchronous
- Consumption (L/h)
- 2.7
- Acoustic power
- 87 dB(A)
- Acoustic pressure
- 62 dB(A) at 7 m
- Length (mm)
- 1440
- Width (mm)
- 650
- Height (mm)
- 810
- Dry weight (Kg)
- 485
- Silenced
- Yes
- Super silenced
- Yes
- ATS Switch device
- No
- Voltage regulator
- AVR
- Engine manufacturer
- Yanmar
