GENSET SILENCED 33 KVA

  • New
GENSET SILENCED 33 KVA
search
  • GENSET SILENCED 33 KVA
NO BRAND
GES33KVA
New product

Type of phase: Three-phase
Three-phase continuous power: 24 kW
Three-phase continuous power: 30 kVA
Maximum three-phase LTP power: 26.4 kW
Maximum three-phase LTP power: 33 kVA
Fuel: Diesel
Voltage: 230V/400V
Frequency: 50 Hz
Manufacturer and type: Baudouin 4M06G35/5
1500 rpm
Displacement: 2300 cc.
Alternator MECC ALTE ECP28-VL4 4 poles
Noise level at 7 m: 70 dB(A)
Tank: 100 Lt.
Length: 2100 mm
Width: 870 mm
Height: 1165 mm
Dry weight: 940 Kg. approx.
Emission level: not emitted

Technical features
Phase
Three phase
Maximum power three phase (KW)
26.4
Continuous power three phase (KW)
24
Maximum power three phase (KVA)
33
Continuous power three phase (KVA)
30
Fuel
Diesel
Frequency (Hz)
50
Voltage (V)
230 / 400
Engine
Baudouin 4M06G35/5
Emissions Regulations
Not Emitted
Engine rpm (rpm)
1500
Speed governor
Electronic
Starting system
Electric
Engine capacity (cm³)
2300
Number cylinders
4
Alternator
MECC ALTE ECP28-VL/4
Poles
4
Protection degree
IP23
Motor insulation class
H
Fuel tank capacity (L)
100
Consumption (L/h)
5.61 at 75% of the load
Acoustic pressure
70 dB(A) at 7 m
Length (mm)
2100
Width (mm)
870
Height (mm)
1165
Dry weight (Kg)
940
Silenced
Yes
ATS Switch device
Optional
Engine manufacturer
Baudouin
Details

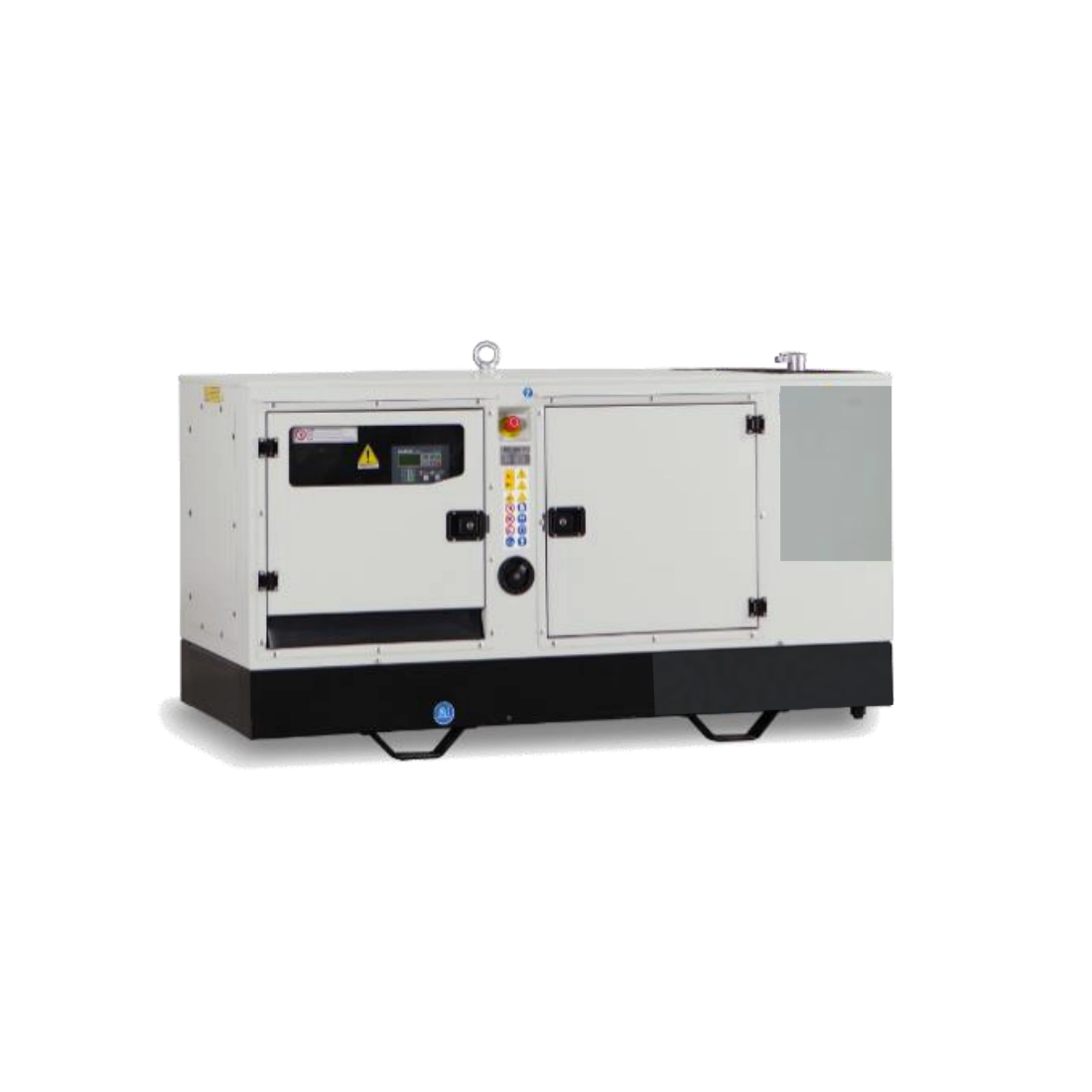

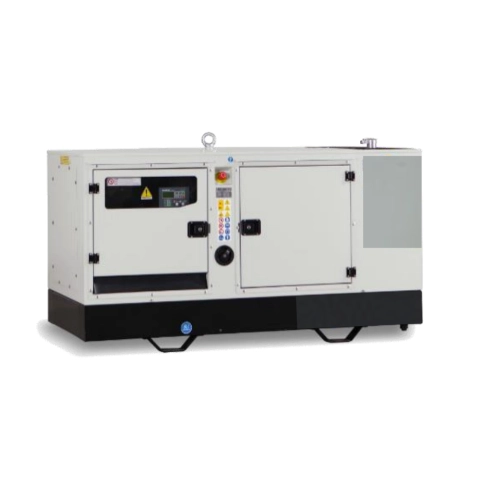

GENSET  SILENCED 33 KVA

SILENCED GENERATOR 33 KVA: Power and Reliability at your fingertips

The SILENCED GENERATING UNIT 33 KVA is a powerful electric generator designed to provide reliable and silent emergency or continuous power. With a maximum output of 33 kVA and a Baudouin 4M06G35/5 diesel engine, this generator set is the ideal solution for a wide range of applications, both domestic and industrial.

Key features:

Powerful and reliable: The Baudouin diesel engine ensures high performance and a long service life.

Quiet: Thanks to its soundproof housing, the noise level at 7 metres is only 70 dB(A), ensuring discrete operation.

Versatile: The 230V/400V output voltage and 50 Hz frequency make it compatible with most household appliances and equipment.

Autonomy: The 100-litre tank guarantees a long operating autonomy.

Compact dimensions: With its small size (2100x870x1165 mm), it can be easily transported and installed.

Low emissions: The engine complies with emission regulations, respecting the environment.

Technical characteristics SILENCED ELECTRROGEN GROUP 33 KVA:

Type of phase: Three-phase
Three-phase continuous power: 24 kW
Three-phase continuous power: 30 kVA
Maximum three-phase LTP power: 26.4 kW
Maximum three-phase LTP power: 33 kVA
Fuel: Diesel
Voltage: 230V/400V
Frequency: 50 Hz
Manufacturer and type: Baudouin 4M06G35/5
1500 rpm
Displacement: 2300 cc.
Alternator MECC ALTE ECP28-VL4 4 poles
Noise level at 7 m: 70 dB(A)
Tank: 100 Lt.
Length: 2100 mm
Width: 870 mm
Height: 1165 mm
Dry weight: 940 Kg. approx.
Emission level: not emitted

If you are looking for a product with similar characteristics CLICK HERE.

Non-binding images and technical data.
