GENERATOR 110KVA SINGLE/THREE PHASE AVR

  • New
 generator 110kva singlethree phase avr
search
  •  generator 110kva singlethree phase avr
NO BRAND
GE110KVAMT
New product

Type of phase: Single-phase / Three-phase
Continuous use power: 100 KVA / 80 KW
Maximum power: 110 KVA / 88 KW
Motor: Baudouin 4M11G120 / 5
Revs engine: 1500 rpm
Emissions regulations: Not Emitted
Starting: Electric / Automatic
Fuel: Diesel
Voltage available at terminals: 230/400 V
Frequency: 50 Hz
Voltage regulator: AVR
Tank capacity: 130 l
Autonomy at 75% of the load: 8.12 h
Consumption at 75% of the load: 16 Lt / h
Sound pressure: 64 dB (A) @ 7 m
Length: 2500 mm
Width: 1000 mm
Height: 1420 mm
Dry weight: 1600 Kg

Technical features
Phase
Single phase / Three phase
Maximum power three phase (KW)
88
Continuous power three phase (KW)
80
Maximum power three phase (KVA)
110
Continuous power three phase (KVA)
100
Fuel
Diesel
Frequency (Hz)
50
Voltage (V)
230 / 400
Engine
Baudouin 4M11G120/5
Emissions Regulations
Stationary Use
Engine rpm (rpm)
1500
Speed governor
Electronic
Starting system
Electric / Automatic
Engine capacity (cm³)
4087
Number cylinders
4
Cylinders' position
In line
Cooling
Water
Poles
4
Fuel tank capacity (L)
130
Consumption (L/h)
16 at 75% load
Running time (h)
8.12 at 75% load
Length (mm)
2500
Width (mm)
1000
Height (mm)
1400
Dry weight (Kg)
1600
Silenced
Yes
Super silenced
Yes
ATS Switch device
Optional
Voltage regulator
AVR
Details

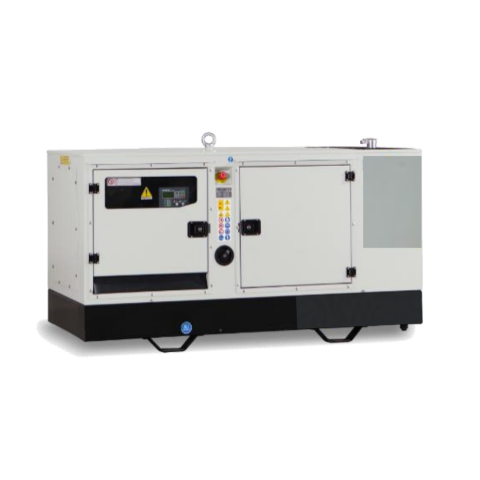

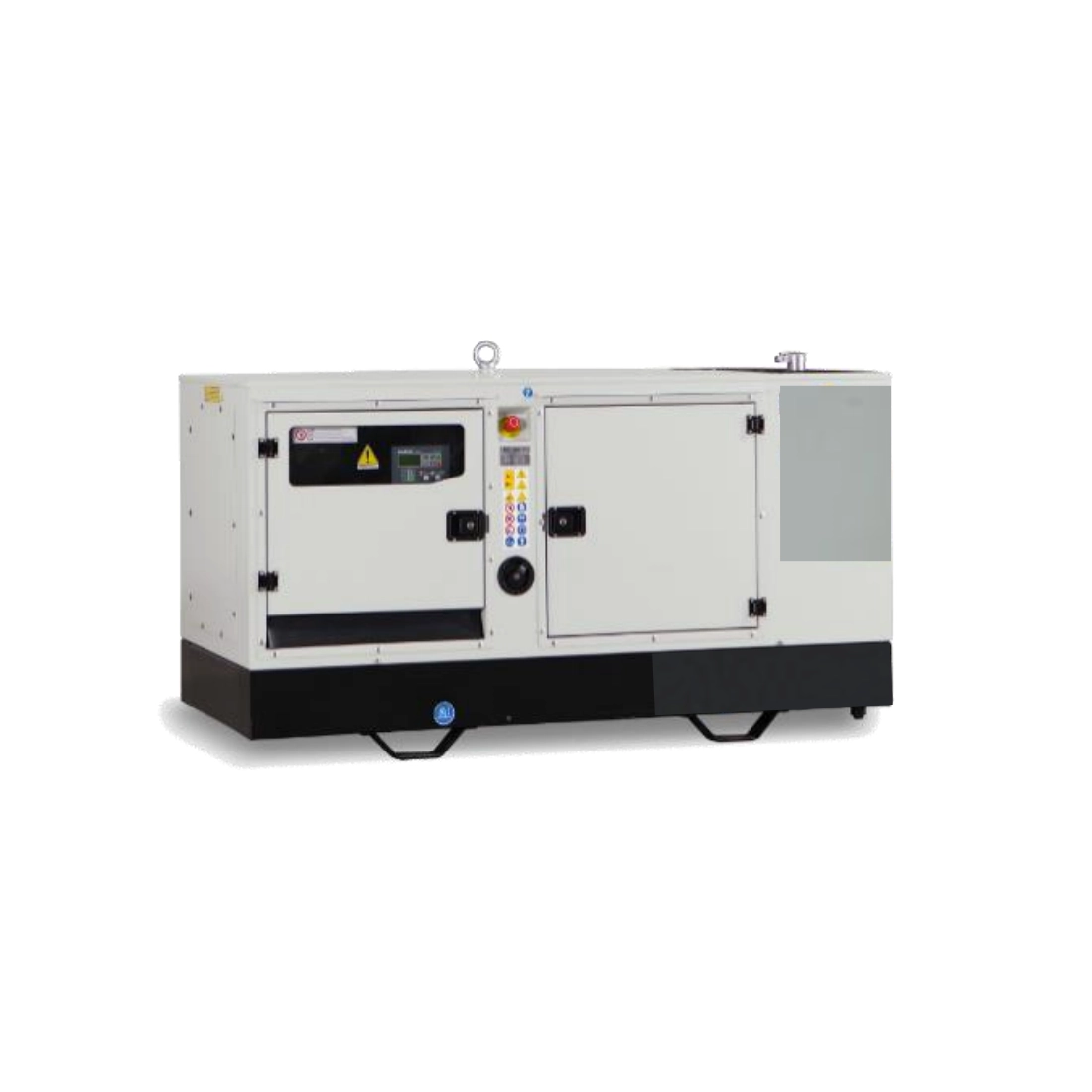

GENERATING SET 110KVA SINGLE/THREE-PHASE

The 110KVA single/three-phase genset is equipped with a Baudouin 4M11G120/5 Diesel-powered engine, capable of delivering 110KVA power, complete with AVR voltage regulator.

This unit is equipped with a soundproofed cabin, made of 20/10 thick carbon steel, bent and electro-welded, with protection class IP23 and openable in two sections. This cabin allows an incredible reduction in noise pollution, achieving a sound pressure of only 64 dB(A) recorded at a distance of 7 metres. The genset guarantees efficient and silent operation thanks to the Baudouin 4M11G120/5 engine, which can deliver a maximum power of 110KVA.

TECHNICAL CHARACTERISTICS 110KVA single/three-phase genset:

Phase type: Single-phase / Three-phase
Continuous use power: 100 KVA / 80 KW
Maximum power: 110 KVA / 88 KW
Motor: Baudouin 4M11G120/5
Motor speed: 1500 rpm
Emission standard: Not Emitted
Starter: Electric / Automatic
Fuel: Diesel
Voltage available at terminals: 230 / 400 V
Frequency: 50 Hz
Voltage regulator: AVR
Tank capacity: 130 l
Autonomy at 75% load: 8.12 h
Consumption at 75% load: 16 Lt/h
Acoustic pressure: 64 dB(A) @ 7 m
Length: 2500 mm
Width: 1000 mm
Height: 1420 mm
Dry weight: 1600 Kg

Are you looking for a generator with different technical characteristics? HERE you can find the area dedicated to generating sets of specialized brands.

Non-binding images and technical data.

List price
24.936,80 € tax incl.
20.440,00 € tax excl.
Discounted Price
14.713,20 € tax incl.
12.060,00 € tax excl.
